ADT PCIe 4.0 x16 MCIO Graphics Card Split Card Extender Cable GEN4 PCI-E X16 to X8 X8 Bifurcation Adapter Riser Card SFF-TA-1016 Item NO.: F53980-B3 F53981-B3 F53982-B3

US$ 25.53

Version

Quantity: Stock ( 29999997 )

Estimate Shipping Cost

ADT PCIe 4.0 x16 MCIO Graphics Card Split Card Extender Cable GEN4 PCI-E X16 to X8 X8 Bifurcation Adapter Riser Card SFF-TA-1016

Product Name	ADT PCIe 4.0 x16 MCIO Graphics Card Split Card Extender Cable GEN4 PCI-E X16 to X8 X8 Bifurcation Adapter Riser Card SFF-TA-1016
Item NO.	F53980-B3 F53981-B3 F53982-B3
Weight	0.09 kg = 0.1984 lb = 3.1747 oz
Category	Computer Accessories
Brand	ADT-Link
Creation Time	2025-04-16

ADT PCIe 4.0 x16 MCIO Graphics Card Split Card Extender Cable GEN4 PCI-E X16 to X8 X8 Bifurcation Adapter Riser Card SFF-TA-1016

Product Model: F3367B series products (F36B-F37B)

Product name: PCIe 4.0 X16 MCIO split extension cable

Wire length: 50cm, 100cm

Speed bandwidth: PCIe 4.0x16, gen4 256G/bps, backward compatible with gen3 gen2

Purchasing tips: Be sure to buy 1~2 samples to test and verify that they are correct and then purchase in large quantities.

Wire length and hole distance description:

The wire length of this product refers to the length of the MCIO wire.

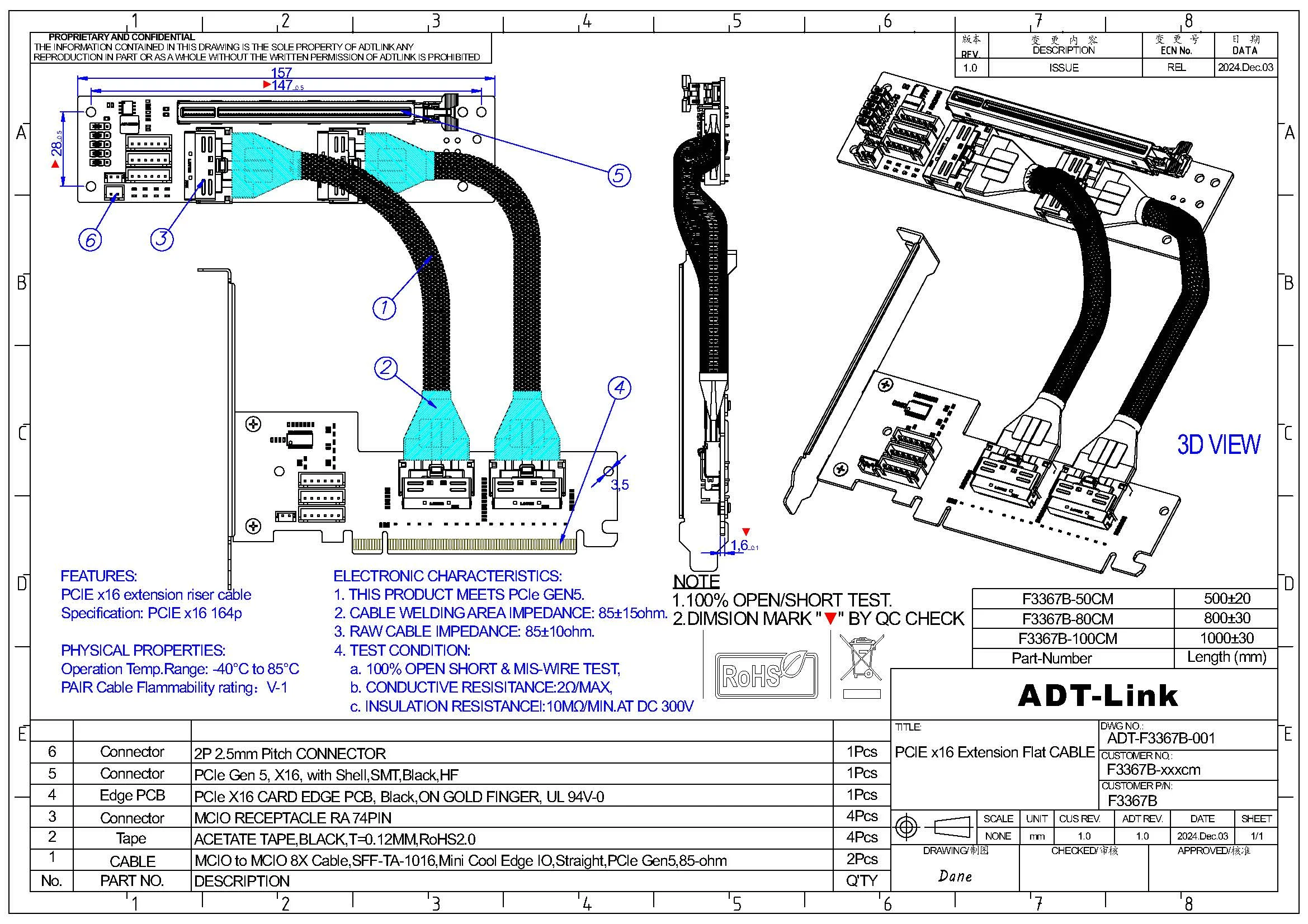

Screw hole distance refer to the size of the following figure, line length will have a certain error, the specific error refer to the following figure:

Accessory description: TSATA power adapter cable is included, and the 12V power supply must be connected to the white seat son.

Product model description:

Models	Description	Bandwidth
F36B-F37B	PCIE 4.0 x16 to x16 Extension Cable 1 to 1	PCIe 4.0 x16
F36B-F37B-D8S	PCIE 4.0 x16 to x8x8 Extension Cable 1 to 2	PCIe 4.0 x8x8
MCIO-x8	MCIO x8 to MCIO x8	PCIe 4.0 x8

MCIO Wire Description:

Models	Description	Spefication
N1205	808000129-SFF-TA-1016 MCIO	MC-IO RECEPTACLE RA 74PIN(808000129)

Product advantages:

1, can be matched with BK7 bracket, graphics card extension more robust.

2, UL certified wire, the 5th generation FFC flat cable design full coverage shield, ultra-thin thickness of only 1.0mm.

3, UL certified PCB board, gold finger gold-plated 10µ", good electrical conductivity, can reduce oxidation rust impedance caused by the blue screen of death problem.

4, the connector shell material is PA10T/LCP, the terminal gold-plated 15µ" plugable, high frequency in line with RoHS/Free(HF) requirements.

5, four-layer PCB board, advanced design, exquisite technology, stable signal quality, excellent wiring, good isolation, up to PCIe 4.0 standards, to meet a variety of needs.

6, this PCIe adapter cable can be freely split, support motherboard Bifurcation PCIE supports one tow, one tow two, flexible design, widely used.

Product picture:

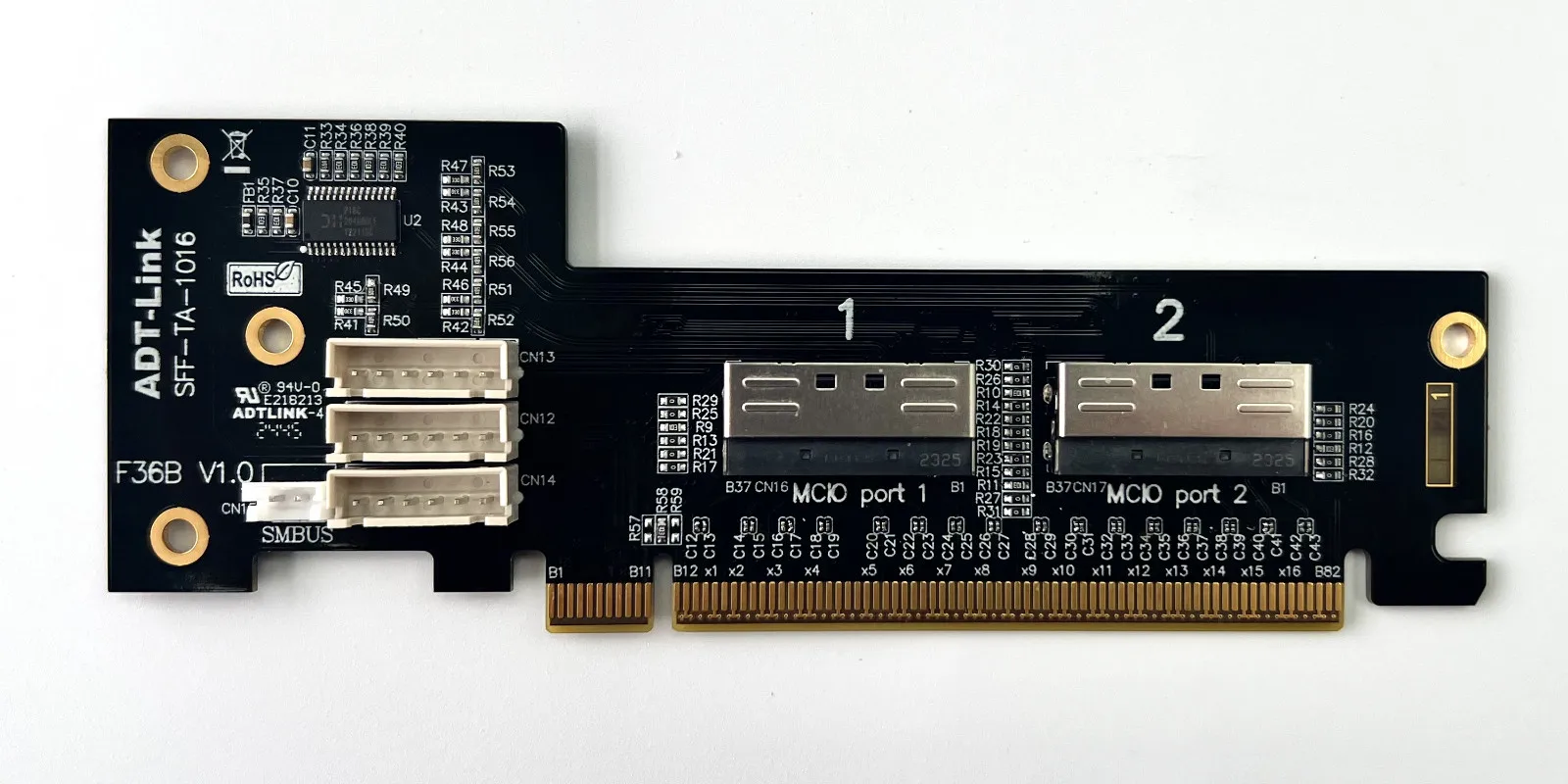

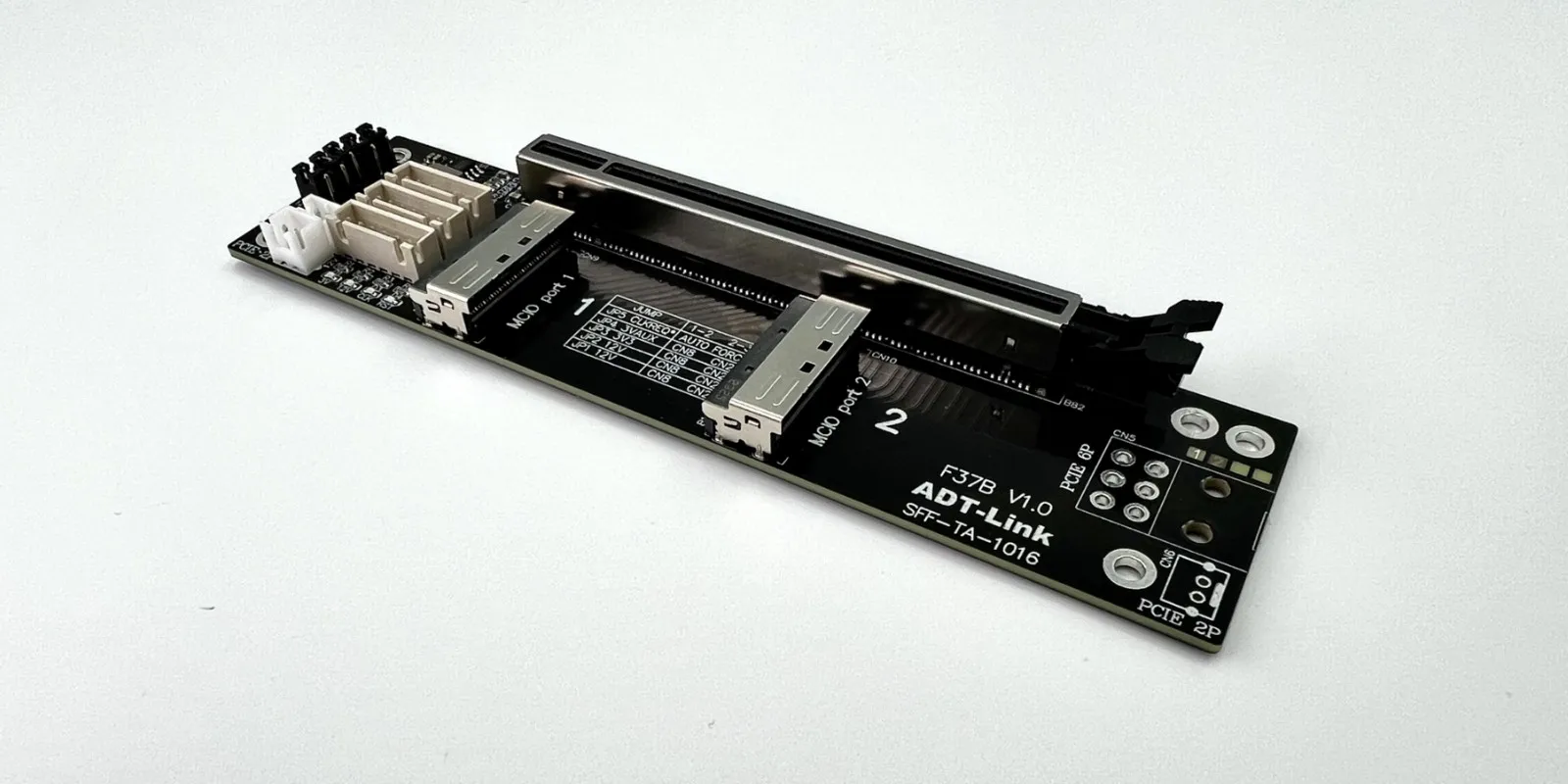

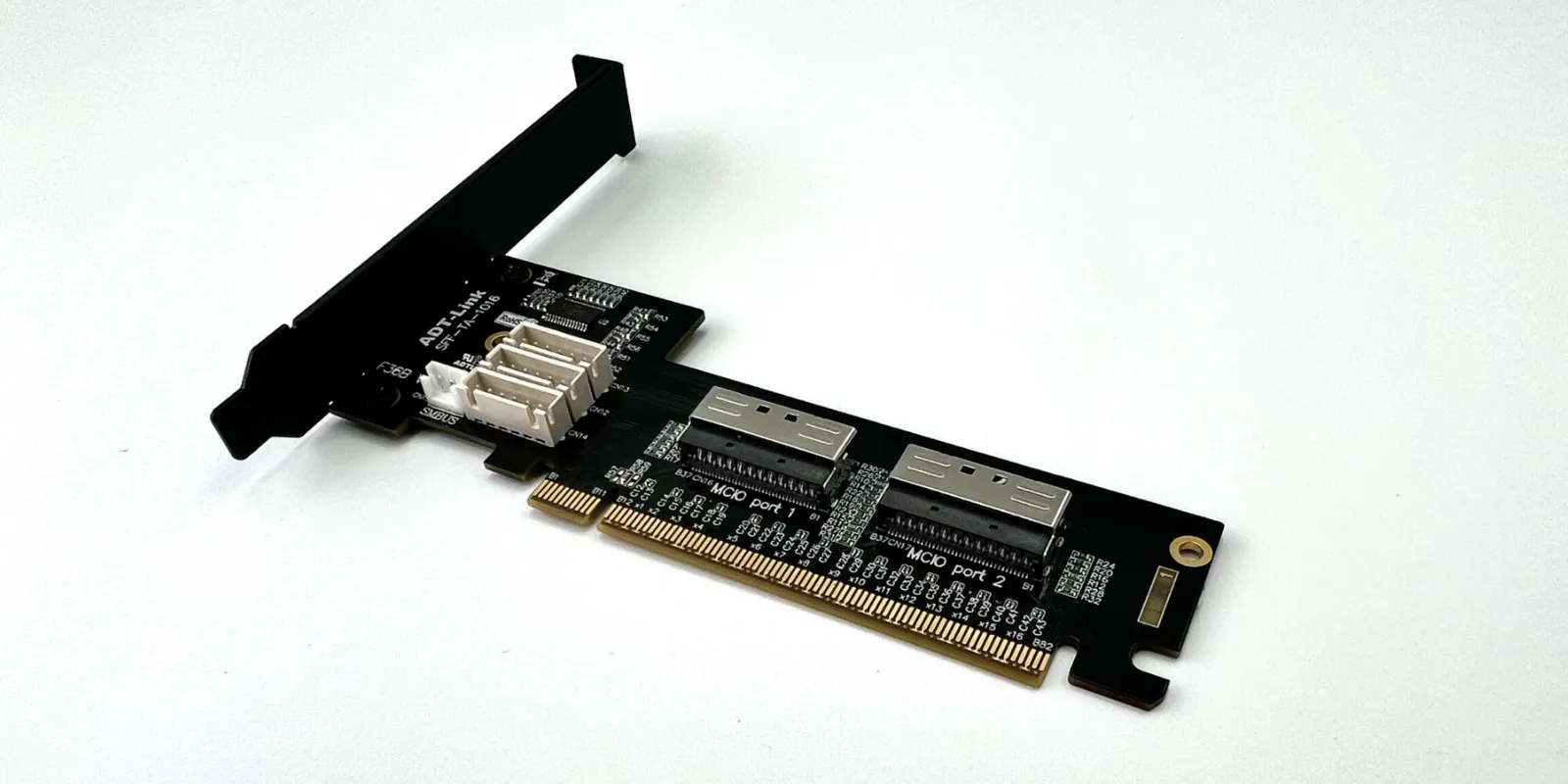

MCIO Real Photos:

F3367B with BK7 bracket to achieve x16 to x16 on the machine real shooting:

Summary of technical issues:

How fast can the product be?

Measured PCIex16 slot one drag two, two devices can be used at the same time, up to PCIe4.0x8 full speed transmission.

How do I check whether the motherboard supports Bifurcation PCIE splitting?

Please consult the motherboard manual yourself, the manual or BIOS options will explain the Bandwidth PCIE channel splitting or Bifurcation option, if not mentioned, it is not supported.
