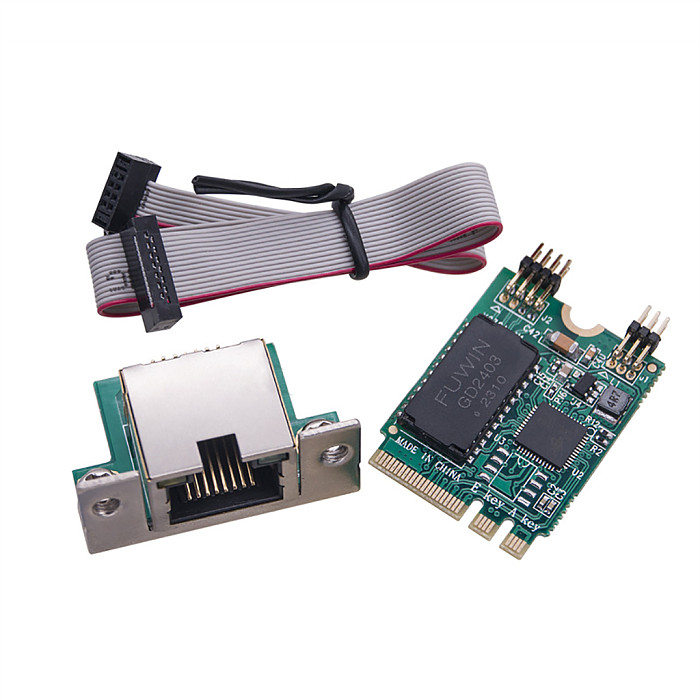

Mini PCIe / M.2 A+E KEY 10/100/1000M/2.5G Gigabit Ethernet Card R45 Port Network Card PCI Express Network Adapter for PC Desktop Item NO.: F51065、F51066

Mini PCIe / M.2 A+E KEY 10/100/1000M/2.5G Gigabit Ethernet Card R45 Port Network Card PCI Express Network Adapter for PC Desktop

OVERVIEW
The M.2 A+E KEY RTL8125B 2.5G Single-Port Multi-Gigabit Network Adapter combines a quad-speed

IEEE802.3-compliant media access controller with a quad-speed Ethernet transceiver

that complies with the 10/100Mbps Ethernet IEEE802.3u specification,

the IEEE802.3ab1000Mbps Ethernet specification and the IEEE802.3bz 2500Mbps Ethernet specification.

It also provides high-speed transmission over CAT5e UTP cable or CAT3 UTP (10Mbps only) cable.
Single 2.5G network port on board, integrated 10/100/1000M/2.5G transceiver supports 2.5G and 1G Lite, 100M mode
Auto-negotiation with extended next page functionality
Support for switching/sex/skew correction
Cross detection and auto-correction
Compatible with IEEE802.3, IEEE802.3u, IEEE802.3ab Supports IEEE1588v1, IEEE1588v2,

IEEE802AS Time Synchronisation Supports shaping algorithms based on IEEE802.1Qav credits

Supports IEEE802.1P Layer 2 Priority Coding Supports IEEE802.1Q VLANs Tagging support for IEEE802.3az-2010
Support for IEEE802.3bz-2016 (NGBASET) Support for full-duplex flow control (IEEE8023x)
Supports jumbo frames up to 16K bytes
Supports Virtual Machine Queuing (VMQ)
Supports quad-core receive-side scaling (RSS)
Specification
*Bus type: M.2 A+E
*Transmission media: 1x 2.5G R45 port
*Transmission Rate: 2.5G/1000/100Mbps
*Network Mode: Supports 2.5G and 1G Lite modes.
*Network Topology:*Support IEEE1588v1, IEEE1588v2, IEEE80.2AS Time Synchronisation

Support Shaping Algorithm Based on IEEE802.1Qav Credit
*Support IEEE802.1P Layer 2 Priority Encoding
*Support IEEE8021QVLAN tagging
*North support for IEEE802.3az-2010
*Support for IEEE802.3bz-2016 (NGBASET) Support for full duplex flow control (IEEE802.3x)
Functional Features.
*Auto-negotiation with extended next page functionality
*Support for switching/sex/skew correction
*Crossing detection and auto-correction
*Hardware ECC (Error Correction Code), Hardware CRC (Cyclic Remainder Check)

support * PCIMSI (Message Signalling Interrupt) and MSI-X support
*Supports ECMA-393 ProxZzzy standard for sleeping hosts* Supports Wake-on-LAN and "Realwow!
System requirements:Win 7/Win 8/Server 2008/Win 8.1/Server 2012/2016,Win10/3264bit, Linux...
Product Name:

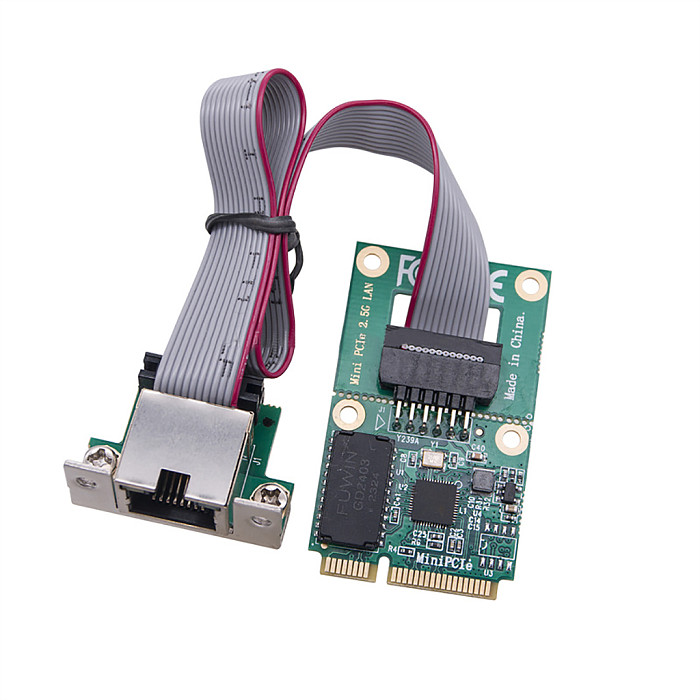

Single Port 2.5G Gigabit Mini PC le/M.2 A+E Network Card
Applicable network classforms: Gigabit Ethernet
Bus Type: Minipci-e/M.2A+E KEY
Transmission Rate: 100/1000/25001Mbps
Full Duplex/Half Duplex: Full Duplex/Half Duplex Adaptive
Network accessory type: RJ45
LED Indicator: LINK/ACT (connection work)
Applicable models: desktop
Main control chip: RTL8125BG
Network standard: IEEE 802.310BASE-T, IEEE 802.3u100BASE-TX,

IEEE8023ab1000BASE-T IEEE 802.3az Energy-Efh cient Ethernet, IEEE 802.3xFlow
Control, 802.1qVLAN Tagging, 802.1 pLayer 2 Priority Encoding
Driver support: Windows 7, 8.x, 10 Windows Server 2008R 22012, 20162019; Linux 2.6.31 to 4.11.xLT S Versions only
