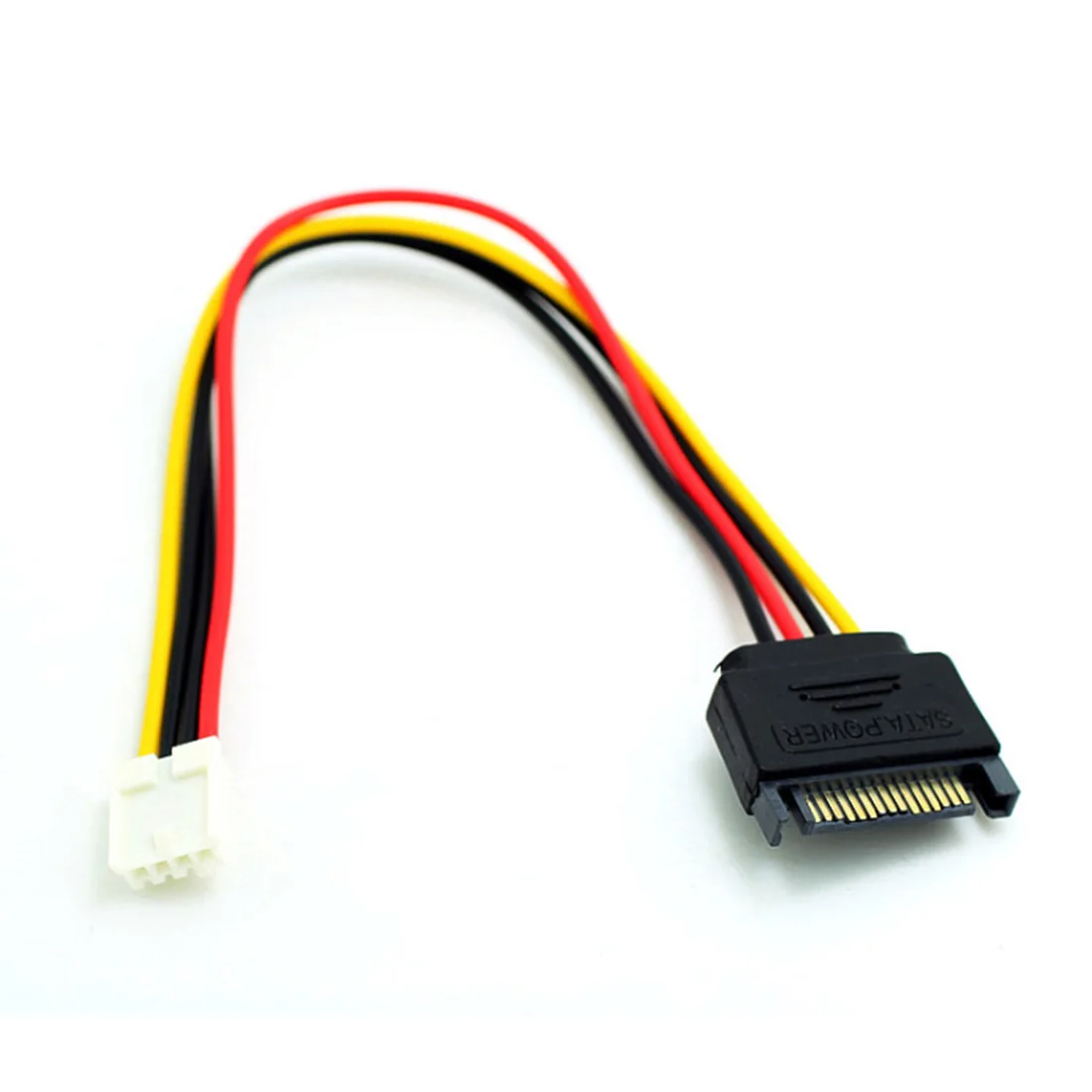

ADT-Link PCIe 3.0 x16 Pci-e 16x Graphics Card Extension Cable with SATA Power Cable for RTX3060 GTX1080ti GTX2080ti RX5700xt

Brand: ADT-Link

Product model: R33SF-splint vertical 180 degrees, R33SL-upright right angle to 90 degrees, R33SR-inverted reverse rotation 270 degrees

Product name: PCIe graphics card extension cable.

Wire length: 5~100cm, (support wire length customization, if you need other lengths, please contact our customer service to change the price, thank you!)

Adapted graphics cards: GTX1080ti, GTX2080ti, RX5700xt, RTX3060 support all PCIe graphics cards in the last three years.

Bandwidth speed: PCIe 3.0 x16 (gen3, 128G.s) does not support PCIE4.0, please reduce the speed to use

Restrictions on use: It is only for professional engineers to purchase. It is not suitable for general use. Ordinary buyers should not buy.

Procurement Tips: Be sure to buy 1~2 samples first and then purchase in bulk after testing and verifying that they are correct.

Friendly reminder: There are many compatibility problems with this product. Incorrect assembly or improper operation will burn your equipment. Only designated by professional engineers to purchase. This product is a customized product and cannot be returned or exchanged. Please consider and confirm clearly before placing an order for purchase.

Note: Model R33SF-PW with power cord is suitable for RTX3060 multi-graphics card ETH mining

Doka mining buyers please note that the external power supply of the mining extension cable is to solve the problem of insufficient power supply for the motherboard and reduce the burden on the motherboard. If your motherboard has PCIe enhanced power supply, then our extension cable can be used without power supply.

Wire length description:

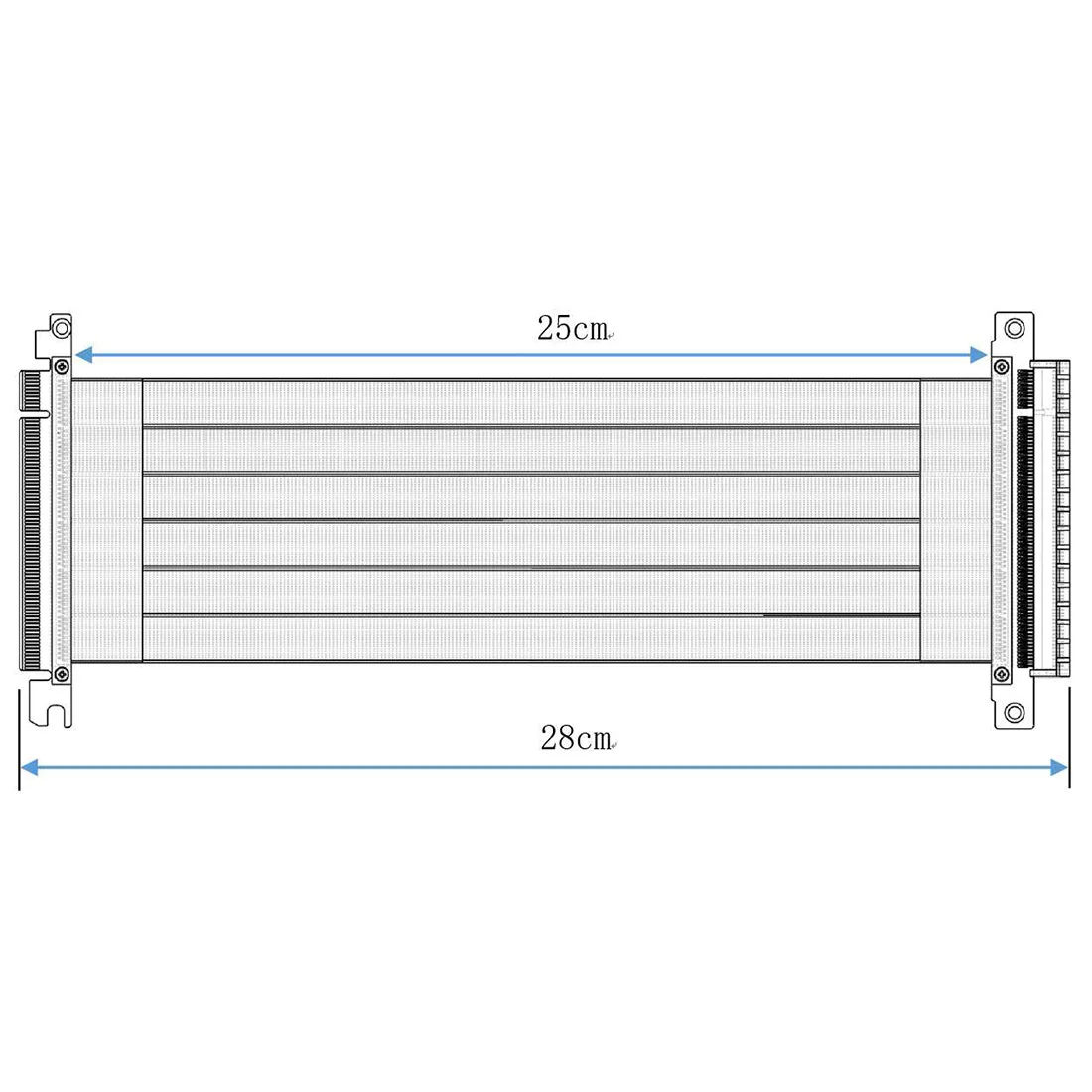

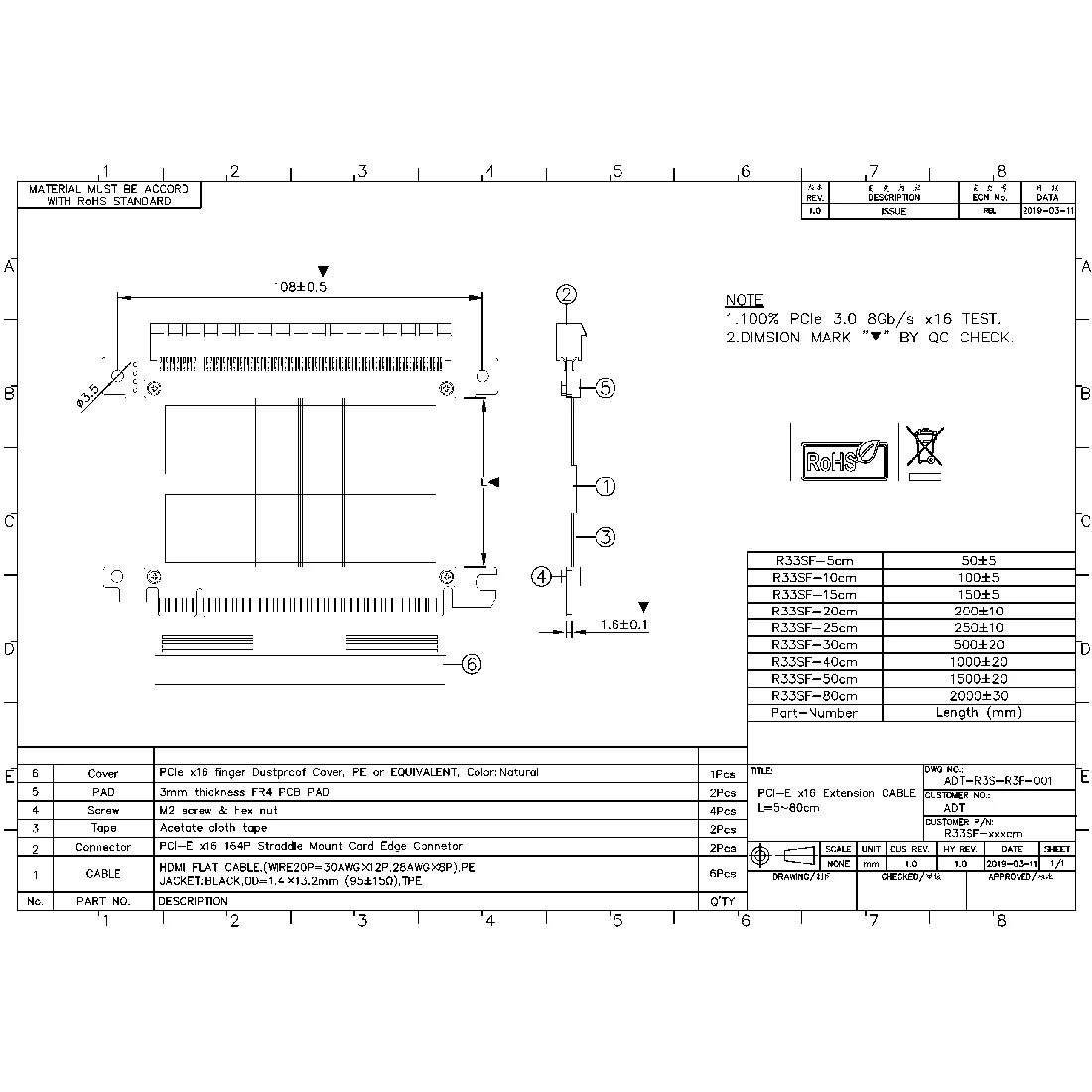

The length of the wire refers to the part of the visible wire, excluding PCB and connectors. The following model is R33SF-25cm, the cable length is 25cm, and the total length is about 28cm. Please refer to the following figure for dimensions.

Product advantages

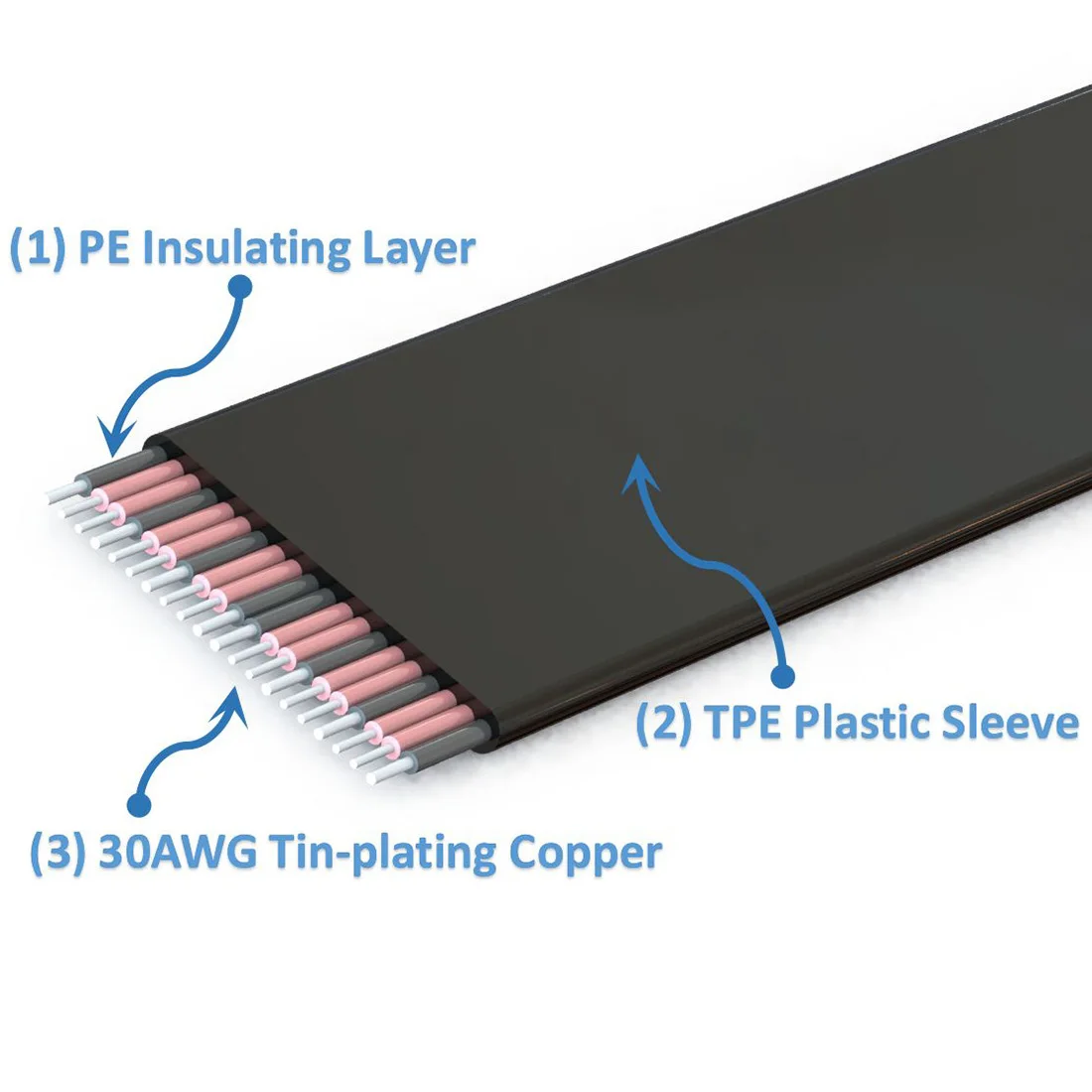

1. Wire advantage, using German patent imported wire, using Taiwan imported Lotes connector, high frequency support PCIe 3.0 X16 8G/bps stable transmission.

2. Line length advantage, from 5cm to 1m can be customized. The wire impedance is low, and the wire length within 60cm can stabilize PCIe3.0 full-speed reading and writing.

3. The differential signal has no via hole design, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there is no CAF micro short circuit phenomenon, and the product is durable.

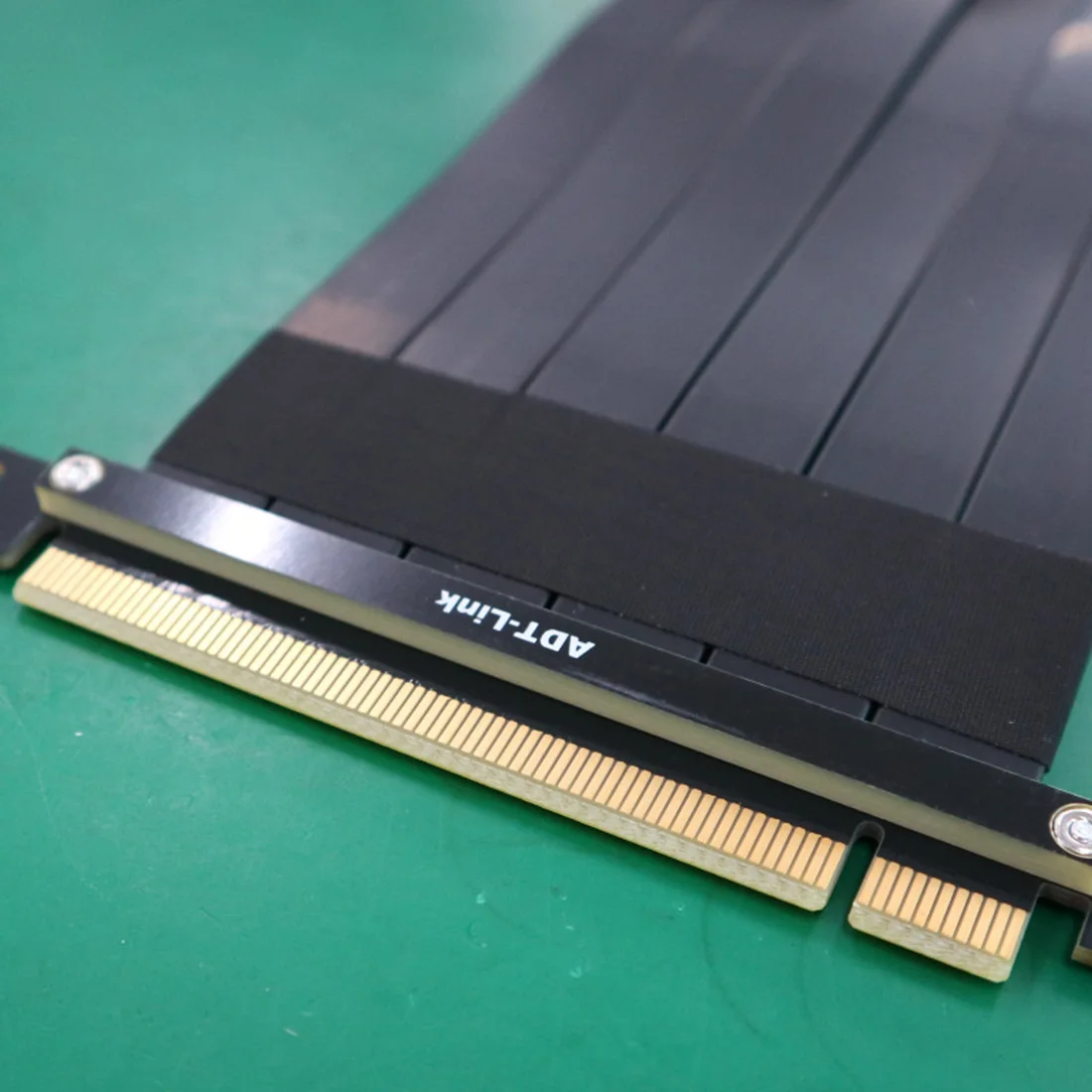

4. The PCB uses high-quality materials with high frequency and low resistance. The PCB is made of high-quality materials. The PCB uses high-TG plates. The thickness of the copper material is thickened to 1oz. The gold finger has sufficient gold plating content and the gold-plated foot has good electrical conductivity, which can reduce oxidation and rust resistance caused by increased resistance. The blue screen of death problem.

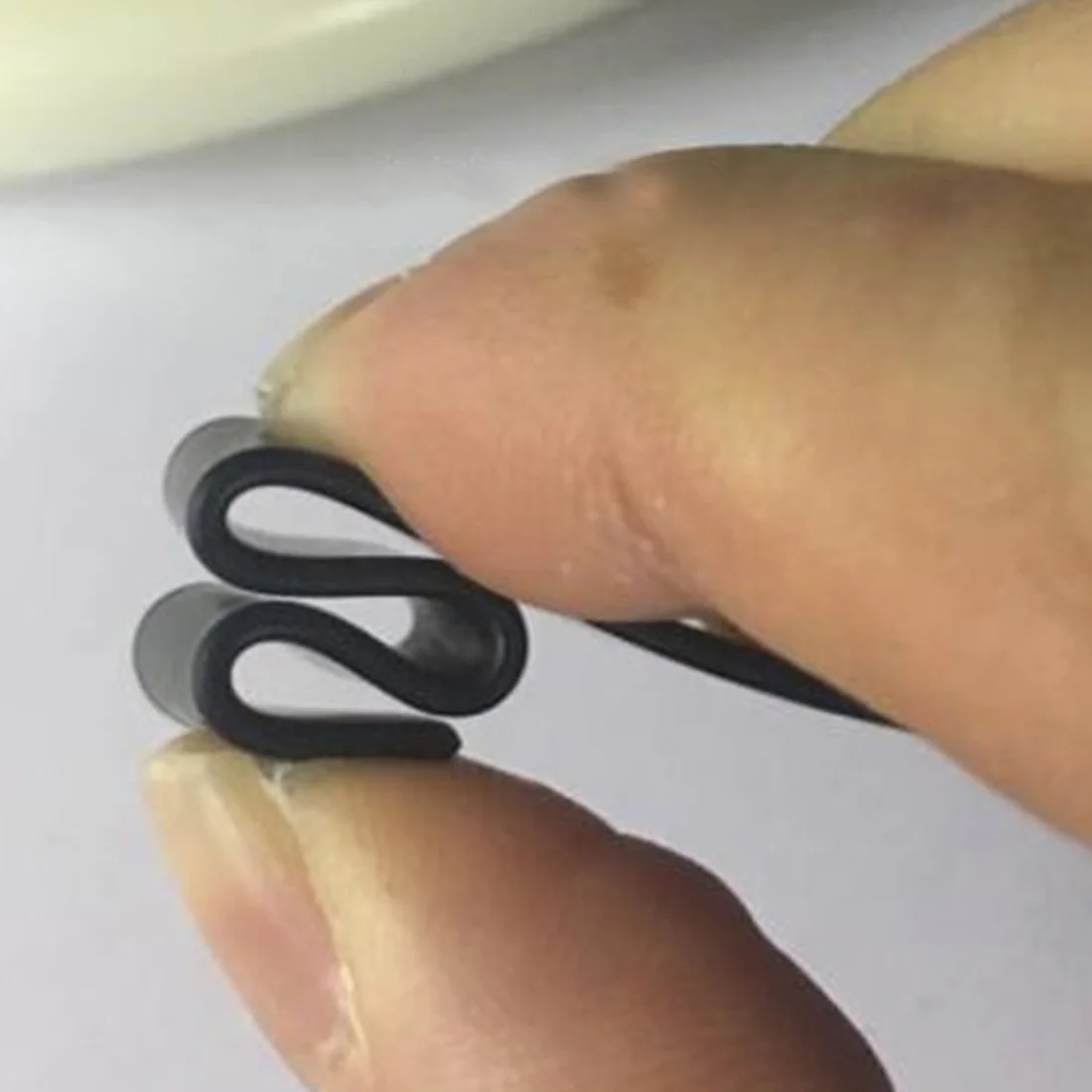

5. The wire used in the product is very durable. Use PCB gaskets with a thickness of 3mm to protect the metal welding points, and lock the screws and hexagonal nuts to fasten the product. The product is strong and reliable, resistant to pulling, anti-interference, and will not break the wire. The nail drop problem.

6. The PCB is designed with short and fattening so that it will not get stuck on the graphics card. The fattening and long-length design makes the board easier to install and reduces the chance of damage.

Summary of technical issues:

Which chassis does ADT Electronics’ graphics card extension cord support? What's the difference? Model and product connection?

This product is a general-purpose version. If your case supports the graphics card erection function, please choose a dedicated extension cord. Be sure to select the model according to your chassis manufacturer. If you don't know how to choose, please send your chassis model to the customer service, and the customer service will assist in selecting the model.

The direction in which the extension line extends: 90 degrees to the left (SL), 180 degrees to the horizontal (SF), and 270 degrees to the right (SR). What's the difference?

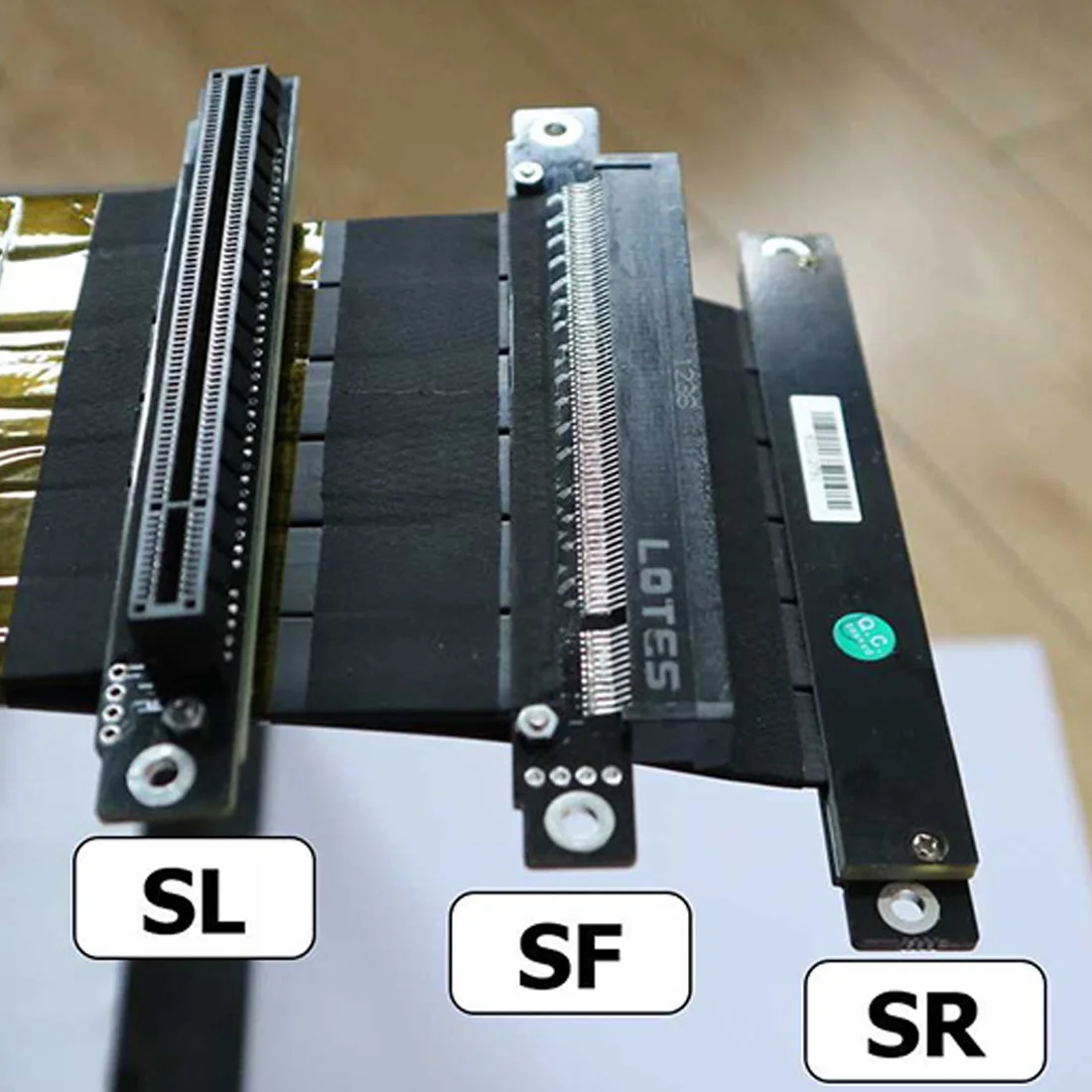

Below: SL = upright, SF = splint, SR = inverted

SL: The PCIe connector and the PCB board have an upright angle of 90 degrees.

SF: PCIe connector and PCB board are flat and straight splint 180 degrees.

SR: The PCIe connector and the PCB board are inverted by 270 degrees.
