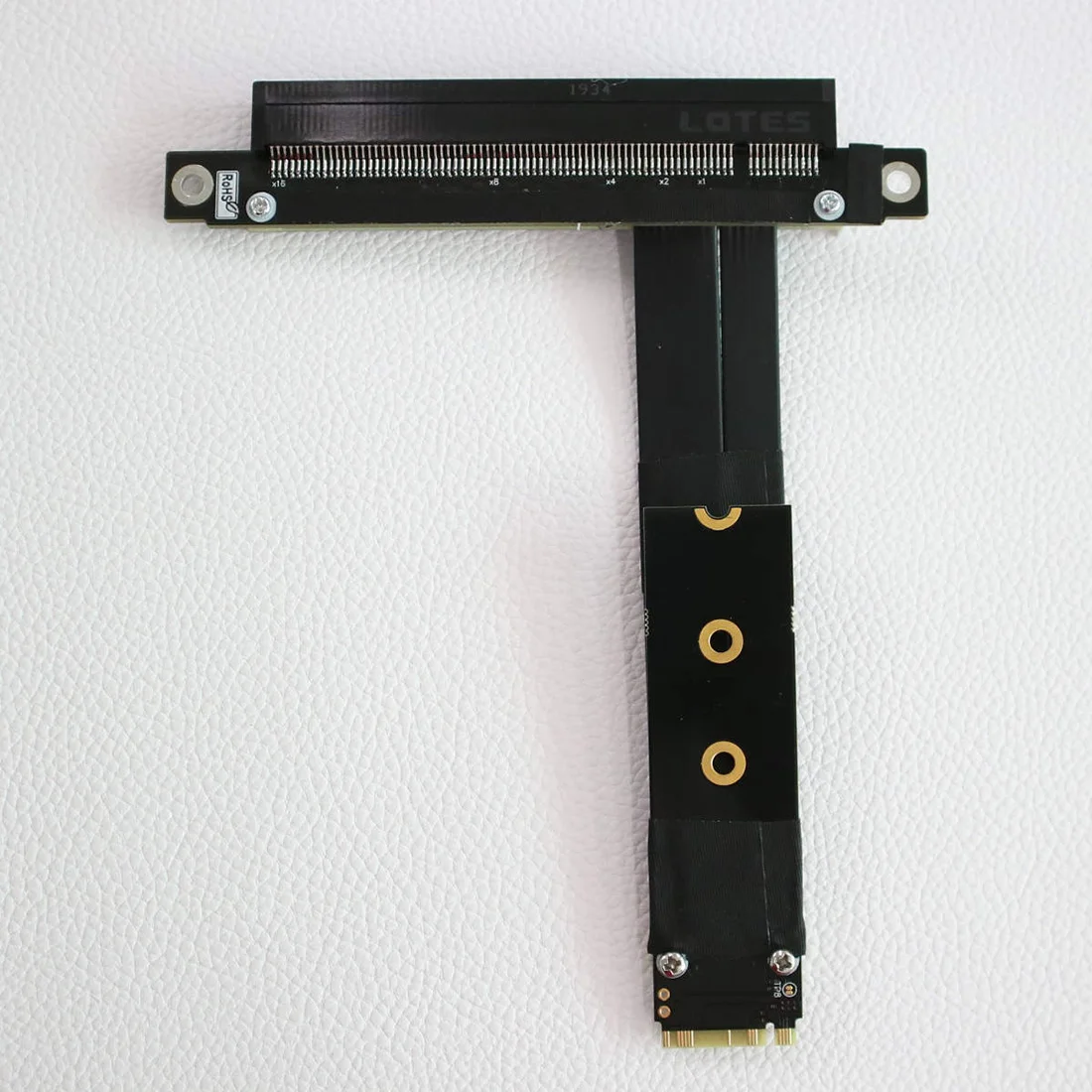

ADT-Link Key M Extender Cable to PCIE x16 Graphics Card Riser Adapter 16x PCI-e PCI-Express for M2 NGFF NVMe 2230 2242 2260 2280

Brand: ADT-Link

product description:

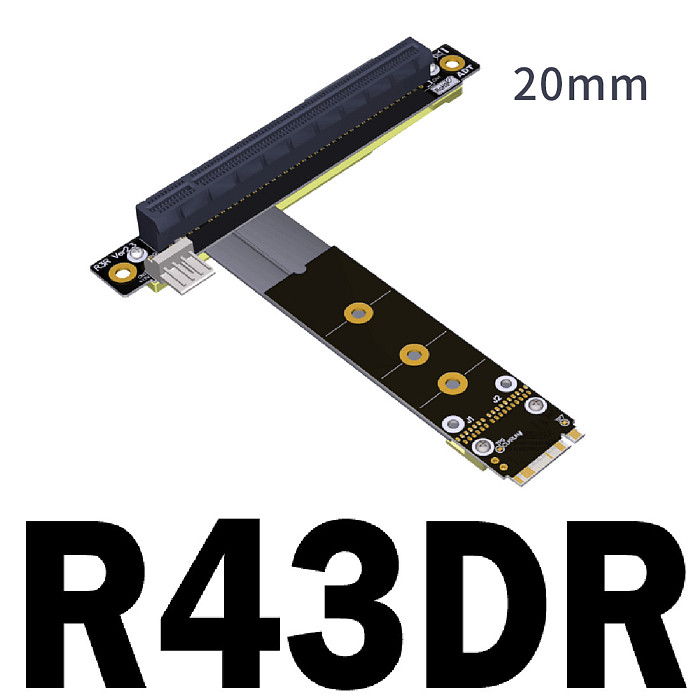

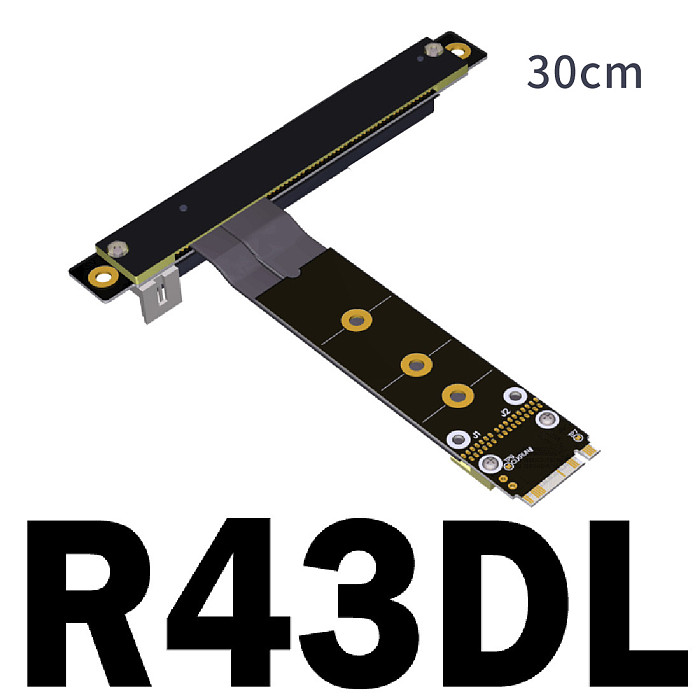

Product model: R43 series of goods

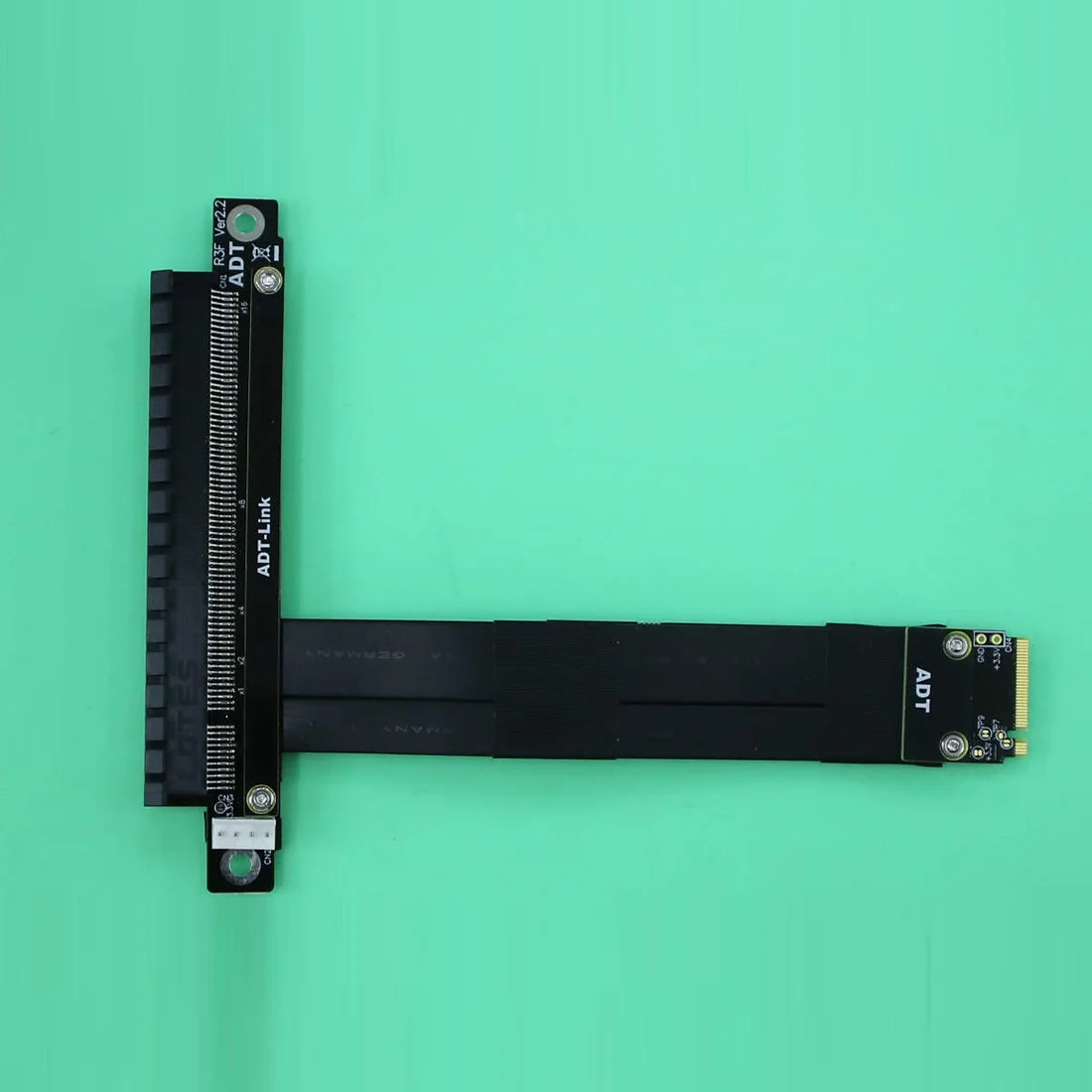

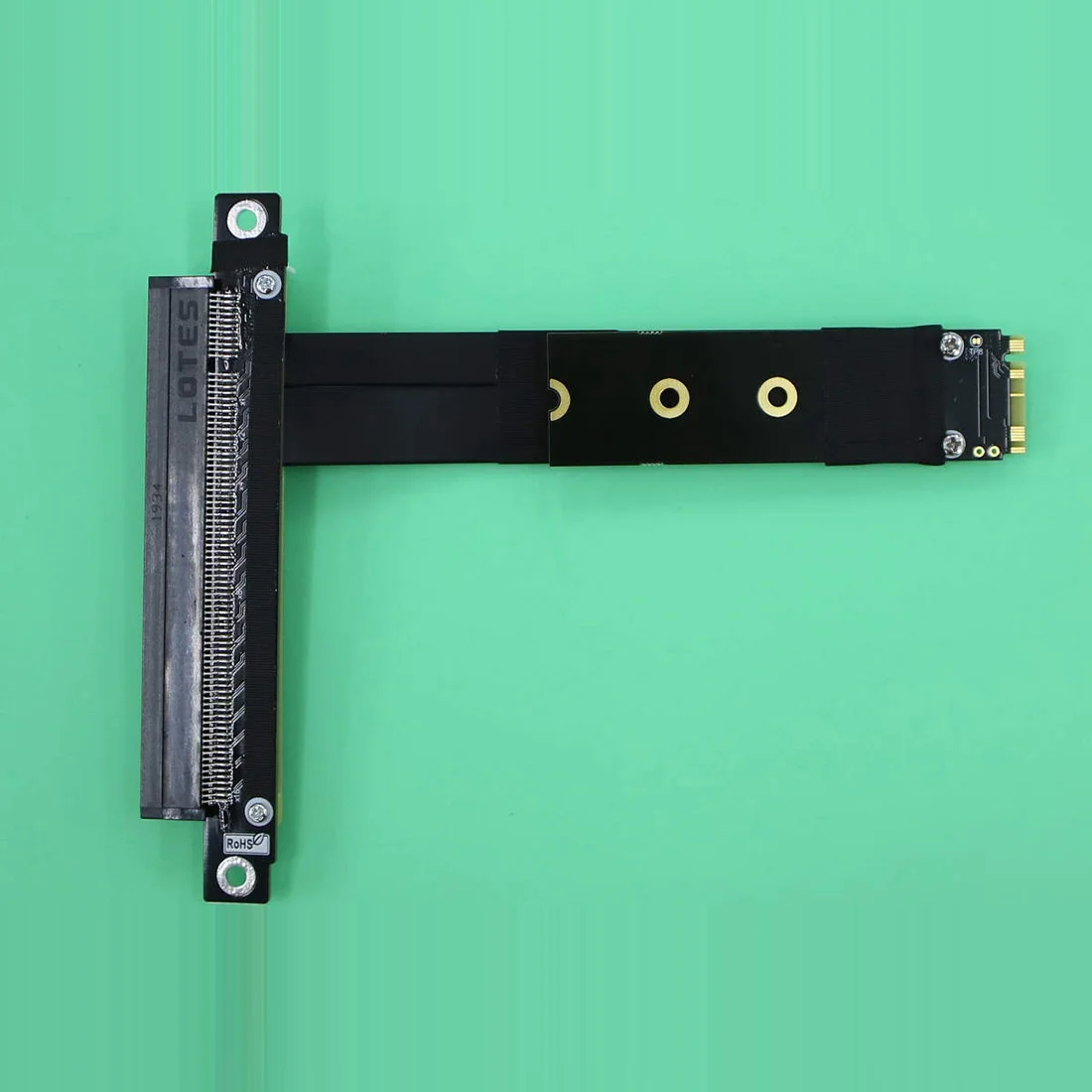

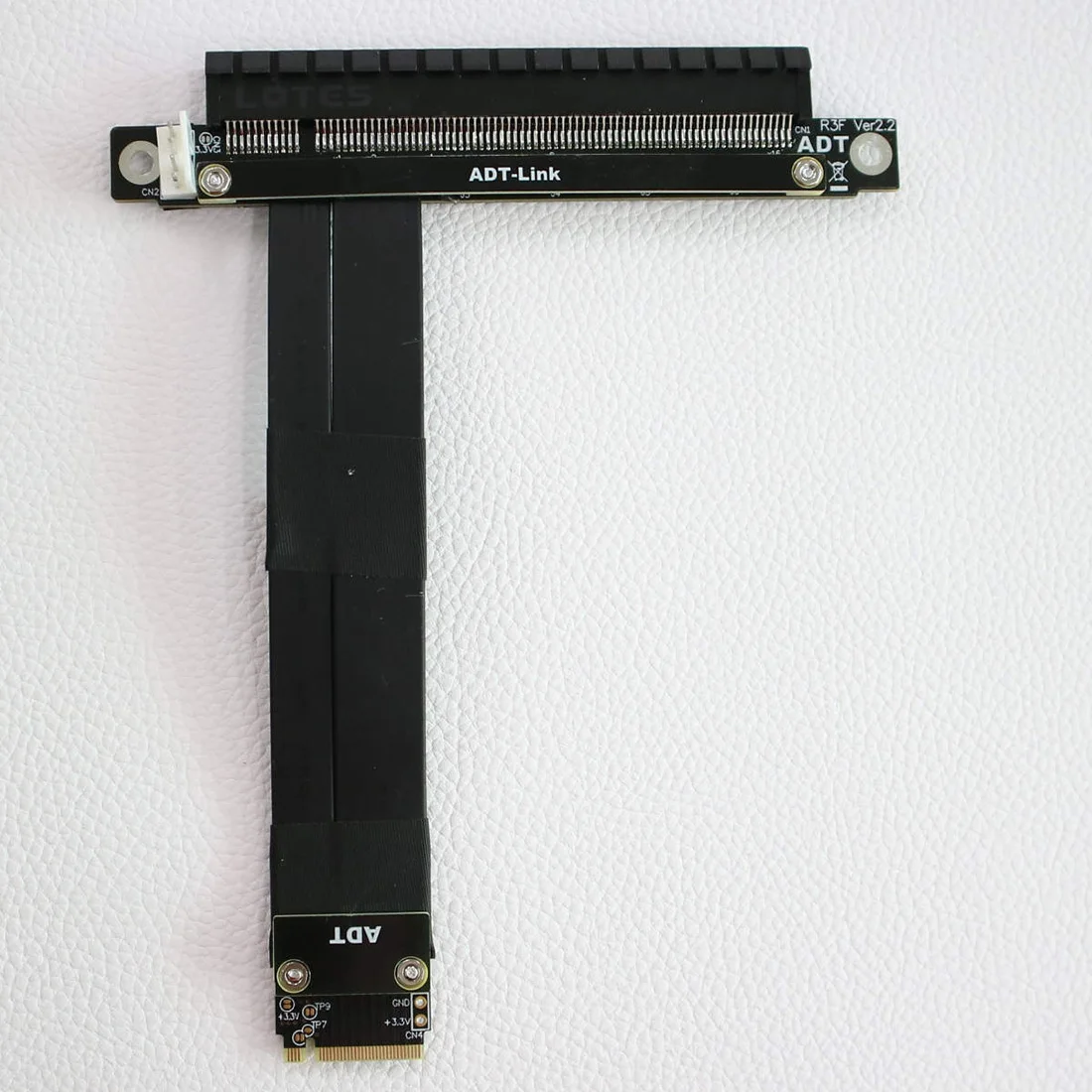

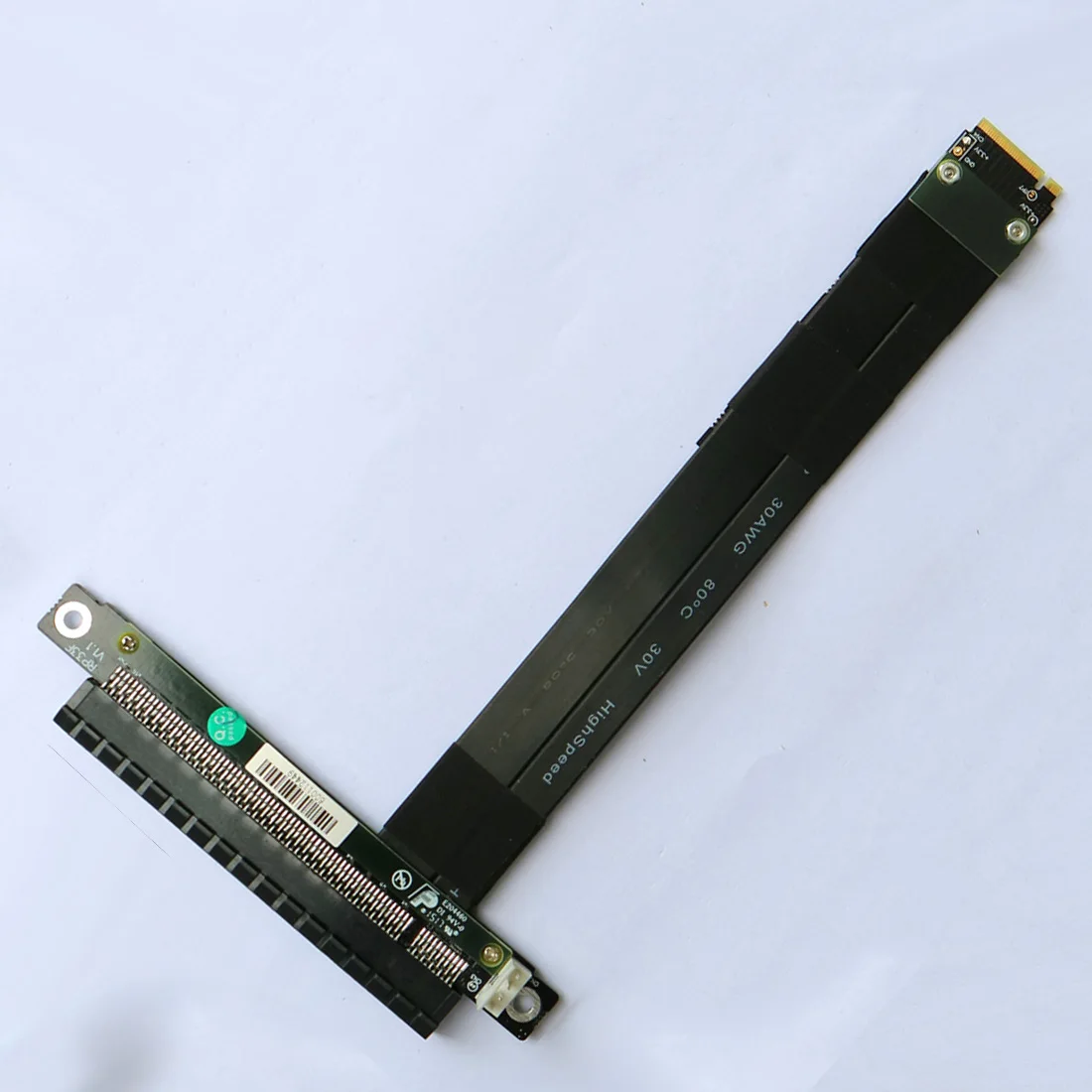

Product name: M.2-M key NVME to PCIe x16 graphics adapter board extension cable

Speed bandwidth: PCIe3.0x4; 32G/bps

Wire length: 3-100cm (support wire length customization, if you need other lengths, please contact us to change the price, thank you!)

Adapted graphics card: GTX1080ti 2080ti RX580 RX5700xt and other professional graphics cards

Purchase restriction: Only designated by professional engineers to purchase, general purpose is not suitable and cannot be used, ordinary buyers do not purchase.

Procurement Tips: Be sure to buy 1~2 samples first and then purchase in bulk after testing and verifying that they are correct.

Friendly reminder: There are many compatibility problems with this product. Incorrect assembly or improper operation will burn your equipment. Only designated by professional engineers to purchase. This product is a customized product and is not refundable or exchangeable. Please consider and confirm clearly before placing an order.

Note: This connection product does not support external laptop graphics cards, and ADT has another solution for external laptop graphics cards.

Wire length description:

The length of the wire refers to the part of the visible wire, excluding PCB and connectors.

Product advantages:

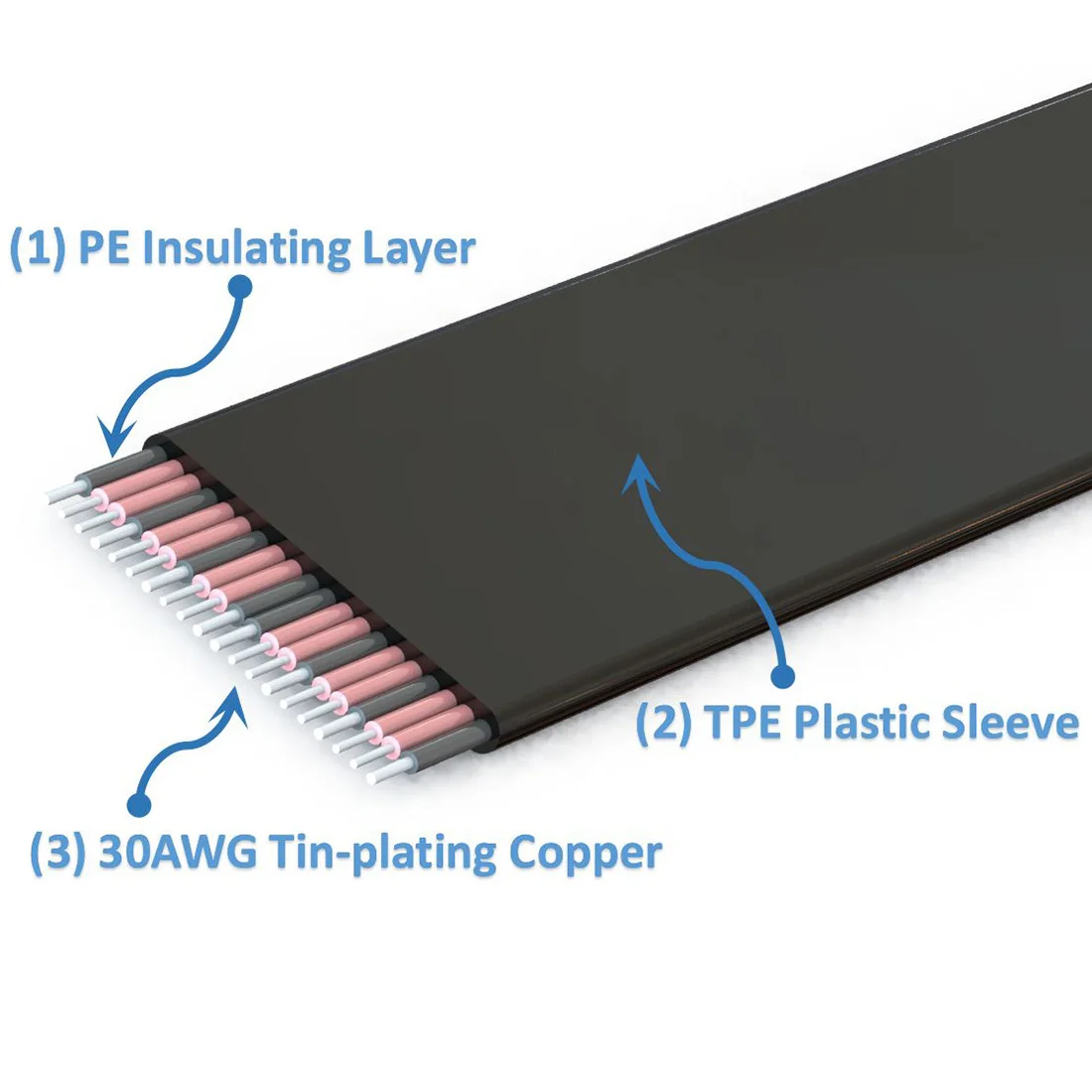

1. Cable advantage, use German patented imported cable, use Taiwan imported Lotes connector, high frequency support PCIe 3.0x4 32G/bps stable transmission

2. Cable length advantage, from 5 cm to 1 meter can be customized, the adapter sold in our shop, the cable impedance is low, the cable length within 60 cm supports PCIe3.0 full speed.

3. Differential signal has no via hole design, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there is no CAF micro short circuit phenomenon, and the product is durable

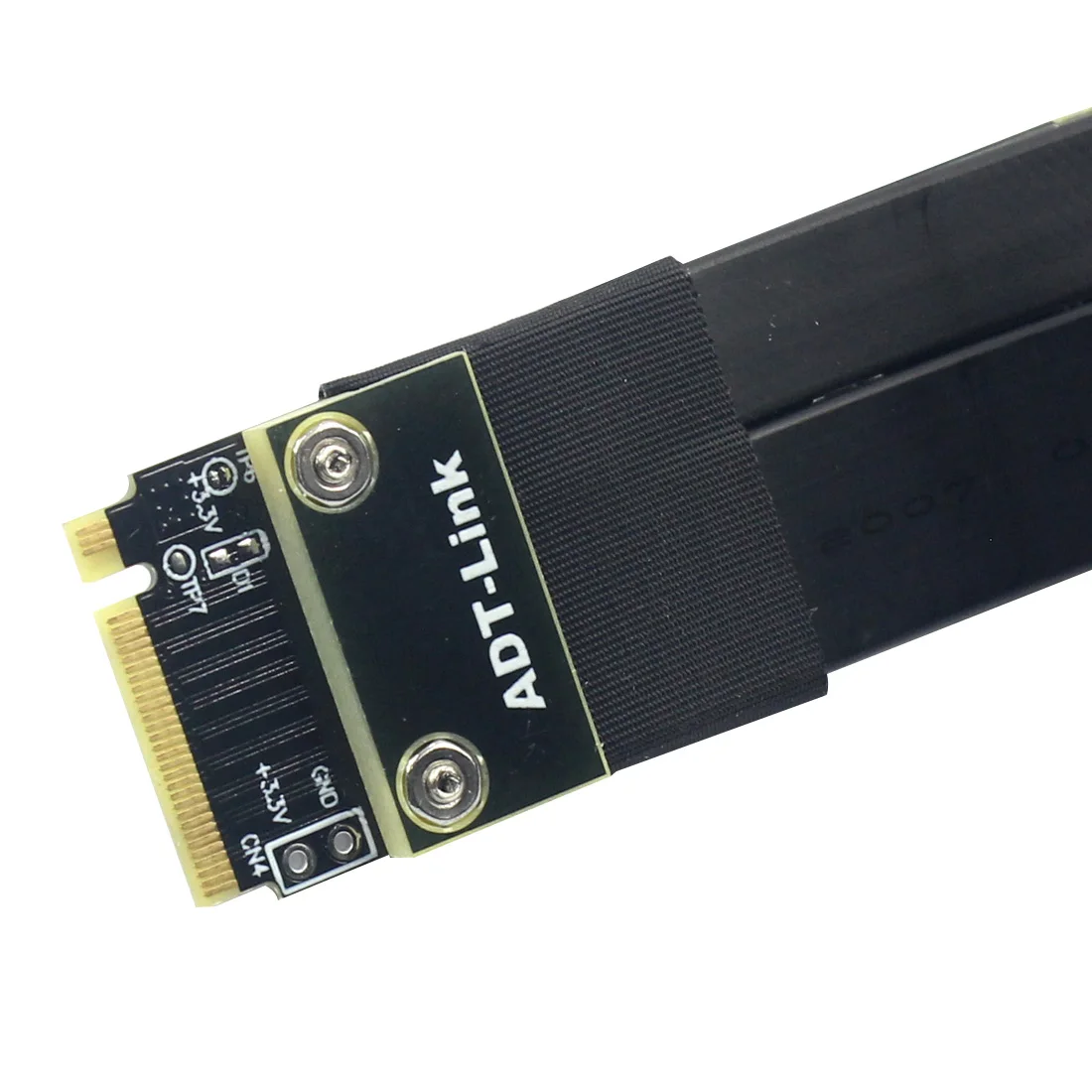

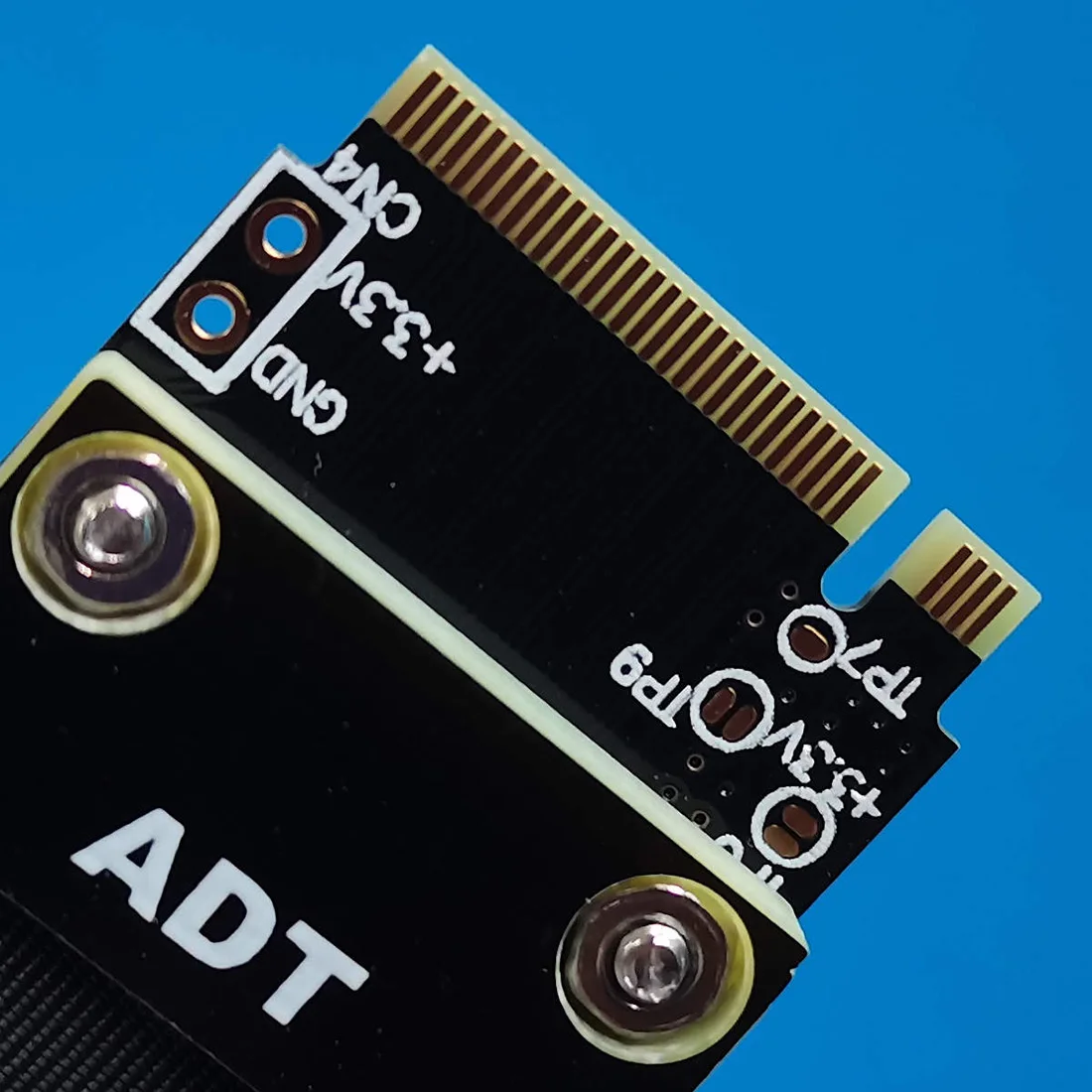

4. The product is made of high-quality materials, the PCB is made of precision, the thickness of the copper material is thickened to 1oz, the gold plated content of the gold finger is sufficient, and the gold plated foot has good electrical conductivity, which can reduce the blue screen of crash caused by the increase of oxidation and rust resistance.

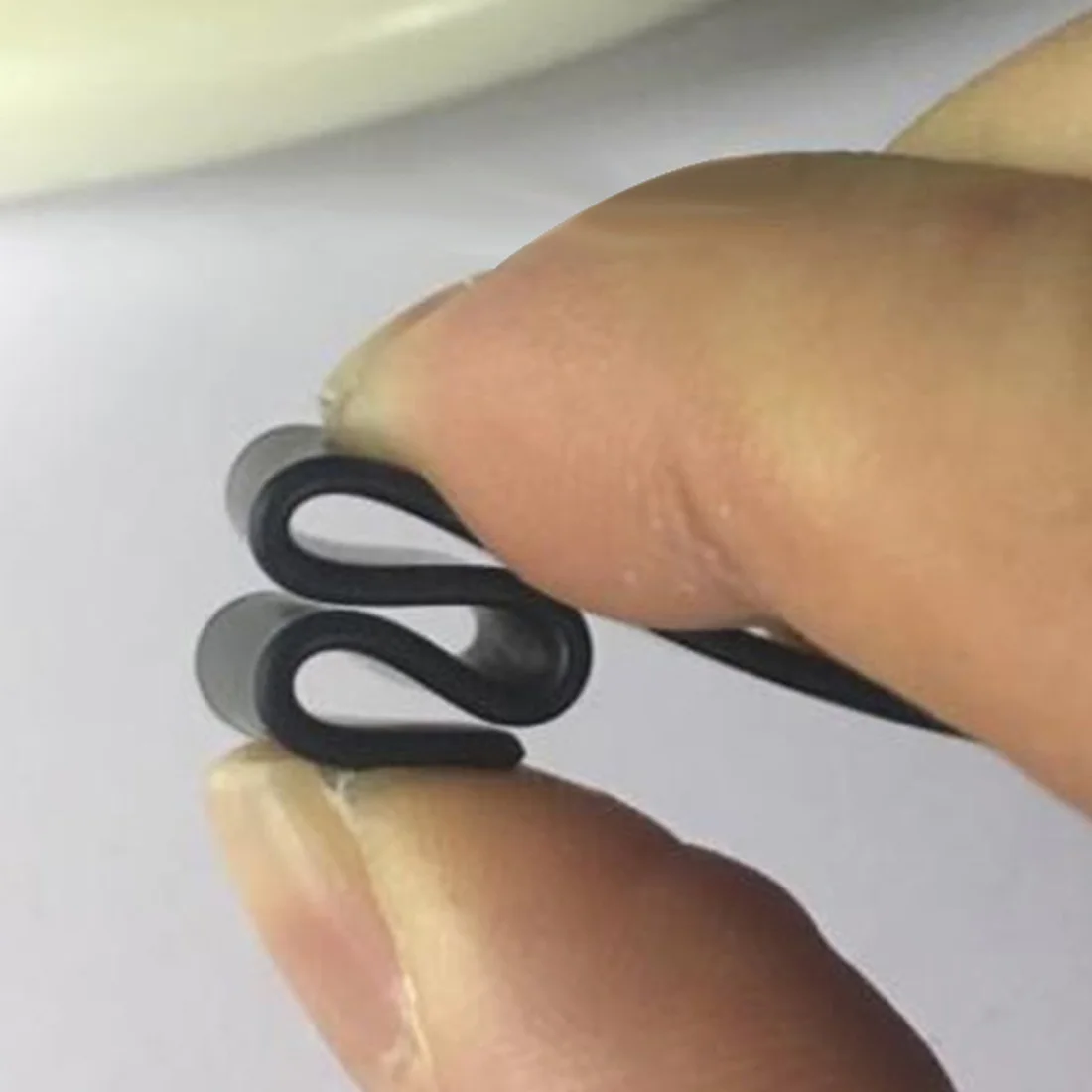

5. The wire used in the product is very durable. Use PCB gaskets with a thickness of 3mm to protect the metal welding points, and lock the screws and hexagonal nuts to fasten the product. The product is strong and reliable, resistant to pulling, anti-interference, and will not break the wire. The nail drop problem. The wire can be bent or folded without affecting the use.

6. The PCB design is short and fattening, so that it will not get stuck on the graphics card. The fat and long design makes the board easier to install and reduces the chance of damage.
