220MHz 7th Order High Pass Filter Discrete LC Components With Small Volume SMA Interface
-
Detail
- Product Name: 220MHz 7th Order High Pass Filter Discrete LC Components With Small Volume SMA Interface
- Item NO.: F51050*
- Weight: 0.025 kg = 0.0551 lb = 0.8818 oz
- Category: DIY RC Drone Accessories
- Creation Time: 2023-11-02
220MHz 7th order high pass filter discrete LC components with small volume SMA interface
Characteristics:
Small volume, flat passband, high out of band suppression
Application:
Laboratory applications and other highly selective applications
Model: FHP7s-220
Impedance: 50 Ohms
Insertion loss:<=1.5 dB @ 300-4000 MHz
≈ 1.5 dB @ 220 MHz
>50dB @<100 MHz
Maximum carrying capacity: 1 W (30 dBm)
Interface: SMA-M, SMA-F

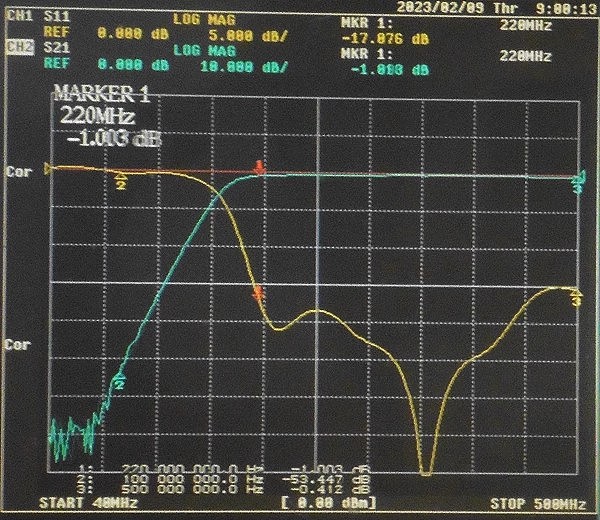

Frequency response diagram 1:
(Sweep frequency range: 40-500MHz, blue line for transmission loss, vertical scale 10dB per grid. Yellow line for reflection loss, vertical scale 5dB per grid)
Frequency response diagram 1:
