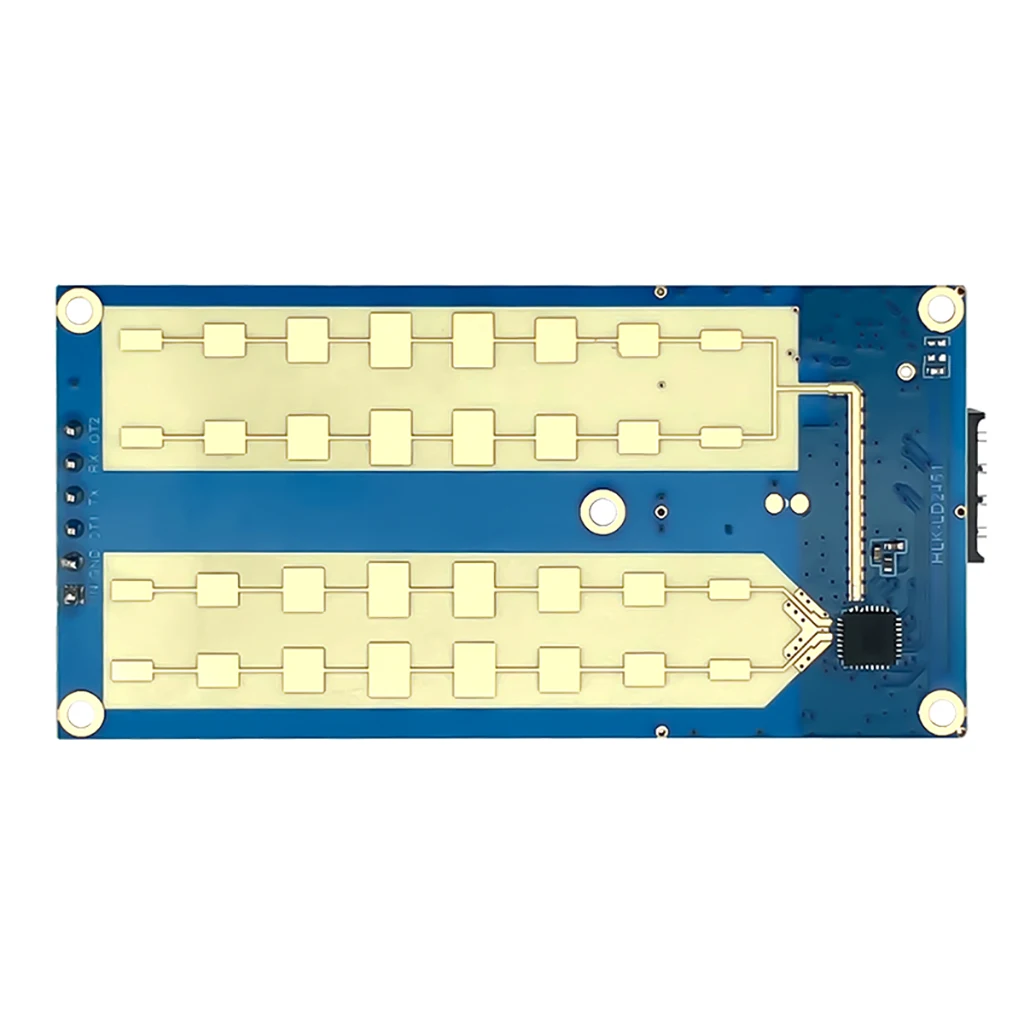

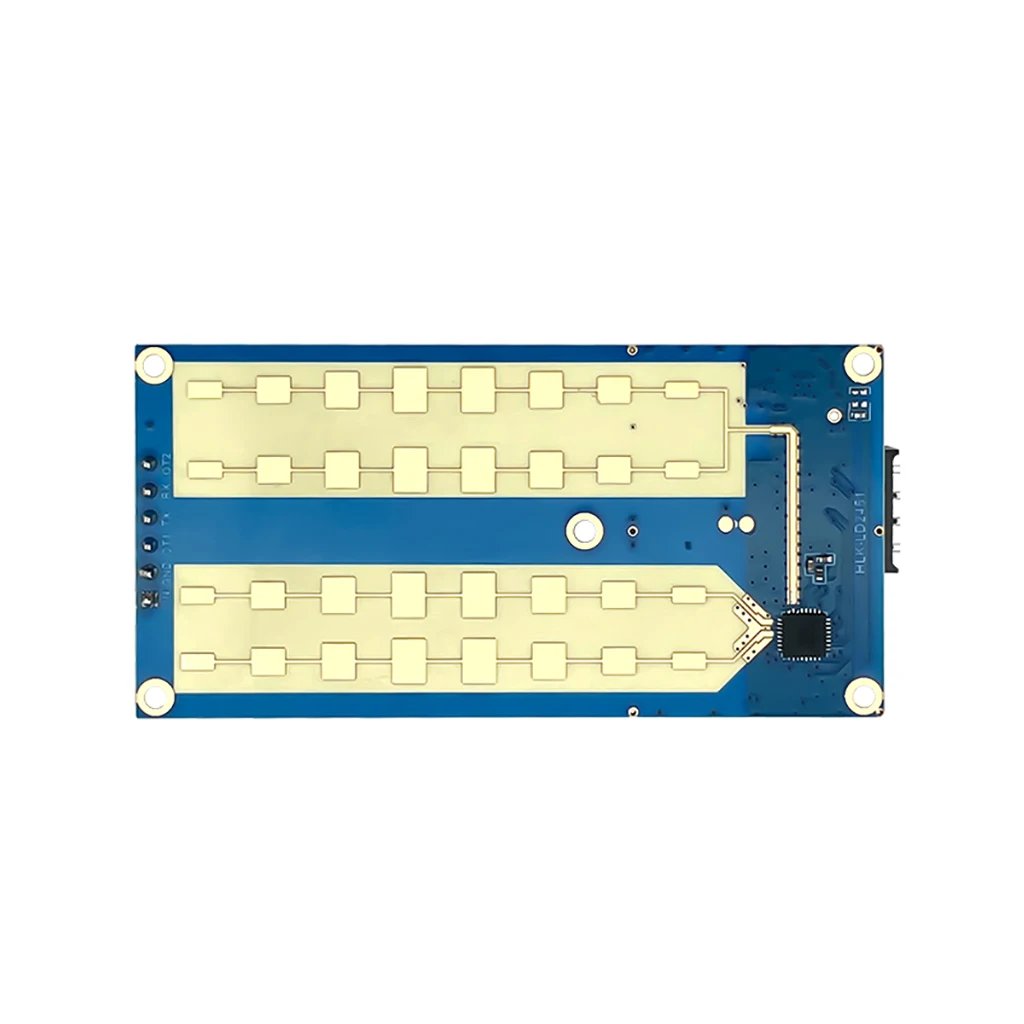

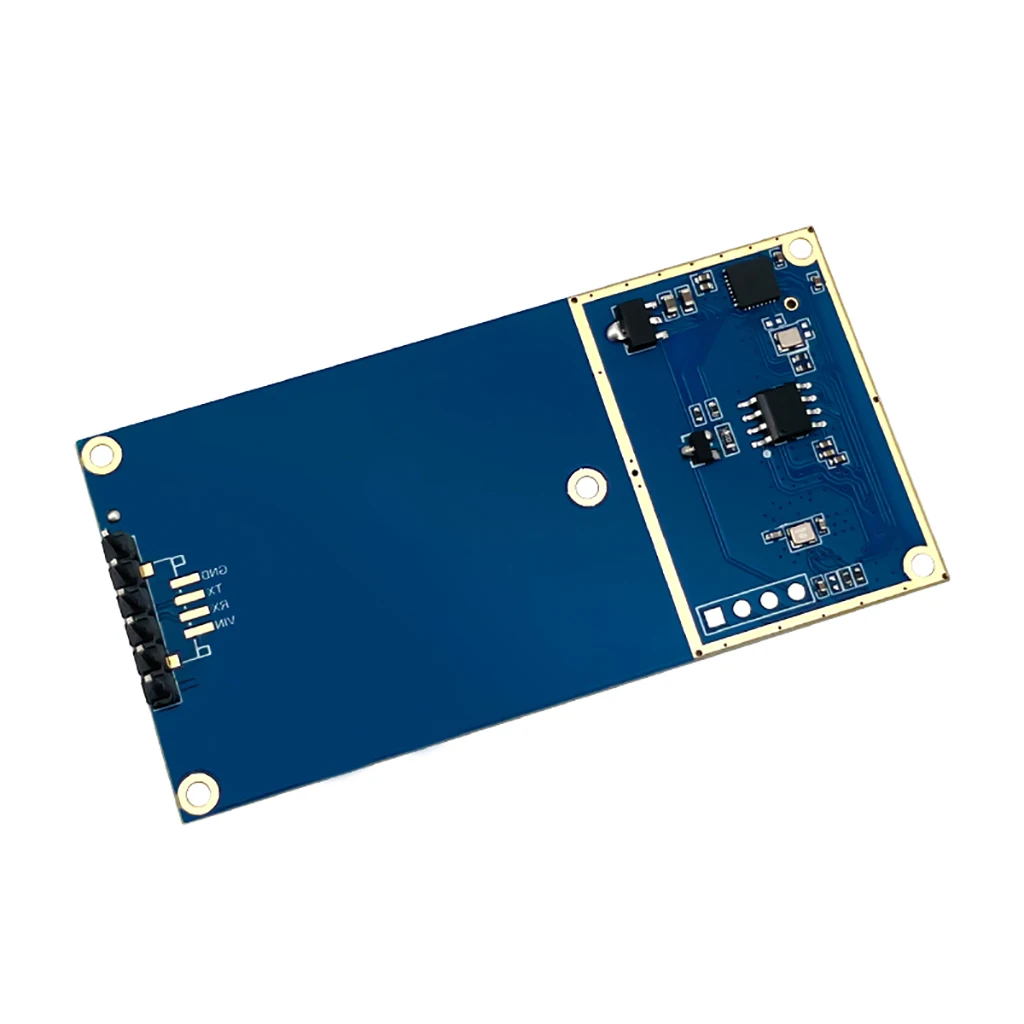

LD2451 24G 250MHz Sweep Bandwidth Vehicle Range & Speed Millimetre Wave Radar Module for Car Condition Monitoring Sensor Module
-
Detail
- Product Name: LD2451 24G 250MHz Sweep Bandwidth Vehicle Range & Speed Millimetre Wave Radar Module for Car Condition Monitoring Sensor Module
- Item NO.: F52683-D1 F52683-D2
- Weight: 2024 kg = 4462.1562 lb = 71394.4990 oz
- Volume: 1 CBM
- Category: Computer Accessories
- Creation Time: 2024-07-18
LD2451 24G 250MHz Sweep Bandwidth Vehicle Range & Speed Millimetre Wave Radar Module for Car Condition Monitoring Sensor Module
Product Description:
LD2451 is a 24G radar module with integrated 1T2R (one way transmit, two ways receive)
RF transceiver channel, which can achieve accurate measurement of near,
medium and long range multi-target distance,
speed and orientation in the detection area.
Mainly used in high-speed intersections, non-motorised lanes,
motorised lanes and intelligent driving scenarios,
to achieve the state of the rear vehicle detection.
Product features
-Frequency: 24G-24.25GHz
-Sweep bandwidth: 250MHz (meet CE/FCC certification standards)
-Modulation mode: FMCW
-Power Requirement: 5V(Typ.) / power supply capacity >300mA
-Exterior dimension: 35×70mm
-Detection angle: ±20
-Detection distance: Maximum sensing distance 100m
-Ambient Temperature: -40℃~+85
-Data format: serial port ASCII output, GPIO level output
-Package: default 2.54mmx6Pin Pin

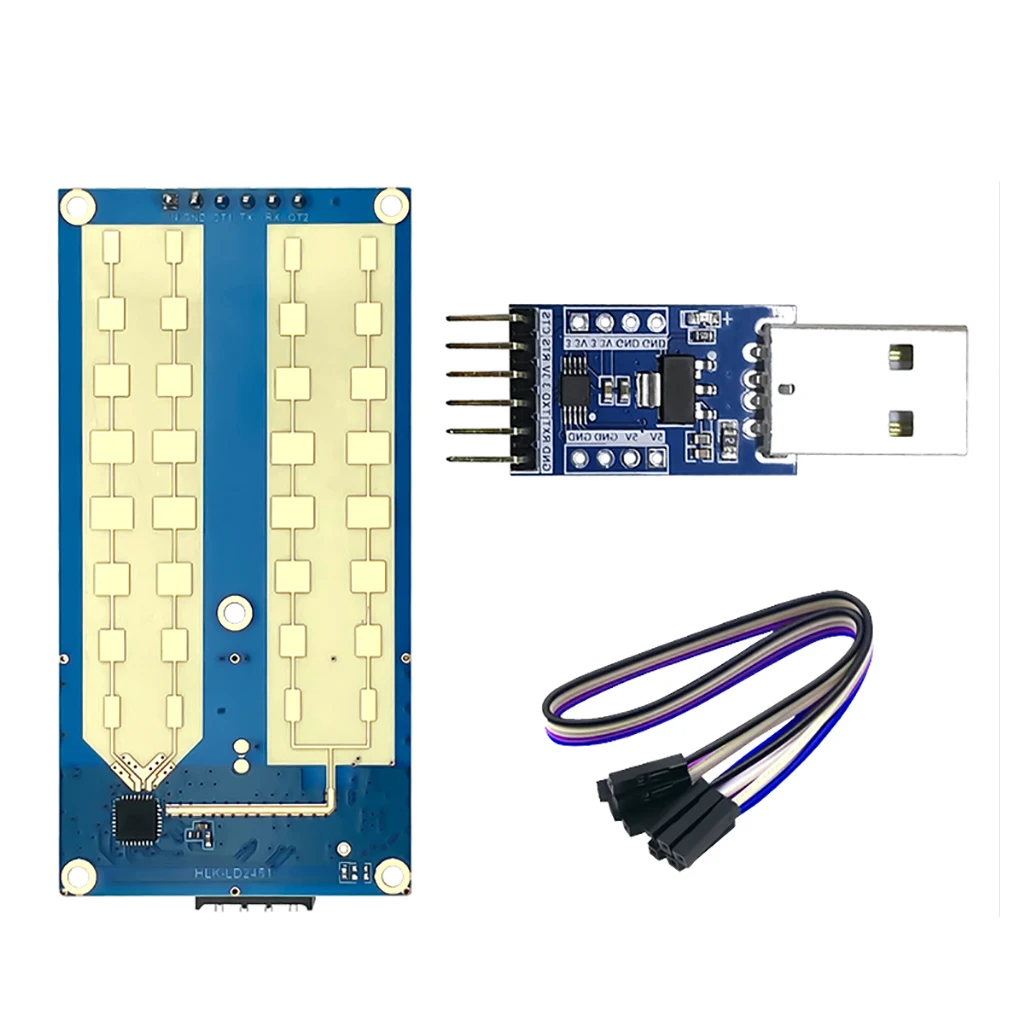

Test Kit:
