Product Name	2-6S 30A 60A ESC Bidirectional Self Starting Brushless Electric Regulation Speed Controller ESC for DIY Tools
Item NO.	F54397-D1 F54397-D2 F54397-D3F54397-D4
Weight	0.03 kg = 0.0661 lb = 1.0582 oz
Category	DIY RC Drone Accessories
Creation Time	2025-07-07

Specifications:

This is a brushless ESC suitable for DIY modification, non-modeling ESC.

The ESC can be widely used in brushless power system for water pumps, fans, knife sharpeners, hand grinders, hand drills, etc. The ESC is divided into two series and eight varieties.

The ESC is divided into two series, eight varieties

Two series: 30A 60A

Each model has the following four sub-divisions:

Two-way self-starting No. 1: power on self-starting. (Full speed rotation after starting) Bidirectional self-starting No. 2: Start-stop control through the dip switch. (Full speed rotation after startup)

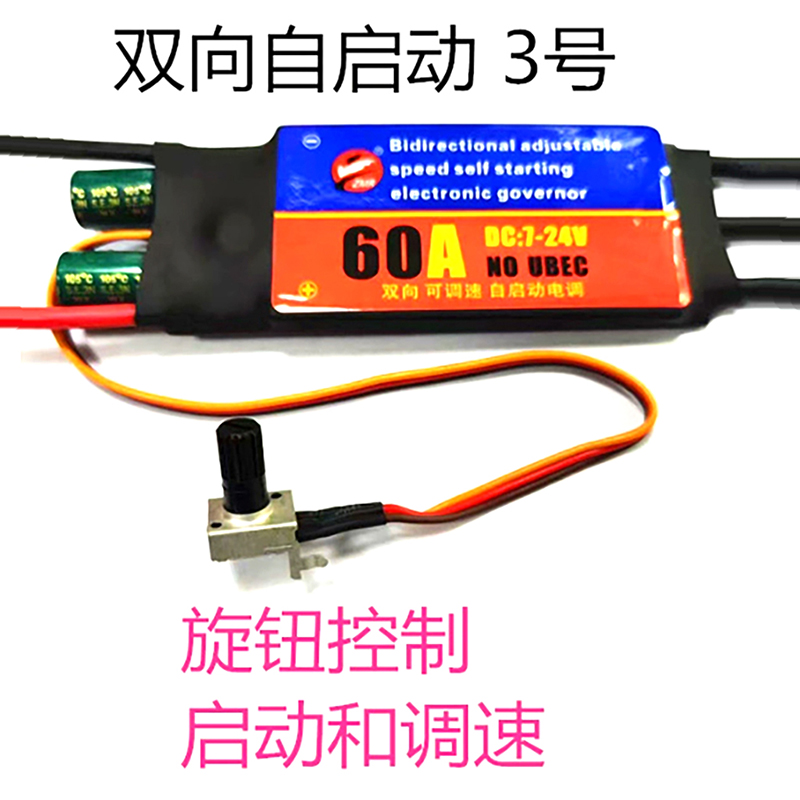

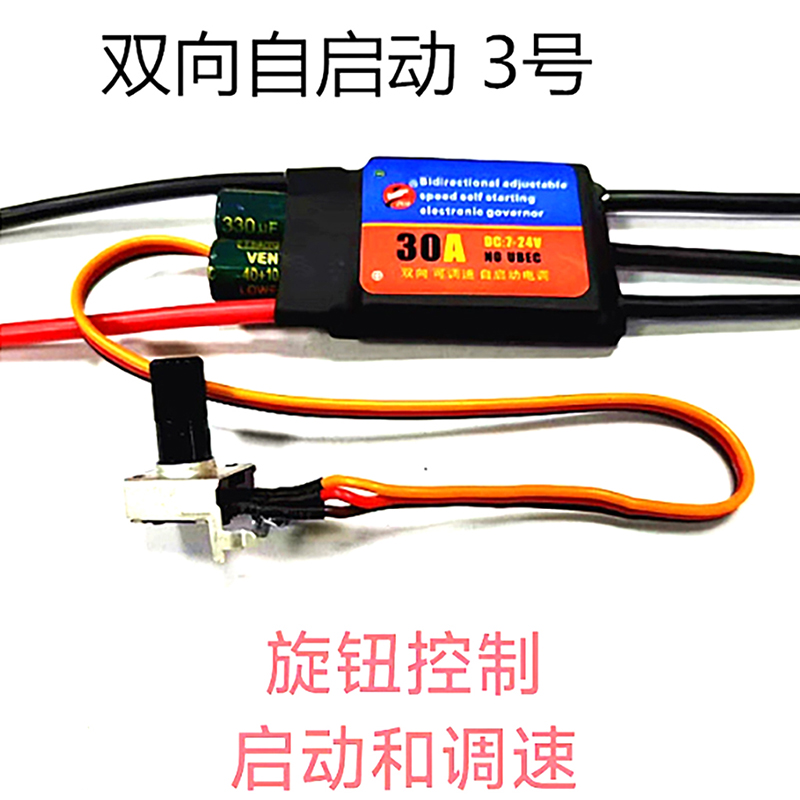

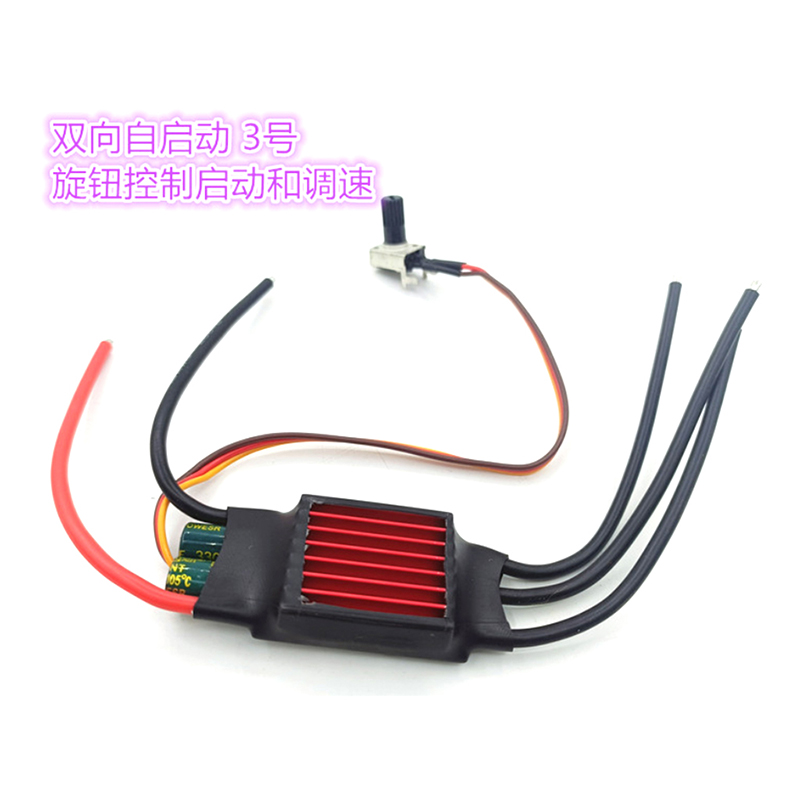

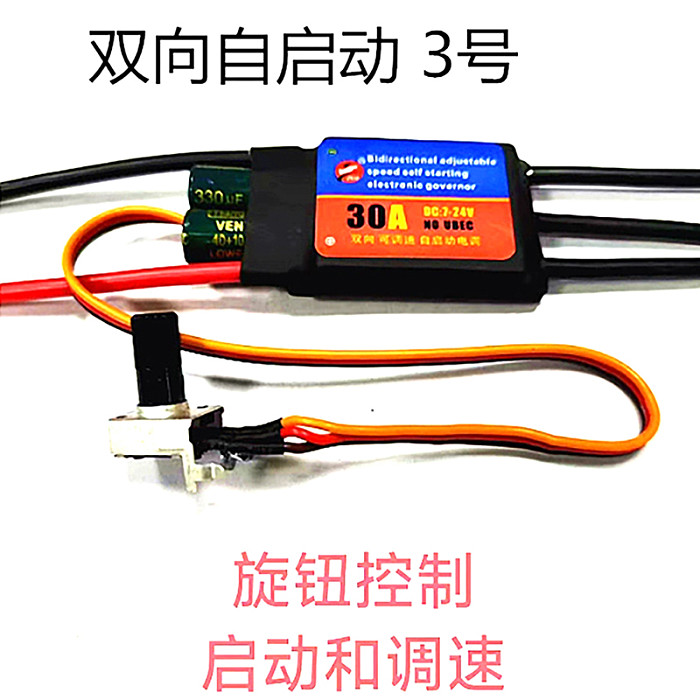

Bi-directional self-starting No. 3: Start-stop and rotation speed of the motor is controlled via a rotary switch.

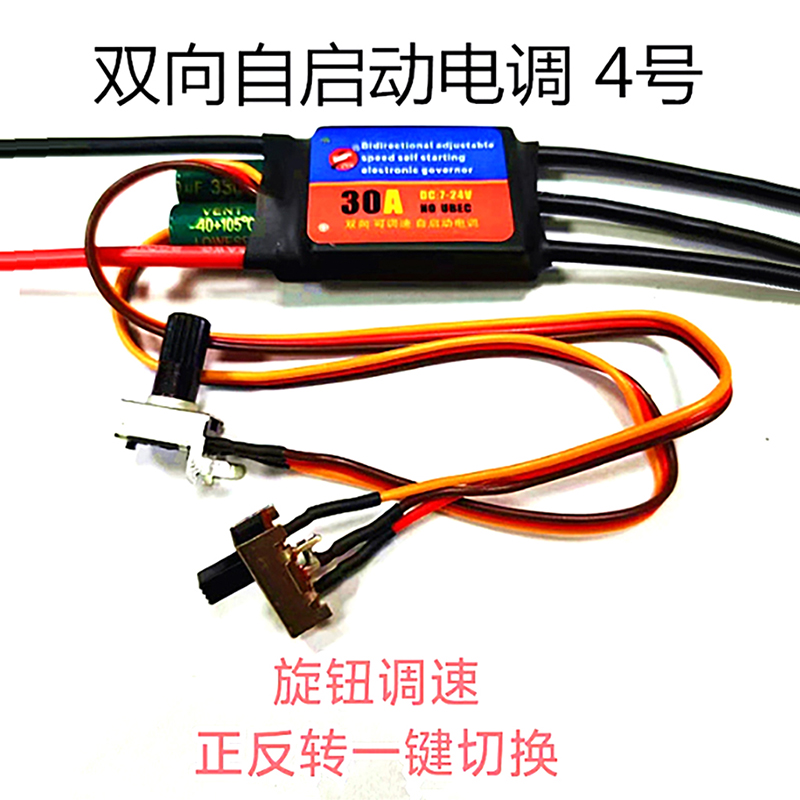

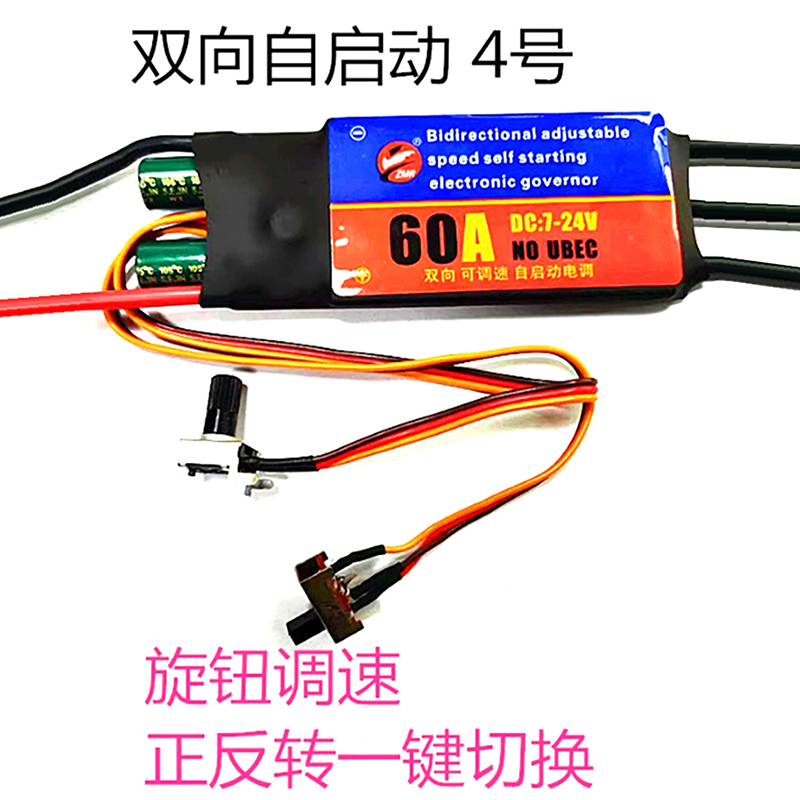

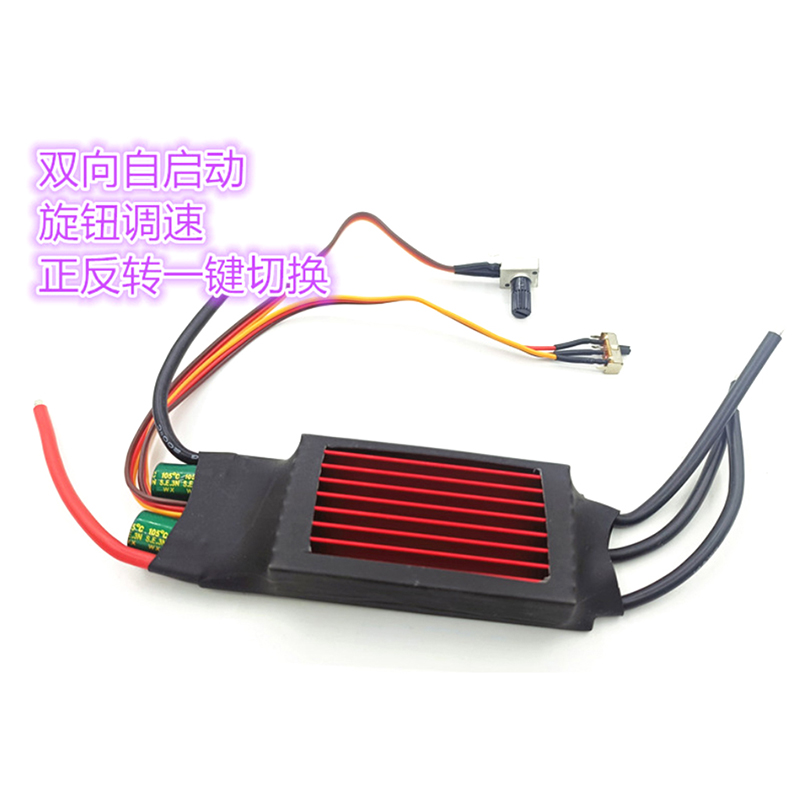

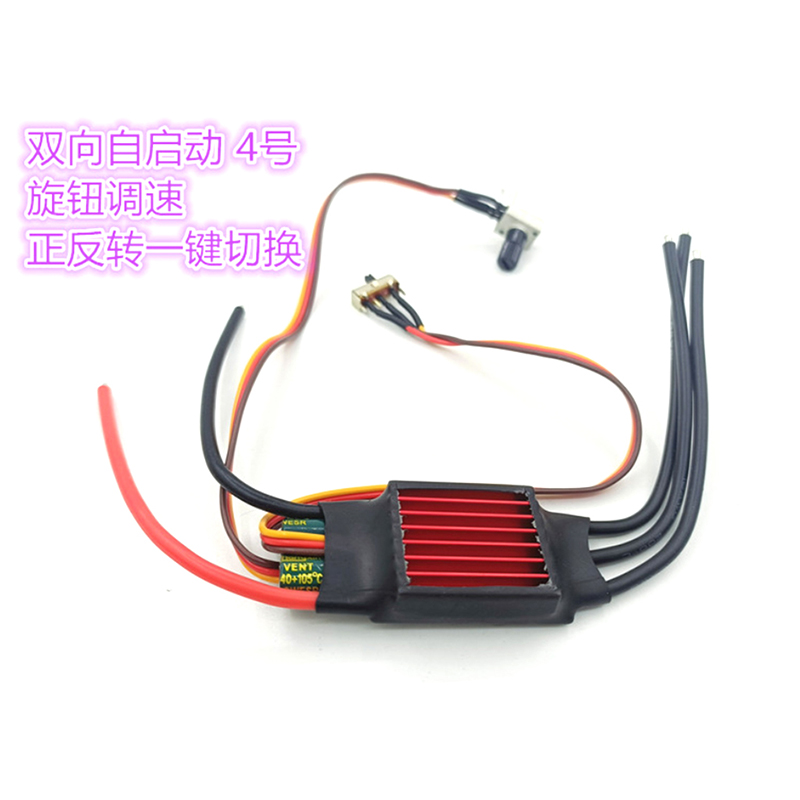

Bi-directional self-starting No. 4: Stop and forward/reverse rotation controlled by dip switches, rotary speed controlled by knob. The motor can be switched between forward and reverse rotation by using the dip switch after starting.

About the load: If the motor load is within 20A, you can choose 30A ESC.

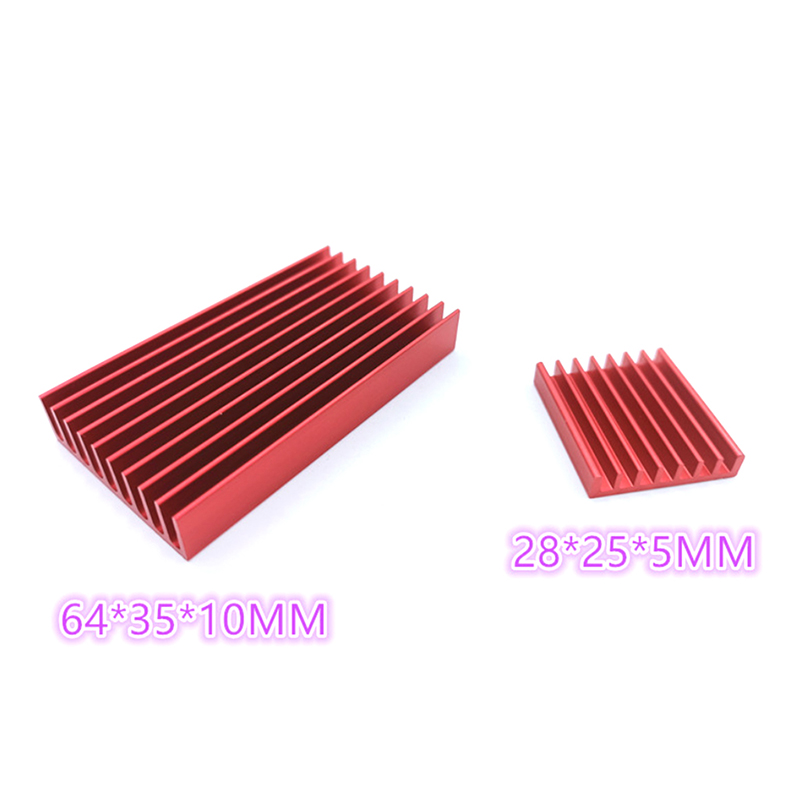

If the motor load is within 35A, you can use 60A ESC. (Because the brushless ESC is the most afraid of heat, long time use must be done to force heat dissipation)

Product Technical Parameters:

Bidirectional self-starting ESC 30A 60A

Operating Voltage: 7-25.2V (2-6S Lipo)

Maximum Power: 30A: 500W 60A: 1000W

Maximum Speed: 224000 RPM (2-pole motor), 74000 RPM

Interface Description:

1.UVW 3-phase DC output to brushless motor

2.VCC GND drive main power supply (external DC power supply)

3. Forward and reverse active brake control (to ground connected to a three-position switch, keep the low level active)

4. Potentiometer stepless speed control (standard potentiometer speed control can also be connected to the external 0-4.5V touch the amount of signal input speed control)
