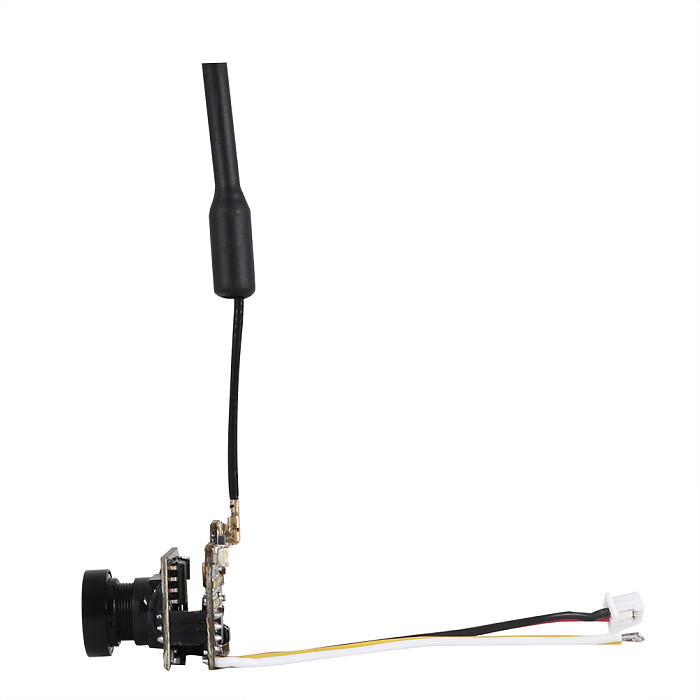

FPV AIO Micro Camera 5.8G 25MW 40CH 800TVL Transmitter LST-S2+ FPV Camera w/ OSD

FPV AIO Micro Camera 5.8G 25MW 40CH 800TVL Transmitter LST-S2+ FPV Camera w/ OSD Item NO.: F24733

5.0
(3)
Write a Review
US$ 17.28
US$ 20.33 Save US$ 3.05 (15% Off)
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name FPV AIO Micro Camera 5.8G 25MW 40CH 800TVL Transmitter LST-S2+ FPV Camera w/ OSD
Item NO. F24733
Weight 0.0462 kg = 0.1019 lb = 1.6297 oz
Category DIY RC Drone Accessories
Brand JMT
Creation Time 2018-04-25

FPV AIO Micro Camera 5.8G 25MW 40CH 800TVL Transmitter LST-S2+ FPV Camera w/ OSD

FPV Camera

Sensor: 1/4 "CMOS
Lens: M8 800TVL Lens
Angle: 150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective
Format: NTSC / PAL (switchable)
Power consumption: 380mA @ 3 · 7V
Power: 3.6-5.5V
Lens Mirror Diameter: 2.1mm IR coated FOV150 (horizontal)

Video Transmitter

Support video format: NTSC / PAL
Output Impedance: 75 Ohm
Output signal strength: 23 ~ 24dBm
Output Power: 25mW
Wireless Channel: 40CH
Antenna: RHCP circular polarization clover leaf antenna
Operating voltage: 3.6V ~ 5.5V
Current: 100mA
Audio carrier: 6.5MHz

Button function
Short press (Apr. 1 sec or less): Change channels 1-8
Long press (More than 1.5 sec): Change bands A-B-E-F-R
Long + press (More than 3 sec): Change NTSC/PAL system
NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL)

Body

Weight: 3.6g
Size: 18x16x16mm (without antenna)

Feature:

AIO FPV camera, transmitter , antenna all 3 functions in one limit size and weight
150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective
Five bands 40 channels with Race band

Package Included:
1 X S2+ AIO FPV Camera
1 X wiring harness
1 X User Manual


2019-12-31

n****b

Really good camera for this price. OSD is an another good feature.

2019-11-22

s****G

BEWARE - the one I get has reversed polarity! It might burn unless you swap + and - !
Othervise it would be 5 stars.

2019-08-10

r****n

good price for OSD camera
