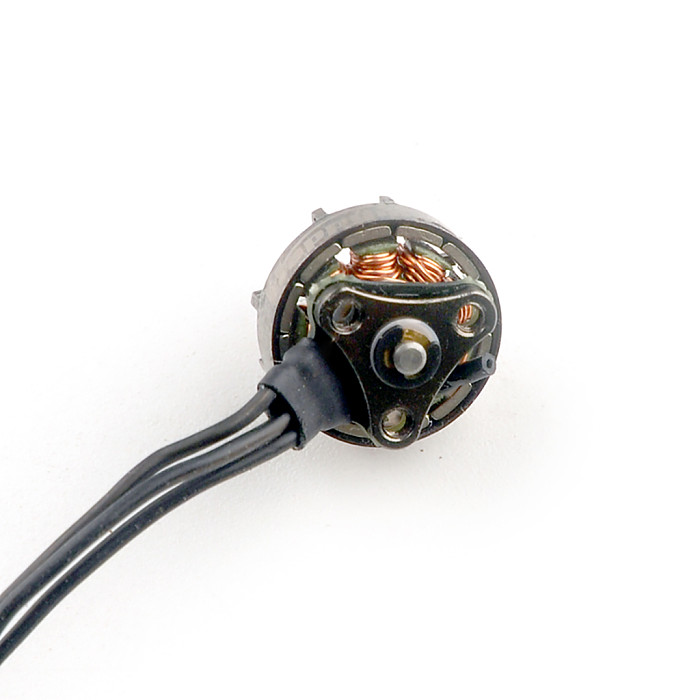

Copy| Product Name | 1PCS HappyModel RS0802 KV20000 1S Brushless Motor for FPV Freestyle Mobula7 Mobula7 HD 1S Tinywhoop Drones DIY Parts |
| Item NO. | F47566 |
| Weight | 0.05 kg = 0.1102 lb = 1.7637 oz |
| Category | DIY RC Drone Accessories |
| Creation Time | 2022-06-11 |
Specifications:
Brand name: Happymodel
Item name: RS0802 brushless motor
KV: 20000KV
Shaft Diameter: 1.5mm
Configuration: 9N12P
Stator Diameter: 8mm
Stator Length: 2mm
Motor Dimension(Dia.*Len): Φ10.5mm*13.5mm
Terminals: JST1.25mm
No. of Cells(Lipo): 20000KV compatible with only 1S lipo
Wire length(exclude connector):30mm
Weight: 2g
Compatible for Mobula7 and Mobula7 HD 1S version
Note: Please leave a message after placing the order if you want CW or CCW
| Happymodel RS0802 KV20000 Brushless motor Bench data | ||||||||||
| No-load voltage |
No-load current |
No-load Speed | KV |
Voltage (v) |
Current (A) |
Thrust (g) |
Efficiency (g/w) |
Power (w) |
Propeller | |
| Happymodel RS0802-20000KV | ||||||||||
| 2 | 0.46 | 40790 | 20395.0 | 3.7 | 0.5 | 6.1 | 3.297 | 1.85 |
Gemfan 1610 2-blade propeller |
|
| 3.7 | 1 | 11.3 | 3.054 | 3.7 | ||||||
| 3.7 | 1.5 | 15.9 | 2.865 | 5.55 | ||||||
| 3.7 | 2 | 20.8 | 2.811 | 7.4 | ||||||
| 3.7 | 2.5 | 24.7 | 2.670 | 9.25 | ||||||
| 3.7 | 3 | 29.4 | 2.649 | 11.1 | ||||||
| 3.7 | 3.5 | 32.5 | 2.510 | 12.95 | ||||||
| 3.7 | 3.74 | 34.8 | 2.515 | 13.838 | ||||||
