0.1-2000MHz 32dB Gain Broadband Low Noise High Frequency LNA RF Amplifier Module with SMA-K Female Connector For FM HF VHF/UHF

0.1-2000MHz 32dB Gain Broadband Low Noise High Frequency LNA RF Amplifier Module with SMA-K Female Connector For FM HF VHF/UHF Item NO.: F47070

Write a Review
US$ 3.96
US$ 4.66 Save US$ 0.70 (15% Off)
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name 0.1-2000MHz 32dB Gain Broadband Low Noise High Frequency LNA RF Amplifier Module with SMA-K Female Connector For FM HF VHF/UHF
Item NO. F47070
Weight 0.05 kg = 0.1102 lb = 1.7637 oz
Category DIY RC Drone Accessories
Creation Time 2022-04-29

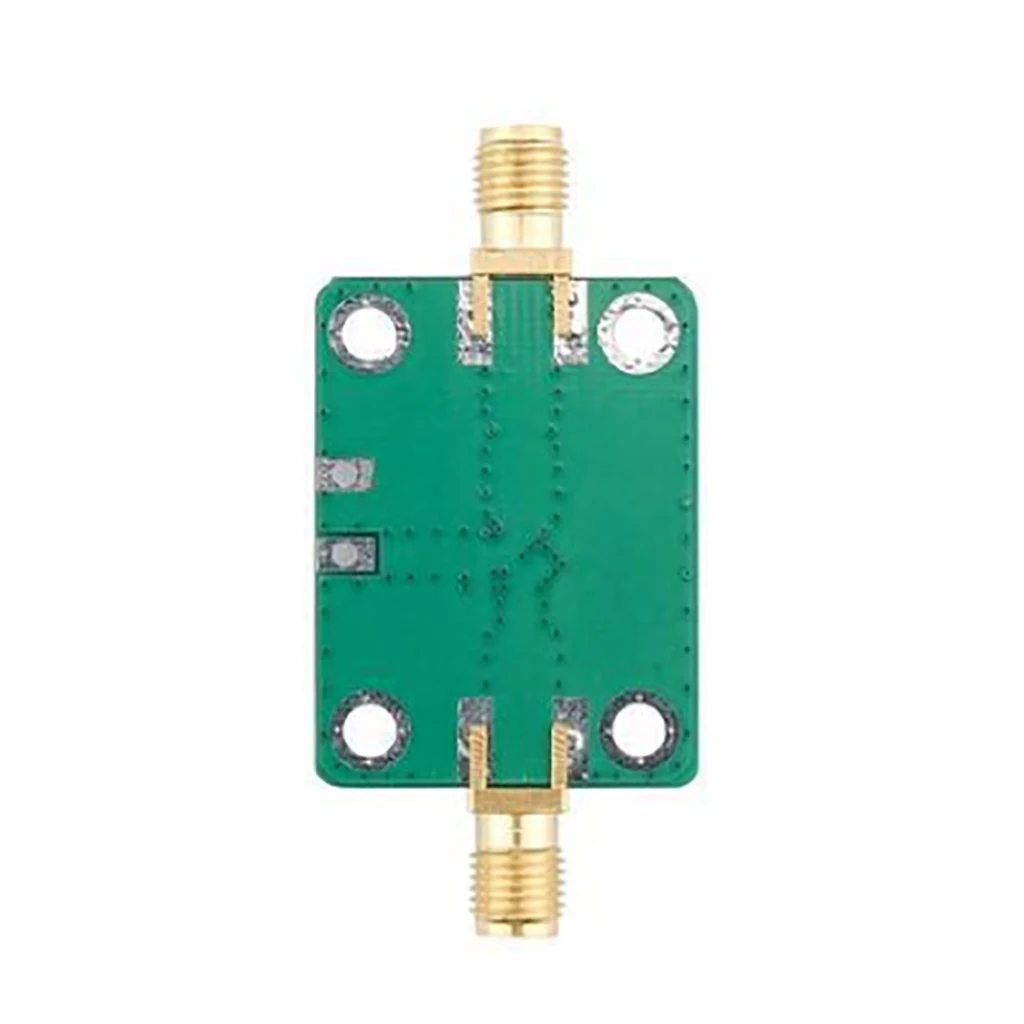

0.1-2000MHz 32dB Gain Broadband Low Noise High Frequency LNA RF Amplifier Module with SMA-K Female Connector For FM HF VHF/UHF



RF signal amplifier

(0.1-2000MHz 32dB)


1. Product application

This amplifier has the advantages of wide frequency range, high gain, low noise figure, etc. It can be used in various RF receiving front-ends to increase the communication distance!

Wide range of shortwave, FM broadcasts, remote control receivers, wired TV signal amplifiers, etc. - where low noise small signal RF amplification is required.


2. Technical indicators

1) Operating frequency: 0.1-2000MHz

2) Working voltage: 9-12V (suitable for lithium battery power supply)

3) Working current: 27mA

4) Amplification gain: 32dB (typ.)

F= 0.1MHz, gain=32dB

F=500Mhz gain=32dB

F=1000MHz gain=32dB

F=1500Mhz gain=32dB

F=2000MHz gain=32dB

F=2500MHz gain=30dB

F=3000MHz gain=29dB

5) Maximum output: 13dBm (20mW)

6) System impedance: 50 ohms

7) Connector model: SMA-K (external screw and inner hole)

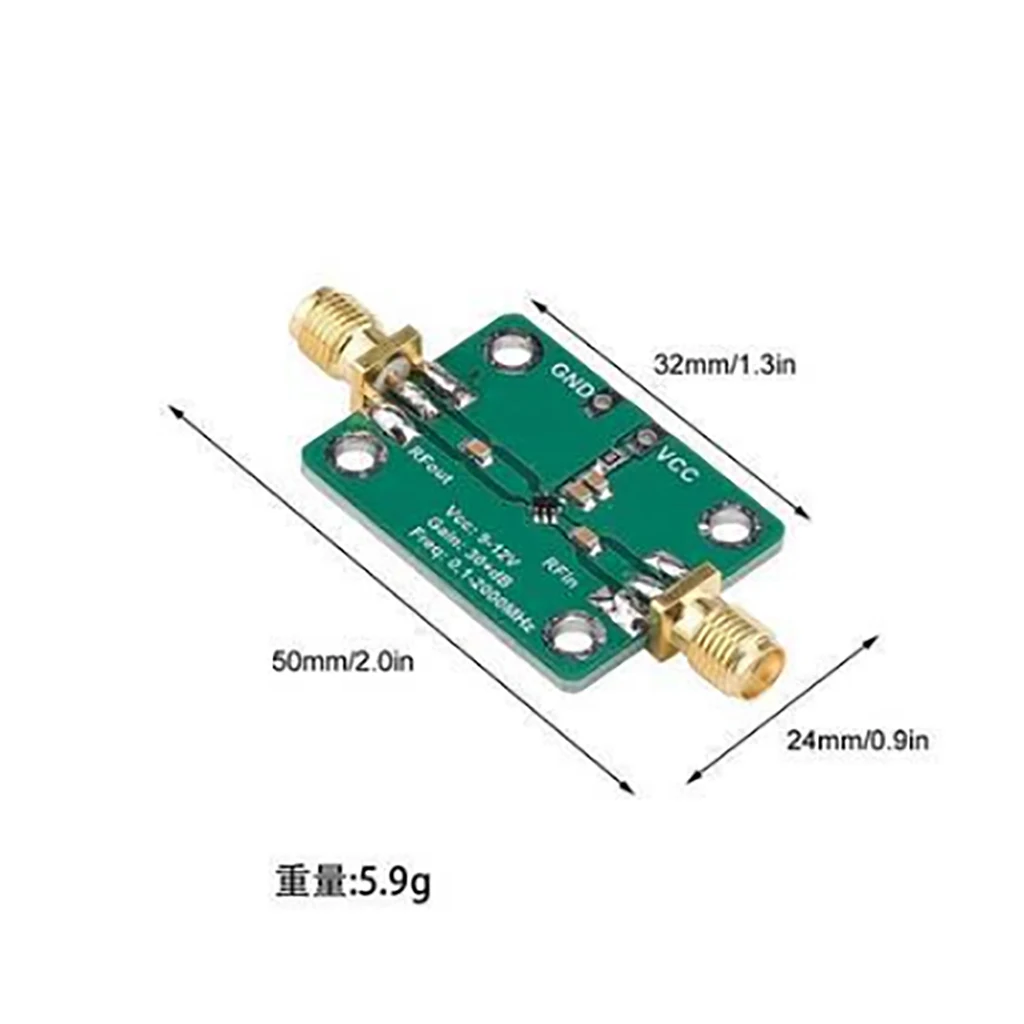

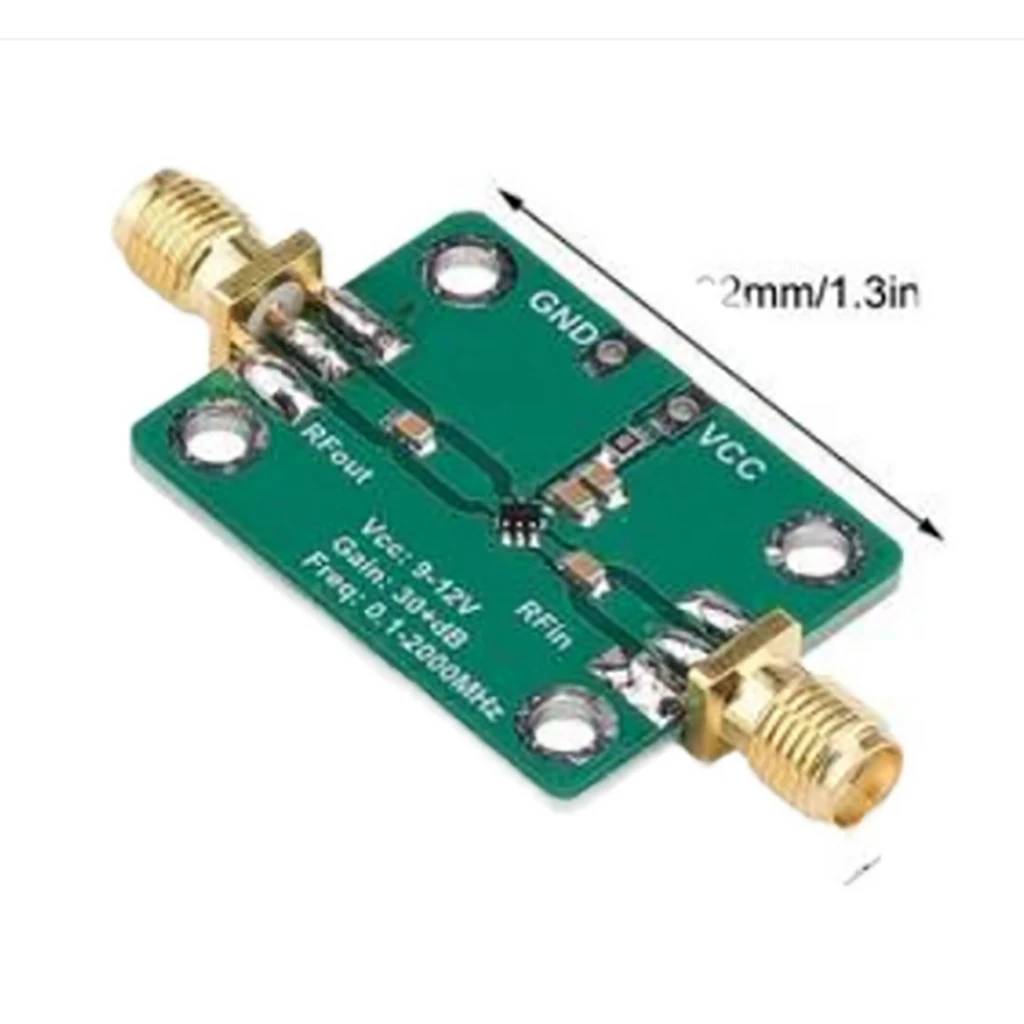

8) Dimensions: 25*33mm (without connector)

9) Product weight: 6g


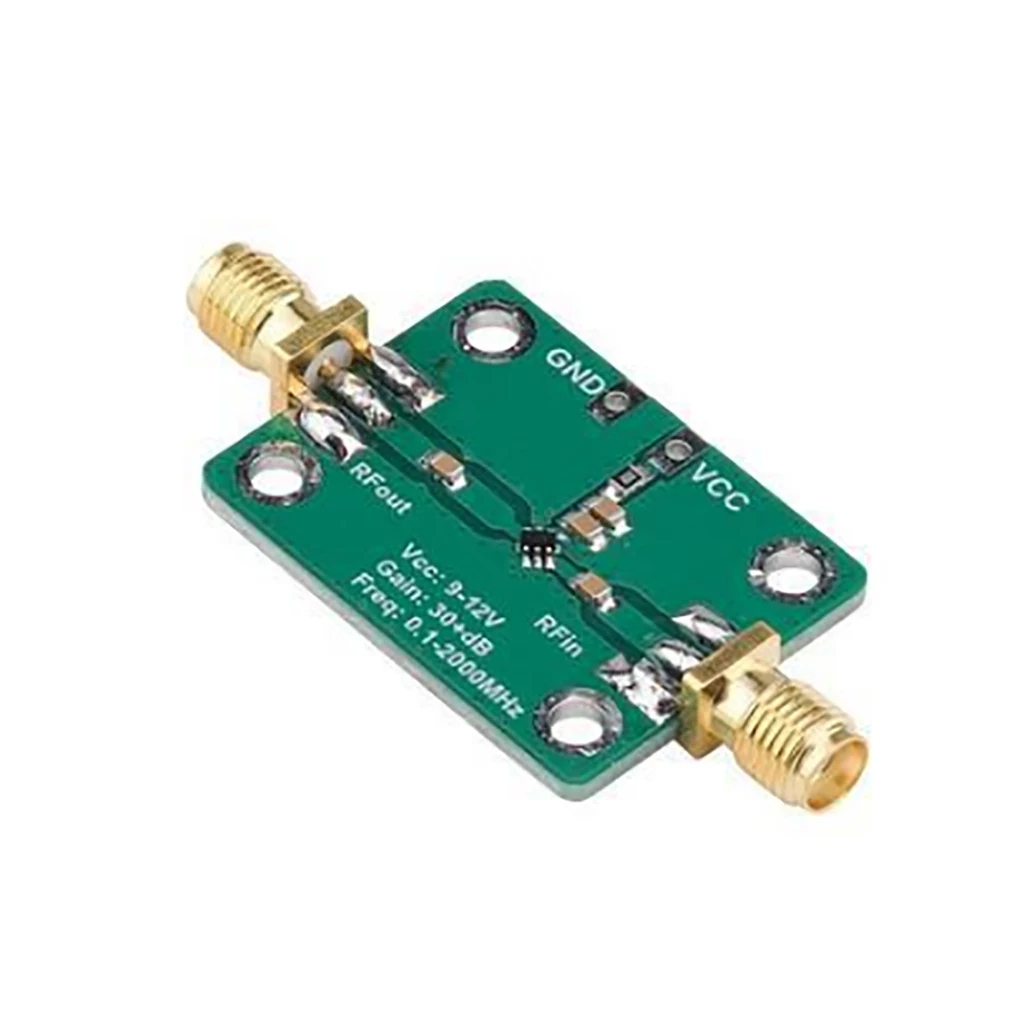

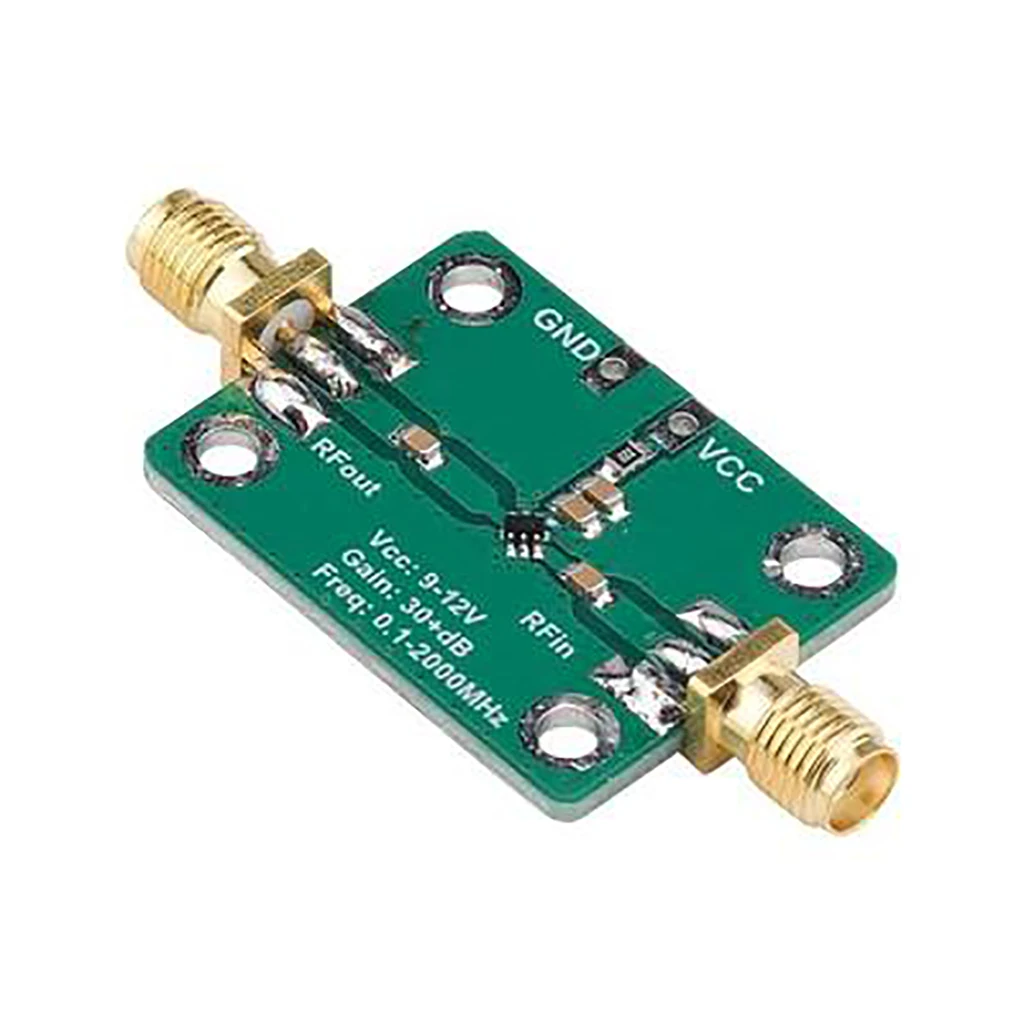

3. How to use

RFin: input signal amplification

RFout: output amplified signal

VCC: positive power supply (suitable for lithium batteries)

GND: negative power supply
