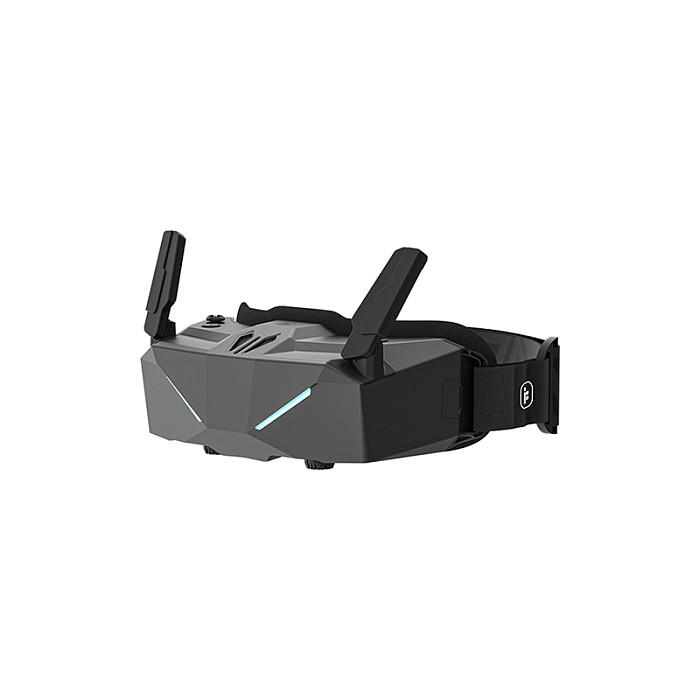

iFlight For Skyviz Goggles Integrated FPV Analog Goggles Micro-OLED 100Hz with FOV Modes 2S-6S Lipo for RC FPV Quadcopter

iFlight For Skyviz Goggles Integrated FPV Analog Goggles Micro-OLED 100Hz with FOV Modes 2S-6S Lipo for RC FPV Quadcopter

US$ 520.36
Add to Cart
Estimate Shipping Cost
  • Detail
    • Product Name: iFlight For Skyviz Goggles Integrated FPV Analog Goggles Micro-OLED 100Hz with FOV Modes 2S-6S Lipo for RC FPV Quadcopter
    • Item NO.: F54497
    • Weight: 0.55 kg = 1.2125 lb = 19.4007 oz
    • Category: DIY RC Drone Accessories
    • Creation Time: 2025-08-15


    Description

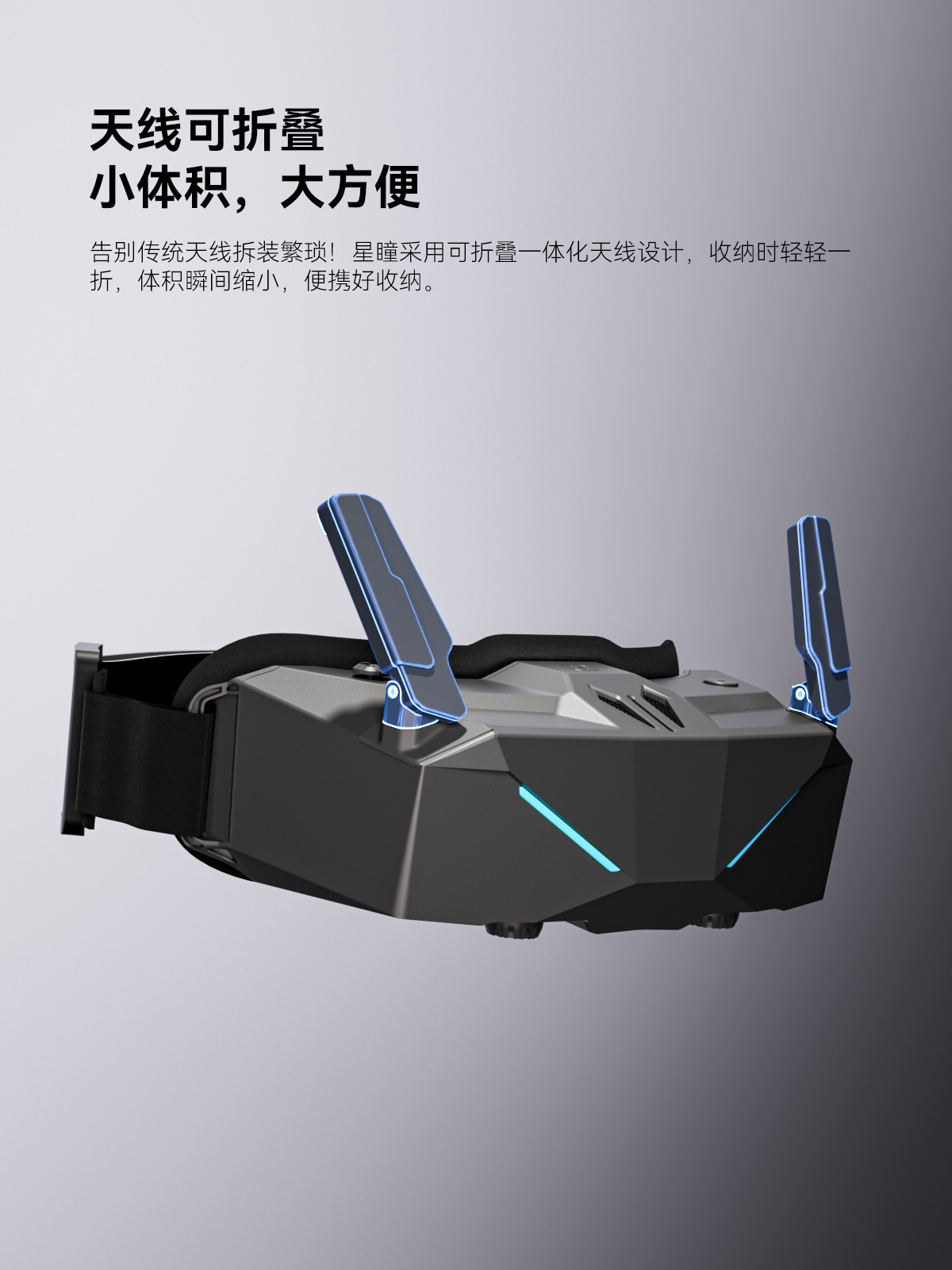

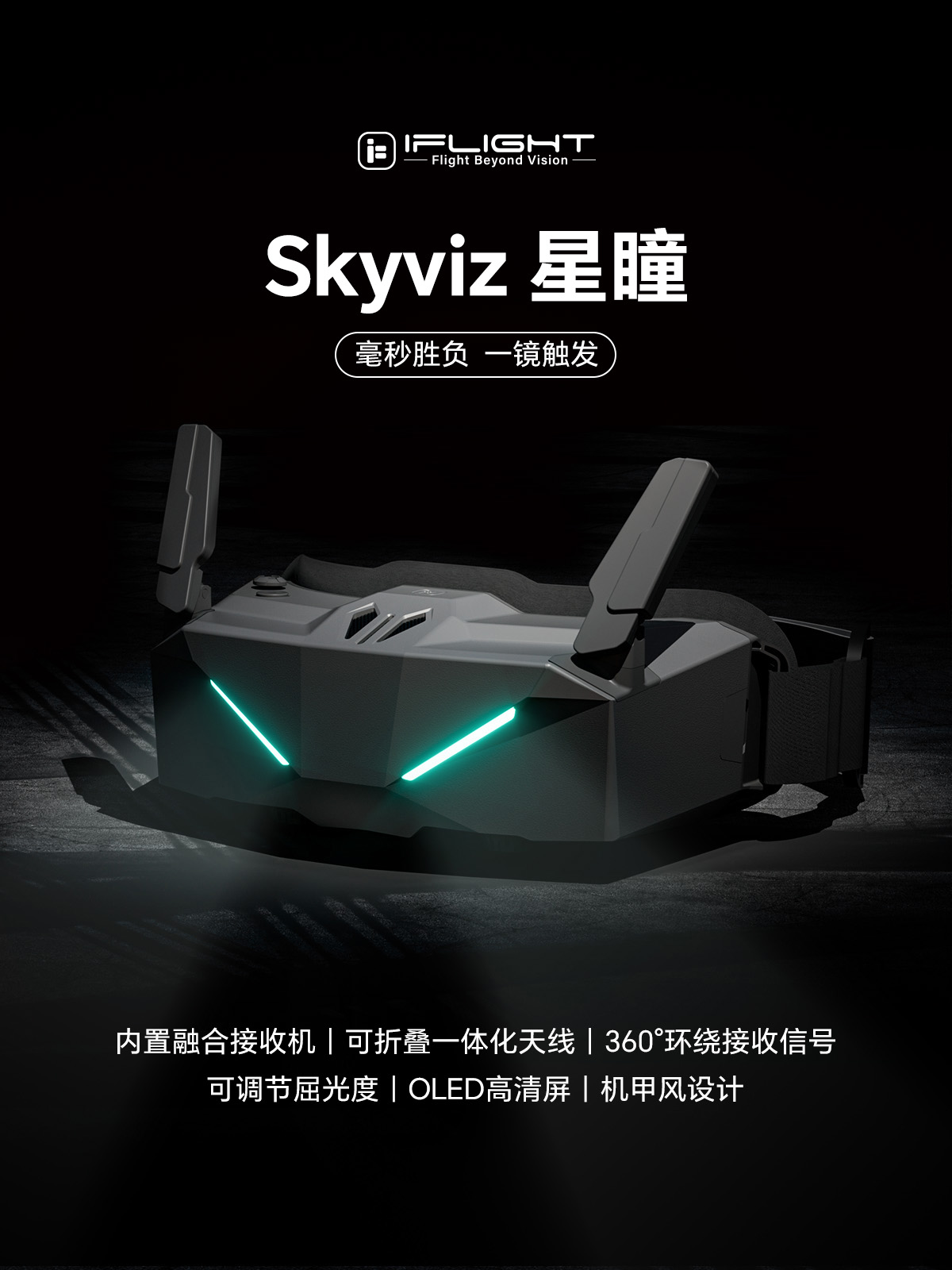

    The For Skyviz Goggles are the first mecha-style, highly integrated FPV Analog goggles with a built-in fusion receiver and foldable antenna design, offering a compact and ergonomic layout.

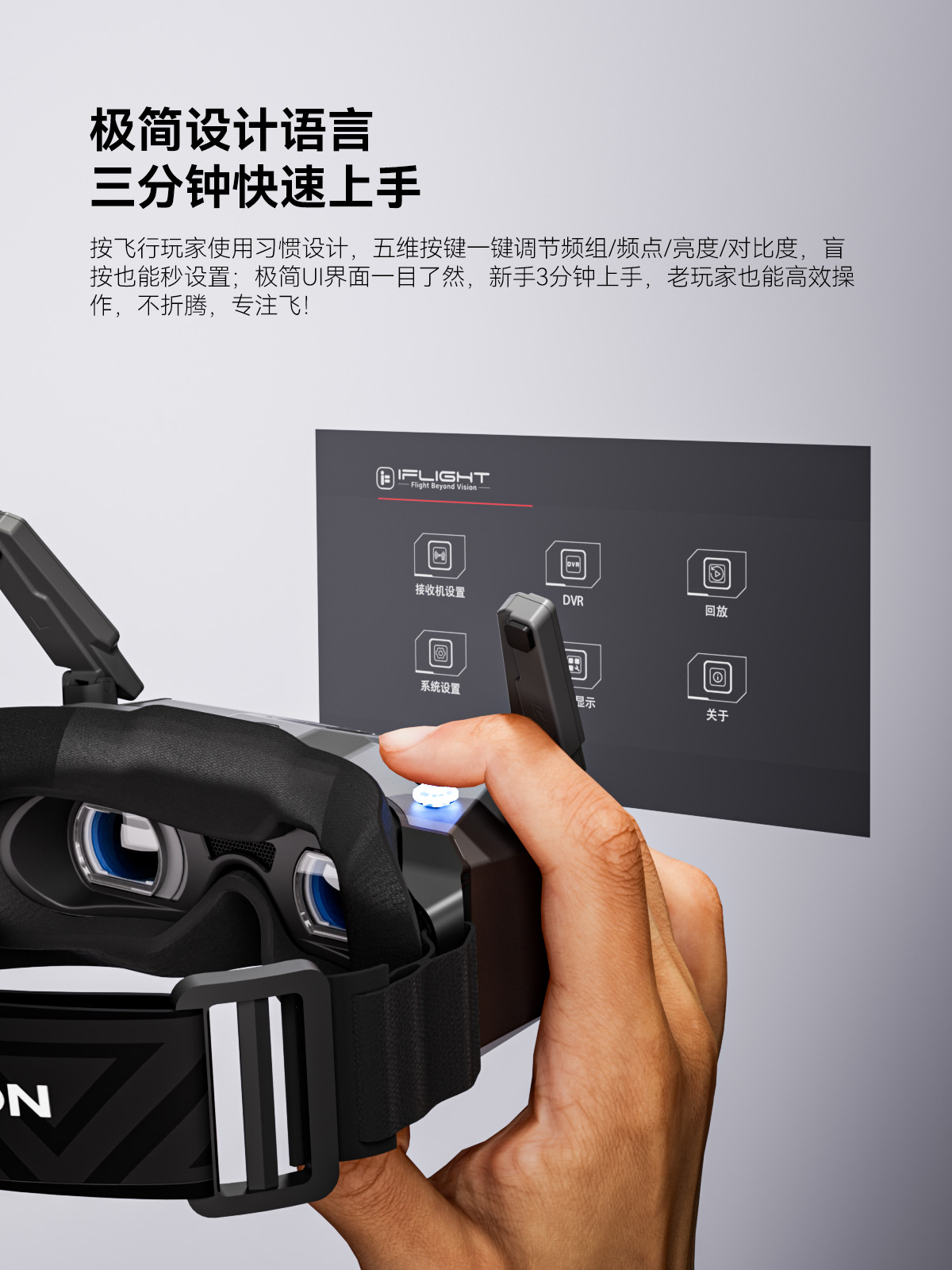

    The minimalist UI and intuitive controls enhance the user experience, while dual Micro-OLED displays (100Hz refresh rate) deliver ultra-smooth, crystal-clear visuals.

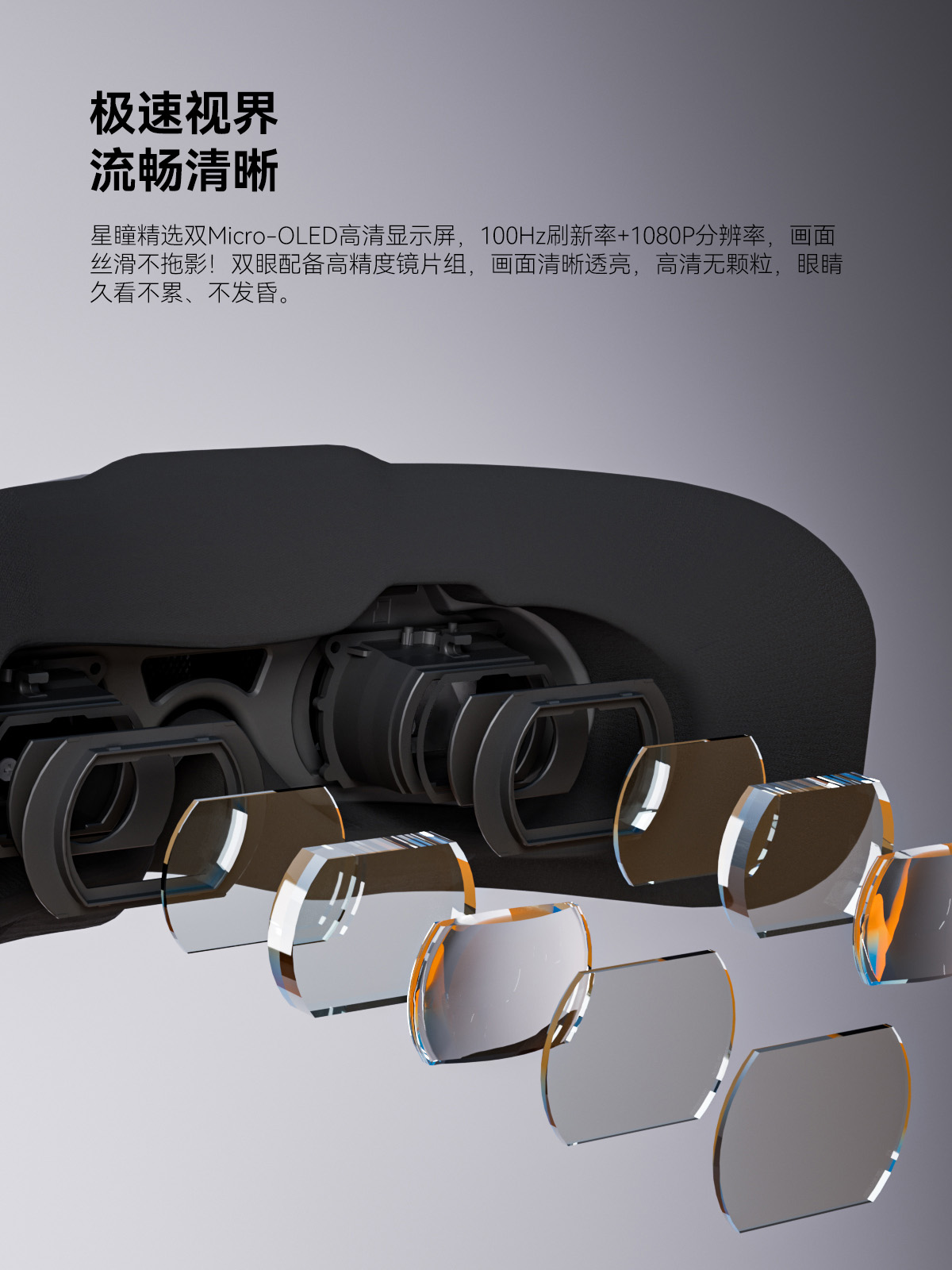

    Featuring a 7-element aspherical lens system, the for Skyviz Goggles provide sharp, distortion-free images with no screen-door effect, adapting seamlessly to any diopter setting for unparalleled immersion.

    Features

    Uncompromised Visual Performance

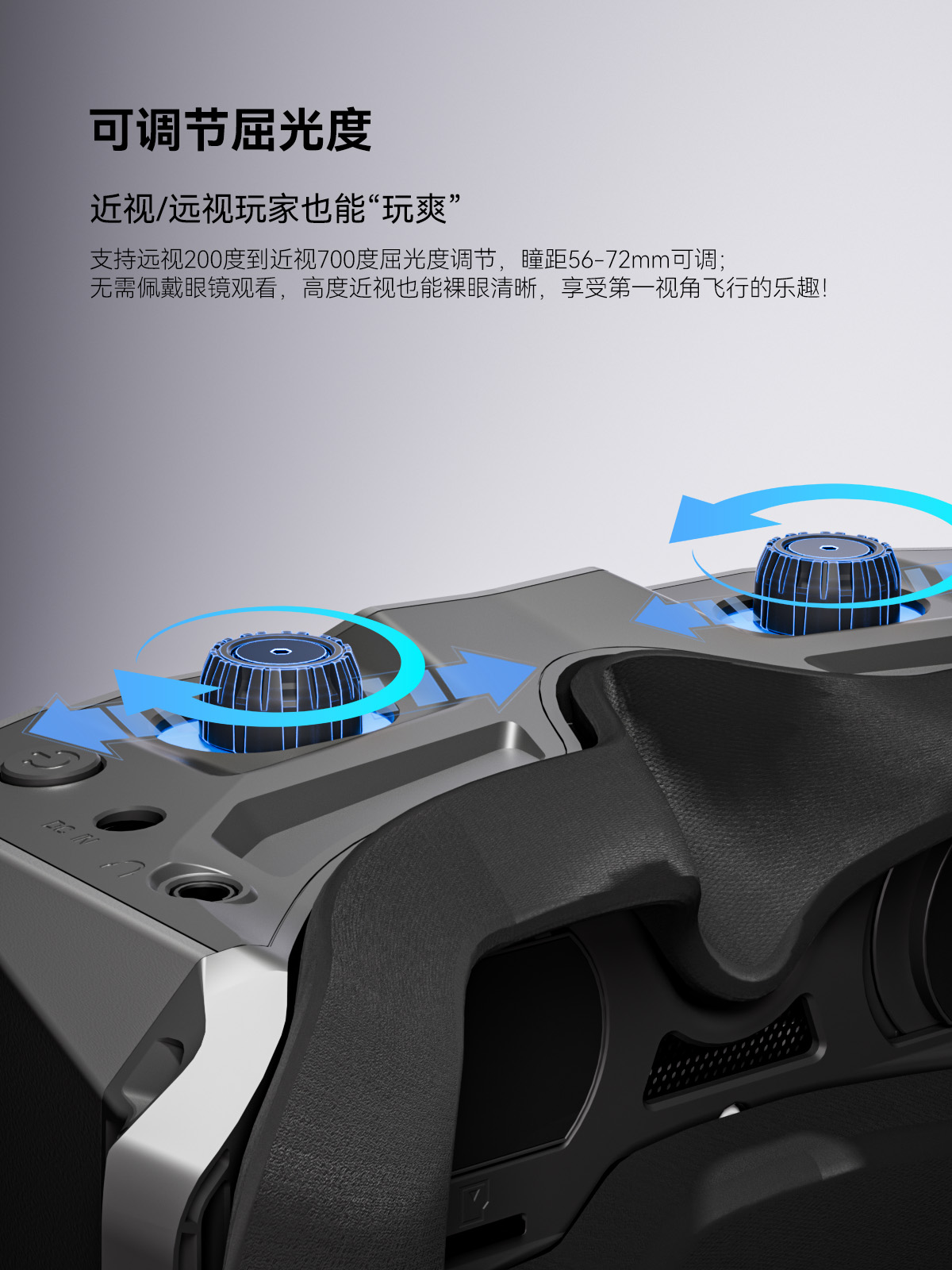

    Engineered with dual 100Hz Micro-OLED displays and a 7-element aspherical lens system, the goggles deliver stutter-free, high-fidelity imagery with zero screen-door effect. Customize your view with diopter adjustment (-7D to +2D) and IPD tuning (56-72mm) for universal comfort.

    Modular Receiver & Input Flexibility

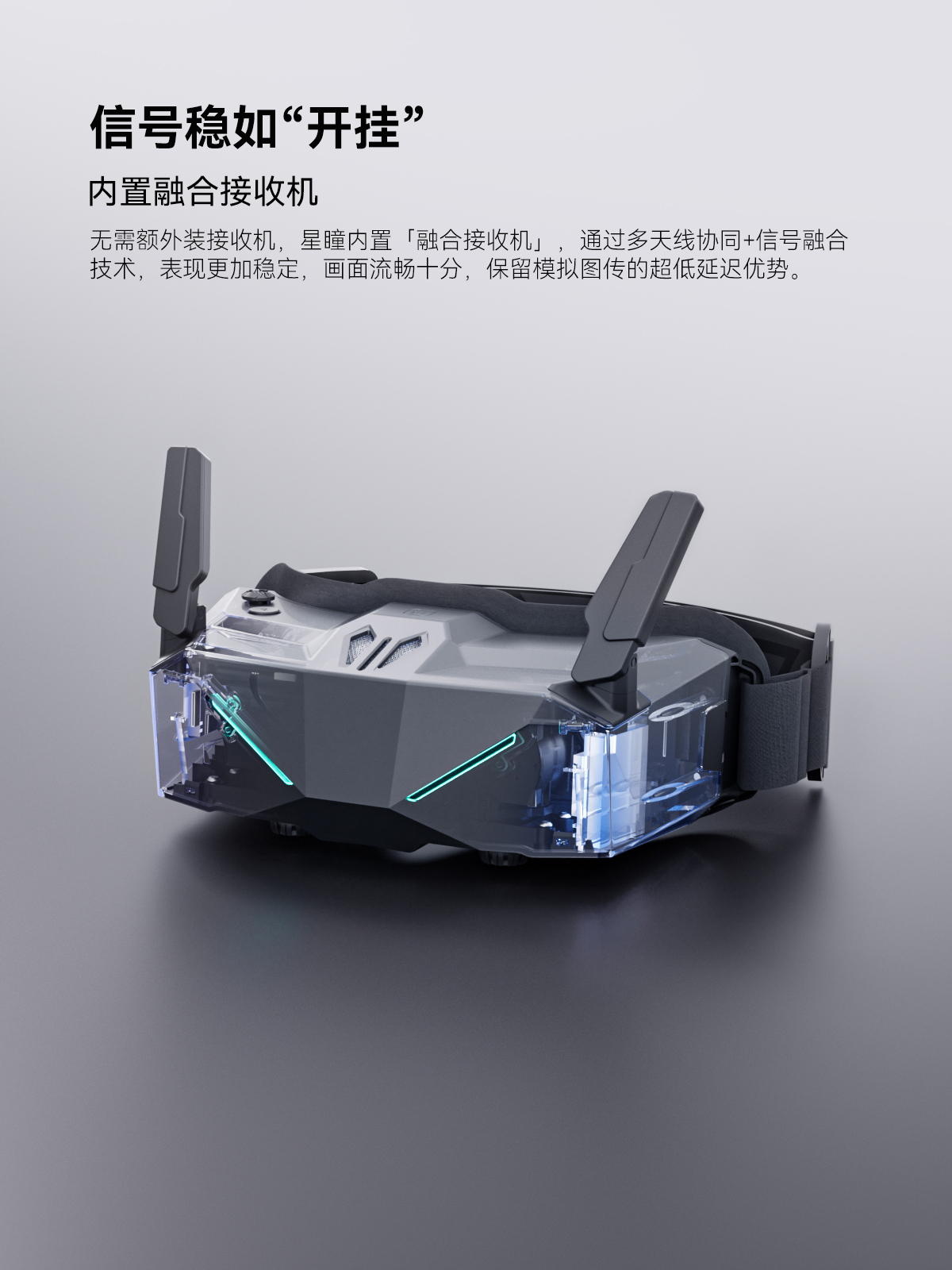

    It uses an integrated receiver for high-quality image transmission and also supports third-party receivers. Compatible with VRX, AV, and HDMI input modes, it adapts to various usage scenarios.

    Customizable Display Settings

    Tailor visuals with Race/Freestyle FOV modes, focus chart-assisted calibration, and granular image settings (brightness/contrast/color/sharpness). Toggle between 16:9 and 4:3 aspect ratios to match your feed.

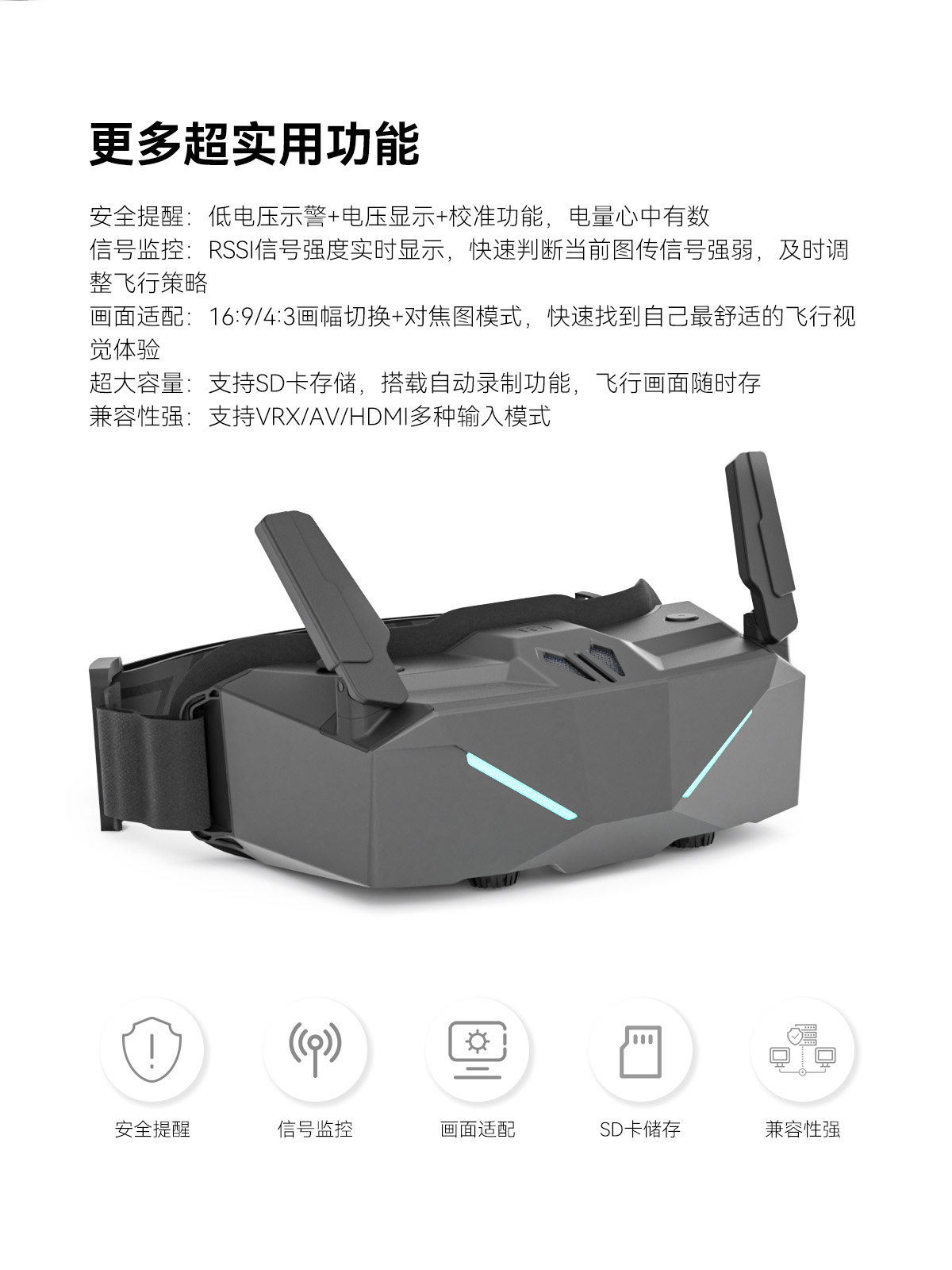

    Enhanced Usability Features

    The DVR recording and playback function with adjustable settings, voltage display and calibration, and a multilingual interface in Chinese and English improve practicality.

    Comfort & Customization

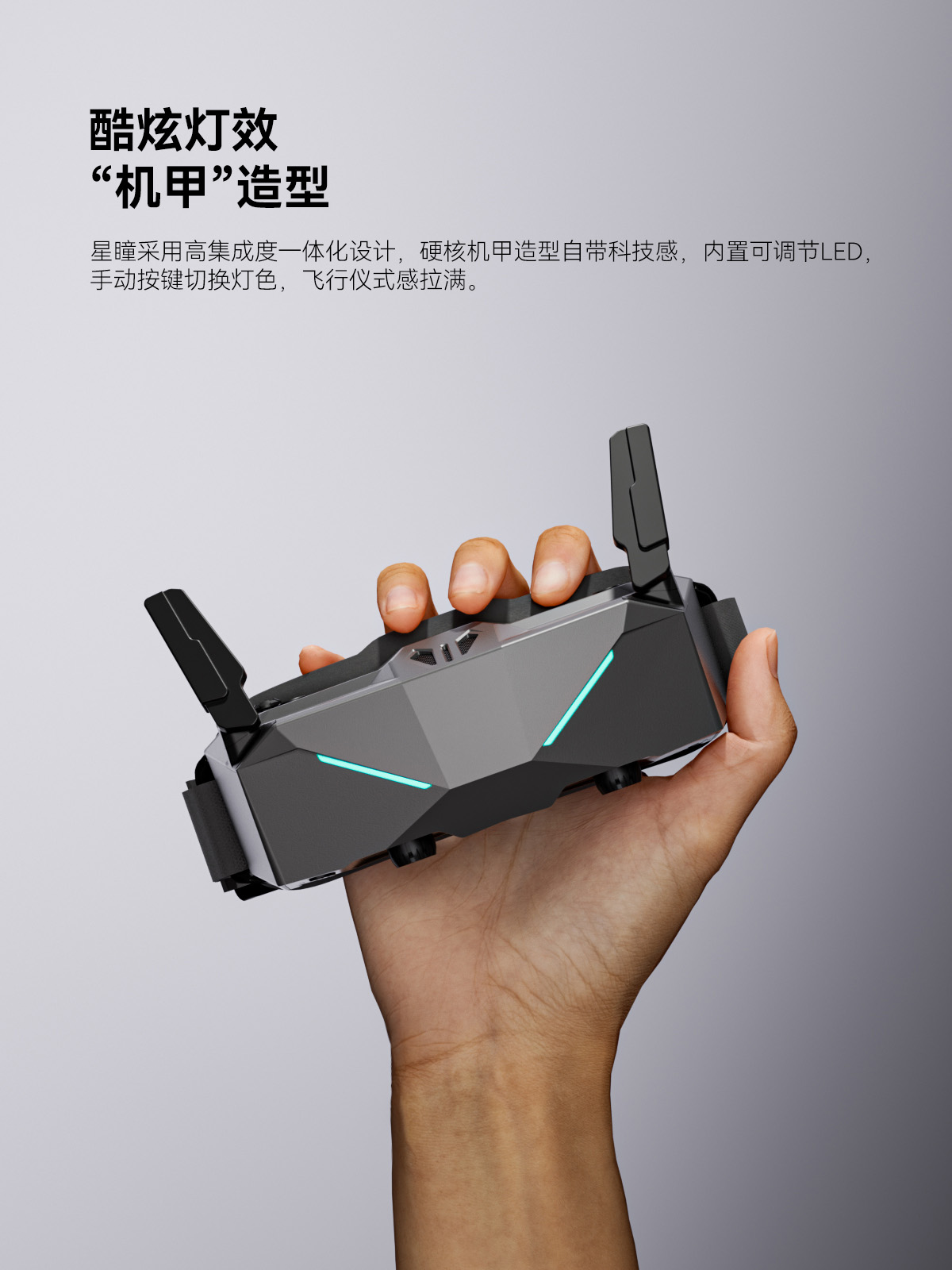

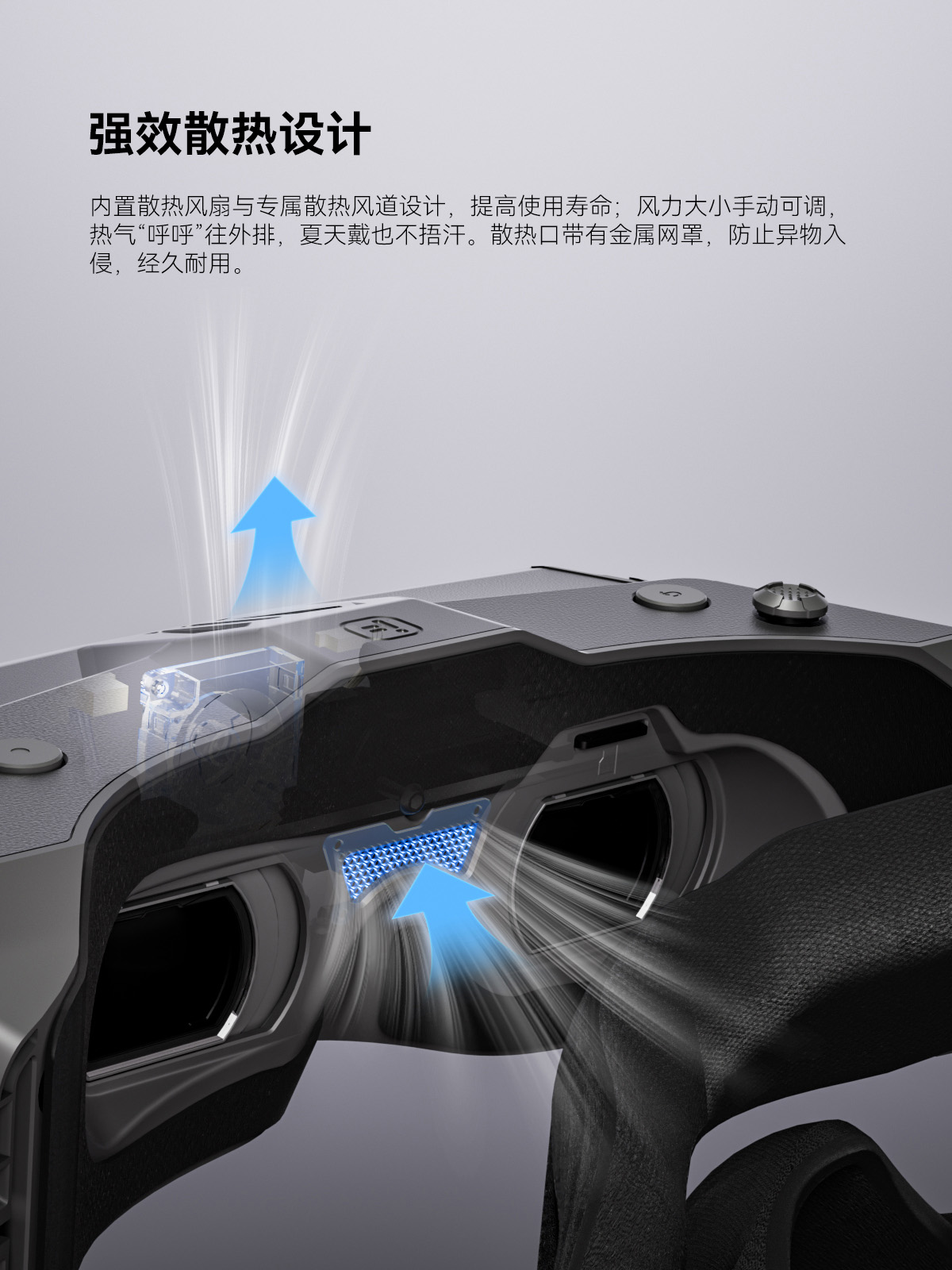

    Manual control of the fan switch and speed provides comfort during long-term use, and the option to customize LED colors adds a personalized touch to the goggles' appearance.

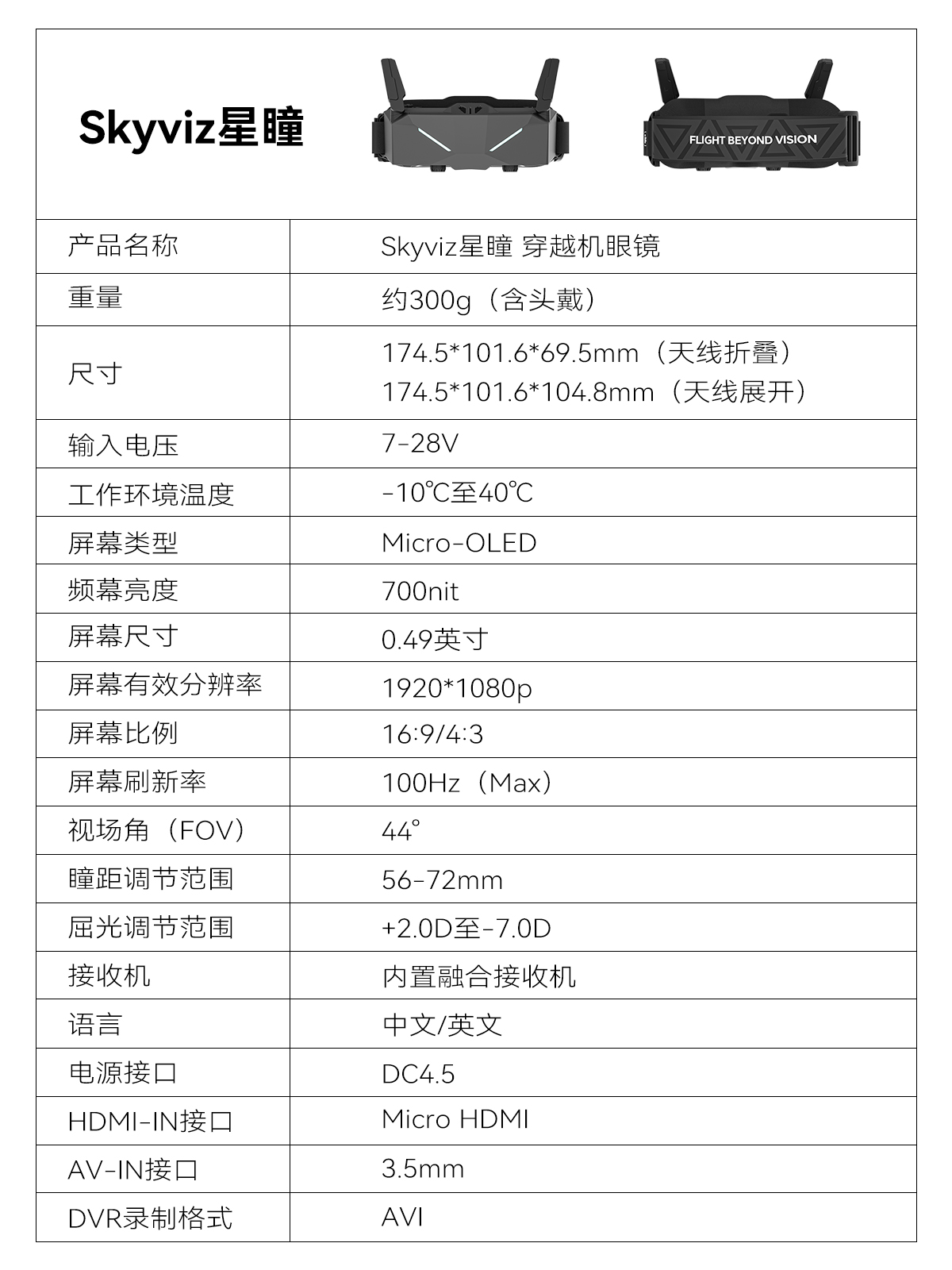

    Specifications

    Product Name: for Skyviz Analog Goggles

    Weight: Approx. 300grams（headband included）

    Dimensions (L×W×H): L174.5 * W101.6 * H69.5mm(Antenna folding)

    Screen Size (single screen): 0.49-inch

    Resolution (single screen): 1920×1080

    Refresh Rate: 100 Hz(Max)

    Interpupillary Distance Range: 56-72 mm

    Diopter Adjustment Range: -7.0 D to +2.0 D

    FOV (single screen): 44°

    Aspect Ratio: 16:9/4:3

    Receiver: Built-in receiver

    Language: Chinese and English

    Power interface: DC4.5

    HDMI-IN: Micro HDMI

    AV-IN 3.5mm

    Headphone jack: /

    DVR format: MP4

    DVR frame rate: 30FPS (CVBS)

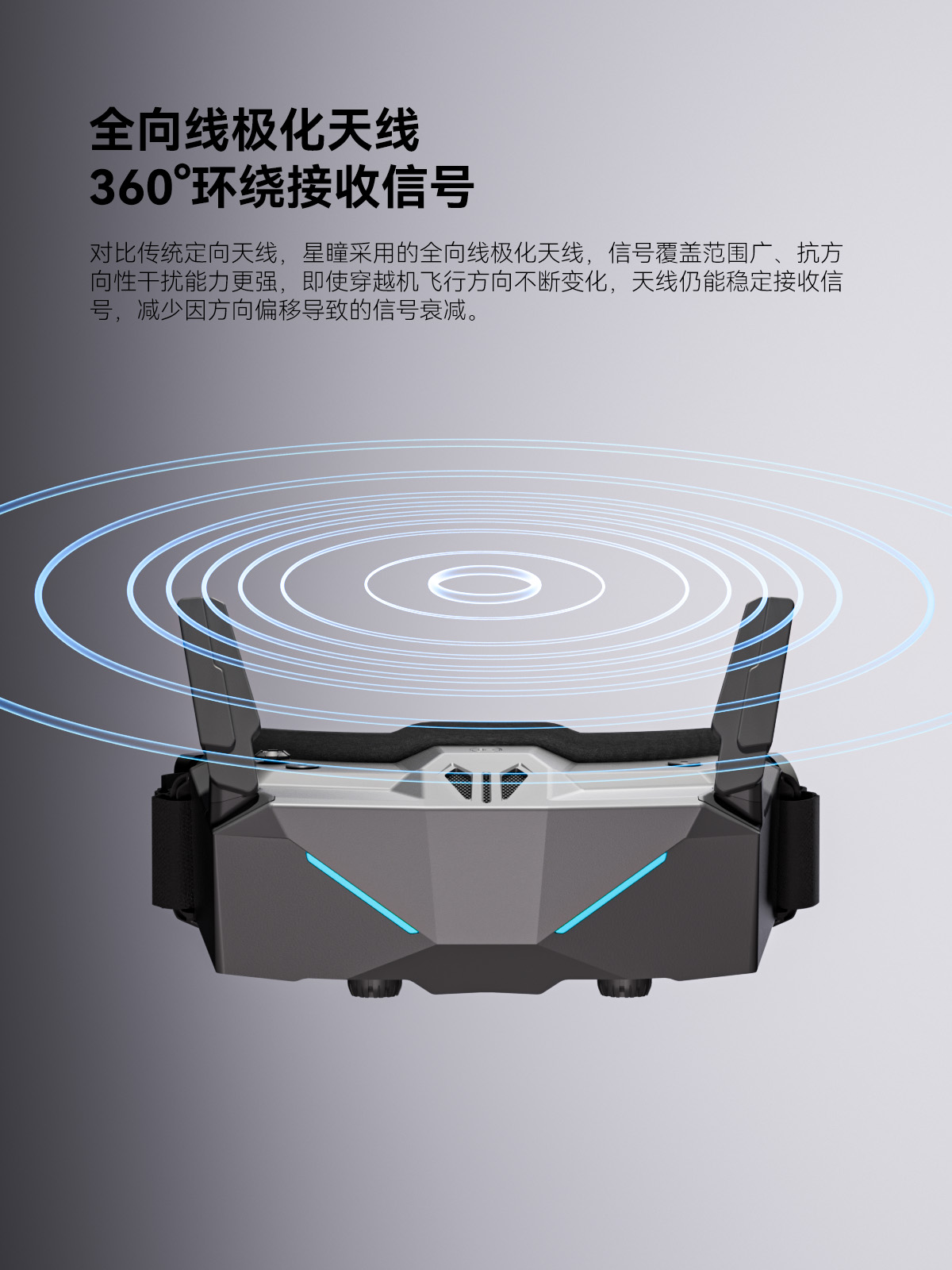

    Antenna: Omnidirectional linear polarization antenna

    Operating Temperature Range: -10°C to 40°C (14°F to 104°F)

    Power Input: 2-6S

    Supported SD Cards: microSD (up to 64 GB)

    Packing List

    1 x for Skyviz Goggles
