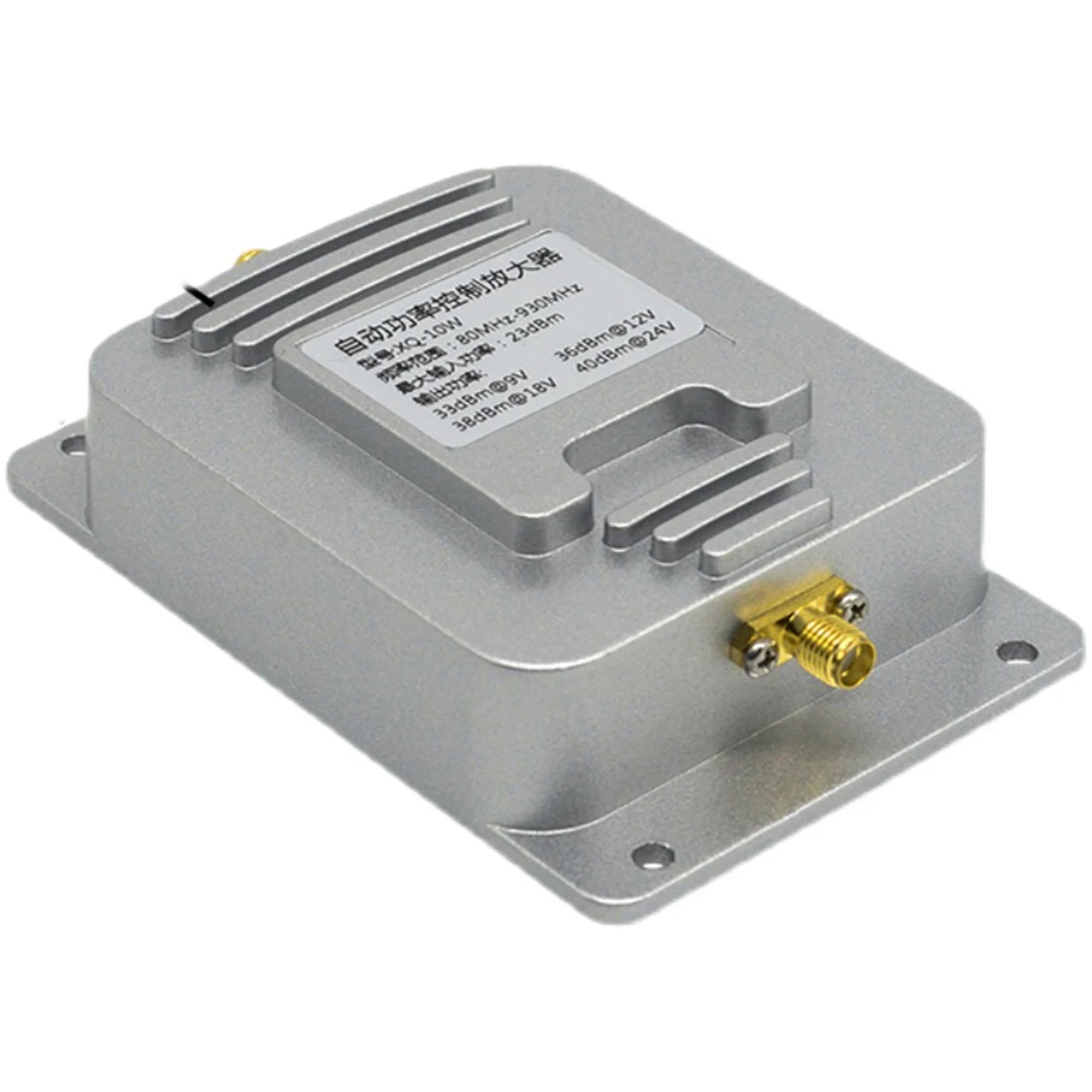

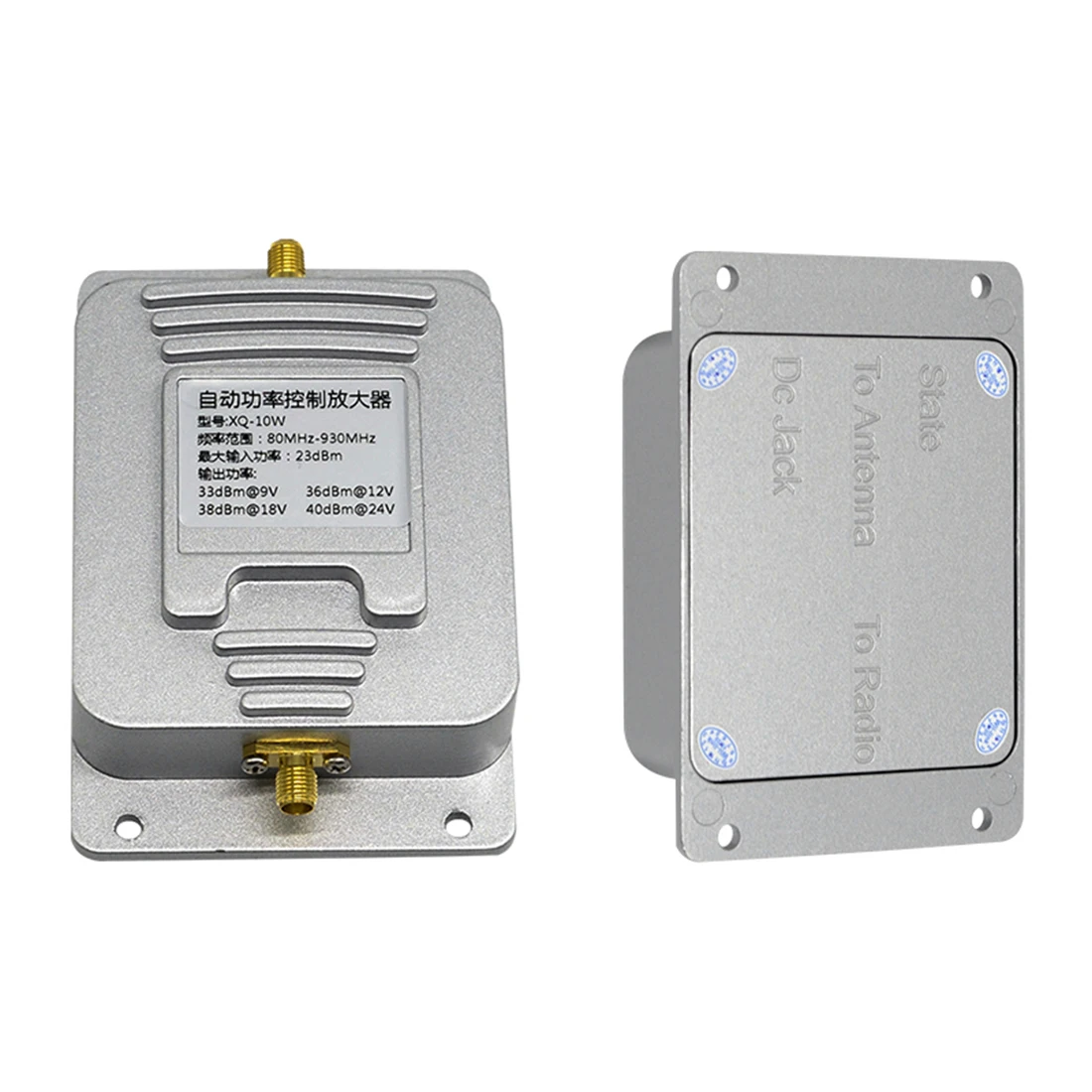

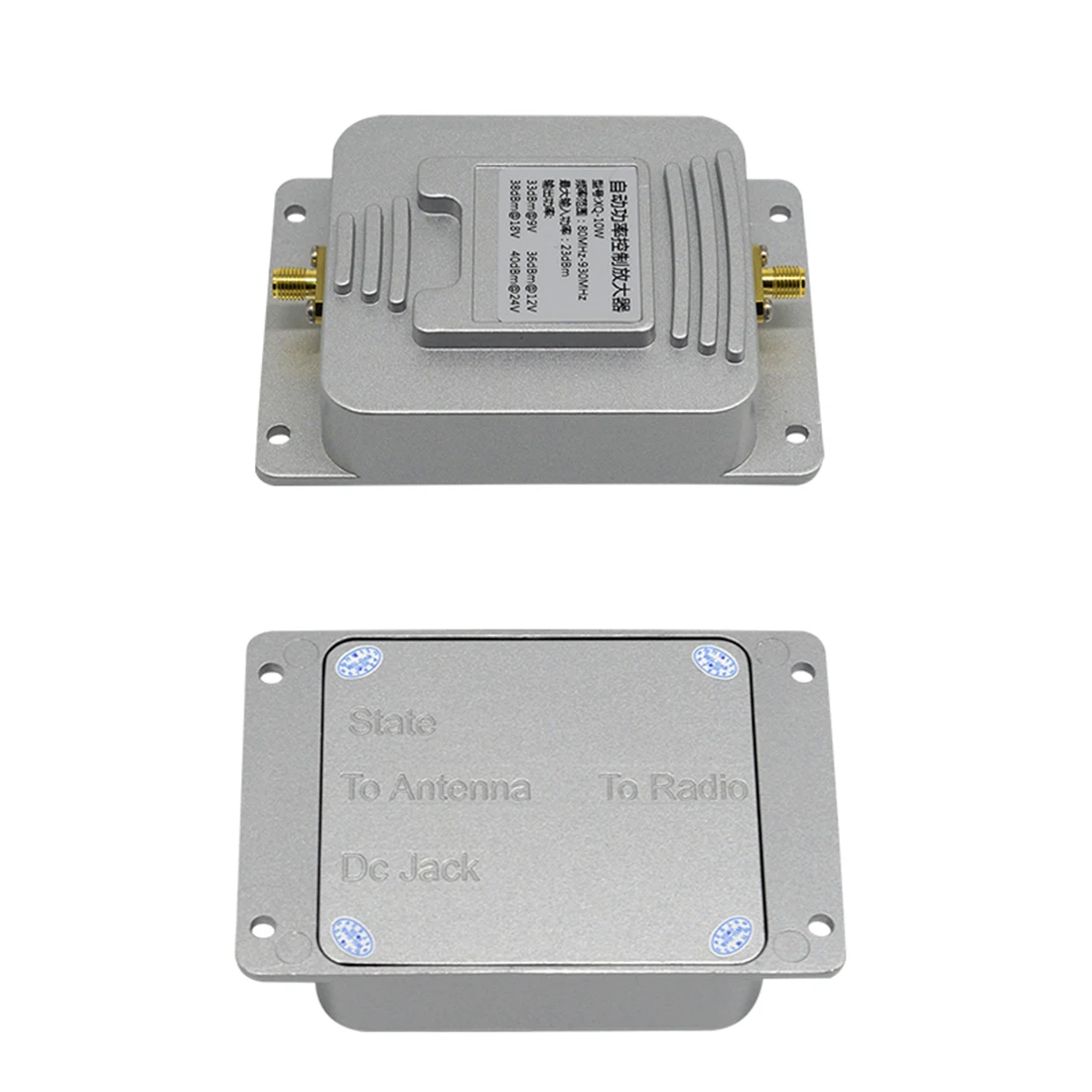

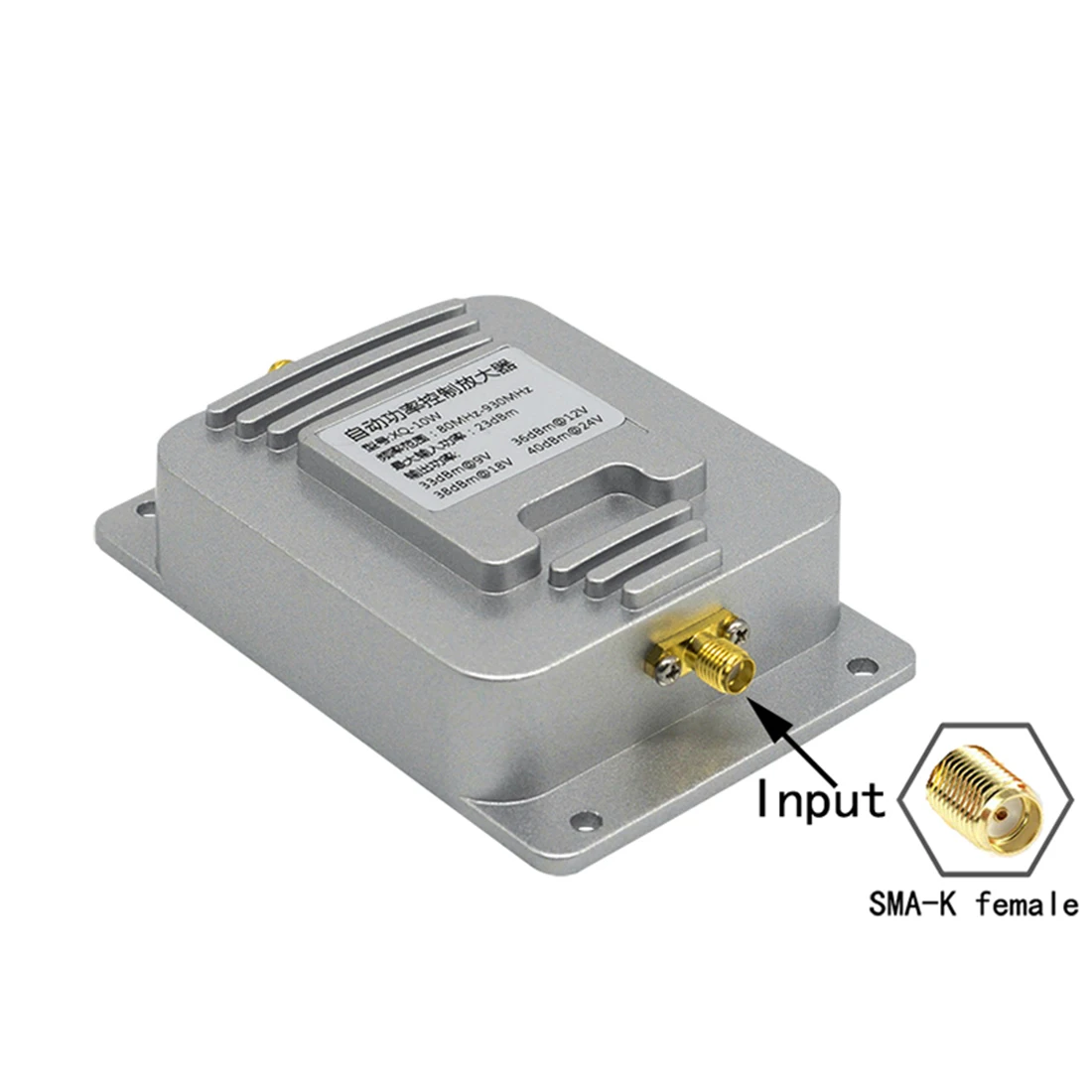

XT-XINTE XQ-10W Ultra-wideband Automatic Power Control RF Amplifier 80MHz – 930MHz One-way Signal Amplifier for Sub-1GHz Band

Notes.

1, in order to ensure that the technical indicators are relatively balanced in the whole wide band of 80MHz - 930MHz, some frequency points are not the best technical indicators.

2, if you are buying in bulk, we can adjust the matching parameters for specific frequency points according to the user's actual use requirements, to ensure that the specified frequency point performance indicators to achieve the best.

3, support the modification of parameters for the frequency band range: 80MHz - 3000MHz range of any frequency point.

Product name: Ultra-wideband universal automatic power control amplifier.

Product Model: XQ-10W.

Product Overview: XQ-10W is an ultra-broadband general-purpose RF amplifier specially suitable for Sub-1GHz band, with built-in high-performance automatic power control circuit, which can automatically adjust the actual output power according to the working voltage range, and can achieve the maximum power output without signal compression distortion in various supply voltage ranges.

Scope of application: It is mainly used for various occasions that need one-way signal amplification, such as FM FM transmitting, VHF digital radio amplification, 315MHz(433MHz) ASK/OOK/FSK modulation one-way remote control, 470MHz frequency band intercom amplification, VHF/UHF frequency band ultra-long distance wireless microphone, UHF frequency band campus radio wireless coverage system, ISM900MHz frequency band and ISM900MHz frequency band. ISM900MHz band and all kinds of teaching and research band signal amplification.

product features.

1. wide range of working frequency band, in the range of 80MHz - 930MHz frequency band can work stably. 2.

2. the highest output power up to 10W (40dBm @ 24V power supply). 3.

3. wide range of operating voltage, in the 9V-28V voltage range can work. 4.

4 built-in high-precision ADC, can automatically detect the working voltage, and according to the working voltage automatically adjust the final transmitting power. 5.

The built-in high reliability ALC circuit can automatically adjust the link gain within a certain range to ensure that the amplifier can operate with maximum transmit power without signal distortion.

5. Built-in high reliability ALC circuit can automatically adjust the link gain within a certain range to ensure that the amplifier can output at maximum power without distorting the signal. 6.

6. The core component has high standing wave tolerance, even if the signal is totally reflected by disconnecting the antenna for a short period of time, the amplifier will not be affected by excessive standing waves. Even if the antenna is disconnected for a short period of time, the amplifier will not burn up because of the large standing wave, so the product is highly reliable.
