XT-XINTE PCIE EXP GDC External Laptop Video Card Dock Graphics Card Laptop Docking Station for Beast Mini PCI-E / NGFF M.2 / Expresscard

US$ 18.28

Version

Estimate Shipping Cost

Detail
- Product Name: XT-XINTE PCIE EXP GDC External Laptop Video Card Dock Graphics Card Laptop Docking Station for Beast Mini PCI-E / NGFF M.2 / Expresscard
- Item NO.: F33247 F33248 F33249
- Weight: 0.085 kg = 0.1874 lb = 2.9983 oz
- Category: Consumer Electronics > Computer Adapter
- Brand: XT-XINTE
- Creation Time: 2019-11-08
XT-XINTE PCIE EXP GDC External Laptop Video Card Dock Graphics Card Laptop Docking Station for Beast Mini PCI-E / NGFF M.2 / Expresscard

The Wholeset is Expresscard Version, Other options are the converter cable only.

Please choose the correct Converter cable accordind to your device, so that you can connect the external graphics to your laptop correctly. If you also want to buy the EXP GDC Adapter with NGFF M.2 A Key Cable Whole set / Exp GDC Adapter with Mini PCI-E Cable whole set, Please feel free to message us.

There is 3 type converter cable to choose :
(1). Mini PCI-E
(2). NGFF M.2 A key
(3). Expresscard

Please distinguish the type of your EXP GDC! Please choose the correct interface version according to your laptop.

Introduction:

EXP GDC is the laptop external graphics adapter equipment; it can help you to use the external independent high-performance graphics, can be used to access any of the PCI-E interface equipment, used to enhance the performance of the laptop, so that you can play those huge games requesting high-performance graphics.

Specifications:

Brand: XT-XINTE
Support Interface : PCI-E X16
Input Interface : Mini PCI-E/NGFF M.2 A Key/Expresscard optional
Weight: Wholeset about 100g (Expresscard Version)

Features:

EXP GDC Laptop external independent video card dock w/ expresscard data line and 6 Pin/8 Pin power supply cable.
Dual TD compatible switch (resolution of hardware conflict).
High quality imported electronic component, multistage anti interference and Isolation protection circuit.
Multi power automatic switching (support for soft start).
Enhanced MINI PCI-E data line with 26pin interface, supports 54 type and 34 type expresscard interface.
With 6pin interface for connecting video card power supply; 8pin interface for connecting EXP GDC power supply.
Use for engineering measurement, data collection, server debugging, GPU computing and other industrial applications, of course, still be used to access most of the graphics card to play the game.

Note:

EXP GDC is a NOTEBOOK external graphics adapter equipment, do not include graphics card.
If you use your notebook display, please make sure it comes with Intel (R) HD graphics and connected above GTS450 as NVIDIA graphics. Otherwise you need external monitor.

This products doesn't support these laptop model,please don't make the order if you use these laptop:
- Asus (N55SF, N75 ACPI, ASUS A53XI24 1SV-SL, K43SD, A73S, K53SD, X8dij, A43s, n55sl, k45dr)
- Lenovo E530, L430, E43, U410, E49, K49, G50-75M(New Add)
- HP H533OM, 6910, 5310M
- Hasee ui45, EVI4
- Haier T68
- Acer 4739z Acer E1-451G
- Samsung 450
Support list :

For Lenovo W530/T520/W520/X220/X220/TZ570/T420/Y460/Y560/T410/E420/X201/X201s Edge/ /T410s/T400/T510/X201T/X200/W500/T61p/X61/T61/T60/T520/T420S//y470/T420I/Y480/G480/k580s/E520/Y580/G500/E46A/Y530/G510/Y400/G500/V460/Y560P/y480n/y480/E420/K29/B470/Z470/L421/SL410K/E420S/G470/G450/z465/Y500/V370/G430/Z370/Y485/Y410P/v1000/s410p/y471a/s230u/V570/e420s/Z500/V470/Y40 70/G710 AT-ISE/y430p/S400/SR1000/B5400/405S/A8/Y50/Z501/Z480/Z580/U310/K46A/z380

For Dell  E6520Vostro/3450/XPS15/L502Studio/1557/E6220/M4500/E6420/E4300Studio/1557XPS 1645E4310M4600Insp.1545XPS/1340E4300 XPS 1640 E6500Insp 1420XPS 1340Vostro 1500 1440Vostro v130XPS M1530D830M1330Studio 1555Insp 1520Vostro 1310E15051545E6520E6520E6220E5410E4310E641014RM12104600MD630E64206320N4120N50103421N3010772014R4728152014rd658N411014RD658inspiron15-3521e632074205537xps164515r7520767015R 45265547773014R 5420M6600752055374050vostro3300n3420L702X3542155815 75484z-5423 E6230

For Sony Z21VPC-Z11, VPC-Z13, VPC-Z12, VGN-FW45Z46GD, VGN-NS110eEA27ECVPCCA36ECEA47ECCB36ECNw35eEA200CS138Vgn-nw71fbSVT11138CCS, vpcs128ec, FW17Z45vpcea25fgvpcea18ec, VPCEB26FXVPCZ138GGsve14a28ccsPcg-71212tSVE 141

For HP 4530s/2560P/8460P/4330s/2540P/8440P/DV4-2000/2530P/2740P/6930P/6930P/2730P/HDX9000/ Pavilion DV4/DV9690en/CQ60/DV7126/7CLHDX16HDX18TTX22510PDV7-3020EDDV2000dv2416US6910PNC640021334530sHp8440p14 beatsG42DV51220TXN51108570PCQ35-219TXDV2804TXCQ45CQ40CQ42 285TX8560P2730p4321sDV7HP44318470P2570Penvy17j120usHP6450BHP 8470Pcq15-102tx/2570P/8460P

For Fujitsu AH531/T731/S6420/T901/T5010/U9200/AH56/Gnh532

For Acer 5755G/3820TG/5920G/5620Z/5742G/6930/5620/1810TZ/5720G/1410 Ferrari One/4752G/4750G/E1-471G/5750G/5951G/E1-571G/V3-571G/V5-472G/4315/V5-471G/V3-772G/4738G/4745G/E5-511G/5552G

For MSI CX623/CR720/A6200-021US/CR630/M610/GX640/GE60

For Toshiba R840/A665/L305-S5921/L300/A505-6965/L300/L305-S5921/M332/M780/L700/L650-02B/L800

For Clevo M860T/UM570RU

For Sager NP2096/NP8662/NP5793

For NEC Versa E6500

For Asus F8SA/X42JR/X59SL/1015PEM/M60J/Y581/CX81/x55v/X450VB/X450JS/x450c/N61JV/x402ca/U24E/r400/P53SJ/n75sl/n75s/N61JQ/N56/n55sf/n53/k56c/k55vd/K53SV/K52DR/k45vs/K43SM/a55vd/K42JB/K40IP/K40IN/g73sw/F83se/A73S/A55VM/A53/a450j/A43X/A43s/a42j/k55vm/k43/SDG74S/XN43sl/n55sl/k55vm/A45/K56CB/K43DK42kv/X55XI237VD-SL/X550VC/N81/VG X751L/A53S/A53SM/a450jf

For LG P300

For Samsung R780/NP300E4A/NP270E5J-K01CN/r428/rv420

For HASEE  A460-I7/K590C/A560P/K580P/A430/K470p/460P/A550/k602c/K590S/K500DE400/K500C-i7 /D1/k660E/A460p-i7/K480N

For Tsinghua University u49fK41H/A14RM0C

For Blue sky p170em

For Haier 7g-2X5P

For Gigabyte p15f V2

For Fangzhengyihe a600

1. The list of recommended graphics card:

GTX650 GTX660 GTX670 GTX750 GTX760 GTX950

GTX960 GTX970 GTX980 GTX1060 GTX1070 GTX1080

And for other graphics cards, may be they can also be used, but the compatibility and performance are not as good as the cards in list. So we do not recommend to buy.

2. For GTX 1060 1070 1080

They are compatible with EXP GDC, but you must install the Auguest 2016 driver(372.70 version). And GTX 1080 is the most powerful we Recommend.

3. For GTX1030 GTX1050 GTX1050Ti GTX1070Ti GTX1080Ti

The technician tell us that these cards are new product and the drive is not perfectly to support this product. So, we do not recommend you to buy it.

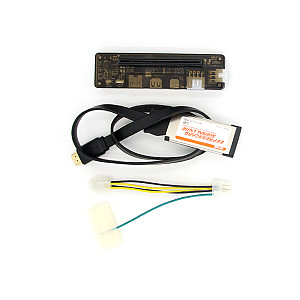

Package list :
1 x Converter Cable (Mini PCI-E/NGFF M.2 A key/Expresscard optional)
