Copy| Product Name | X Band 10g Radar Sensor Module LD1040 Low Power Micro Motion Intelligent Sensing Sensor Module Support Fast Inspection Mode |
| Item NO. | F53045-D1D2 |
| Weight | 2024 kg = 4462.1562 lb = 71394.4990 oz |
| Volume | 1 CBM |
| Category | Computer Accessories |
| Creation Time | 2024-09-20 |
Product Description

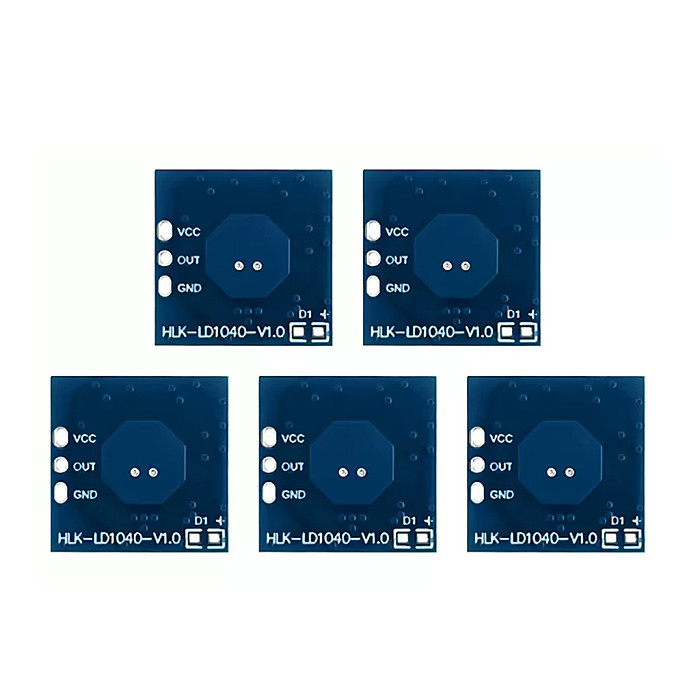

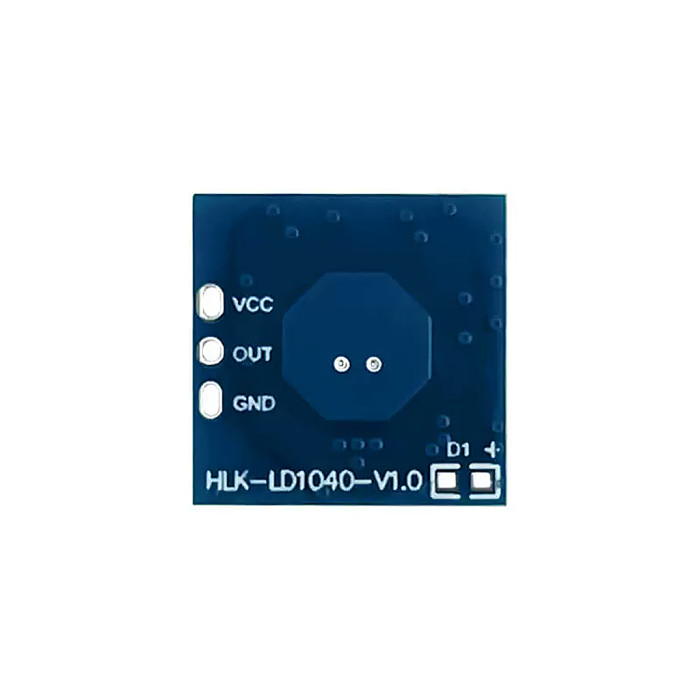

This is a motion sensing module based on X-band radar chip,
with a centre frequency of 10.525GHz.
The design adopts fixed frequency, directional transmitting and
receiving antenna (1T1R), integrated IF demodulation,
signal amplification and digital processing, with the ability of delay setting,
adjustable sensing range and light intensity detection.
Configuration
Interface type: (hole spacing 2.0/2.54mmx3PIN)
V: 5-1 2V 0: high and low level outputs
G: GND, power ground
(The other end is the download debugging port)
Results may vary with different test environments or moving targets:
-Metal casing will have shielding effect on radar electromagnetic wave,
affecting the perceived distance;
-The above test results are obtained from the standard test site.
The above test results are obtained in a standard test site,
for specific test environment and conditions,
please consult the relevant technical personnel.
Driver power supply design considerations:
★ Be sure to use the output voltage, current and ripple coefficient
and other standards of the drive power supply, drive power is not stable,
electromagnetic radiation is too strong, will cause false alarms radar module,
no perception, cycle of self-start and other phenomena;
★ supporting the drive power supply should be 5-1 2V (recommended 5V),
drive current is not less than 5mA, the power supply ripple amplitude needs
to be controlled within 100mV, frequency fluctuations should be small;
★ drive power and radar module assembly, should avoid radar module bottom
or antenna surface, facing the drive power module, and should try to drive
away from the power module inside the rectifier bridge, switching transformer
and other frequency interference devices,
in order to prevent interference with microwave signals.
