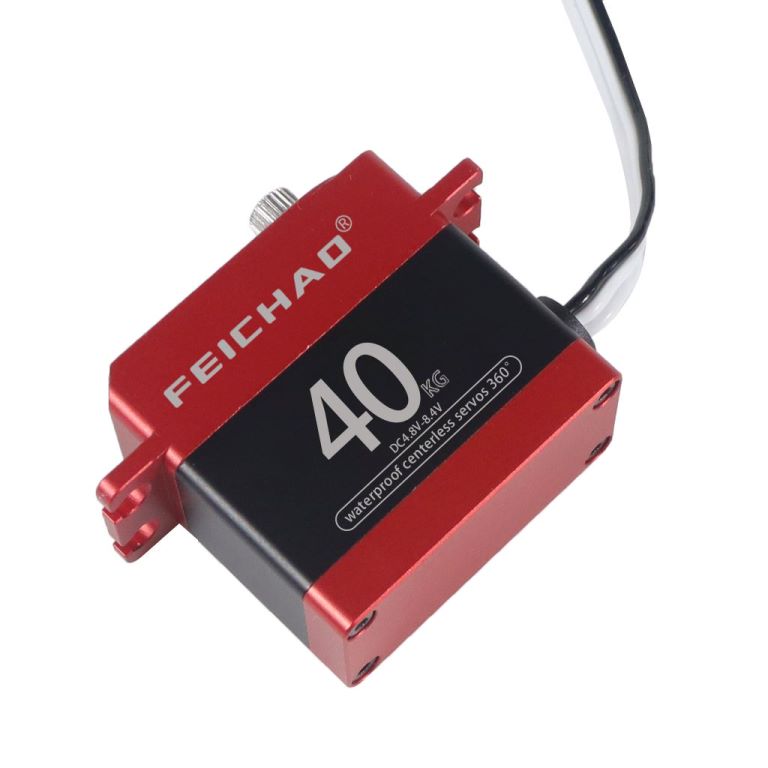

Waterproof Servos 20KG 25KG 30kg 35kg 40KG 180 270 360 Degree Large Torque Digital Servo Metal Gears For RC Truck Car
US$ 17.81
- model
- 9KG-180 degrees 9KG-270 degrees 9KG-360 degrees 15KG-180 degrees 15KG-270 degrees 15KG-360 degrees 20KG-180 degrees 20KG-270 degrees 20KG-360 degrees 25KG-180 degrees 25KG-270 degrees 25KG-360 degrees 30KG-180 degrees 30KG-270 degrees 30KG-360 degrees 35KG-180 degrees 35KG-270 degrees 35KG-360 degrees 40KG-180 degrees 40KG-270 degrees 40KG-360 degrees
-
Detail
- Product Name: Waterproof Servos 20KG 25KG 30kg 35kg 40KG 180 270 360 Degree Large Torque Digital Servo Metal Gears For RC Truck Car
- Item NO.: F47968-D1/F47969-D1/F47971-D2
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: DIY RC Drone Accessories
- Creation Time: 2022-07-19
Waterproof Servos 20KG 25KG 30kg 35kg 40KG 180 270 360 Degree Large Torque Digital Servo Metal Gears For RC Truck Car
- High precision metal gears with hard anodizing
-CNC aluminum center shell,
Control system: PWM control (1500 u-sec is the center point)
Working voltage: 4.8V~8.4V
Working Temperature: -20C°~+60C°
Torque: 4.8V /17.2kg.cm
6.0V /20.3kg.cm
Idle speed: 4.8V/0.10sec/60 degree
6.0V/0.13sec/60deg
Steering angle: 180 / 270 degrees
Idle current: 4.8V/470mA 6.0V /650mA
Charging current: 4.8V/750mA 6.0V /950mA
Dead band: 3usec
Lifetime:>15000 times without load
Travel angle: 60°±10°
Drive type: MOS drive
Motor type: core motor
Potentiometer Type: Direct Drive
Signal Amplifier Type: Digital
Size: 40.0X20.0X37.8mm
Weight: 62g (without accessories)
Ball bearing: 2BB
Gear material: metal gear
Housing material: PA66 + 40% fiber
Wire length: 260mm
Wire gauge no and plug type: 26AWG, JR plug
Brown Wire: Negative
Red wire: Positive
Orange Wire: Singal
Application: RC car, RC plane, helicopter
