Walkera Scout X4 GPS RC Quadcopter Devo F12E ILook+ WHITE FPV2 RTF Support Ground Station F10495
Please noticed that Bluetooth module only supports the Android system
Walkera Scout X4 GPS RC Quadcopter Devo F12E ILook+ WHITE FPV2 RTF Support Ground Station
Features:
Waypoint mission planning/designated flight
Follow me mode/Follow record track back to home
Real time telemetry monitoring

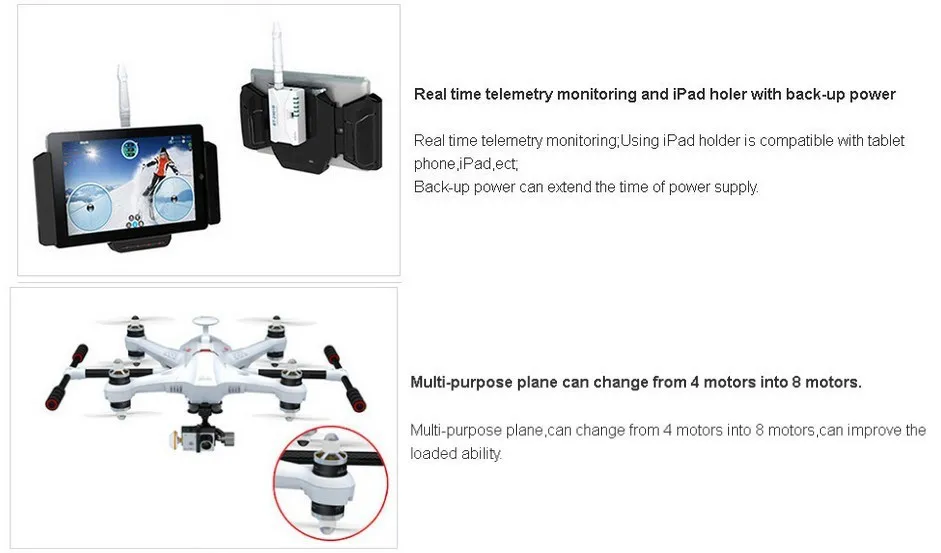

Ipad holder with back-up power
Multi-purpose plane,can change from 4 motors into 8 motors

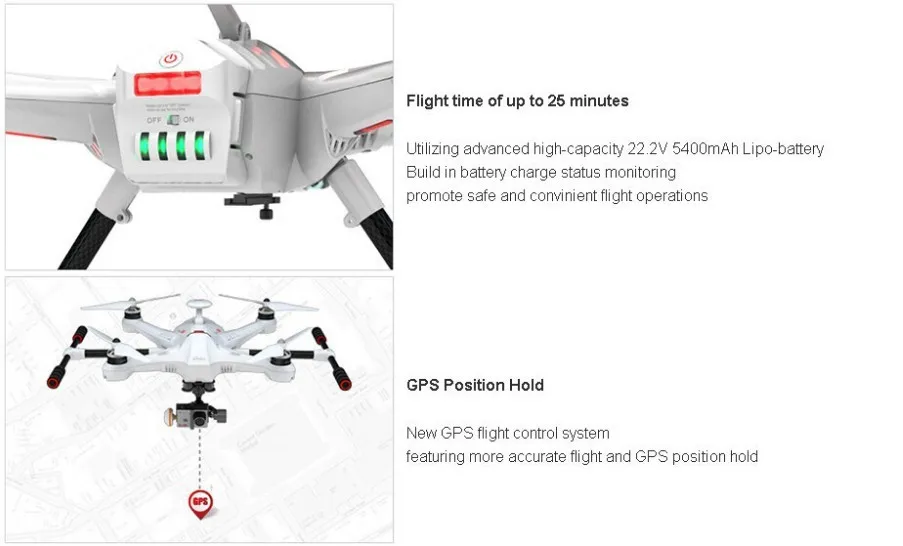

Flight time up to 25 minutes
GPS position hold

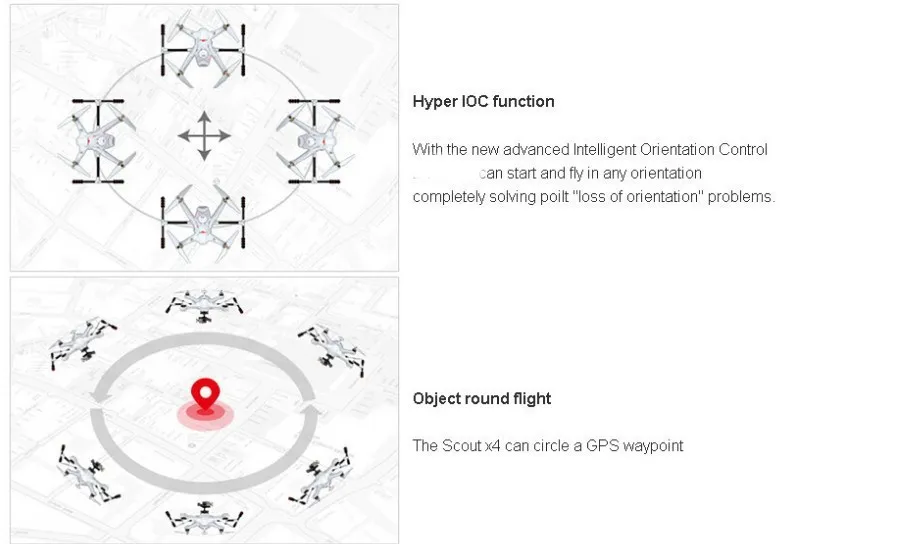

Hyper IOC function
Object round flight

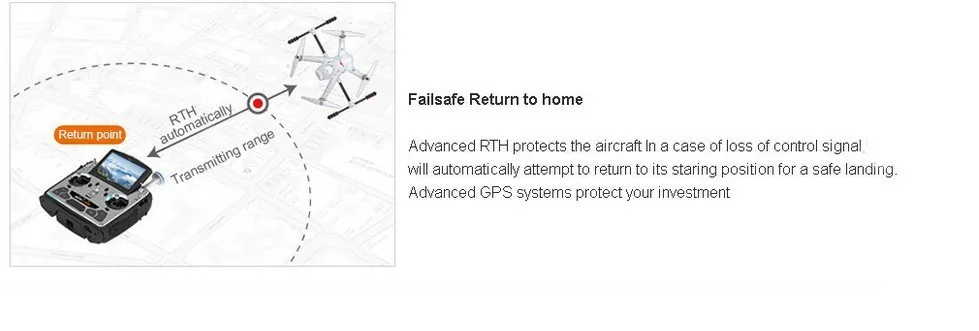

One key to start/one key to go home/failsafe return to home
This is the white color version
Scout X4 Specification:
Main Rotor Blade Length: 233mm Length*Width*Hight: 335x335x275mm
Weight: 1770g(w/battery) Flying Weight: <2270g
Transmitter: Devo F12E Receiver: Devo-RX707(CE)/RX709(FCC)
Brushless motor: WK-WS-34-002 Brushless ESC: WST-16AH(R/G)
Multi-axis control system: FCS-X4 Battery: 22.2V 5400mAh lipo
2.4G bluetooth datalink: BT-2401A/B(FCC)/BT-2402A/B(CE) Ground Station: GCS (support Android and iOS system)
DEVO F12E Features:
Collected 2.4Ghz control system with 5.8Ghz image transmission function
5.8Ghz real-time video display
Professional 12 channels FPV radio
Apply to multi-rotorhelicopter airplaneglider
Smooth and exquisite four bearing rocker handle design
Innovative profile cater to aerial photography
USB upgrade online
Skidproof pattern design fulfills comfortable handle
Open battery compartment design support 7.4v ~11.1v Lipo battery
CVBS video signal output supported
5.8Ghz video signal input supported
Support 32 channel to receive 5.8Ghz real-time image
DEVO F12E Specification:
Encoder: 12-channel micro computer system Frequency: 2.4GHz DSSS
Output power: ≤100mW Radio distance: 1KM
5.8Ghz video distance: 0.3-2KM( up to transmitter) Image frequency: 32 points
Frequency domain: 5645MHz~5945MHz Drain current: ≤200mA ( on 100mW)
Stand-by time: 6~12hs Supported battery: 7.4v or 11.v 1600-3000mah lipo battery, NiMH 8X1.2V
1600-3000mAh or 8 pcs of 1.5v dry battery
Output pulse: 1000—2000us(1500 Neutral)
Package Includes
1 x Scout X4 RC Quadcopter
1 x Devo F12E transmitter
1 x Receiver
1 X GPS module
1 x G-3D gimbal
1 x ilook + camera
1 x Groun station FPV2
1 x Battery
1 x Charger
2019-04-28
