Copy| Product Name | USR-G806w EMEA/Southeast Asia/Latin/Australia 2G/3G/4G Network with Sim Card Industrial WiFi Enhanced lte Cellular 4G Router |
| Item NO. | F50165-D1/D2 |
| Weight | 0.697 kg = 1.5366 lb = 24.5860 oz |
| Category | Consumer Electronics |
| Creation Time | 2023-05-19 |

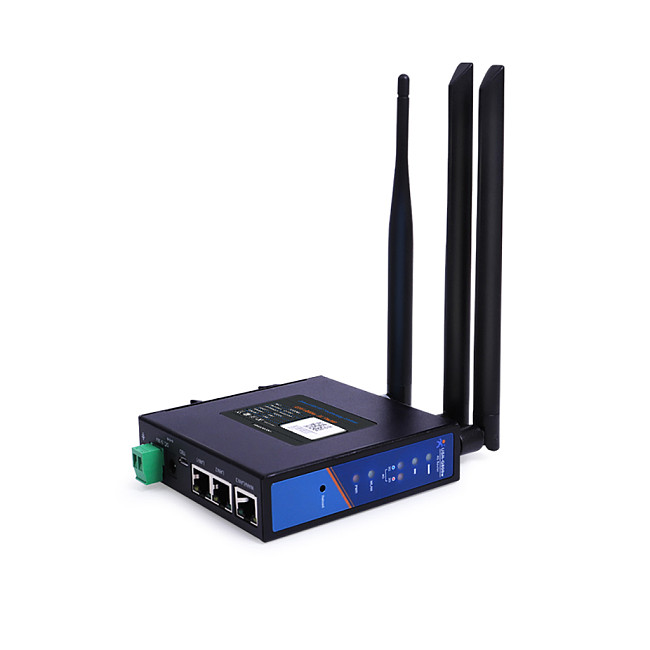

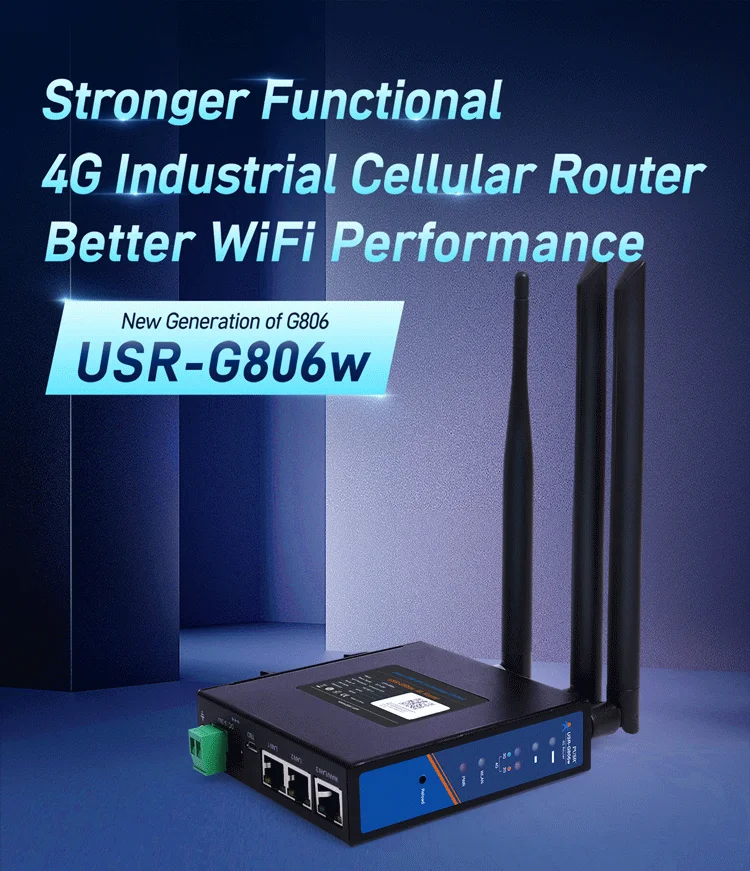

USR-G806w 3LAN 4G Router EMEA/Southeast Asia/Latin/Australia 2G/3G/4G Network Device With Sim Card Industrial WiFi Enhanced LTE
Feature:
* Embedded hardware watchdog
* ESD, Surge, EFT protection
* Wide operating temperature
* Supports IPsec VPN, PPTP, L2TP, OPENVPN,GRE etc., ensuring secure data transmission
* Equipped with strong WiFi capability,802.11 a/b/g/n,2.4G Wi-Fi,2*2 MIMO, up to 300Mbps
* Support AP/STA/Repeater Mode
* Support SNMP,VLAN
|
USR-G806w hardware specification |
|
|||
|
Cellular Interface |
Frequency |
EU version |
AU version |
|
|
|
|
TDD-LTE:B38/40/41 FDD-LTE：B1/3/7/8/20/28A WCDMA：B1/8 GSM/EDGE:B3/8 |
TDD-LTE:B40 FDD-LTE：B1/2/3/5/7/8/28 WCDMA：B1/2/4/5/8 GSM/EDGE:B2/3/5/8 |
|
|
|
Antenna |
1 x SMA-K |
|
|
|
|
SIM card |
1 x (3 V & 1.8 V) Standard 4FF SIM |
|
|
|
Ethernet |
WAN |
1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance with IEEE 802.3, supports auto MDI/MDIX,1.5KV network isolation transformer protection |
|
|
|
|
LAN |
1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX,1.5KV network isolation transformer protection |
|
|
|
Indicators |
PWR |
red,always on after powered on |
|
|
|
|
WIFI |
green,always solid on when WiFi is enabled and working properly |
|
|
|
|
2/3/4G mode indicator |
2G led is on after connected to 2G network 3G led is on after connected to 3G network Both leds is on after connected to 4G network |
|
|
|
|
SIG |
Signal strength：2 LED issolidon,strongest signal |
|
|
|
Wi-Fi |
Standards & Frequency |
IEEE 802.11b/g/n, 2.4GHz, AP/STA/Repeater mode |
|
|
|
|
Data speed |
300Mbps |
|
|
|
|
Antenna |
2 x RP-SMA-K |
|
|
|
|
MIMO |
2×2 |
|
|
|
|
Transmission distance |
500 meters by line of sight.Actual transmission distance depends on environment of the site. |
|
|
|
|
WiFi users |
Up to 20 simultaneous connections |
|
|
|
Power Supply |
Adaptor |
DC 12V/1A |
|
|
|
|
Connector |
DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or 2 PIN industrial terminal block,reverse polarity protection |
|
|
|
|
Input voltage |
DC 9-36V |
|
|
|
|
Power consumption |
Average 260mA/12V |
|
|
|

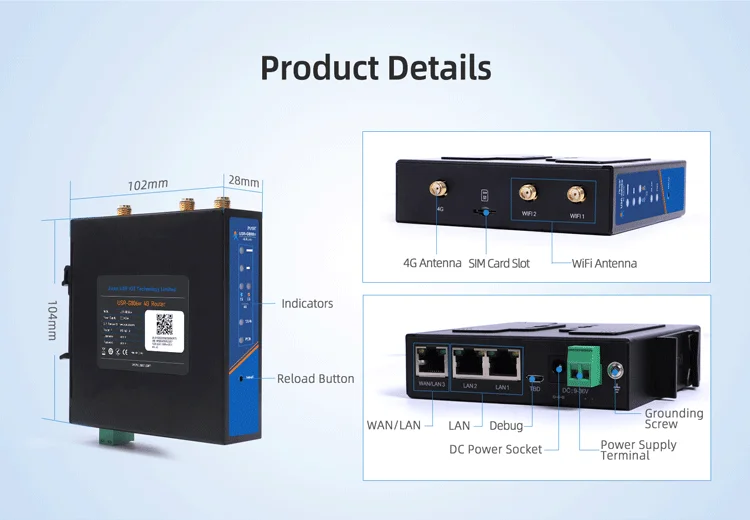

Physical Characteristics |
Casing material |
Metal shell,IP30 |
|
|
|
|

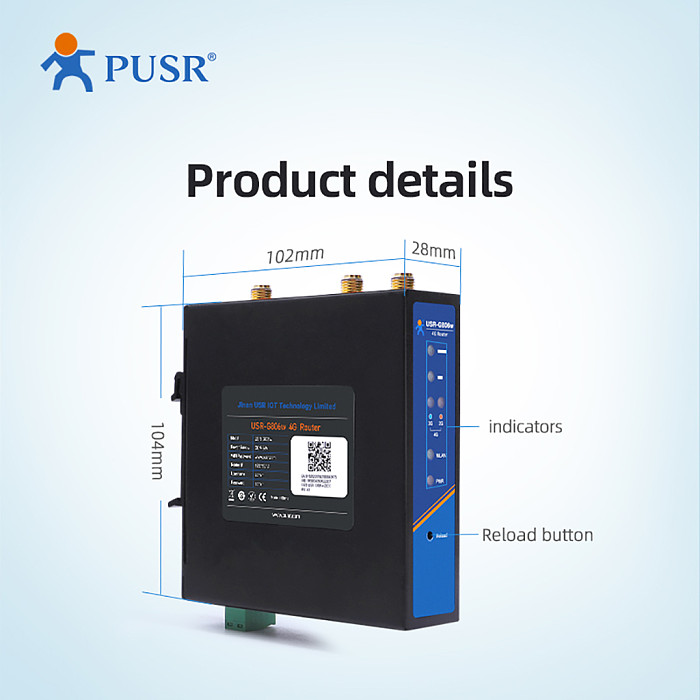

Dimensions |
104.0*102.0*28.0 (L*W*H, antenna pedestal,terminal block and DIN Rail are not included） |
|
|
|
|

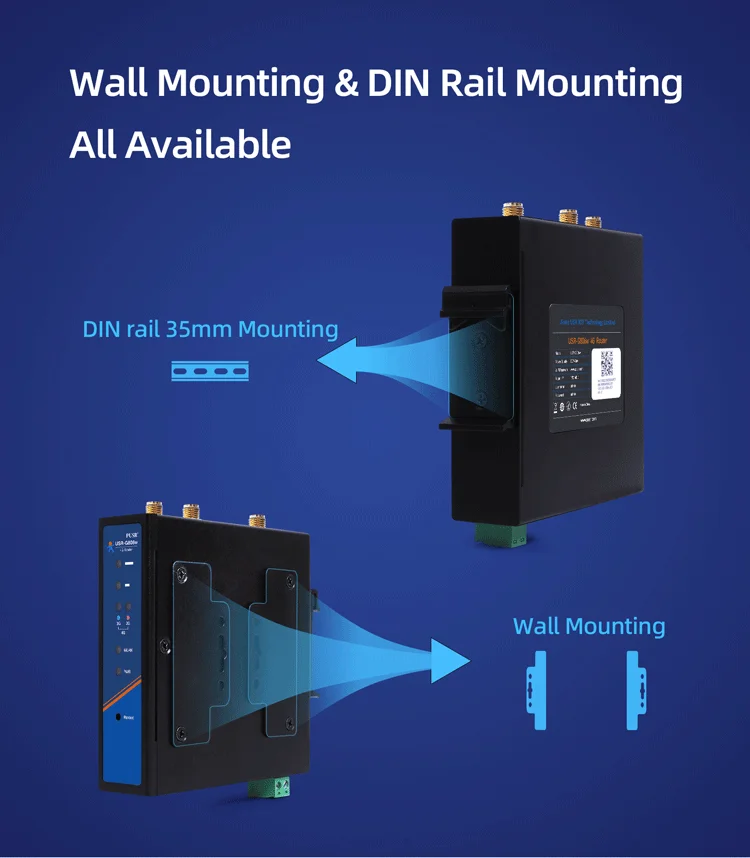

Installation |
Panel mounting, DIN-Rail mounting |
|
|
|
|
EMC |
Static IEC61000-4-2, level 3 Pulsed Electric Field IEC61000-4-4, level 3 Surge IEC61000-4-5, level 3 |
|
|
|
|
Operating temperature |
-20℃~+70℃ |
|
|
|
|
Storage temperature |
-40℃～+125℃（non-condensing） |
|
|
|
|
Operating humidity |
5%~95%（non-condensing） |
|
|
|
Others |
Reload |
Pinhole reset button |
|
|
|
|
TBD |
Debug interface (TTL Level) |
|
|
|
|
Ground protection |
Screw |
|
|
|
USR-G806w Software Specifications |
||||
|
Network Connection |
WAN protocol |
PPP, PPPoE, DHCP client |
||
|
|
LAN protocol |
ARP, DHCP server, NAT，VLAN |
||
|
|
4G network access |
Auto APN/VPDN, private network Access authentication: CHAP/PAP |
||
|
|
WLAN security |
Open system,WPA/WPA2 PSK TKIP/AES encryption |
||
|
|
IP routing |
Static routing |
||
|
|
Network diagnosis |
Ping,route trace,DNS |
||
|
Device management |
Configuration |
Web |
||
|
|
Remote management |
SSH, AT command,SNMP,SMS |
||
|
|
PUSR platform |
Remote monitoring,remote upgrade,alarming,base station location,remote access to web pages of the router |
||
|
Security |
Failover backup |
WiFi WAN, Mobile, Wired options, each of which can be used as an automatic Failover |
||
|
|
Firewall |
DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
||
|
|

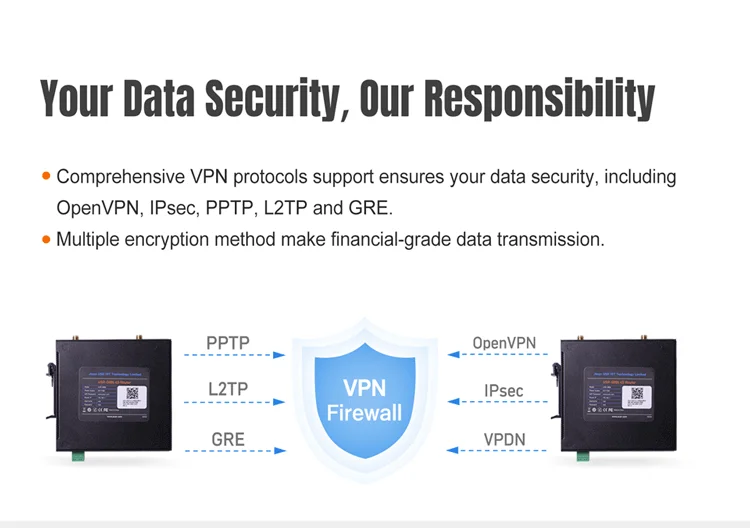

VPN |
Supports PPTP, L2TP, GRE, IPSEC VPN (IKEv1), OPENVPN protocols |
||
|
Service |
DDNS |
Remote access the device through domain name |
||
|
|
Alarm |
Email,SMS |
||
|
|
Others |
NTP client Timing task |
||
