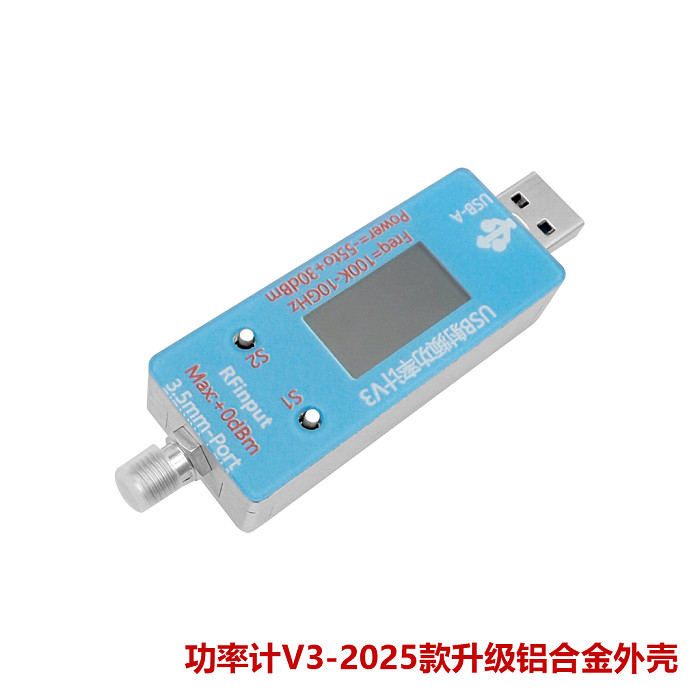

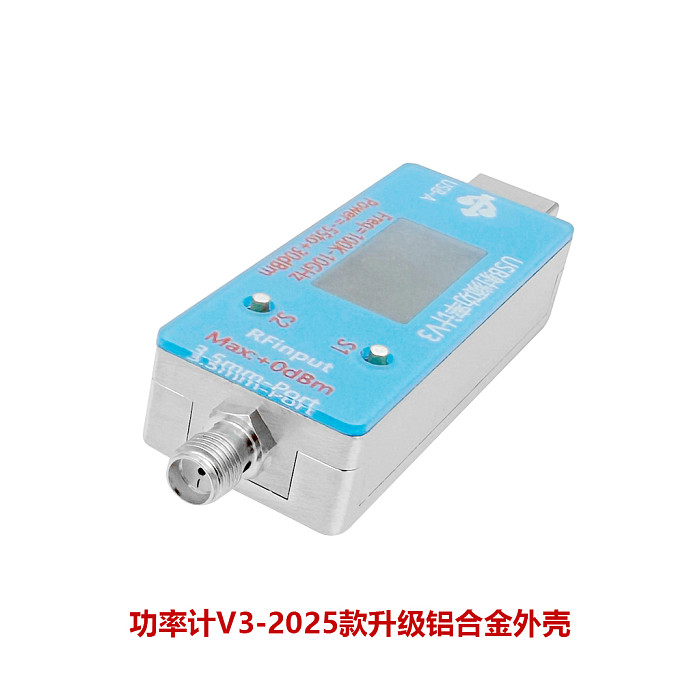

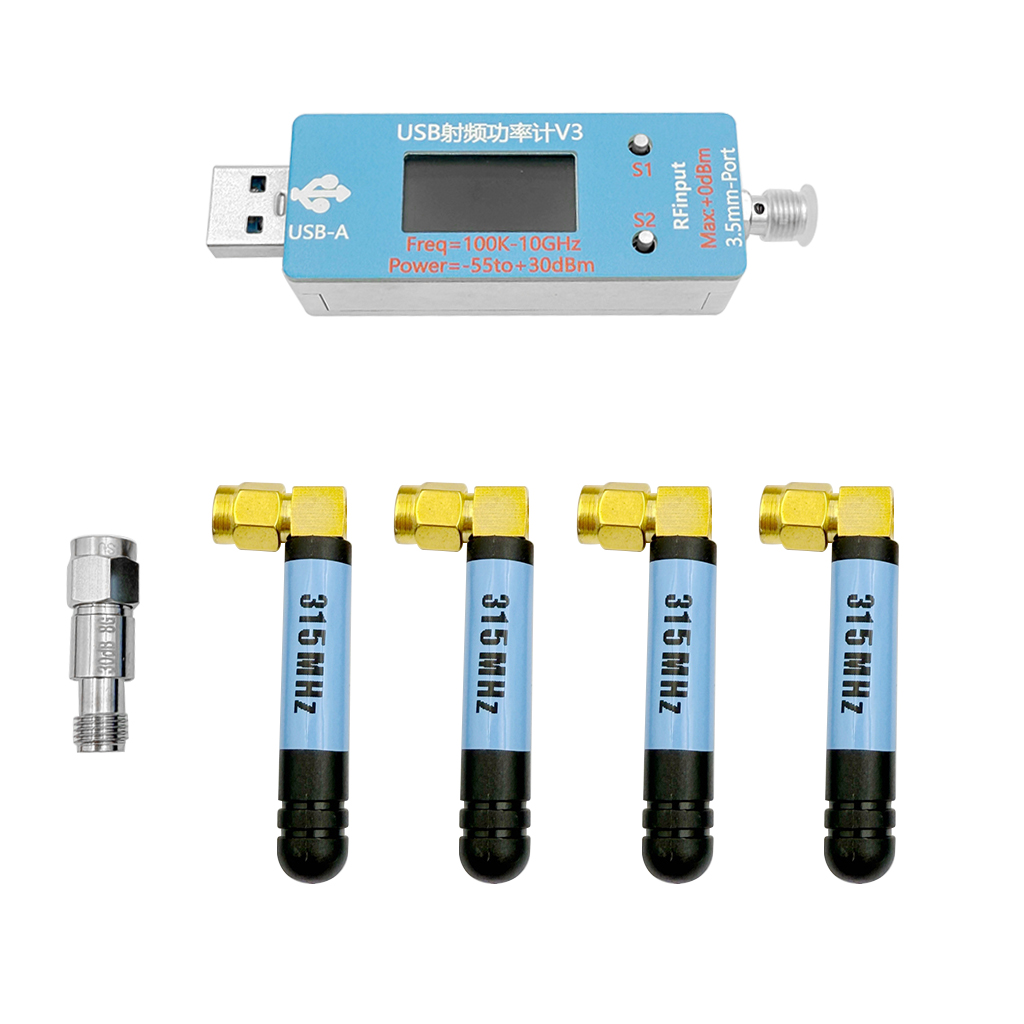

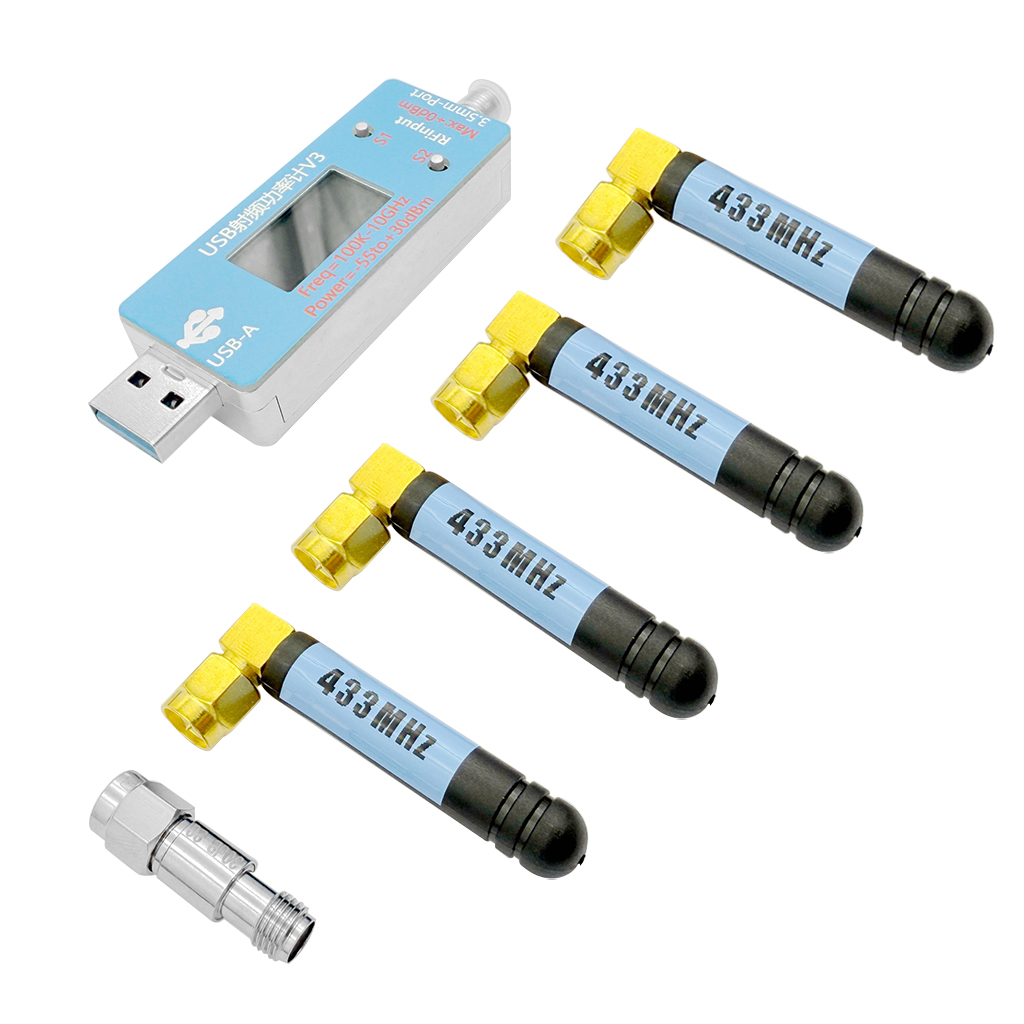

USB RF power meter V3 100K to 10GHZ-55~+30dBm
-
Detail
- Product Name: USB RF power meter V3 100K to 10GHZ-55~+30dBm
- Item NO.: F54781 F54782 F54783
- Weight: 0.05 kg = 0.1102 lb = 1.7637 oz
- Category: Industrial Technology
- Creation Time: 2025-10-27
- USB RF power meter V3 100K to 10GHZ-55~+30dBm
USB RF power meter V3 100K to 10GHZ-55~+30dBm
一、 Product Overview:

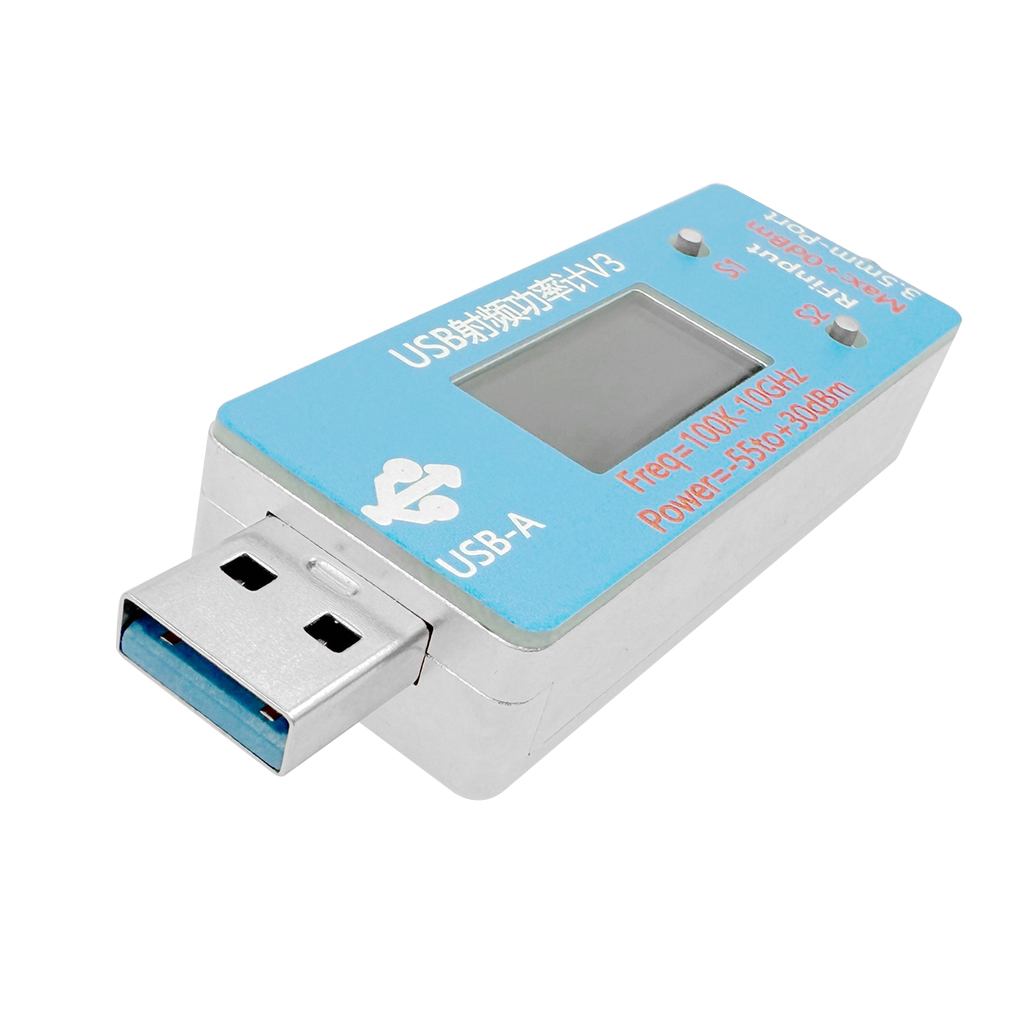

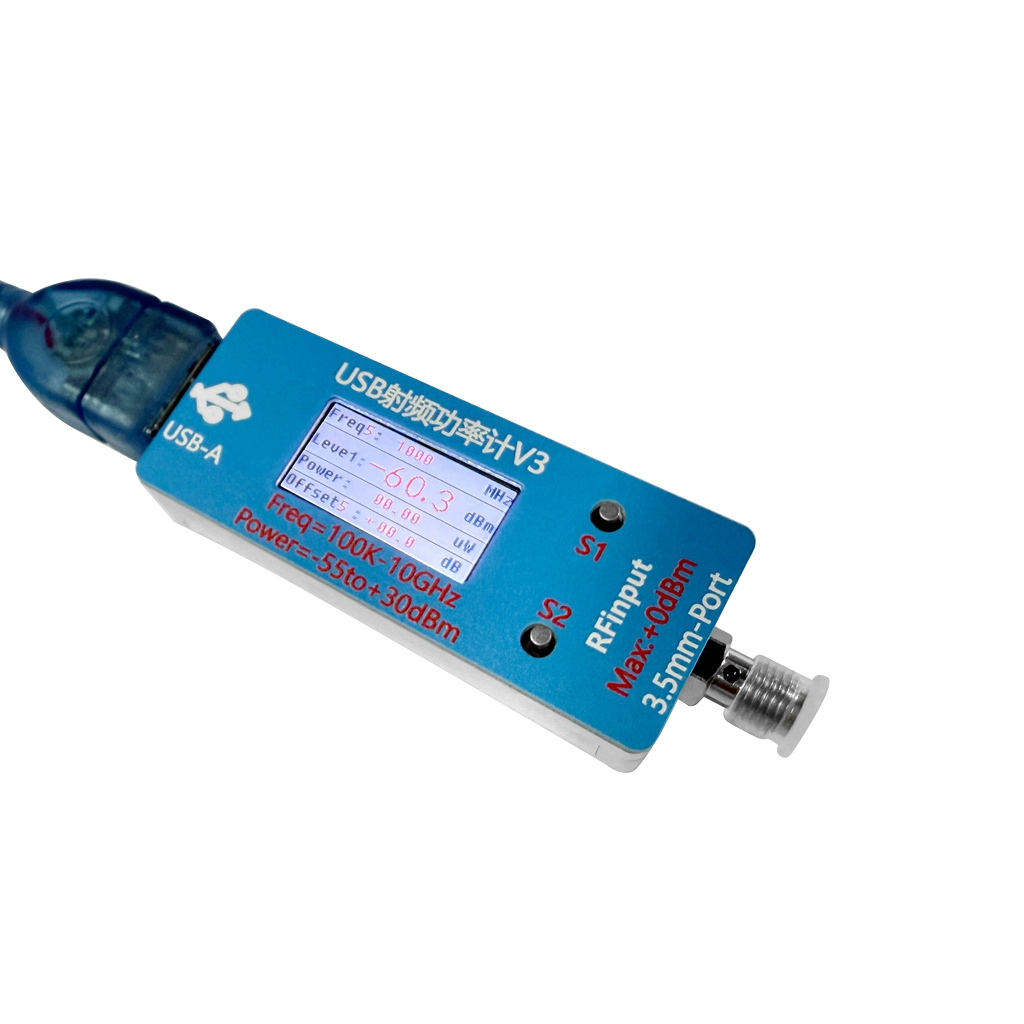

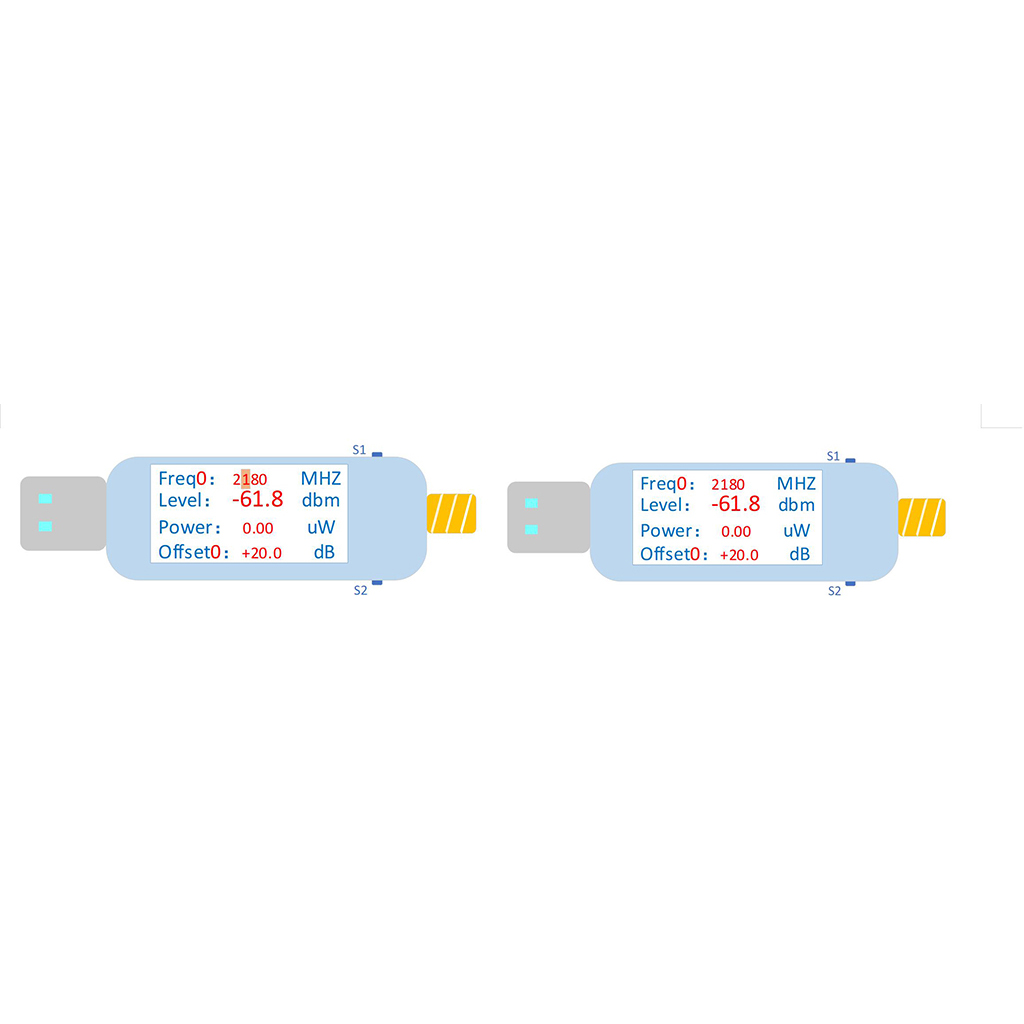

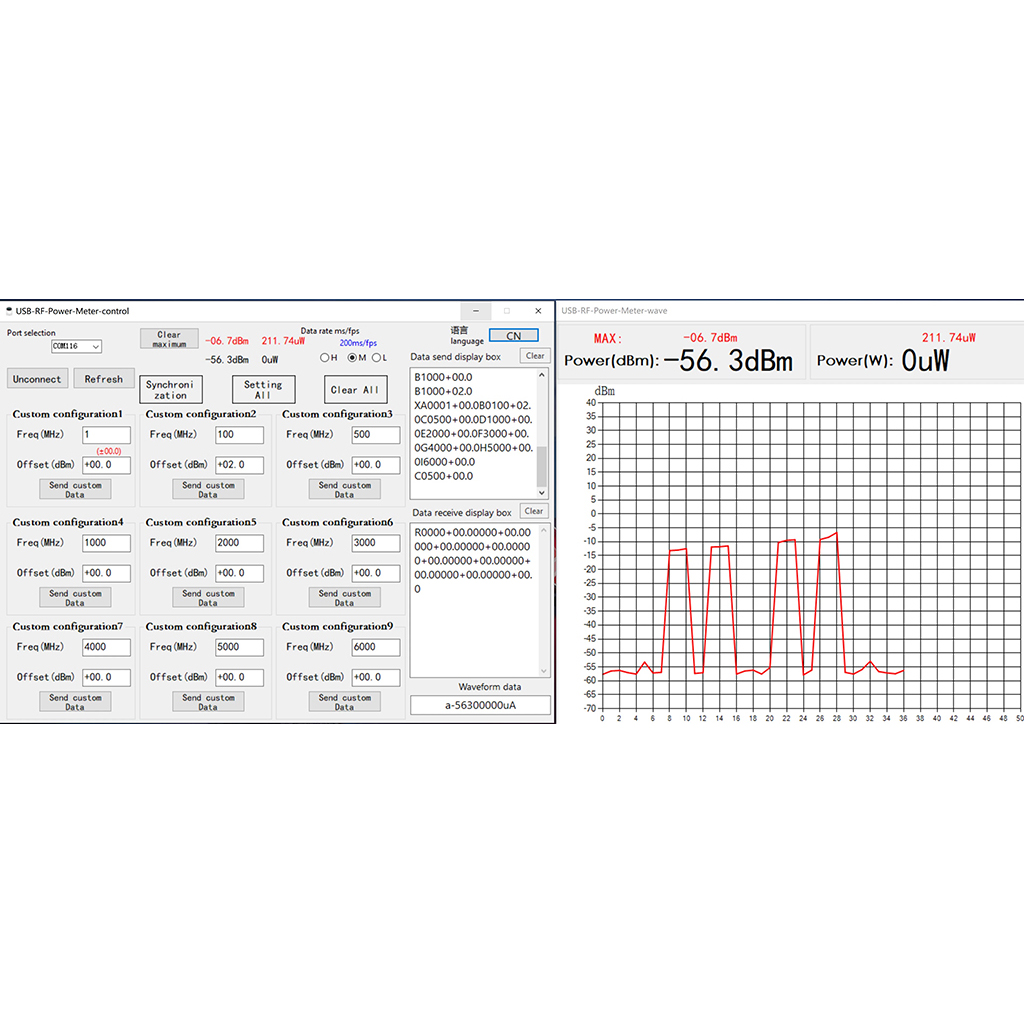

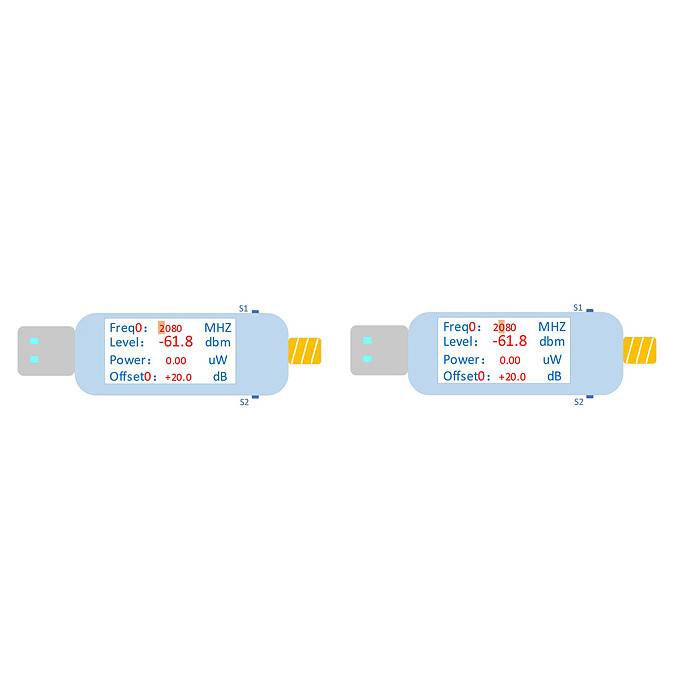

The RF-Power-Meter-V3.0 series is a high-performance, low-cost portable USB simple RF power meter with an all aluminum alloy frame. Equipped with a 0.96-inch 160x80 pixel TFT full-color display screen, providing 5V power supply and data communication through USB. Easy to use, compact in size, convenient to carry, stable in performance, high accuracy, customizable bias, wide dynamic range, and fast measurement speed. The software that comes with this power meter allows users to configure the power meter on their PC and makes data recording and sharing simple二、Product application:
Calibration of RF instruments;
Detection and maintenance of RF equipment;
Measurement of standing wave ratio in RF circuits (with the addition of a feedback bridge);
Measurement of RF circuit return loss;
Interference detection between wireless communication devices;
RSSI (Received Signal Strength Indicator) and transmit power level detection;
Performance evaluation of step attenuator;
Measurement of amplifier gain and network attenuation;
Measurement of forward power and reflected power in directional couplers;
Power measurement of GSM signal using GMSK modulation*
三、Product Technical Specifications:
1. Measurement power range -60~+5dBm (with good linearity from 0 to -60dBm)
2. Measurement power resolution ± 0.1dBm
3. Measurement frequency range LF~10000MHz (different models have different frequency ranges) 4. Input impedance 50 Ω
5. Dynamic range>60dB
6. Working voltage 5VDC (powered by USB)
7. Power supply current: 300mA
8. Main body size 55 * 24 * 14mm (length X width X height)
