Traveling Aircraft BLHeli-S DSHOT600 Four in One Electrically Controlled ESC Flight Control System For FPV Drone
-
Detail
- Product Name: Traveling Aircraft BLHeli-S DSHOT600 Four in One Electrically Controlled ESC Flight Control System For FPV Drone
- Item NO.: F53793-D1 F53793-D2
- Weight: 0.018 kg = 0.0397 lb = 0.6349 oz
- Category: DIY RC Drone Accessories
- Creation Time: 2025-01-02
Traveling Aircraft BLHeli-S DSHOT600 Four in One Electrically Controlled ESC Flight Control System For FPV Drone

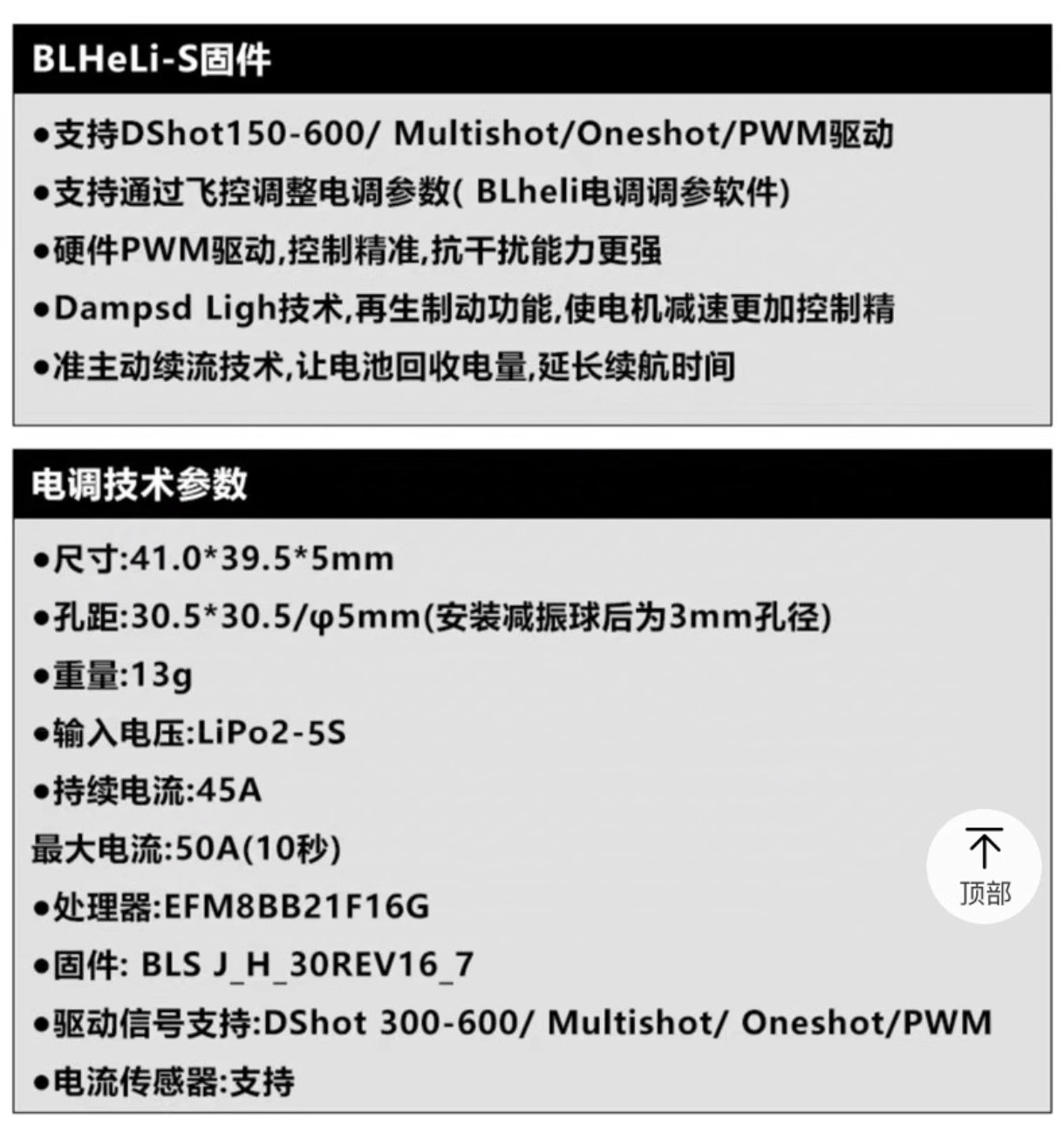

BLHeLi-S firmware:
Supports DShot150-600/Multishot/Neshot/PWM drivers.
Support adjusting electronic tuning parameters through flight control (BLheli electronic tuning software).
Hardware PWM driver, precise control, stronger anti-interference ability.
Dampsd Ligh technology, regenerative braking function, enables more precise control of motor deceleration and active freewheeling technology, allowing the battery to recover power and extend battery life.
Parameters:
Size: 41.0 * 39.5 * 5mm
Hole spacing: 30.5 * 30.5/q5mm (3mm hole diameter after installing damping ball)
Weight: 13g
Input voltage: LiPo2-5S
Continuous current: 45A
Maximum current: 50A (10 seconds)
Processor: EFM8BB21F16G
Firmware: BLS J H 30REV16 7
Drive signal support: DShot 300-600/ Multishot/ Oneshot/PWM
Current sensor: Supports
