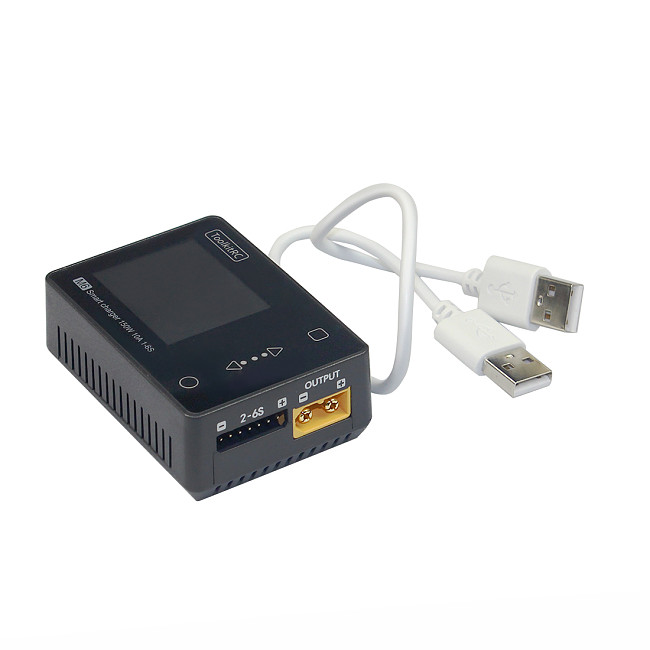

ToolkitRC M6 150W 10A 2-6S Mini Pocket Model Charger Servo Balance Charger for FPV Racing Drone Quadcopter
ToolkitRC M6 integrates balanced charge and discharge, electric display, PPM/PWM/SBUS signal measuring device, signal source and other functions, and the Chinese and English menus are optional;
Features
·Color screen
·Traditional charging function
·Electric display function
Steering gear test
Receiver test
Constant current constant voltage source output
TVC function (terminal voltage control): Lithium battery cut-off voltage can be set
Press and hold the setting button during charging to dynamically modify the charging current
Hub mode can be switched, the default setting is used by default.
It can be adapted to mainstream drone batteries and automatically activated and charged.
Measurement function: It can measure battery voltage, battery internal resistance, and can measure signal values such as PWM/PPM/SBUS with an accuracy of 1 microsecond.
Output function: can output PWM/PPM/SBUS standard signals with an accuracy of 1 microsecond
The discharge mode has a power recovery function setting
Technical Parameters
Input voltage range: 7-28V @max 12A
Charge, discharge and balance management of LiPo, LiHV, LiFe Lion 1-6S, NiMh 1-16S, PB 1-10S batteries
Charging current: max. 10A @150W
Discharge current: normal mode max 2A @8W; recovery mode up to 10A @150W
Constant current constant voltage source output, customizable 1-28V constant voltage, 1-10A constant current
USB 2.1A@5.0V output, rechargeable mobile device
LCD: 1.8 inches, 160*128 pixels, RGB TFT screen
Language: can be set to Chinese or English in the setting interface
The device is simulated as a USB flash drive, and the upgrade file is copied to implement product firmware upgrade.

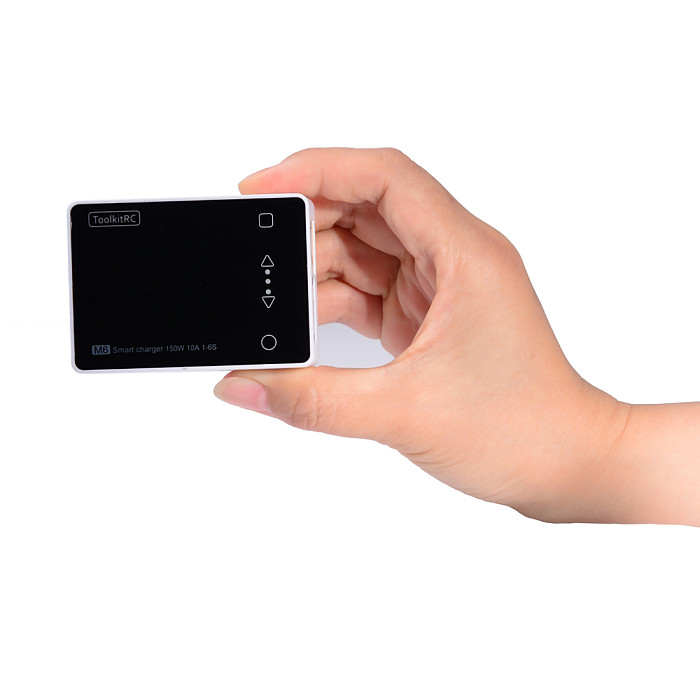

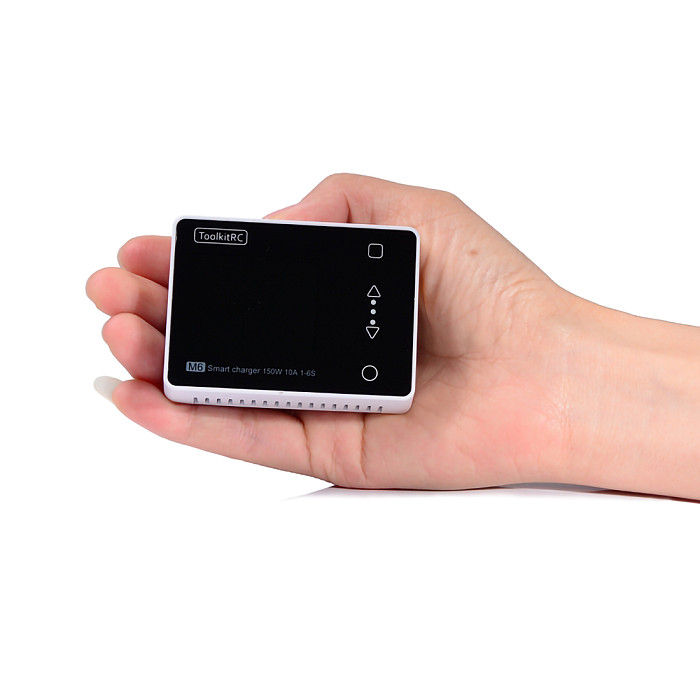

Product weight: 80g
Product size: 68*49*26 mm
Packaging Information
Weight: 140g
Size: 80*80*35mm
