Tarot TL3304 Current Sensor Power Module, High Voltage 80V 10A for FPV Drone Flight Controller, Power Management Distribution Board
-
Detail
- Product Name: Tarot TL3304 Current Sensor Power Module, High Voltage 80V 10A for FPV Drone Flight Controller, Power Management Distribution Board
- Item NO.: F55219
- Weight: 0.107 kg = 0.2359 lb = 3.7743 oz
- Category: DIY RC Drone Accessories
- Brand: Tarot
- Creation Time: 2026-02-02
- Tarot TL3304 Current Sensor Power Module, High Voltage 80V 10A for FPV Drone Flight Controller, Power Management Distribution Board
Tarot TL3304 Current Sensor Power Module, High Voltage 80V 10A for FPV Drone Flight Controller, Power Management Distribution Board
Product Description:
Tarot's 120W high-power S.UBEC step-down power supply module is designed with high voltage resistance, high power, and strong overload resistance. It has voltage and current detection functions and is compatible with mainstream flight control systems.
Product Features:
1. Wide voltage design, supporting up to 80V input;

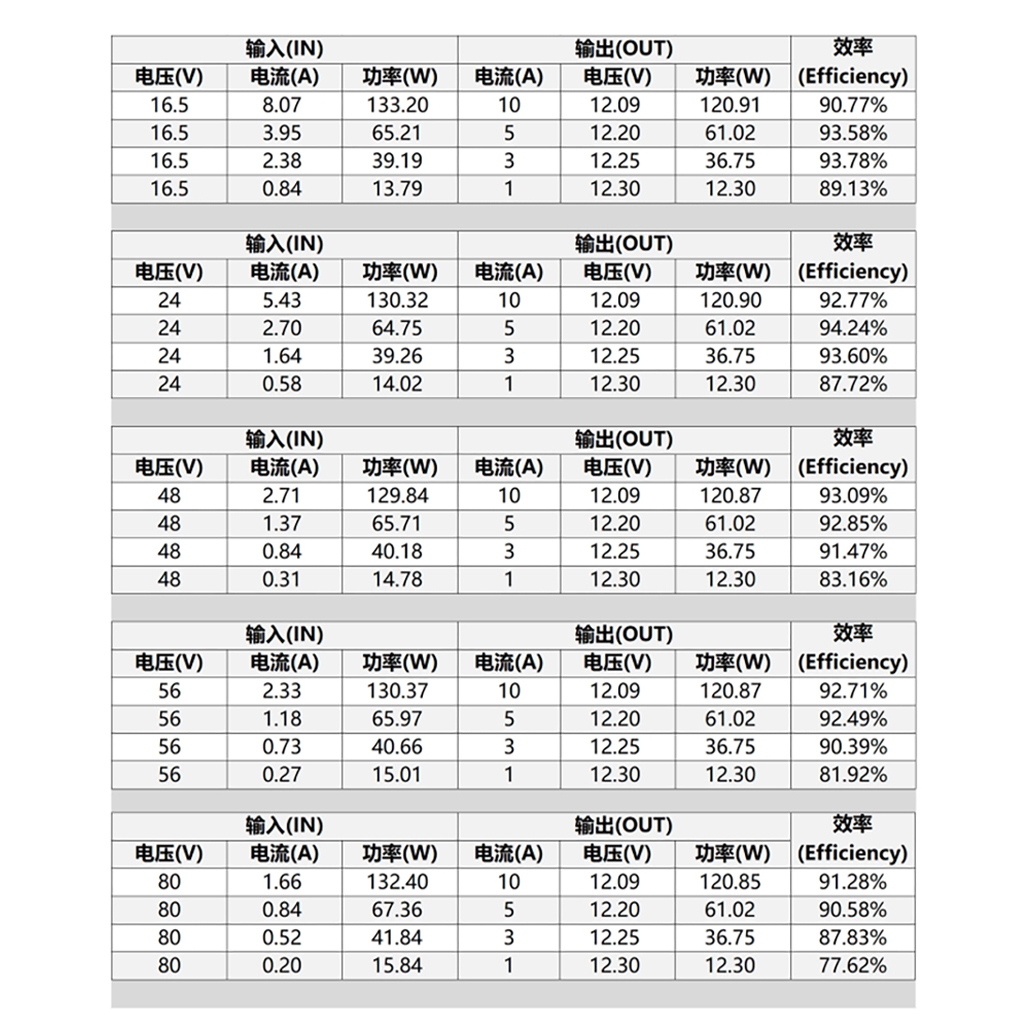

2. High power output, supporting up to 120W output;
3. Three channel first stage 12.3V (total 10A) output design, can be used for 12V equipment power supply;
4. Support secondary voltage reduction of 5.3V (total 5A) output, which can be used for powering 5V devices;
5. The first level instantaneous overload can reach 33A;
6. Built in low-temperature drift high-precision voltage sampling resistor;

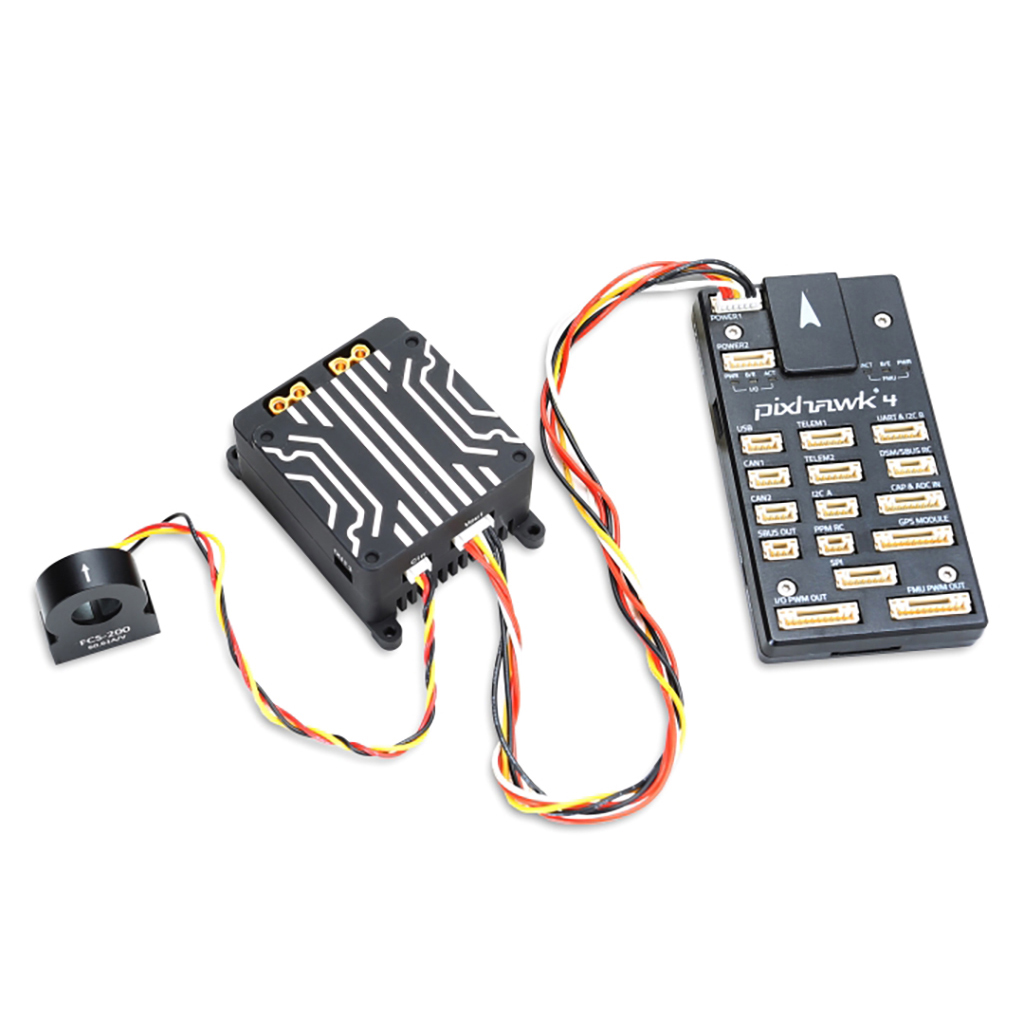

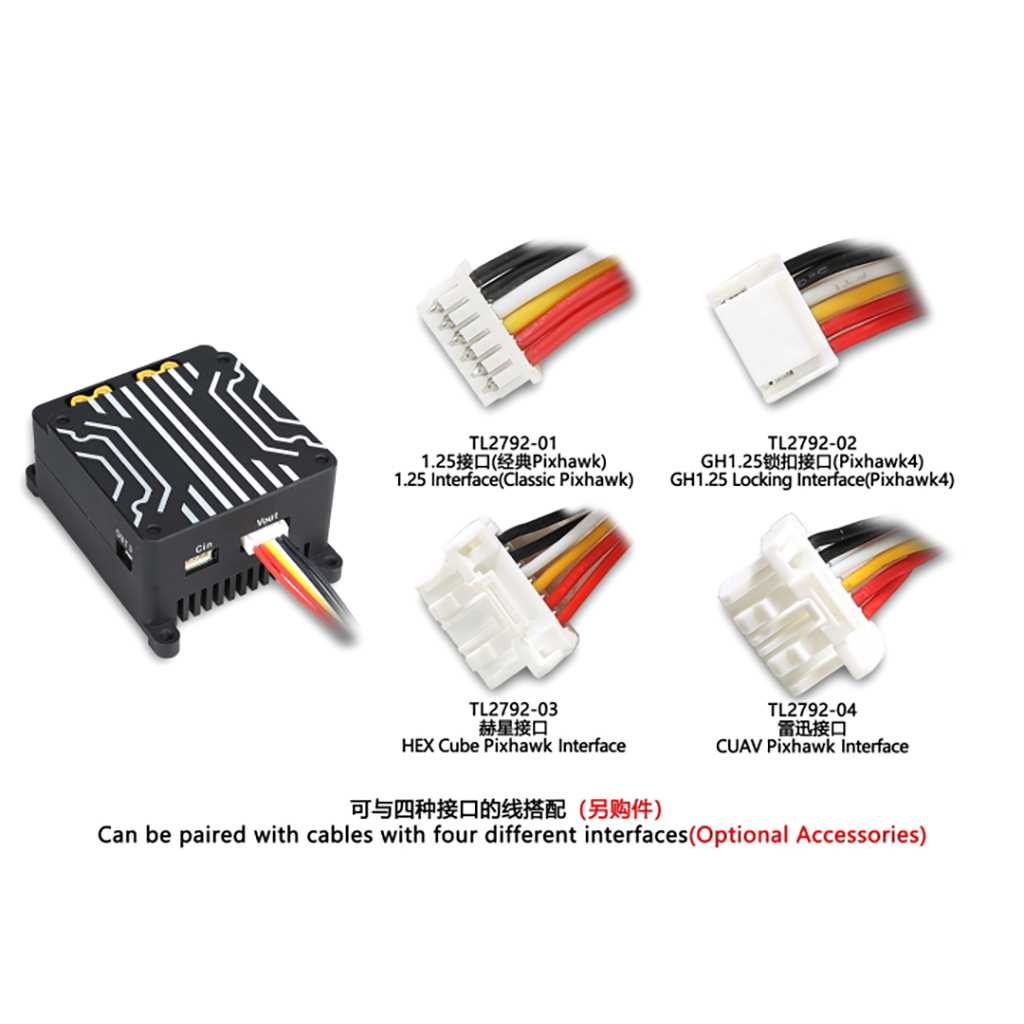

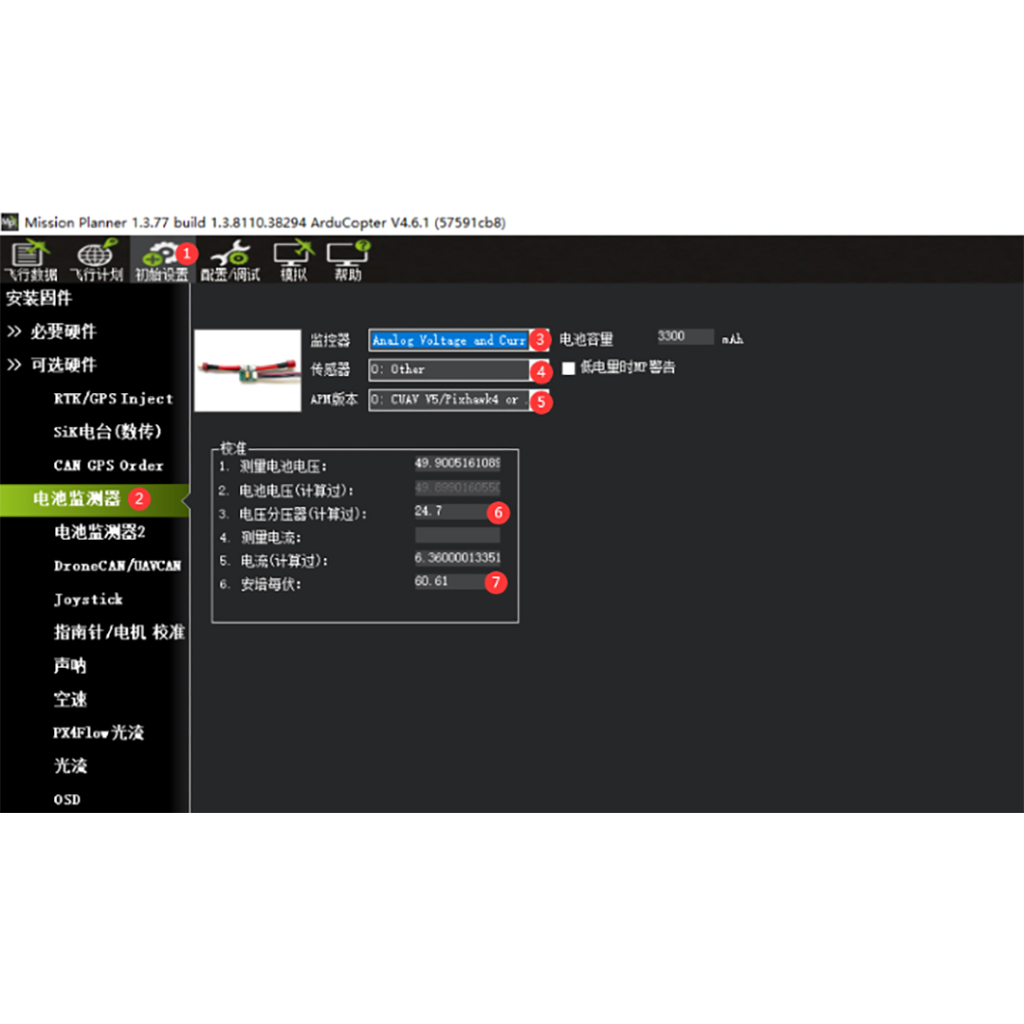

7. Support docking with mainstream flight control systems through the Vout interface to achieve voltage monitoring;

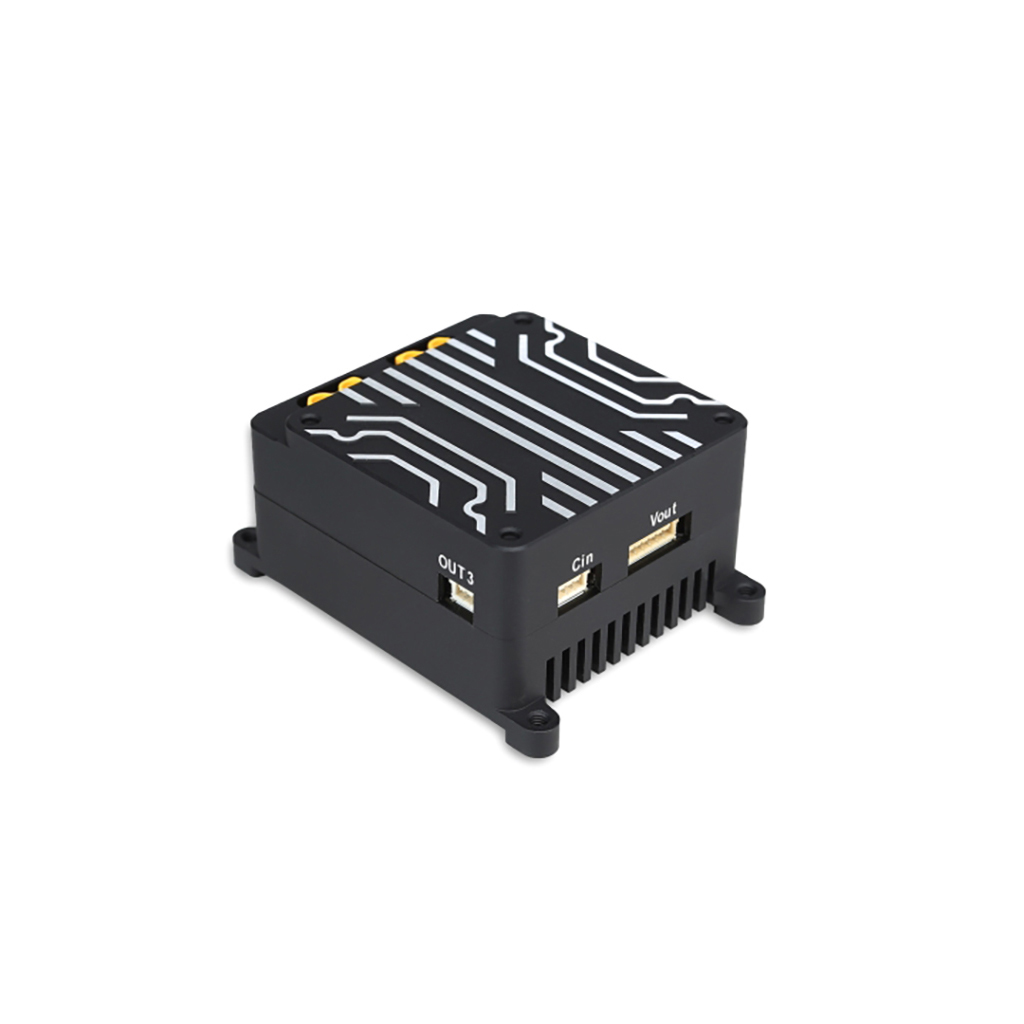

8. Support external Hall sensor module through Cin interface to achieve current monitoring;

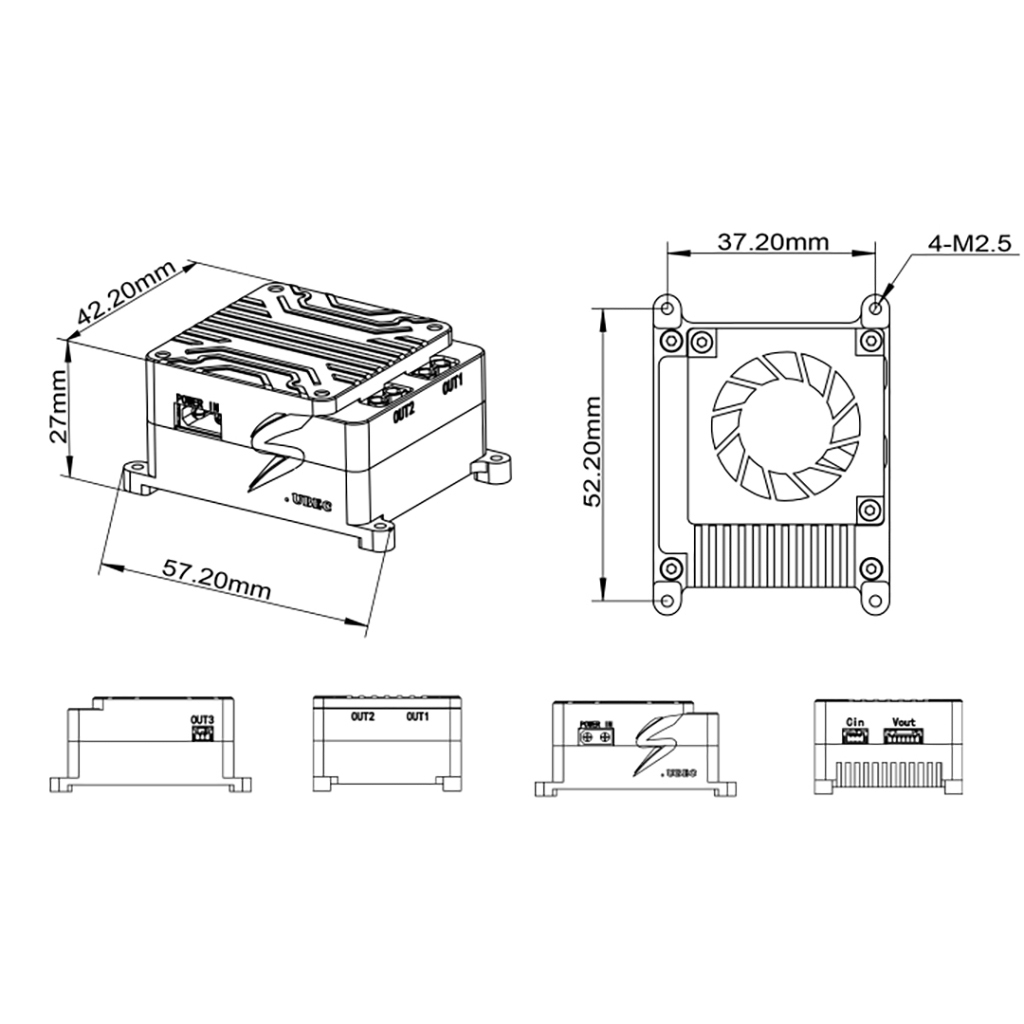

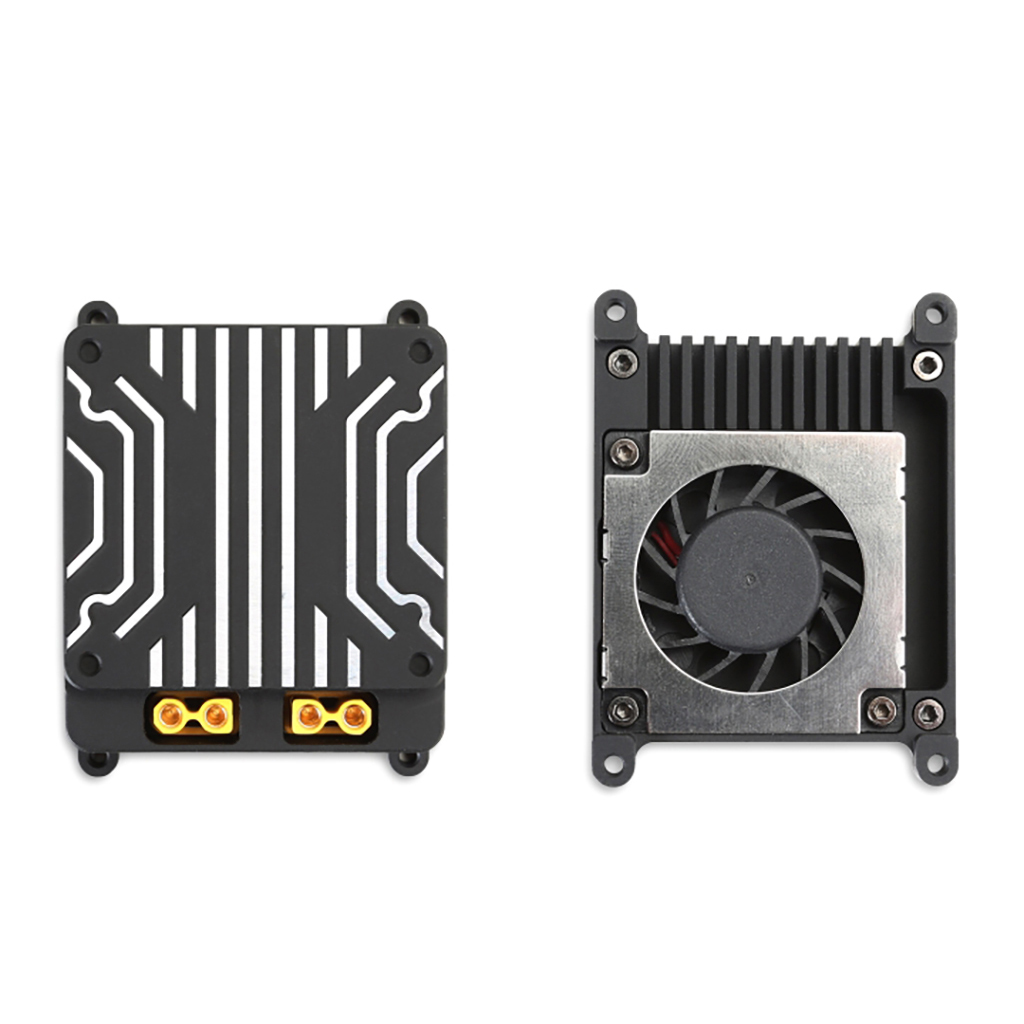

9. The shell is made of 6061T6 aluminum alloy fully CNC machined, which is aesthetically pleasing and has good passive heat dissipation;
10. Built in integrated silent turbofan, active heat dissipation, and more stable module operation under high-power use;

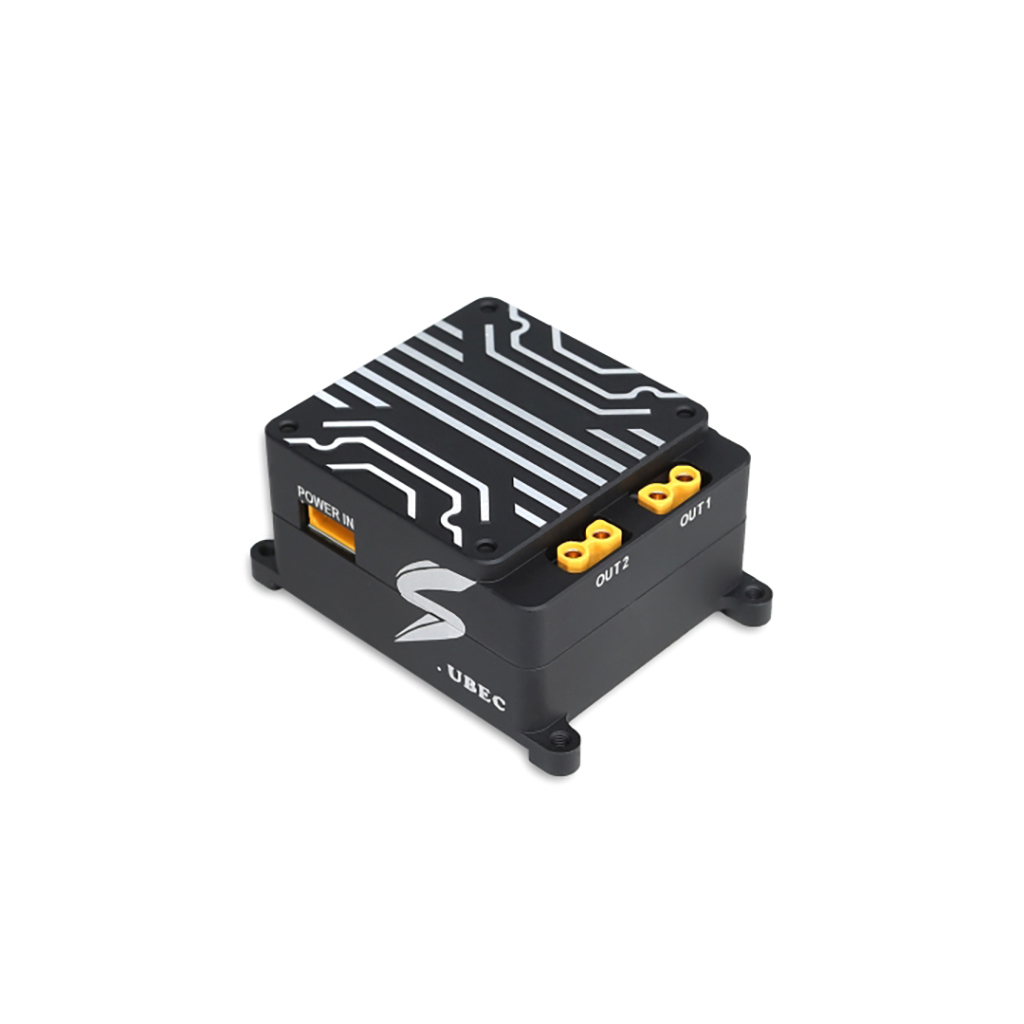

11. Built in integrated Amass XT30 plug input and output, with no exposed wires, making the module neat and elegant as a whole.
Notes:
1. The default output of the OUT2 interface at the factory is 12.3V/10A. If you need a secondary voltage reduction to 5.3V/5A output, you need to adjust the 12V/5V solder joint jumper on the internal circuit board to take effect;
2. Carefully follow the operating instructions to jumper to avoid equipment damage.
Deep Expansion: If you have specific requirements and development needs for other features, you can contact customer service for communication.
Packing List
S. UBEC voltage reduction module x 1
OUT3 interface -12V output line/GH1.25-2P × 1
Cup head hexagonal screw (M2.5 * 6mm) × 4
