Tarot MT2208III CW CCW brushless Motor with propeller and screws TL400H12 TL400H13 for 280/300 Quadrocopter Multicopter

Copy and share this link on social network or send it to your friends

Copy

Tarot MT2208III CW CCW brushless Motor with propeller and screws TL400H12 TL400H13 for 280/300 Quadrocopter Multicopter Item NO: F18651-F18652

US$ 6.98 (7% Off)
US$ 7.50 Save US$ 0.53
Version:
CW TL400H12 CCW TL400H13
Quantity:
Shipping Cost:
Estimate Shipping Cost
  • Tarot MT2208III CW CCW brushless Motor with propeller and screws TL400H12 TL400H13 for 280/300 Quadrocopter Multicopter
Product Name Tarot MT2208III CW CCW brushless Motor with propeller and screws TL400H12 TL400H13 for 280/300 Quadrocopter Multicopter
Item NO F18651-F18652
Weight 0.176 kg = 0.3880 lb = 6.2082 oz
Category DIY RC Drone Kit / RC Drone Accessories > Tarot
Brand Tarot
Creation time 2017-07-25


JMT Tarot MT2208III 1500KV CW CCW Brushless Motor with Propeller and Screws TL400H12/3 for DIY 280/300 RC Quadrocopter

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()



Product Description:
The heat dissipation of the brushless motor is self-evident, the major brands have their own design forms, each has advantages and disadvantages. Fan type cooling method is the most effective way, but it is very difficult to manufacture.
Based on the disadvantages of traditional motor cooling system, TAROT to exquisite CNC metal processing technology, to create a series of 22 fan type brushless motor, solved the problem of heat dissipation of the motor in the best way, effectively enhance the conversion efficiency of the motor.

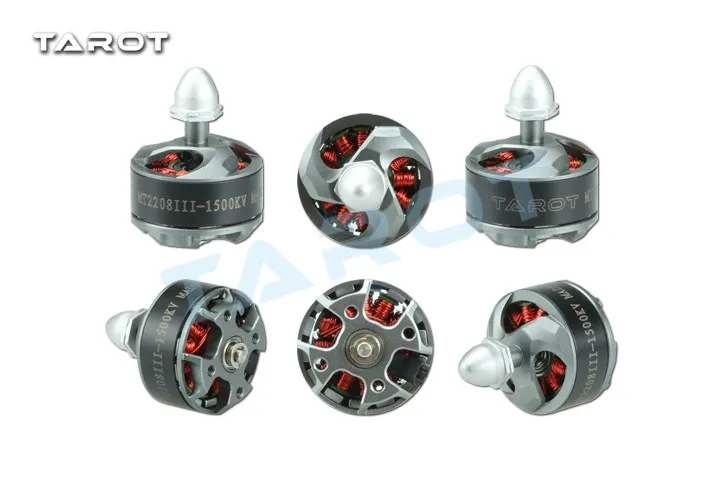

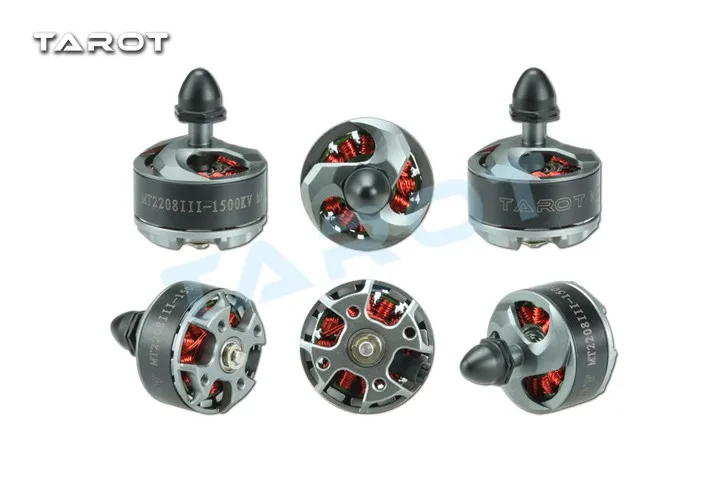

MT2208 Tarot III -1500KV fan brushless motor suitable for 280/300 and other types of multi axis through the machine. MT2208 no center of gravity of the brush motor is extremely low, the 0.20mm ultra-thin high efficiency silicon steel sheet, primary axis propeller clamp structure) the concentricity can be assured of the best. The upper cover of the fan type motor has a high efficiency active bulk pad design, which means higher working efficiency with lower working temperature.
MT2208 III brushless motor with excellent dynamic balance performance, the whole system before the shipment are all tested by high-precision dynamic balance tester, to ensure the stability of the motor running. The base of the motor is installed with a hole 16MM/19MM, which is compatible with the current mainstream frame installation in the market. The appearance of the motor is consistent with the traditional motor, and the height of the suspension is protected from the coil.
The State Intellectual Property Office has been awarded the product patent TAROT HM Co. ltd.. Any unit or individual not by holders of authorization, manufacturing, copy, use, the sale of infringing the products will face patent infringement litigation.
Product parameters:
Support lithium section number: 3S
Propeller shaft mounting diameter: 5MM
Propeller: 6-7 inch propeller
Stator diameter: 22MM
No load current: 0.4A-0.8A
Stator end thickness: 8.0
Stator end number: 12
Motor Pole : 14
Speed: 1500KV ± 5%
Motor external diameter: 28MM
Axis diameter: 3MM
Motor height: 38MM
Motor weight: 34G
Specification:
MT2208 III self locking anti screw motor x 1
M2.5 * 5MM cup head six angle screws * 4
7 inch blade / pair / Black
