| Quantity | 0-3 | 4-50 | 51-100 |
| Discount | 0% OFF | 5% OFF | 10% OFF |
| Price | US$ 7.98 | US$ 7.58 | US$ 7.18 |
Copy and share this link on social network or send it to your friends
Copy| Product Name | Tarot Distribution Module Power One Output Eight Power Distribution Module Hub All Copper Gold-plated High Current Compatible With XT60H TL60-08 For Drones |
| Item NO. | F53688 |
| Weight | 0.055 kg = 0.1213 lb = 1.9401 oz |
| Category | DIY RC Drone Accessories |
| Brand | Tarot |
| Creation Time | 2024-12-16 |

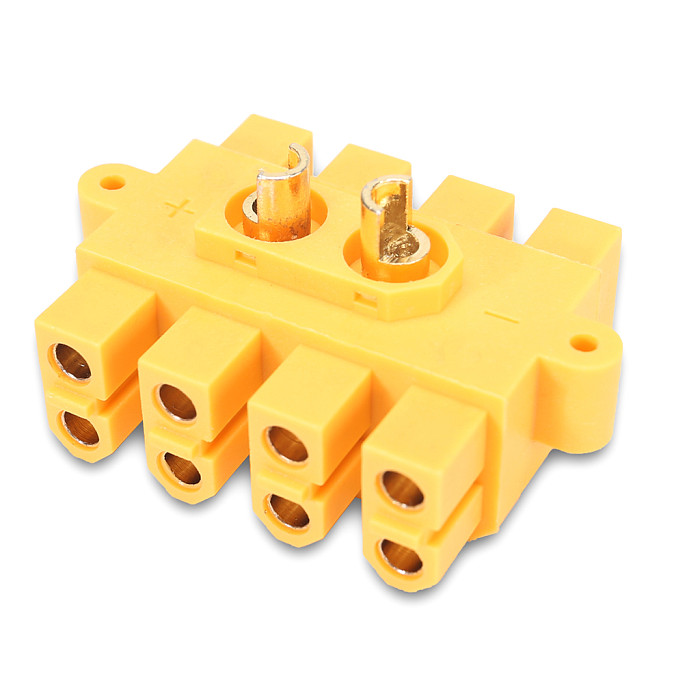

Tarot Distribution Module Power One Output Eight Power Distribution Module Hub All Copper Gold-plated High Current Compatible With XT60H TL60-08 For Drones
Product Description:
Tarot's one output eight power distribution module is specially developed for various general-purpose drones, supporting any type of drone with up to 8 output lines. The outer shell is designed with injection molding and compression molding, while the internal circuit is constructed with solid all copper (surface plated with real gold) integrated molding, with a continuous current of 150A and an instantaneous current of up to 200A.
matters needing attention:
Due to the solid copper construction inside, it can cause severe heat absorption. It is recommended to use a 100W soldering iron to solder the main power supply!
Before the first power on, it is necessary to check the positive and negative poles of the power supply and the voltage output by yourself to ensure that they are completely normal before connecting to the output device. Our company is not responsible for any damage caused by this product!
Product features:
1. Each internal circuit (positive/negative) is constructed with solid all copper integrated molding;
2. The contact surface of the plug is designed with genuine gold plating;
3. The shell is designed with integrated compression molding and injection molding, which is beautiful and high-end;
4. No need for heat shrink tubing, the sheath can be installed in one step, saving time and effort;
5. The flat welding interface is paired with a protective sheath with a partition layer, which not only prevents short circuits but also facilitates welding;
6. UL94V-0 flame retardant rating, greatly improving safety factor;
7. Continuous current of 150A, instantaneous current can reach 200A;
8. Seamless compatibility with XT60/XT60H docking male head.
Patent Authorization:
The China National Intellectual Property Administration has granted the product patent right (patent No.: ZL2021 2 2008729.1)， Any unit or individual who manufactures, imitates, uses, or sells this product without authorization from the holder will face patent infringement litigation.
Packing list:

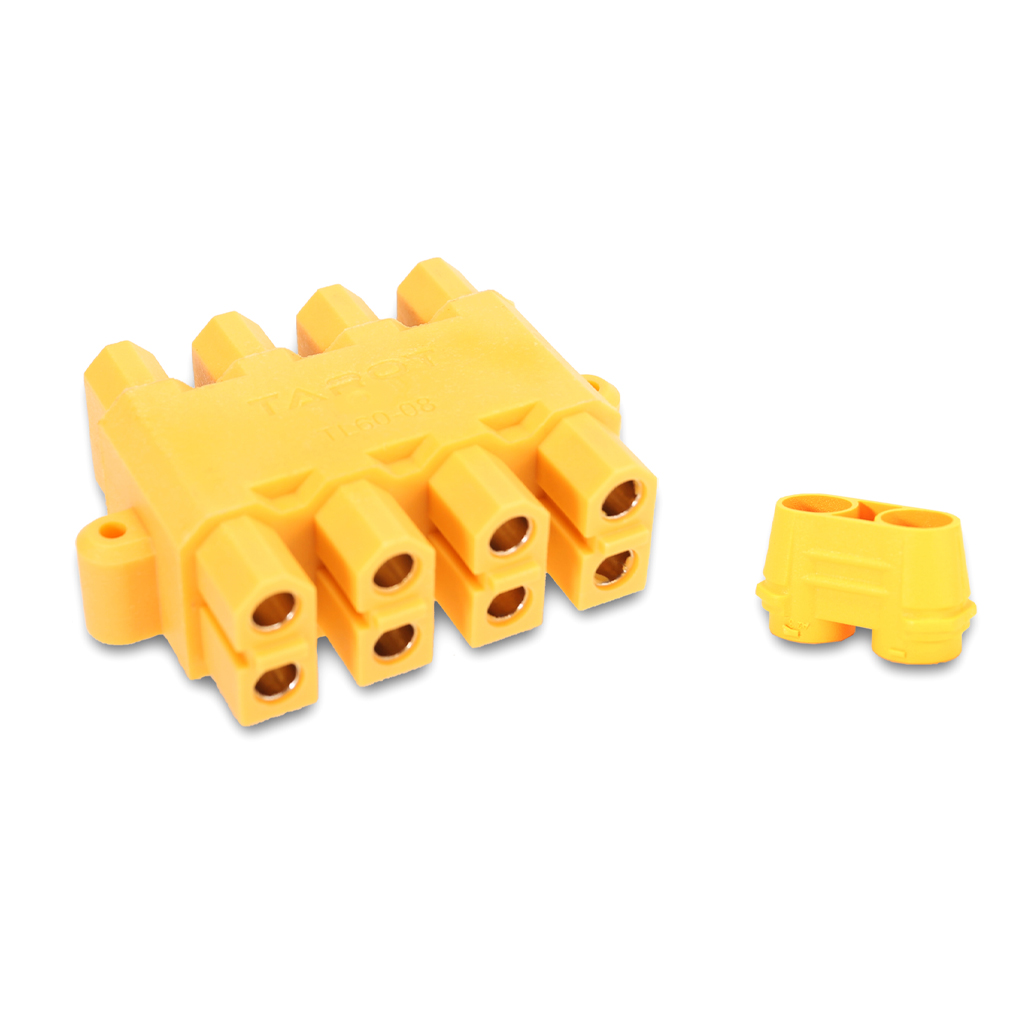

One out of eight power module TL60-08 (35.5g) × 1
90 Series Sheath (0.8g) × 1
Self tapping screw (M2.6 * 10mm) × 2
