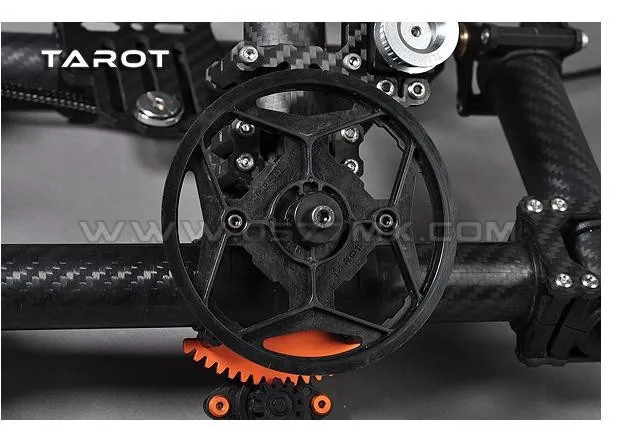

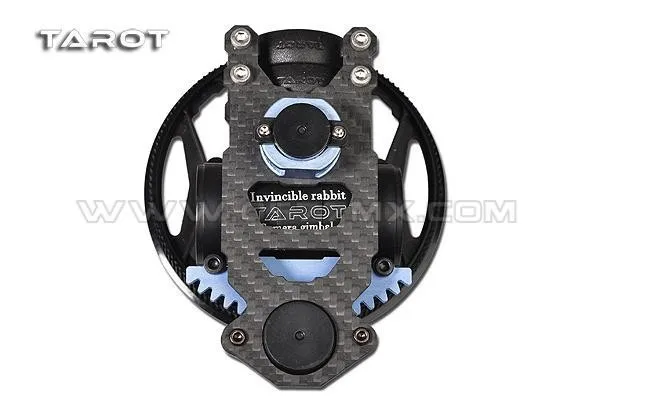

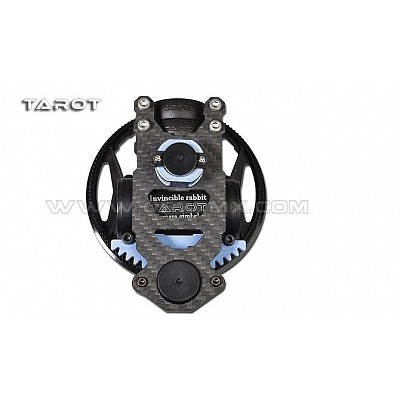

Tarot Diameter 25mm Roll Damping Mount Set TL100A13

Product Description:

Suitable for TAROT (TL100AAA/TL100ABB/TL100ACC) and many other 3-axis pan, using 6061-T6 aluminum alloy full CNC multi-axis machining. Φ25MM head roll damping Seat made of high strength metal frame, right-locking roller shaft design. Using dual dampers designed to provide the resistance movement, the rapid movement of energy depletion server. According to estimates TAROT test, the size of the pitch axis damping values PTZ pitch axis stability has a great influence. All metal parts are CNC using matte surface treatment, preventing reflected light effects photographic effects.

Specifications:

Φ25MM head tube clamp × 4
M3 pan nut × 4
Cup head screw × 4 (M3 × 36MM)
Roll damping front seat Carbon plate × 1 (98 × 41 × 2.5MM)
After the roll damping carbon fiber seat plate × 1 (44 × 41 × 2.5MM)
Small damper × 1
M2 × 5MM Hex Screws × 2
Metal small damping Block × 1 (22 × 19 × 10MM)
Damping carbon blanks × 1
Metal Gear Shaft × 1
Metal roller shaft holder × 1 (55 × 38 × 2.5MM)
130T roll axis synchronous round × 1
Synchronous round metal support columns × 2
Standard PTZ damper × 1
M2.5 × 6MM Allen stepped screw × 2
Metal head mounting × 2
Flange bearings × 2 (Φ7 × Φ14 × 5MM)
Metal Gear piece × 1 (60 × 18 × 2.5MM)
M3 × 10MM Cup Head Hex Screws × 2
