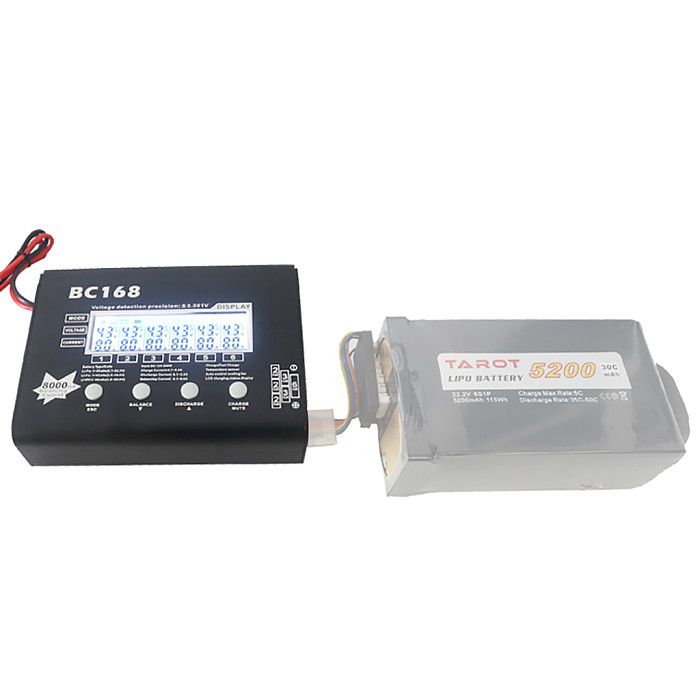

Tarot BC168 1-6S 8A 200W Super Speed LCD Intellective Balance Charger/Discharger for Lipo Battery Rc Toys Item NO.: F49686

Name: Tarot BC168 1-6S 8A 200W Super Speed LCD Intellective Balance Charger/Discharger for Lipo Battery Rc Toys
SKU: F49686
Price: 56.94 USD
Availability: InStock

Write a Review

US$ 56.94

US$ 66.99 Save US$ 10.05 (15% Off)

Quantity: Stock ( 9999999 )

Estimate Shipping Cost

Add to Cart

Product Name	Tarot BC168 1-6S 8A 200W Super Speed LCD Intellective Balance Charger/Discharger for Lipo Battery Rc Toys
Item NO.	F49686
Weight	1.1 kg = 2.4251 lb = 38.8014 oz
Category	DIY RC Drone Accessories
Creation Time	2023-03-21

Product Description.

This latest model BC168 charger, designed for lithium and lithium-iron batteries, can accurately charge, balance, discharge and measure multiple batteries.

Product features.

1. using parallel independent charging mode, to ensure that the voltage of each battery cell accurate.

2. can charge up to 8A, power up to 200W, real six-way independent balance charging, continuous 8A current output.

3. using a large LCD display with a cold backlight display, while displaying six battery data, at a glance.

4. the use of high-precision battery voltage detection circuit, voltage control accuracy of ± 0.001V, current control accuracy of ± 0.1A, regardless of the characteristics of each channel charging battery, the deviation of each channel battery voltage at the end of charging ≤ 0.002V.

5. comprehensive protection circuit, input overvoltage, reverse connection protection, output reverse connection protection, when the charger detects that the voltage of a road has reached a preset value, this road charging circuit will be locked to make it stop working, so that your battery does not have the worry of overcharging;.

6. using four keys to control all functions, three of which are multi-function keys, just press once to perform four functions: charging, fast charging, discharging and balancing.

7. and charging board circuit board using 2oz copper thick process, double-sided thickening alignment, greatly enhance the over-current capacity;.

8. Automatic temperature-controlled heat dissipation design, when the internal temperature of the charger is too high, the charger automatically starts the cooling fan, and the speed is automatically adjusted with the change of temperature. If for some reason the heat dissipation exceeds the limit temperature, the charger will suspend charging (to prevent device damage) and automatically resume charging after the temperature falls back.

Cautions.

1. using the parallel charging board can simultaneously charge 12 2S, or 8 3S, or 4 4S, or 4 5S, or 4 6S interface batteries, allowing multiple batteries of the same type to be charged simultaneously.

2. When using the parallel charging board, only the same number of batteries can be charged at the same time (example: 2 3S batteries can be accessed at the same time, but not 1 3S and 1 4S batteries can be accessed at the same time).

3. Before using the parallel charging board to charge multiple batteries in parallel, it is necessary to detect the voltage difference between each battery pack, in order to reduce the damage to the battery, when the difference is too large, it is recommended to balance the charge of a single battery first, and then charge it with the parallel charging board, otherwise it may burn the parallel charging board or battery pack.

Product parameters.

Input voltage: 11-15V DC (preset 12V)

Input power: 300W

Charging power: 201.6W(33.6W*6Cells@Cells=4.2V)

Discharge power: 775.6W(12.6W*6Cells@Cells=4.2V)

Balance power: 201.6W(33.6W*6Cells@Cells=4.2V)

Charge voltage adjustment range: 1.5V-4.35V (4.2V preset)

(To adjust 4.2V to 4.35V, press and hold the [DISCHARGE button] on the voltage adjustment menu)

Charging current adjustment range: 0.1A-8A (preset 3A)

Temperature alarm adjustment range: 20℃~80℃(preset 80℃)

Discharge voltage adjustment range: 2V-4.2V(preset 3.8V)

Discharge current adjustment range: 0.1A-3A (preset 3A)

Balance voltage adjustment range: 2V-4.2V (preset 3.8V)

Balance current adjustment range: 0.1A-8A(preset 3A)

Charging voltage accuracy: ±0.001V

Discharge voltage accuracy: ±0.001V

Balance voltage accuracy: ±0.001V

Charging conversion efficiency: ≥80%

Charger power consumption: ≤1.2W (12V 0.1A)

Support battery type: 1-6S (support LiPo/Lilo/LiFe)

Input power cable: 18AWG high temperature resistant silicone cable

Weight: 1KG

Size: 165*123*52mm

Product Specifications.

BC168 charger ×1

And charging board × 1
