| Quantity | 0-3 | 4-50 | 51-100 |
| Discount | 0% OFF | 5% OFF | 10% OFF |
| Price | US$ 11.52 | US$ 10.95 | US$ 10.37 |
Copy and share this link on social network or send it to your friends

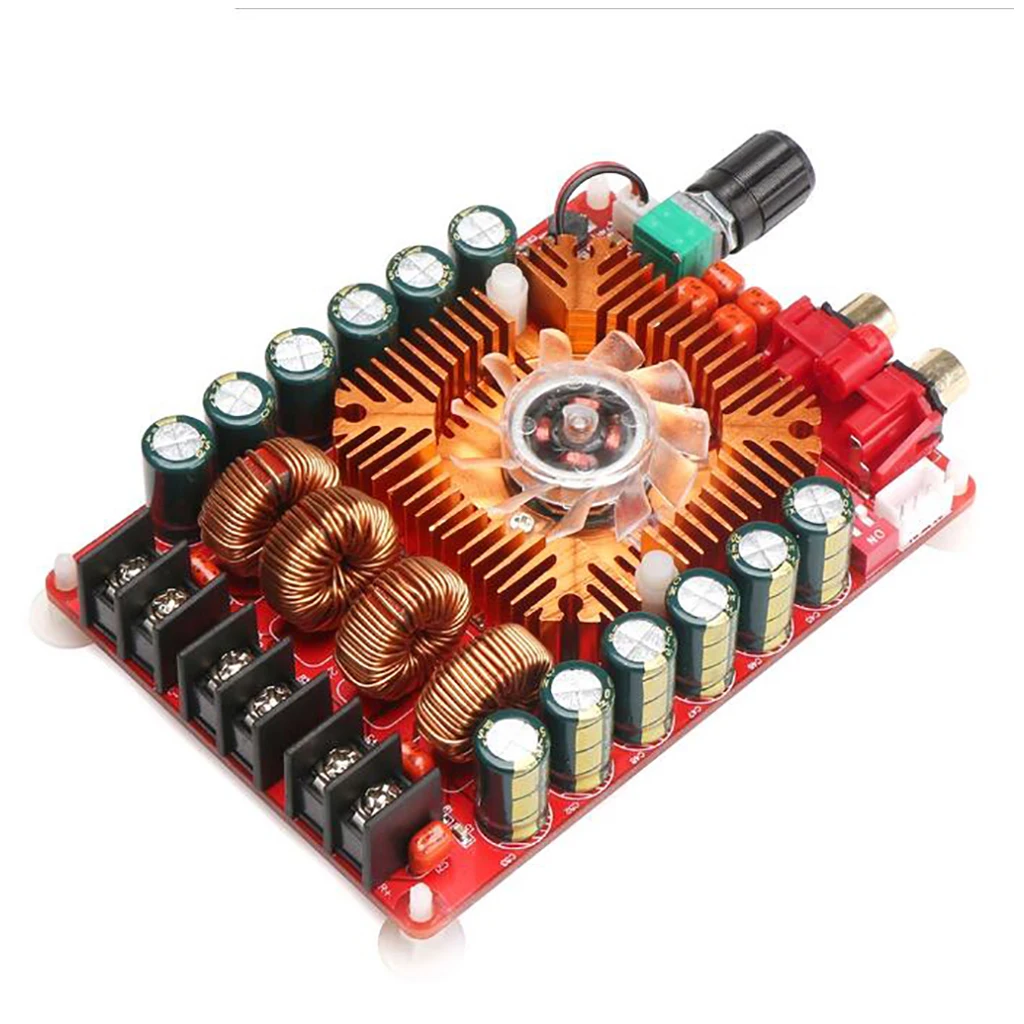

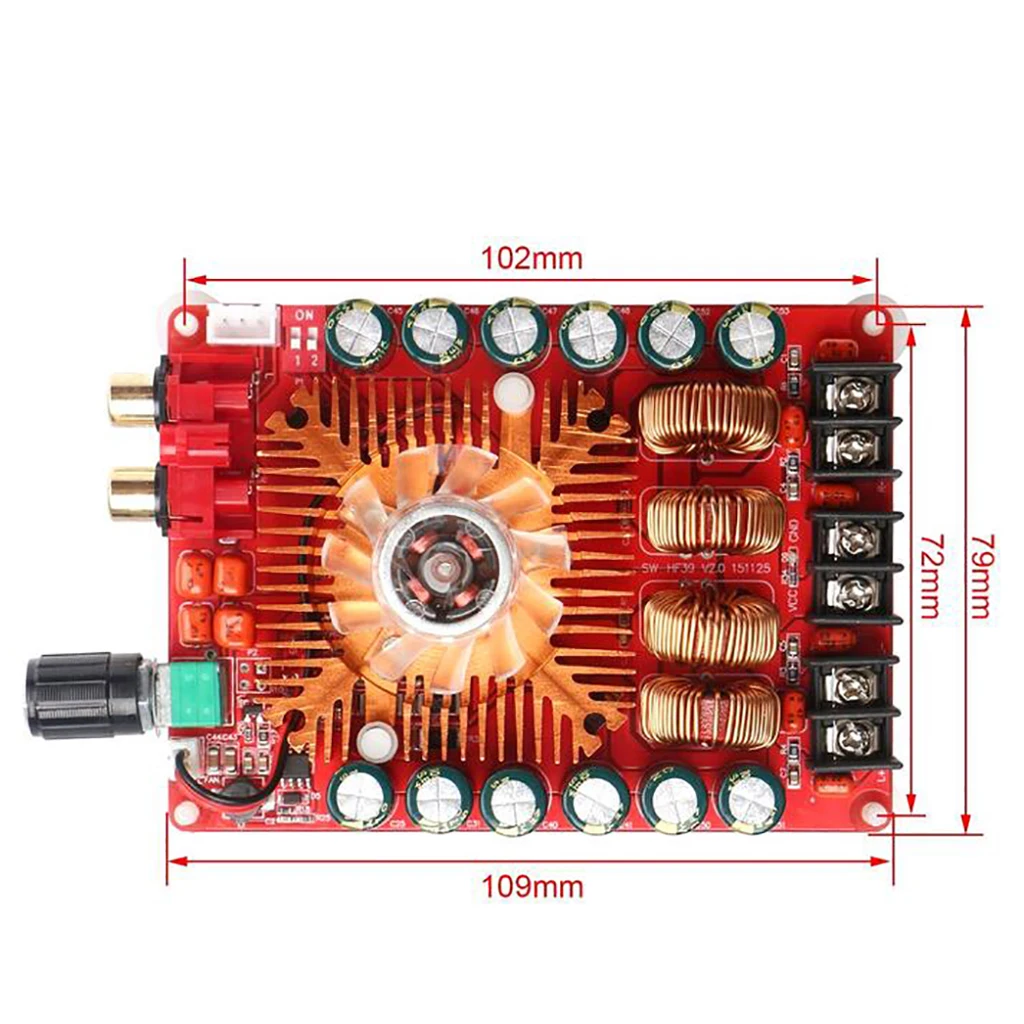

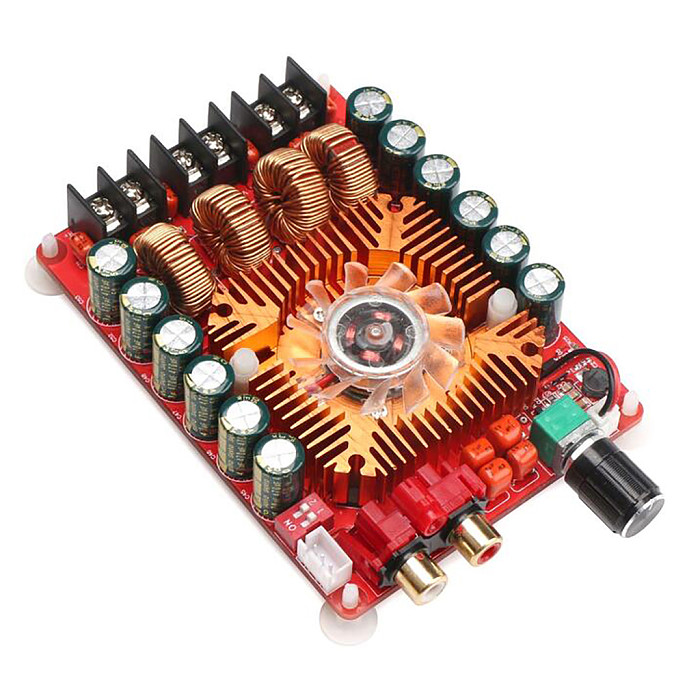

Copy| Product Name | TDA7498E 160w x2 Two Channel Audio Power Amplifier Board Digital Stereo Power Amplifier BTL Mode Single Channel Amplifier Module |
| Item NO. | F52423 |
| Weight | 0.203 kg = 0.4475 lb = 7.1606 oz |
| Category | DIY RC Drone Accessories |
| Creation Time | 2024-06-17 |
High power class D digital amplifier:
Amplifier chip: original TDA7498E (TDA7498L is 2X80W chip TDA7498 is 2X100W chip, TDA7498E is 2X160W chip)
Output power: 2X160W (using 4 ohm impedance speaker unit, input voltage 36V DC output power 160W+160W)
Operating voltage: 15 ~ 24VDC DC with input polarity reversal protection
(speaker real power is large enough, the recommended voltage 24V, 8A or more DC,
power supply power is too small will be distorted sound breaks and other phenomena to play a shocking effect.)
Speaker impedance: 4 ohm 6 ohm 8 ohm
Cooling method: temperature-controlled forced air-cooled
(heat sink temperature to a certain level of fan operation to force cooling)
Efficiency: 85% (official data)
Support BTL mode (back of the amplifier board J1, J2, J3, J4 shorted)
36V power supply 3 ohm mono 220W output (TDA7498, TDA7498L chip does not support this feature)
Weight 165g
