Product Name Super_S F4 flight controller board integrated OSD Built-in 5V BEC for Indoor Brushless FPV Racer Drone Quadcopter
Item NO. F21371
Weight 0.022 kg = 0.0485 lb = 0.7760 oz
Category Toy and Hobbies
Brand XT-XINTE
Creation Time 2017-07-25

Super_S F4 flight controller board integrated OSD Built-in 5V BEC for Indoor Brushless FPV Racer Drone Quadcopter


Specification:
Item name: Super_s F4 flight controller board

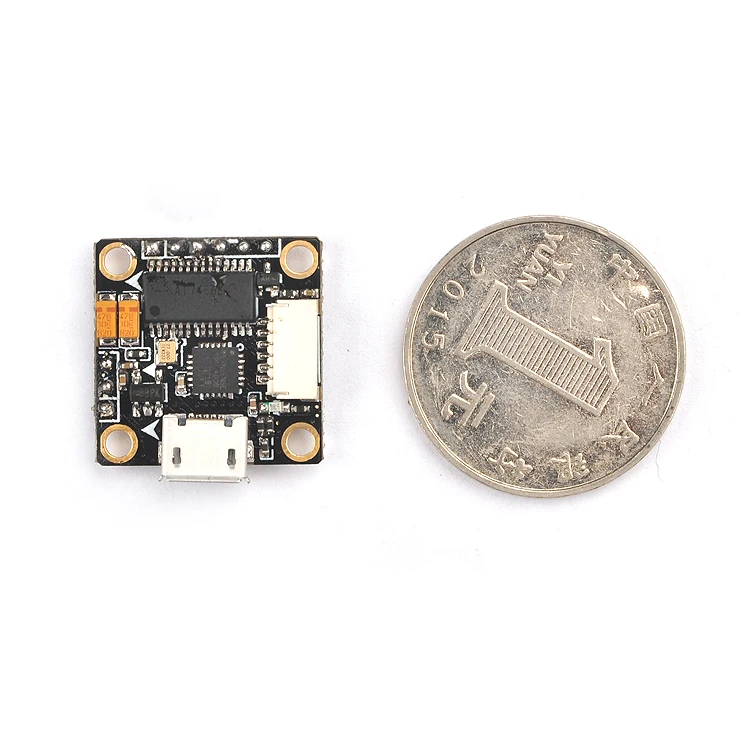

Size: 20*20mm
Mounting hole: 16*16mm
Mount hole Diameter: 2mm

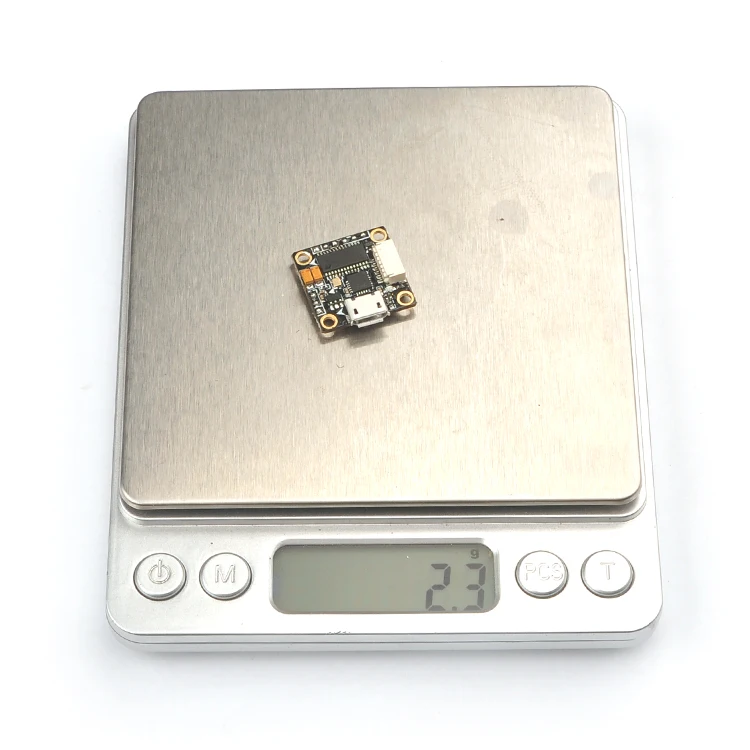

Weight: 2.3g
Processor: STM32F405RGT6
Sensor: MPU-6000 ( connected by SPI)
Firmware version: betaflight_3.1.7_OMNIBU_SF4SD
Built-in ESC: 5V 500MA
Power supply: 2S lipo battery ( 6.5V-8.4V)
Receiver: PPM, IBUS, SBUS, DSM2, DSMX etc.
Suitable for Micro FPV brushless frame

Features:
-Support programmable LED Sprit (turn off transponder before using)
-Support BLheli/BLHELI_S suite Pass-through ready
-Support PPM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
-Support the newest DSHOT ESC
-Built-in voltage detection, alarm
-Built-in Betaflight-OSD, Configure by Betaflight GUI

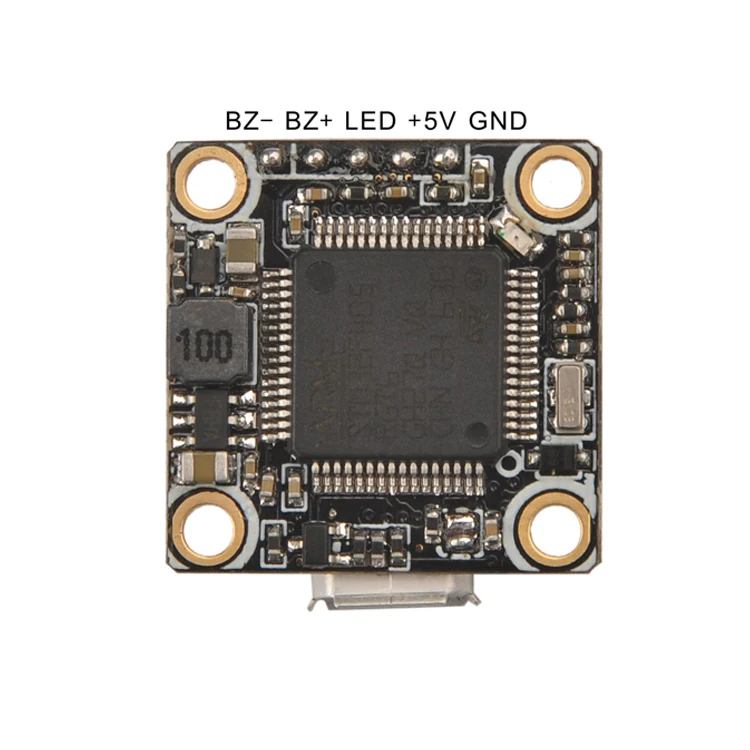

-Buzzer Ready (Solder pin)
-LED_STRIP Ready (Solder pin)

Package included:
1* F4 flight controller board
4*M2*5+5 Nylon column
4*M2 Nuts
4*M2 Screw

Notes:
-SBUS/IBUS/DSMX receiver please configure RX1(UART1) as input, and enable Serial_RX
-PPM receiver don’t need to enable Serial_RX (PPM receiver need to Disable LED_Strip *Betaflight 3.17 Firmware known issue)
-DSM/DSM2/DSMX receiver power from 3.3V.
-SBUS and PPM receiver power from 5V.
