Product Name Snapper7 Brushless Whoop Racer Drone BNF Micro 75mm FPV Racing Quadcopter Crazybee F3 Flight Control Flysky/Frsky RX 700TVL Camera VTX
Item NO. F24212-F24242
Weight 0.2 kg = 0.4409 lb = 7.0548 oz
Category DIY RC Drone Accessories
Brand jmt
Creation Time 2018-03-15

Snapper7 Brushless Whoop Racer Drone BNF Micro 75mm FPV RC Racing Quadcopter Crazybee F3 Flight Control Flysky RX 700TVL AIO Camera VTX

This is BNF Basic/Standard Version, Compatible with Flysky Receiver, Please take it into account before ordering according to your Transmitter.
(If your transmitter is Frsky, We also can order the Frsky to you, Please message us or leave note to us, We will ship the Frsky Version to you)

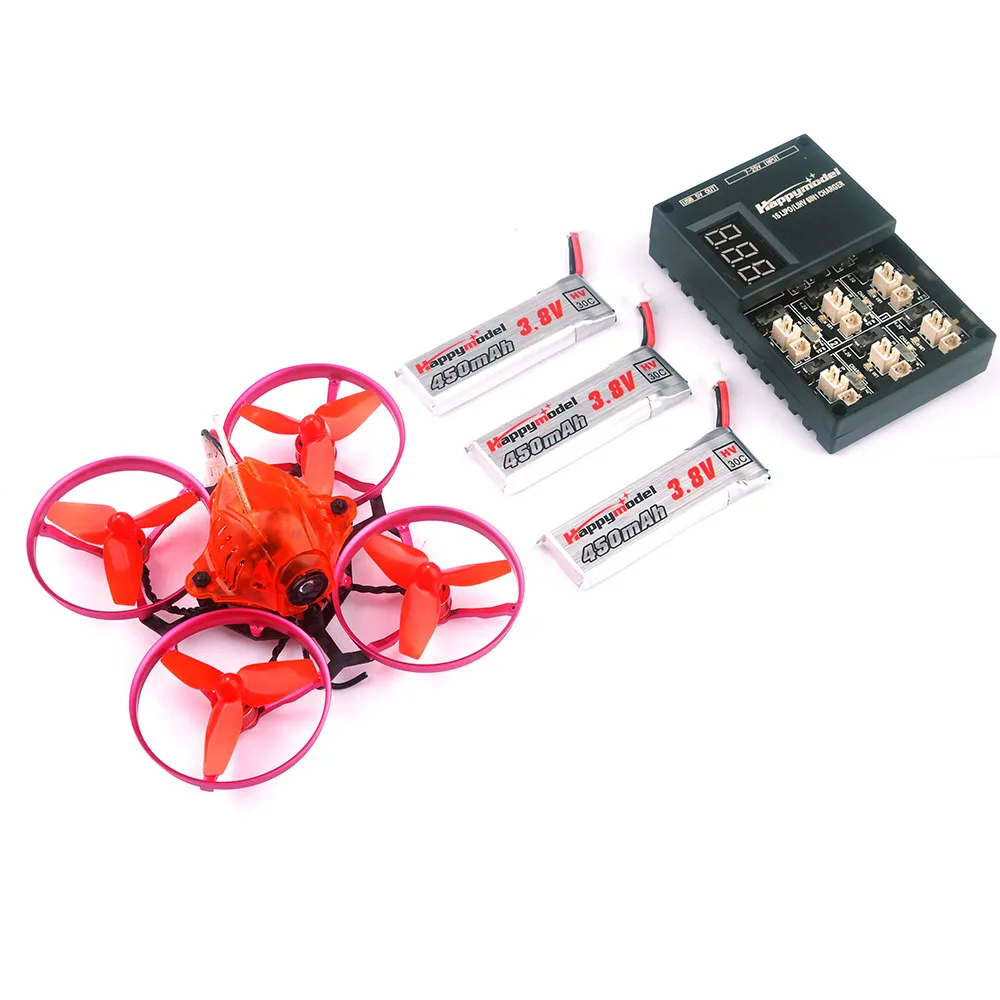

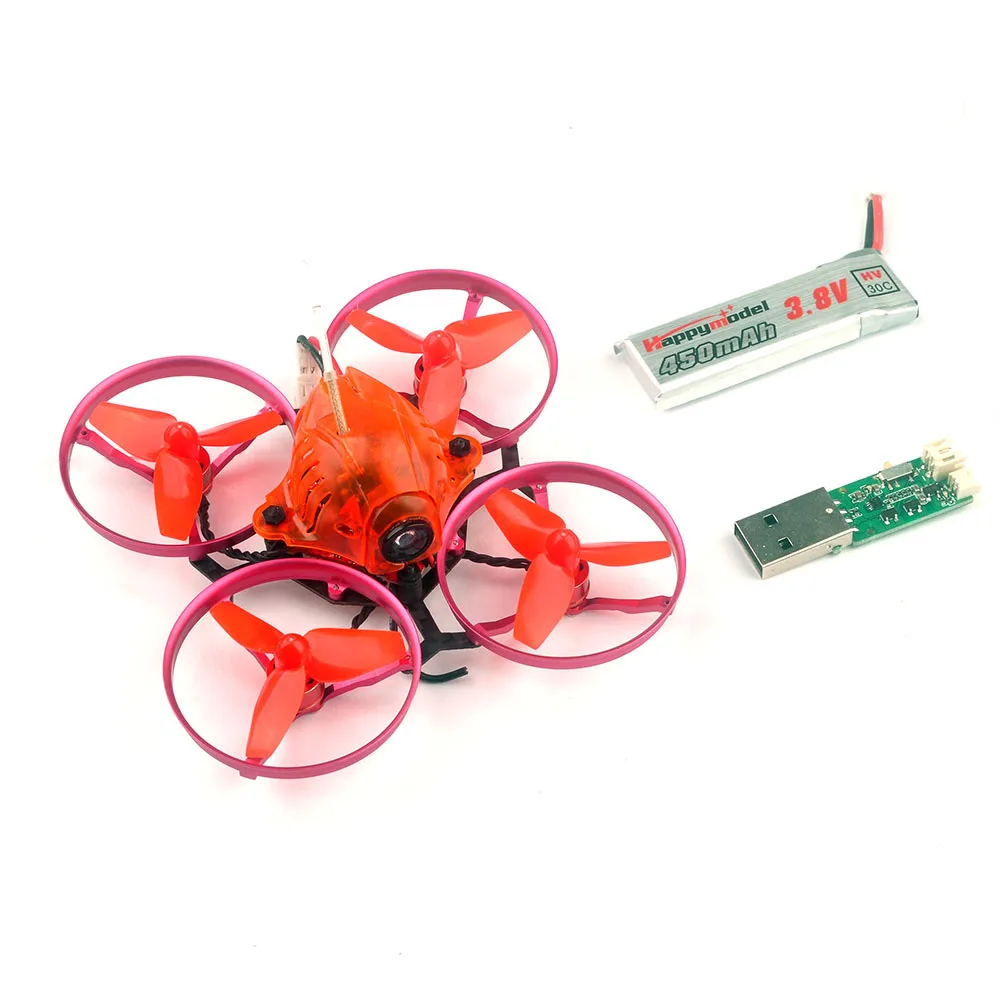

Basic Version include 1x Battery with USB Charging ; Standard Version include 3x Batteries with 6-Way Lipo Charger, Please choose the item you want.


Package includes:

Item Name

Basic version

Standard version

Snapper 7 Frame

1

1

Crazybee F3 FC (Frsky and Flysky option)

1

1

SE0703 KV19000 Motor

4

4

40mm 3-blades propeller(4cw+4ccw)

1

1

AIO Camera & VTX

1

1

3.8v 450mah 30C/60C battery

1

3

USB Lipo/LIHV Charger

1

0

1S06 6 way Lipo/LIHV charger

0

1

Propeller disassemble tool

1

1

Screwdriver

1

1

Specifications:
Brand Name: JMT
Mode Name: Snapper7
Item Name: 1S Brushless Whoop racer drone BNF
Wheelbase: 75mm
Size: 98.5mm*98.5mm*36mm

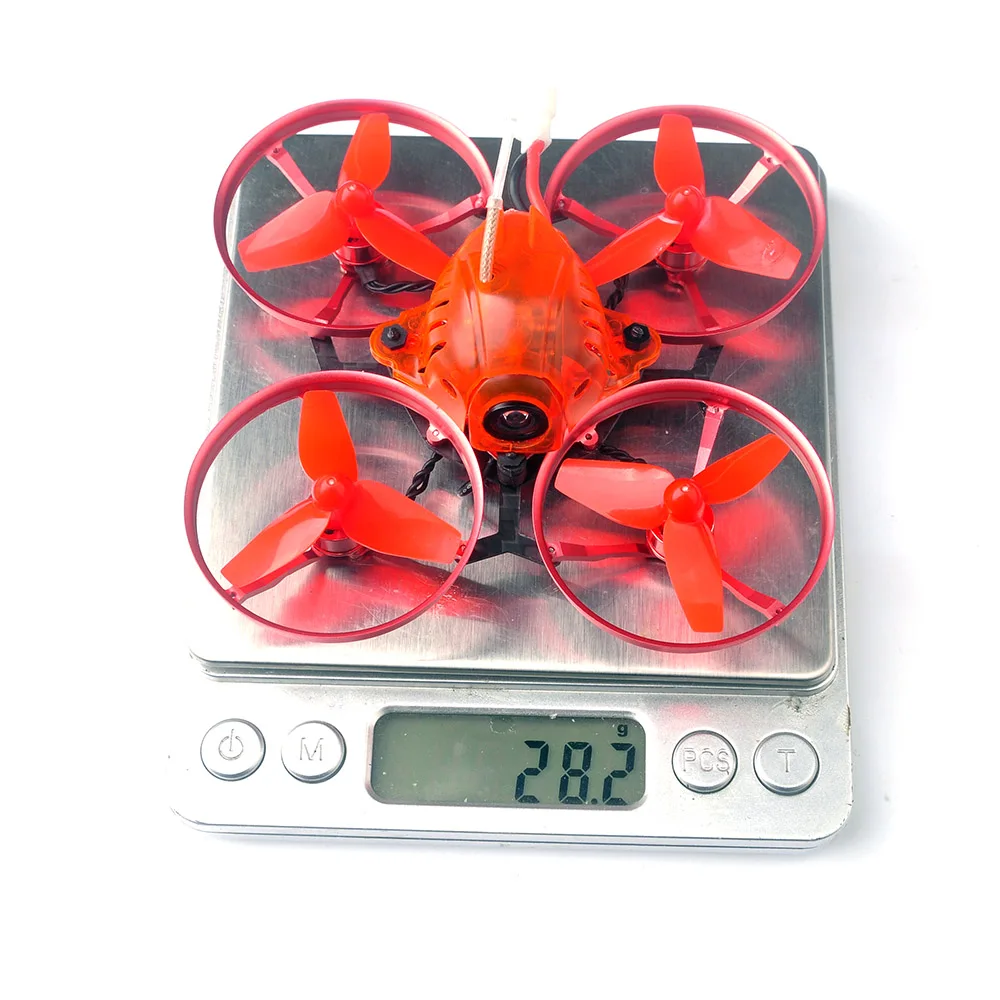

Weight: 28g(without battery)

Features:
Betaflight support , multi flight mode: ACRO/AIR/ANGLE
Powerful Brushless motor and Smooth ESC
CNC aluminum alloy propeller guard
Betaflight OSD support ,easy to get RSSI , Voltage and other info from your goggles
Adjust the settings and the PID of the flight controller via OSD
Frsky version support both EU LBT and NON-EU Frsky transmitter
Full telemetry function ready
Head lights ready
Camera angle adjustable
Real Bind and Fly version


Spare parts specifications:

Motor

Mode: SE0703 KV19000

Configu-ration:9N12P
Stator Diamter:7mm
Stator Length:3mm
Shaft Diameter:Dia 1.0
Motor Dimension(Dia.*Len):Dia 10*14.5
Weight(g):2.5
No.of Cells(Lipo):1S


Flight controller

Firmware: Betaflight_3.3.0_Crazybee
MCU: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: MPU-6000(SPI connection)

Board size: 28.5 * 28.5MM
Board weight: 3.5 g
Power supply: 1S battery input (DC 3.5-4.35V)

Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready

Built-in Frsky receiver with telemetry(D8/D16 switchable)

Built-in Betaflight OSD(SPI Control)

Built-in Current meter (Max 14A,could be modified to 28A by replace resistor)

Built-in 5V 0.8A BEC with LC filter

Built-in voltage detection
BLHELI_S pass-through Ready

Heading LED Ready

Onboard 4in1 ESC

Power supply: 1S LiPo/LiPo HV (4.2v/4.35v)
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_L_5_REV16_6.HEX
Default protocol: DSHOT600

Frsky receiver Version

SPI BUS receiver

Frsky D8/D16 switchable

Compatible both of Non EU and EU LBT transmitter

Channels: 8ch or 16ch

Failsafe support

No ground interference ( Transmitter and receiver 1 m from the ground): 300m

Flysky receiver Version

SPI BUS receiver

Protocol: AFHDS and AFHDS-2A Switchable

Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)

No ground interference ( Transmitter and receiver 1 m from the ground): 300m

Failsafe support

AIO Camera&VTX

Output power: 25mw
Frequency: 48CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Camera resolution: 700TVL
Field of view: 120 Degree
Video Format: NTSC
Antenna: RG178 antenna
Frequency: 5.8GHz 6 bands 48 channels
With Raceband: 5474 5945 MHZ
Size: 13.9"12.0mm ( L*W )
Weight: 3g

Lipo Battery

Capacity:450mAh
Voltage:3.8v
Continuous Discharge Rate: 30C
Instantaneous discharge rate: 60C
Size: 60mmx18mmx7mm
Weight: 13.6g

Connector: PH2.0
