SX1262PA+LNA LoRa Module 868MHz (862-960MHz) High Sensitivity Wireless Communication Module 1W High Power with SPI Interface
-
Detail
- Product Name: SX1262PA+LNA LoRa Module 868MHz (862-960MHz) High Sensitivity Wireless Communication Module 1W High Power with SPI Interface
- Item NO.: F52089-D1 F52089-D2 F52089-D3
- Weight: 2024 kg = 4462.1562 lb = 71394.4990 oz
- Volume: 1 CBM
- Category: Computer Accessories
- Creation Time: 2024-04-19
SX1262PA+LNA LoRa Module 868MHz (862-960MHz) High Sensitivity Wireless Communication Module 1W High Power with SPI Interface
Feature:
High power LoRa communication module, 8000m long range transmission,
1W high power (PA+LNA), 868 band, -139dBm high sensitivity, SPI interface.

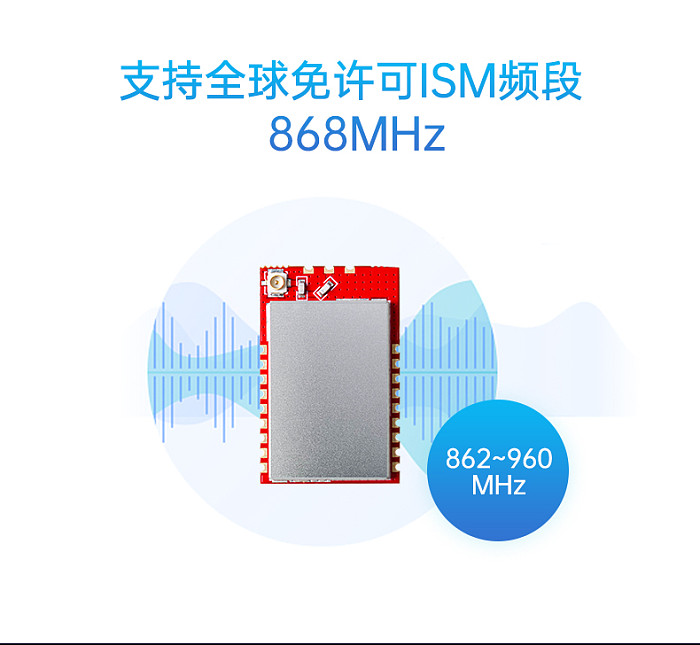

Support global licence-free ISM band 868MHz (862-960MHz).
Industrial grade 1W high power amplifier chip, internal integrated PA+LNA.
Dual antenna interface options, new products ah IO have been led out,
development is more convenient.
Dual antenna interface: the module provides external antenna interface
to release the maximum power.
PA chip: built-in PA/LNA chip.

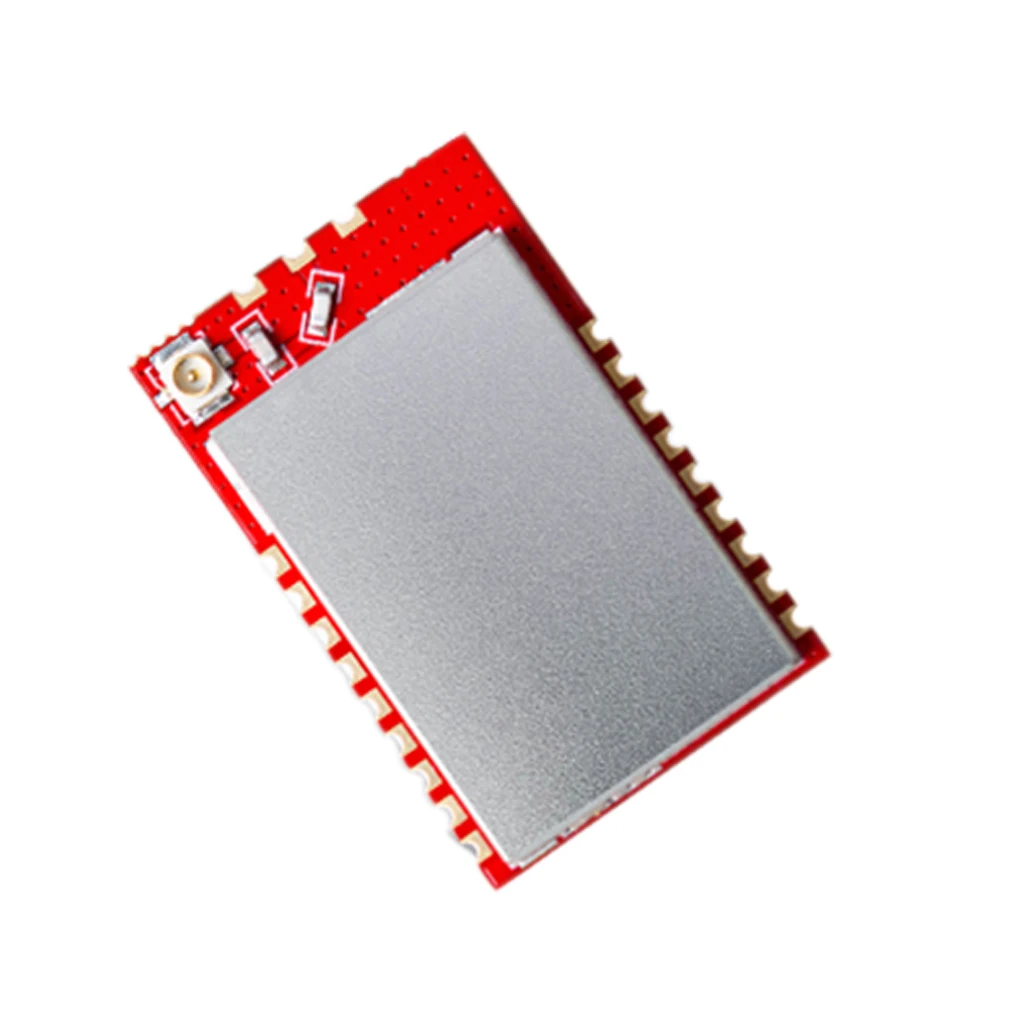

Shield cover design: the module has been added shielding cover without
fear of complex industrial environment.
LoRa modulation, stronger anti-jamming ability and longer communication distance.
LoRa series are all compatible with each other for communication.

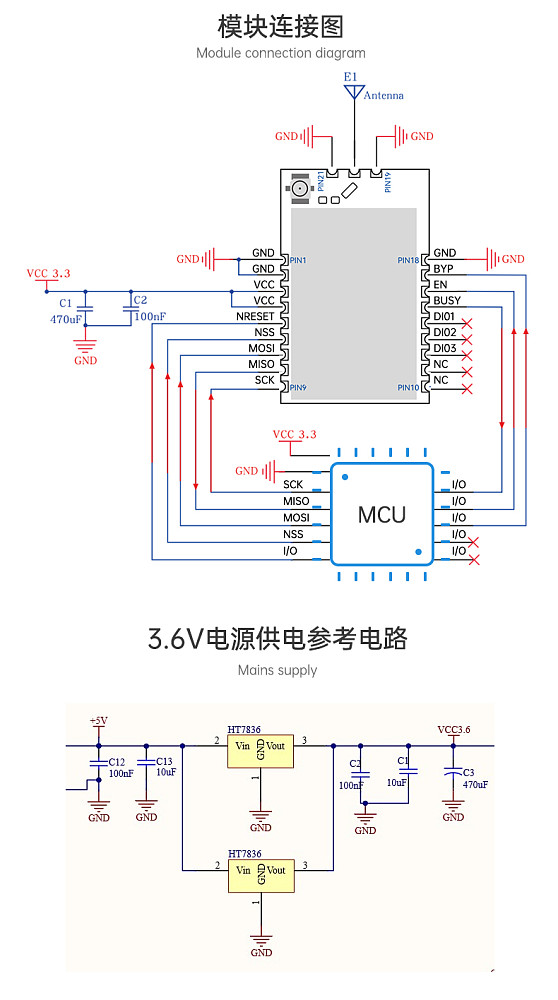

Multiple power supply options: DCDC mode - reduce power consumption,
LDO mode - improve sensitivity.
Measured communication distance up to 8000m.

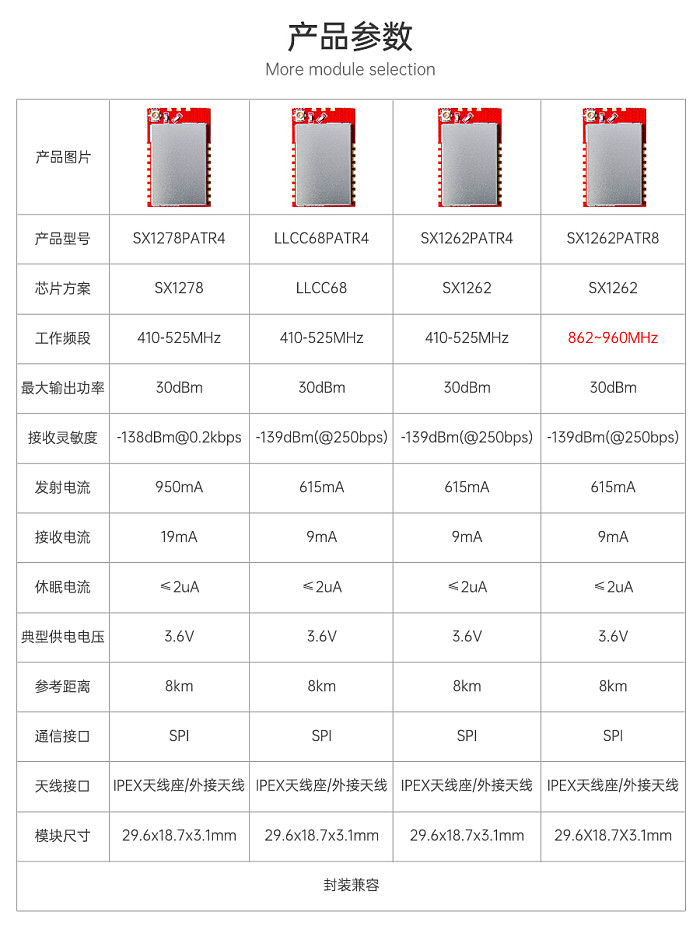

Parameters:

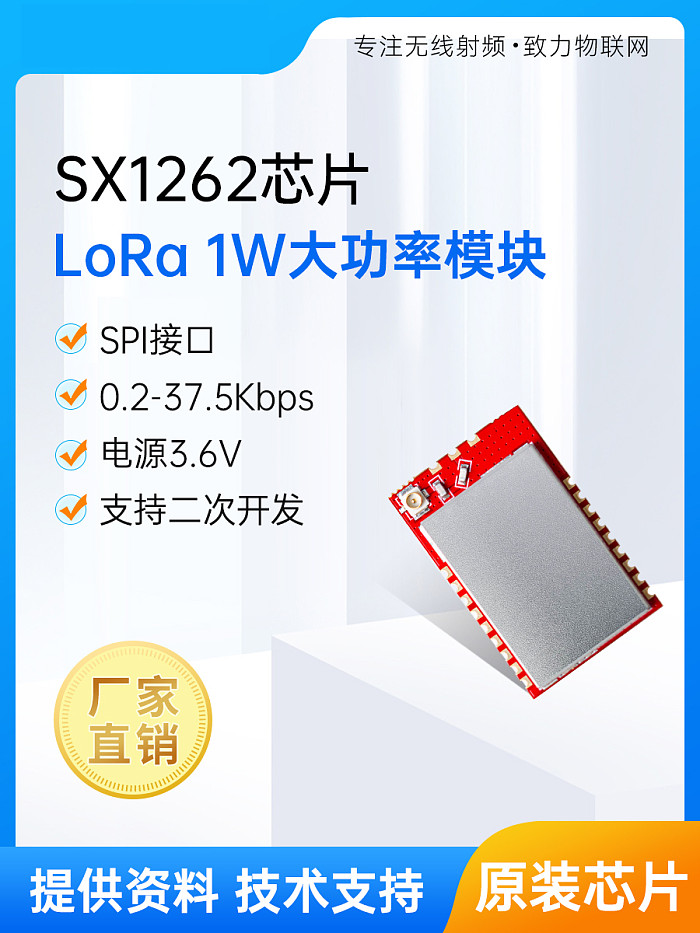

Chip programme: SX1262
Operating frequency band: 862-960MHz
Maximum output power: 30dBm
Receiving sensitivity: -139dBm (@250bps)
Transmit current: 615mA
Receiving current: 9mA
Sleep current: ≤2uA
Typical supply voltage: 3.6V
Reference distance: 8KM
Communication interface: SPI

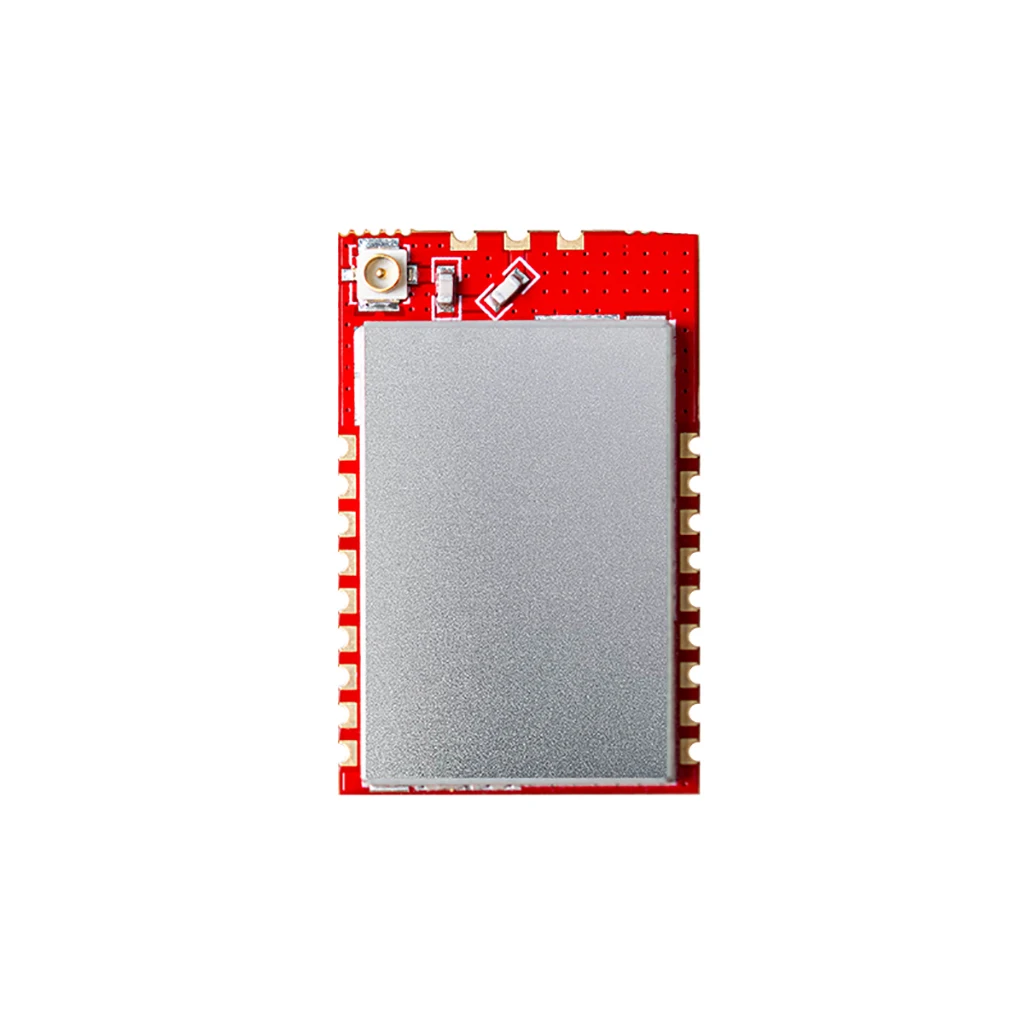

Antenna interface: IPEX antenna mount/external antenna

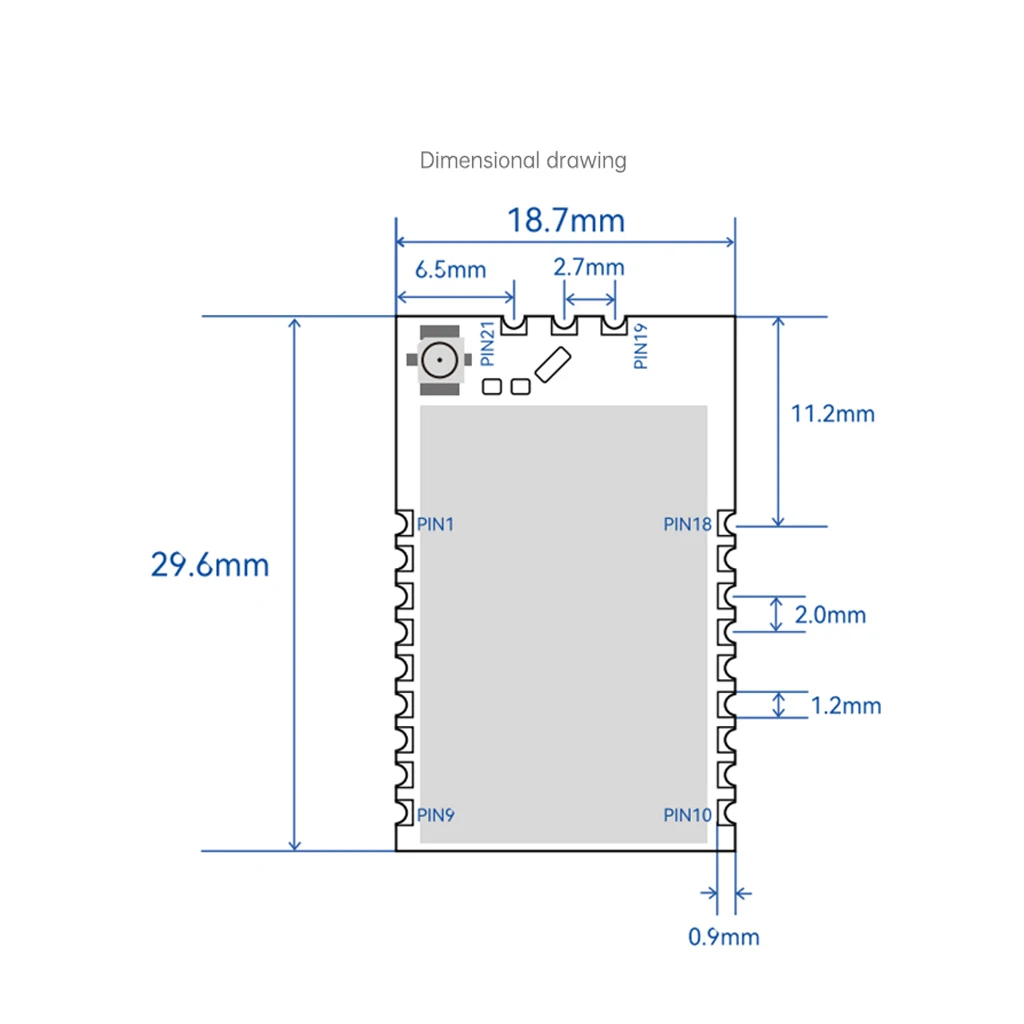

Size: 29.6*18.7*3.1mm
