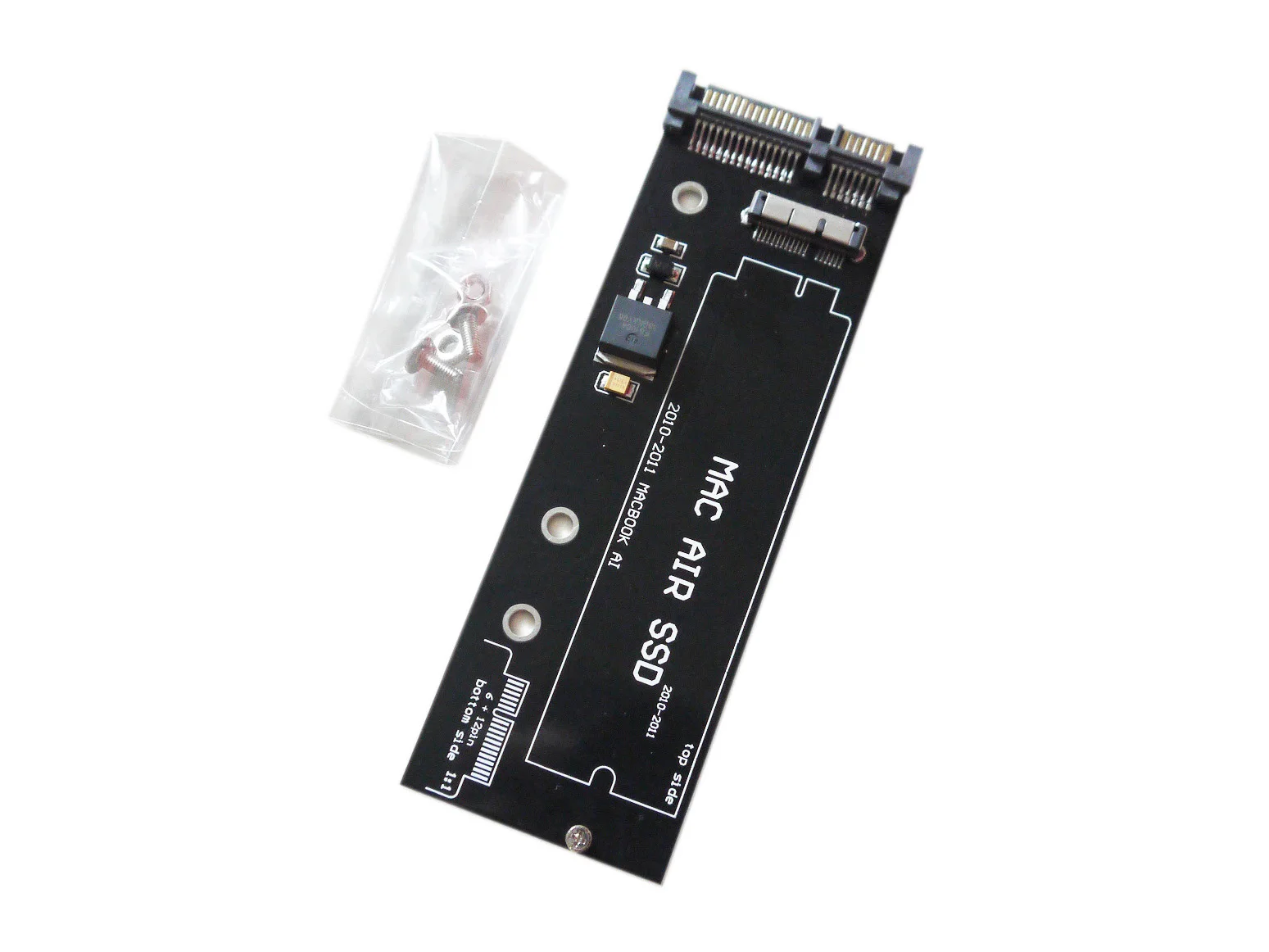

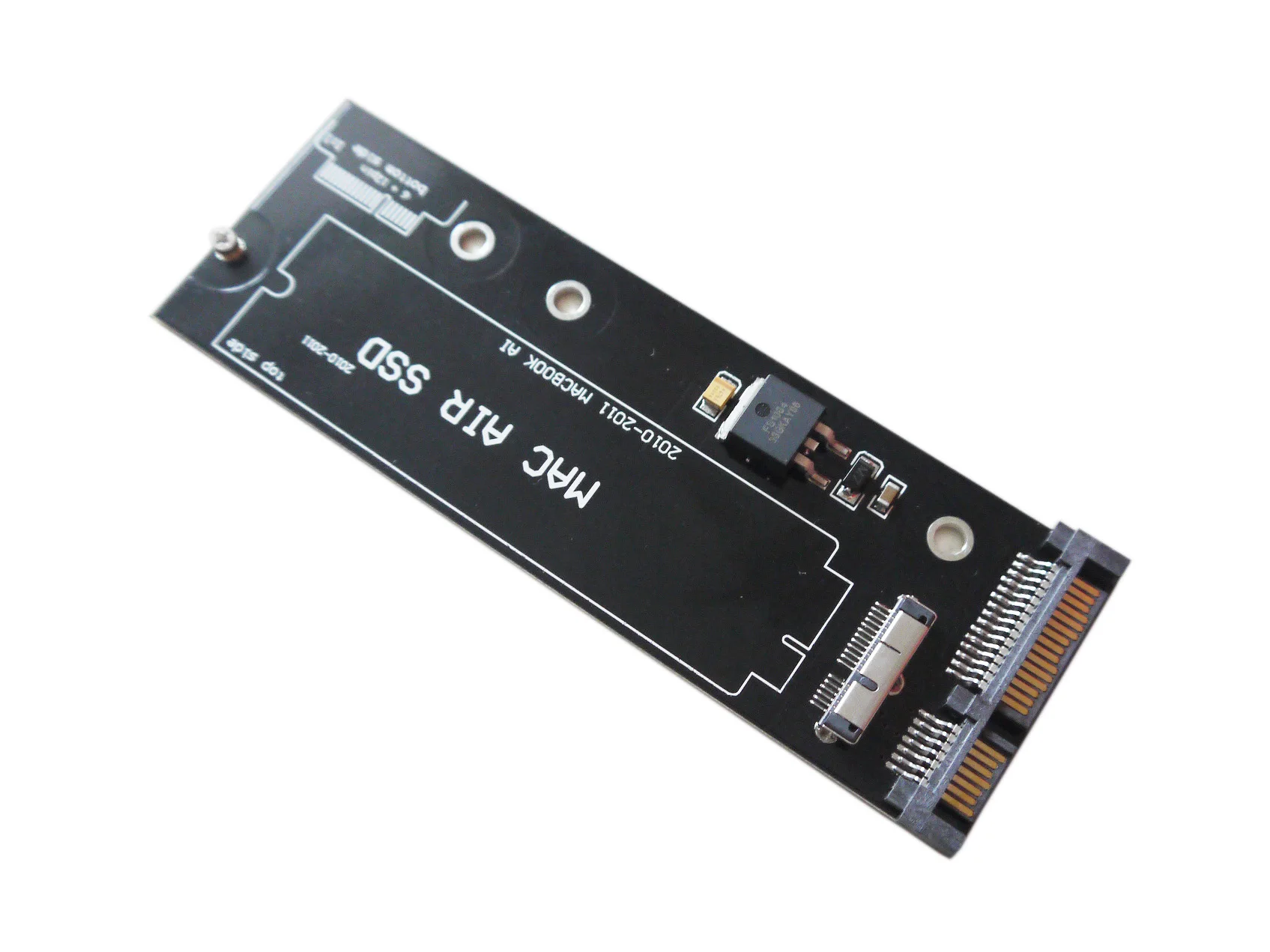

SSD to SATA3 Adapter Expansion Card Adapter SSD to SATA3 for MacbookAir 2010 2011
Description:
1.Only fits models below:
2010 AIR A1370 A1369 MC503 MC504 MC505 MC506
2011 AIR A1370 A1369 MC968 MC969 MC965 MC966
2. only for MacBook Air 2010-2011 edition of the built-in blade hard drive(if not Apple SSD blades can'tuse), the riser card with plug prevent SSD to prevent 2012 AIR SSD insert features!
3. Please confirm your air SSD Goldfinger is a 6+12 interface, or you can contact us to confirm.
4. test: each riser card will boot into system run HD Tune Pro version to viewtheir health status, also runs CrystalDisMark, its speed is normal, ensure that the interposer card without any problems!
Product features:
1. the original slot, with SSD preventing incorrect insertion, and invert function. Design a card position, reverse plug inserted into, insert can work without the alignment position .
Never because of improper operation SSD or the riser card are burned out !
2. fully consistent with regular SATA hard drive SATA power and data outlets
3. strict compliance with SATA data cable specification, as long as strict spacewith a complete formation and shielding.
4. Bottom of riser card all ground wires , without any other signal cable and power cord , transfer Kaping can be placed on your hard drive, or optical drive . ( But not connected to other source )
5. the onboard 3.3V voltage converter circuit, three-terminal regulator + tantalum capacitor filter, enough with 256G AIRSSD, compatible with any power SATA interface.
6.Onboard there is large area of copper foil on heatsink, AIR SSD work more stable.
7. equipped with SSD and SSD locking screws fixed screw nut.
8. install the mounting hole spacing meets the chassis, easily installed in the optical drive or hard disk location.
Packing List:
1*MAC AIR SSD card
1* locking SSD M3 screws, nuts, spring washers
1* installation screw set.
