SPF5189 RF Signal Receiver Low Noise Wideband Radio Frequency LNA 50-4000MHz NF=0.6dB/5-6000MHz 20dB Gain RF Amplifier Module

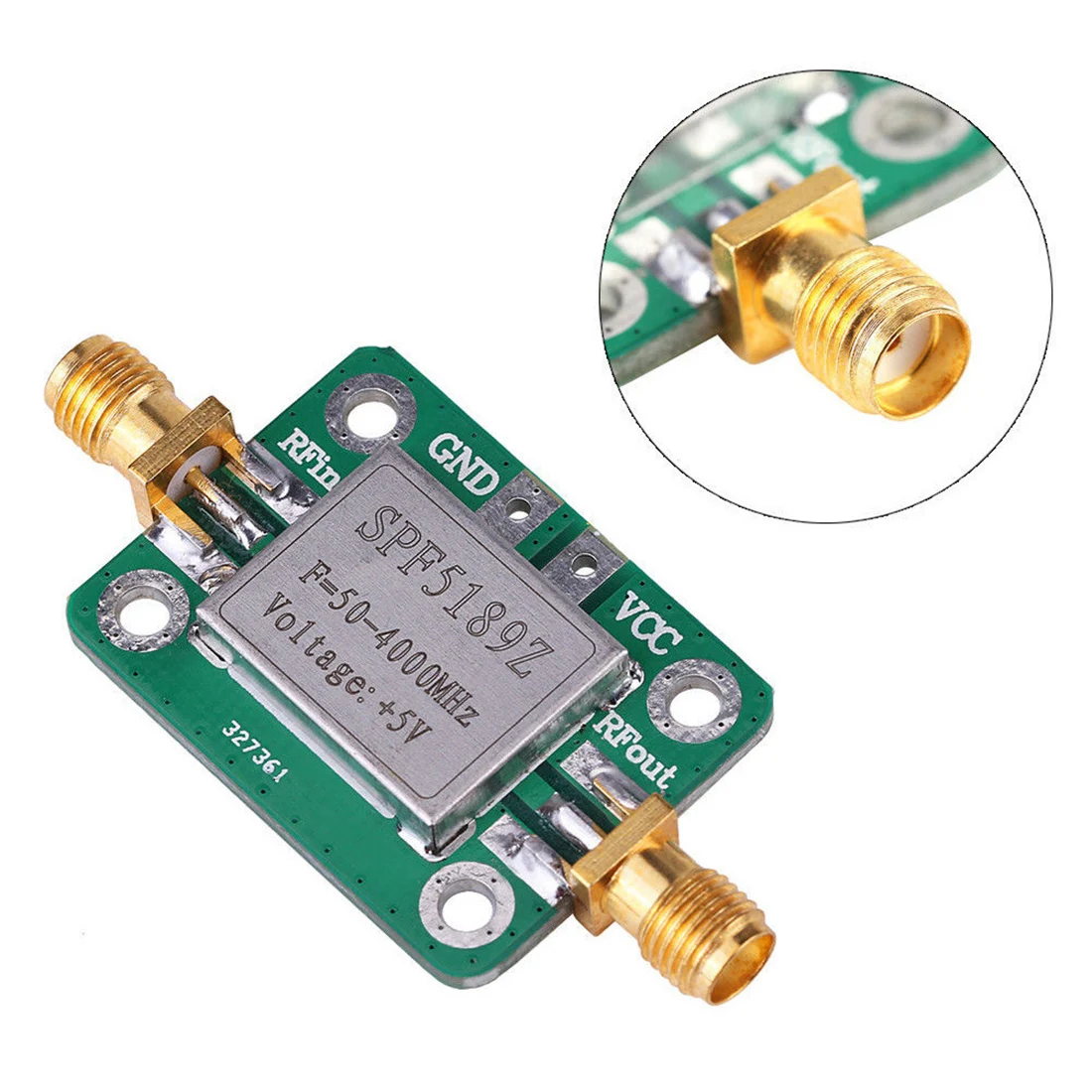

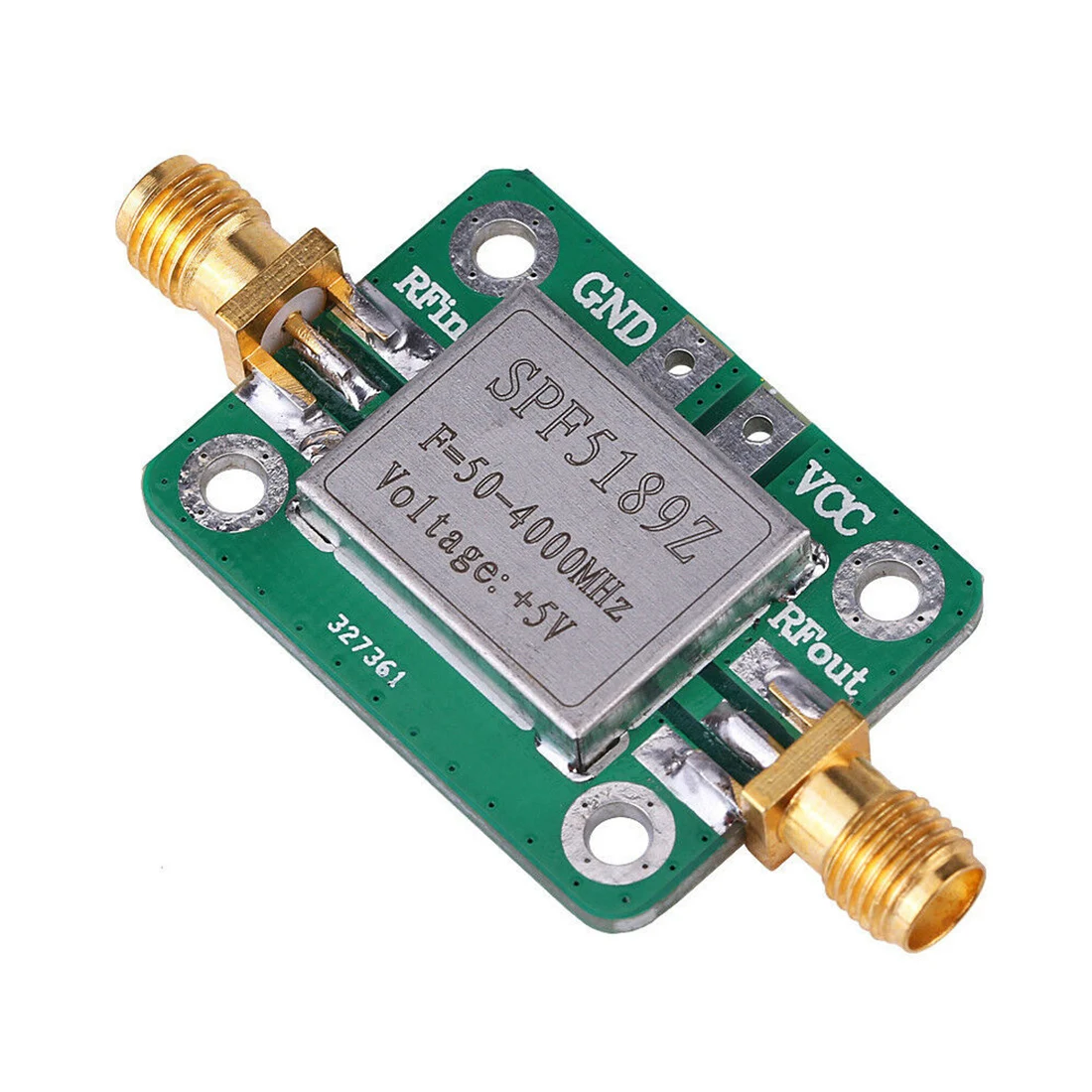

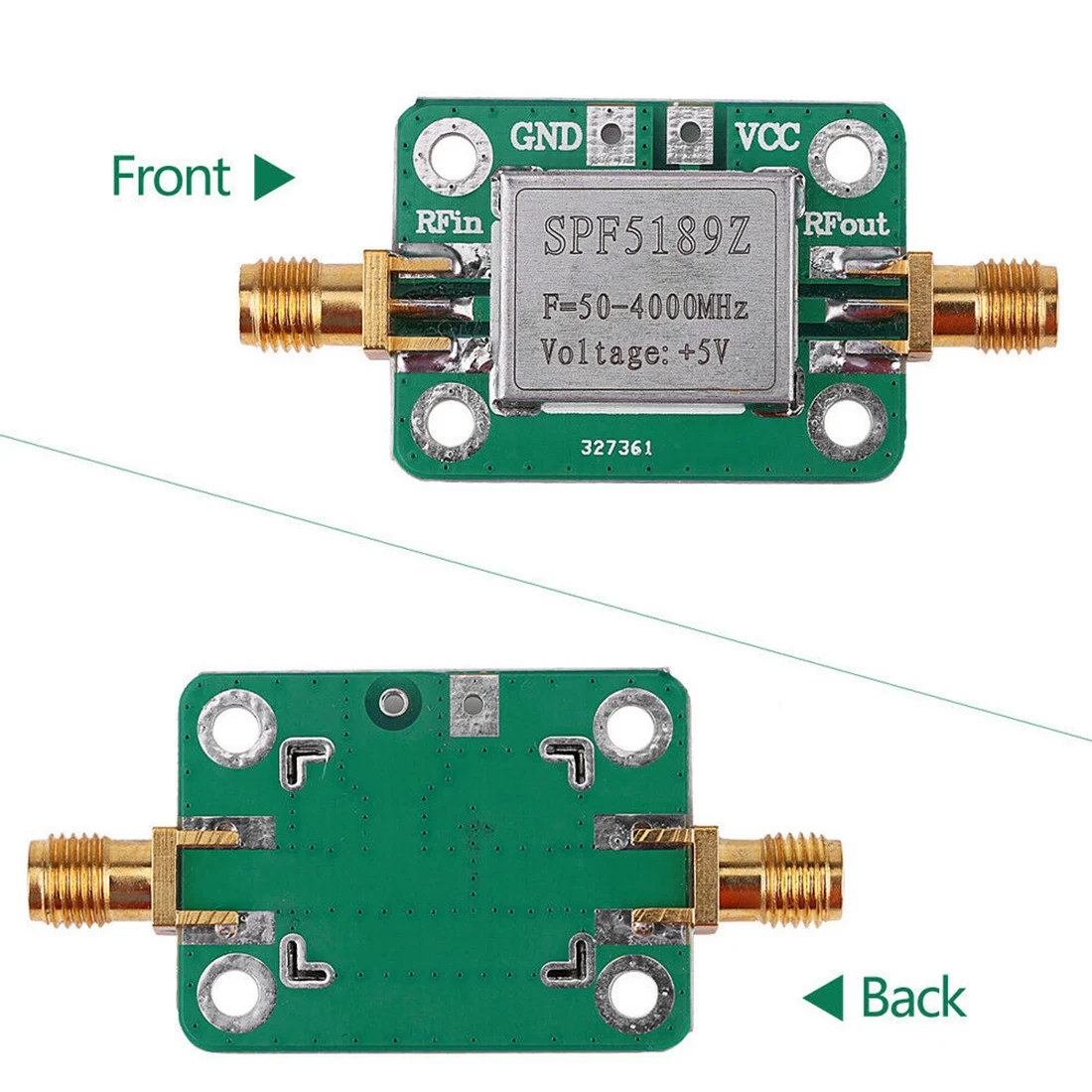

4000MHZ:

Features.

This RF amplifier has a low noise figure feature and is an LNA RF amplifier.

It is commonly used as a high-frequency or mid-frequency preamplifier for various radio receivers, and as an amplifier circuit for high-sensitivity electronic detection equipment.

In the case of amplifying weak signals, the amplifier itself can be very noisy, so it is desired to reduce this noise to improve the signal-to-noise ratio of the output.

Applications: The LNA is primarily designed for mobile communication base station infrastructure applications such as wireless communication transceiver cards, tower top amplifiers (TMAs), combiners, repeaters and remote/digital wireless broadband terminal equipment applications.

This RF low noise amplifier LNA is 50-4000MHz with NF = 0.6dB.



Product Specifications.

LNA: 50-4000mhz

NF：SPF5189Z

LNA0: 0.6 dB

Amplifier: FM

Size: 34 x 25mm / 1.33 x1.0inch

Weight: 10g

6000MHZ:

Features.

This is a 5-6000MHz RF signal power amplifier with a gain of 20dB.

It has a large dynamic range and a wide operating frequency range.

The supply voltage is 5VDC and the operating current is 85mA.

The maximum output power is + 21dBm (100mW) @ 1dB compression point.

It is suitable for all types of fixed gain amplification of RF signals.



Product Specifications.

Operating frequency: 5 - 6000MHz

Amplifier gain: 20dB

Max. Output power: + 21dBm (100mW) @ 1dB compression point

Operating current: 85mA (5V)

Supply voltage: 5VDC

System impedance: 50 ohms

Color: Green

Size: 23 28MM

Material: electronic components



Package includes

1 RF power amplifier
