SD to SATA 2.5" Riser Board Industrial Mobile SSD Embedded Storage Adapter Card Support 128GB for PC Laptop

Note: SD card is not included.

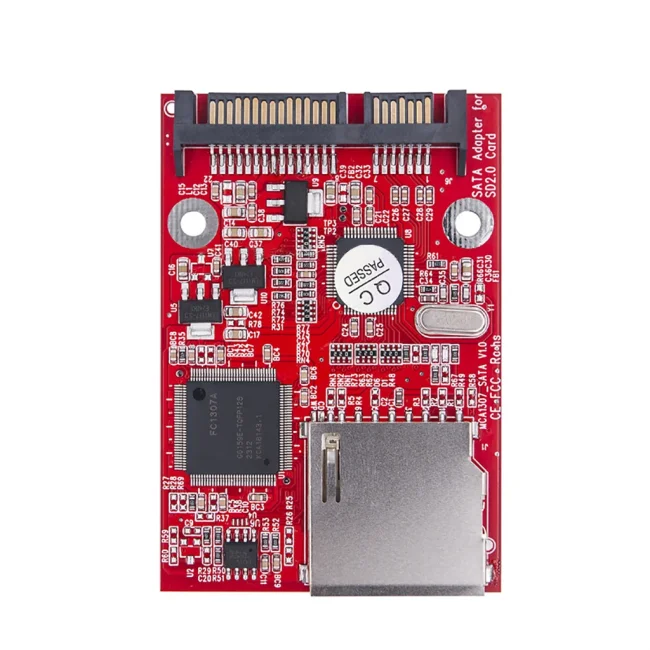

SD to SATA 2.5 inch industrial mobile SSD embedded storage adapter card
Main features: SD card has a small size, large capacity, shock and moisture resistance,

high temperature resistance, stable performance, permanent and effective data preservation,

no noise, no seek error characteristics. It is the popular mainstream product memory card.

This adapter card to achieve SD card converted to SATA 15PIN + 7PIN interface SSD.
Application areas: industrial computer motherboards, industrial controllers, tablet PCs,

instrumentation, soft routing, POS, DVR commonly used in embedded

industrial PCs to store embedded LINUX, WINCE and other operating systems and applications, data.
Main performance:
① FC1307A + JM20330 dual chip programme.
② Compatible with DOS, WINCE, WIN98/XP/VISTA/NT, WIN7/8/10 and LINUX operating systems.
③ Equivalent to the industrial use of flexible insertion and removal of SSD,

SD as a mobile hard drive to achieve flexible data storage.
④ HDD can be used as system boot disk or data disk after adapter.
⑤ SD supports high-speed card.
⑤ SD supports high-speed cards. ⑥ SD supports up to 128GB as measured so far.
⑦ Support SATA GEN1, GEN2, the maximum data transfer rate of 150MB / s, 300MB / s respectively.
⑧ Edge opening model: support edge opening. In the user's device chassis slot squarely

on the SD card slot opening, you can achieve SD removable storage.
⑨ with the BIOS, the operating system together can support SATA, SD hot plug and play,

plug and play, do not need any driver can be used. sd card to do hot plug

and play to pay attention to the BIOS, the operating system and the application program to operate with a good.

Do not hot swap when reading or writing data to avoid data loss.

Cold plugging and unplugging is generally recommended for mobile data storage.

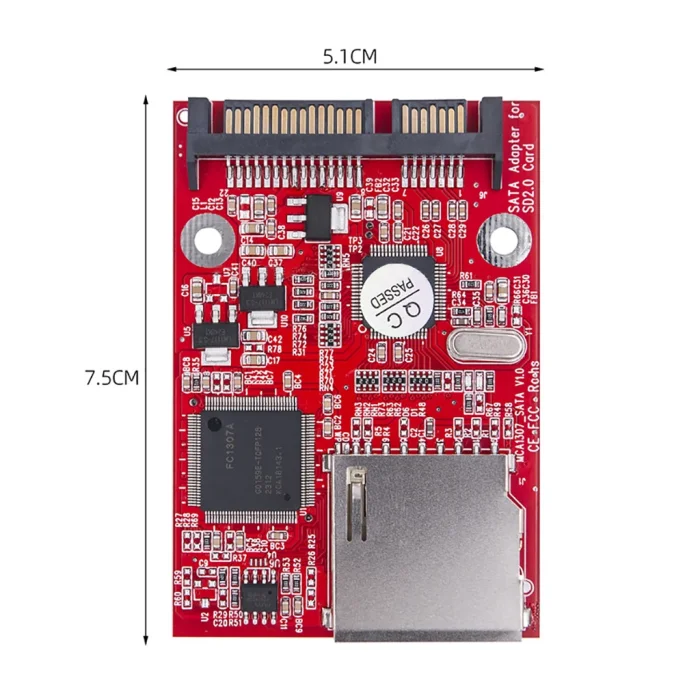

⑩Size: smaller than 2.5" hard drive size. Can be used in notebook.
Precautions:
① Before using this product, please insert the SD card into the corresponding SD socket,

and then connect the SATA power supply and SATA data cable to the SATA host device.

After powering on the device, the LED light blinks, indicating that the SD card data is read normally.
② After the first time use and SD card configuration change,

you need to initialise the SD card operation and format it.

After the formatting is completed, you can perform any data operation on the SD card.
