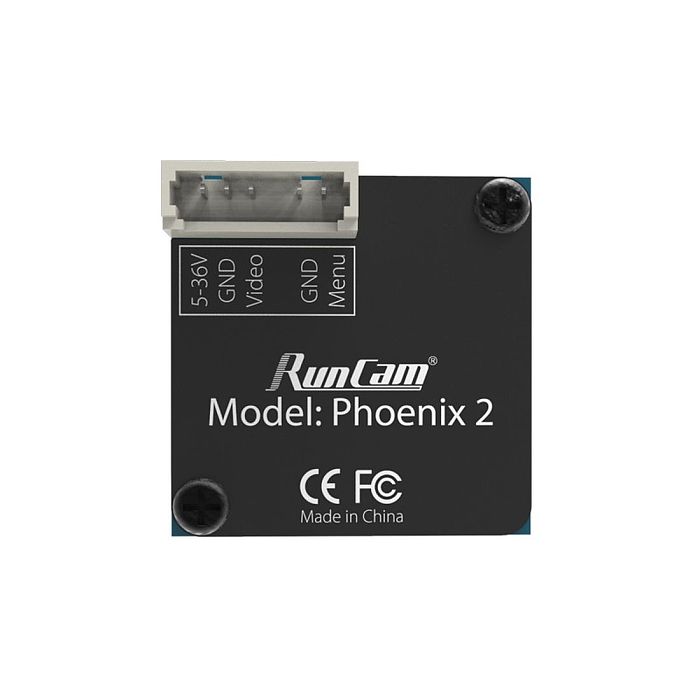

Runcam Phoenix 2 micro nano Joshua Edition 1000tvl 2.1mm Freestyle FPV Camera 16:9/4:3 PAL/NTSC Switchable Micro For FPV Drone

Name: Runcam Phoenix 2 micro nano Joshua Edition 1000tvl 2.1mm Freestyle FPV Camera 16:9/4:3 PAL/NTSC Switchable Micro For FPV Drone
Brand: RunCam
SKU: F39142
Price: 32.48 USD
Availability: InStock
Rating: 1 (1 reviews)

US$ 32.48

Add to Cart

Estimate Shipping Cost

Detail

Product Name: Runcam Phoenix 2 micro nano Joshua Edition 1000tvl 2.1mm Freestyle FPV Camera 16:9/4:3 PAL/NTSC Switchable Micro For FPV Drone
Item NO.: F39142
Weight: 0.05 kg = 0.1102 lb = 1.7637 oz
Category: DIY RC Drone Accessories > Camera
Brand: RunCam
Creation Time: 2020-06-15

Runcam Phoenix 2 micro nano Joshua Edition 1000tvl 2.1mm Freestyle FPV Camera 16:9/4:3 PAL/NTSC Switchable Micro For FPV Drone

Phoenix 2 Joshua Edition Parameters

Model

RunCam Phoenix 2

Image Sensor

1/2" COMS Sensor

Horizontal Resolution

1000TVL

Lens

2.1mm (M12) FOV155° (4:3)

Screen Format

4:3 / 16:9 switchable

Mirror/Flip

Available

Signal System

PAL / NTSC Switchable

S/N Ratio

>50dB (AGC OFF)

Electronic Shutter Speed

Auto

Auto Gain Control (AGC)

Auto

Min. Illumination

0.001Lux@1.2F

WDR

Global WDR

Day/Night

Color/BW/EXT/Auto

Menu Control

Cable Control

Power

DC 5-36V

Current

200mA@5V

85mA@12V

Housing Material

ABS

Net Weight

Dimensions

19mm*19mm*20mm

Dimensions

Package

1x Camera
1x ABS bracket

1x 6pin FPV silicone cable
1x Set of screws

1x Manual

Joshua Edition UART Control Version.

The top left corner of the screen will shortly display the current control mode.
The default is Joystick control mode.

RunCam Phoenix 2

Day&Night ƒ/2.0 big aperture freestyle camera.

· 1/2'' big image sensor · ƒ/2.0 big aperture · Excellent low light performance · Less digital image shimmer

Rich yet natural color.

With upgraded CPU and upgraded 1/2'' high-performance image sensor,
the RunCam Phoenix 2 produces vivid high-resolution pictures.

Excellent low light performance.

Thanks to the 1/2'' super global WDR image sensor, Phoenix 2's low light
performance is even better than the RunCam Eagle.

ƒ/2.0 big aperture lens. Less red lens flare.

The high quality 6 layers of glass lens has a ƒ/2.0 aperture which brings
less red lens flare and less purple fringing effect.

Less digital shimmer.

Compare to the RunCam Eagle, the RunCam Phoenix 2 has way
less digital shimmer and a much cleaner image.

Low latency.

This camera is on the same latency level of the RunCam Eagle
and is wonderful for freestyle flying!

All-weather ƒ / 2.0 large aperture flower fly FPV camera.

1 / 2-inch outsole image sensor | ƒ / 2.0 large aperture lens | excellent night vision performance | same level of delay as Eagle

Vivid and natural colors.

With an upgraded CPU and a half-inch (1/2 ") large-size image sensor, the Phoenix 2 Nano has gorgeous and natural high-resolution image quality.

Excellent night vision performance!

With a 1/2 ”large-size high-quality image sensor and high-quality 7 glass lens, the night vision performance of Phoenix 2 Nano is comparable to RunCam Eagle!

ƒ / 2.0 large aperture lens, less flare.

High-quality 7 glass ƒ / 2.0 large aperture lens, less flare, less purple fringe. This lens is also used in the RunCam Hybrid dual camera.

Less digital interference.

Compared with Eagle, Phoenix 2 Nano has less digital interference and a cleaner picture.

Delay at the same level as Eagle.

The delay of Micro Phoenix 2 is less than 25ms, which is at the same level as the delay of Micro Eagle. Free flight, no jamming.

Parameters (Nano Version)

Model	RunCam Phoenix 2 Nano
Image Sensor	1/2" COMS Sensor
Horizontal Resolution	1000TVL
Lens	2.1mm (M8) FOV155° (4:3)
Screen Format	4:3 / 16:9 switchable
Mirror/Flip	Available
Signal System	PAL / NTSC Switchable
S/N Ratio	>50dB (AGC OFF)
Electronic Shutter Speed	Auto
Auto Gain Control (AGC)	Auto
Min. Illumination	0.001Lux@1.2F
WDR	Global WDR
Day/Night	Color/BW/EXT/Auto
Menu Control	Cable Control
Power	DC 5-36V
Current	190mA@5V/80mA@12V
Housing Material	ABS
Net Weight	5g
Dimensions	*14mm14mm22mm*
