Riser U.2 Interface U2 to PCI-E 3.0 x4 SFF-8639 NVMe Solid State Transfer Extension Data Gen3.0 Cable 4 PCIe 4x For U.2 NVME SSD

US$ 17.97

Add to Cart

Estimate Shipping Cost

Detail

Product Name: Riser U.2 Interface U2 to PCI-E 3.0 x4 SFF-8639 NVMe Solid State Transfer Extension Data Gen3.0 Cable 4 PCIe 4x For U.2 NVME SSD
Item NO.: F29500
Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
Category: Consumer Electronics > Computer Accessories > Wire & Cable & Cord
Brand: ADT-Link
Creation Time: 2019-07-02

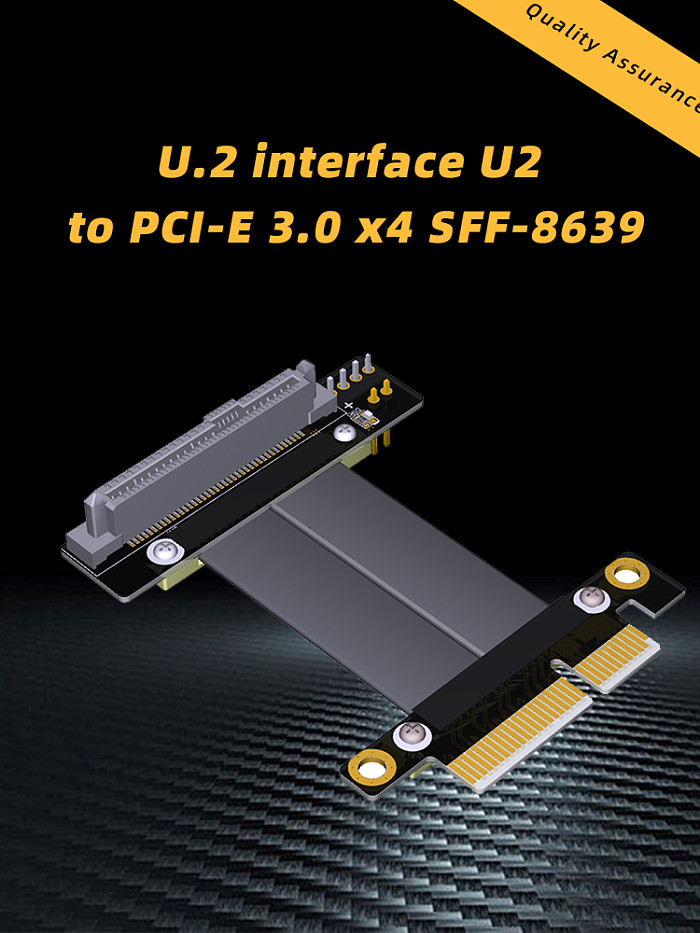

Riser U.2 Interface U2 to PCI-E 3.0 x4 SFF-8639 NVMe Solid State Transfer Extension Data Gen3.0 Cable 4 PCIe 4x For U.2 NVME SSD

Length is customizable,cable prices of different lengths are not the same,pls contact us if you need!

Product name: PCIe graphics card extension cord

Product model: R27SL

Connector 1: PCIe x4

Connector 2: SFF-8639 (U.2)

Length:30cm

Model Instructions

Description	Item	Support
SFF-8639（U.2） to PCIe x4	R27SL	U.2 NVME SSD
SFF-8639（U.2）to M.2（Key-M）	R47SL	U.2 NVME SSD

The length of the wire instructions:

Our wire length refers to the visual wire part, does not include the PCB and connector.

The following models for R27SL - 5 cm, refer to the below dimension.

HTB1P2aDbv6TBKNjSZJiq6zKVFXaT (1)

This M2 SFF-8643 adapter card can convert the M2 PCIe SSD interface of the motherboard into 36-pin SFF - 8643 interface, Use for connecting all kinds of devices with a SFF-8643 interface. It can also be connected to the high performance 2.5 "NVMe U. 2 (SFF - 8639) SSD solid-state drives Through a SFF-8643 to SFF-8639 data cable.

Product Features:

Transfer PCIe x4 SSD interface to SFF-8639 interface (R27SL)

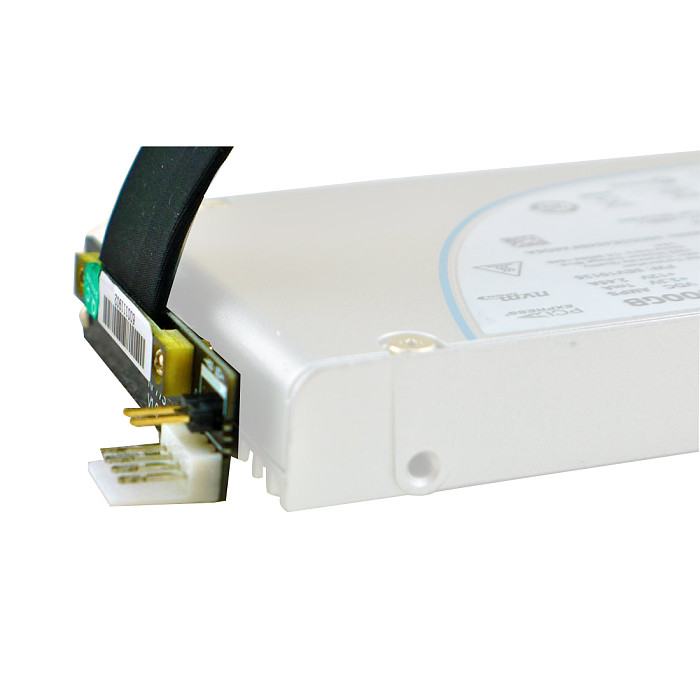

Connect the 2.5 "NVMe U.2 (SFF-8639) SSD to the motherboard PCIe x4 connector via SFF-8643 to SFF-8639 cable

Don't need a driver.

Specifications:

PCIe x4 interface

SFF-8639 U.2 connector

Operating temperature / humidity: - 40 ° C - 80 ° C / 5-95% relative humidity (non-condensing)

Storage temperature / relative humidity: - 40 ° C - 85 ° C / 0 - 90% relative humidity (non-condensing)

RoHS compliant

Product advantage:

1. Wire advantages: using the German patent imported wire, using the Lotes connectors which imported from Taiwan, high frequency support PCIe 3.0 x4 32G/bps stable transfer
3.Differential signal without hole design, there is no problem of signal attenuation interference in a parasitic capacitance and parasitic inductance, there will be no more CAF micro short circuit, cable is durability.
4.PCB use high frequency low resistance of materials with high quality, PCB using high TG board, copper thickness thicken to 1oz, gold finger plating enough gold, Good conductive performance, can reduce oxidize higher impedance caused by the crash blue screen.
