Home>DIY RC Drone Accessories>Motor>Radiolink AT10 2.4G 10CH Intelligent RC Transmitter with RX support S.BUS/PPM/PWM for all RC Model Multi-Copter Build in Battery

Radiolink AT10 2.4G 10CH Intelligent RC Transmitter with RX support S.BUS/PPM/PWM for all RC Model Multi-Copter Build in Battery Item NO.: F07627-A

US$ 112.86 ~ US$ 125.40

Quantity	0-3	4-50	51-100
Discount	0% OFF	5% OFF	10% OFF
Price	US$ 125.40	US$ 119.13	US$ 112.86

Quantity: Stock ( 9999999 )

Estimate Shipping Cost

Product Name	Radiolink AT10 2.4G 10CH Intelligent RC Transmitter with RX support S.BUS/PPM/PWM for all RC Model Multi-Copter Build in Battery
Item NO.	F07627-A
Weight	1.4146 kg = 3.1187 lb = 49.8985 oz
Category	DIY RC Drone Accessories > Motor
Brand	RadioLink
Creation Time	2017-08-15

Features:

1. Receiver support S.BUS / PPM / PWM, compatible with all types of flight control;

2. Support various types of helicopters, airplanes, multi-axis aircraft, car models, ship models, robots, tanks;

3. Ground control distance is up to 1.1 km, the air distance can be 4 km, the ground about 1km;

4. All-metal high-strength hook, strong solid / durable / reliable load-bearing, to ensure that the flight process of remote control security and stability;

5. Length adjustment buckle, according to the actual situation, can quickly adjust the length of lanyard;

6. Built-in 2200mah 3s 11.1v battery, with four different plugs, compatible with different brands of remote control.

Multiple function remote control system,including helicopter,airplane and slider three type flying machine and five models,cover almost every popular model,you can fly any model by this radio.

3.5 inch colorful screen 320×480 resolution,clear display menu and graphs.

Great control distance: 1.1km on the ground,2km in the sky.

Expansion feedback module,users can get plane details in real time.

Make very setting clear and exactly output result.

Fast response time only 3ms to the operation,faster then the other transmitter 20ms,even ten channels also let you feel it.

High channel resolution reaches 4096,0.25us per resolution let all the servos keep tranquil.

Strong anti-jumping,DSSS(Direct sequence spread spectrum) technology.

Unbelievable price, high quality as supper bland, and more exactly, faster response, higher resolution,one and the only one anti-jumping DSSS technology.really worthy to have it.

All Categories

Radiolink AT10 2.4G 10CH Intelligent RC Transmitter with RX support S.BUS/PPM/PWM for all RC Model Multi-Copter Build in Battery Item NO.: F07627-A

Features:

1. Receiver support S.BUS / PPM / PWM, compatible with all types of flight control;

2. Support various types of helicopters, airplanes, multi-axis aircraft, car models, ship models, robots, tanks;

3. Ground control distance is up to 1.1 km, the air distance can be 4 km, the ground about 1km;

4. All-metal high-strength hook, strong solid / durable / reliable load-bearing, to ensure that the flight process of remote control security and stability;

5. Length adjustment buckle, according to the actual situation, can quickly adjust the length of lanyard;

6. Built-in 2200mah 3s 11.1v battery, with four different plugs, compatible with different brands of remote control.

Multiple function remote control system,including helicopter,airplane and slider three type flying machine and five models,cover almost every popular model,you can fly any model by this radio.

3.5 inch colorful screen 320×480 resolution,clear display menu and graphs.

Great control distance: 1.1km on the ground,2km in the sky.

Expansion feedback module,users can get plane details in real time.

Make very setting clear and exactly output result.

Fast response time only 3ms to the operation,faster then the other transmitter 20ms,even ten channels also let you feel it.

High channel resolution reaches 4096,0.25us per resolution let all the servos keep tranquil.

Strong anti-jumping,DSSS(Direct sequence spread spectrum) technology.

Unbelievable price, high quality as supper bland, and more exactly, faster response, higher resolution,one and the only one anti-jumping DSSS technology.really worthy to have it.

Technical Parameter:

1.Frequency: 2.4GHz ISM band (2400MHz~2485MHz);

2.Modulation mode: QSPK;

3.Channel bandwidth: 5.0MHz;

4.Spread spectrum: DSSS;

5.Adjacent channel rejection: >38dBM;

6.Transmitter power: <100mW(PCB testing);<20dBm(3 meter air testing);

7.Operating Voltage: 8.6~15V;

8.Operating Current: <95mA;

9.Control distance: 800 meters ground;

10.Channel: 10 Channel,8~10 channel are customizable;

11.Compatible model: Include all 120 degree and 90 degree swashplate helicopter,all fix wing and glider,five flying model;

12.Simulator model: under the simulator

Specifications:

Package size: 33 * 26 * 12cm / 13 * 10.2 * 4.7in

Package weight: 1276g / 2.8lb

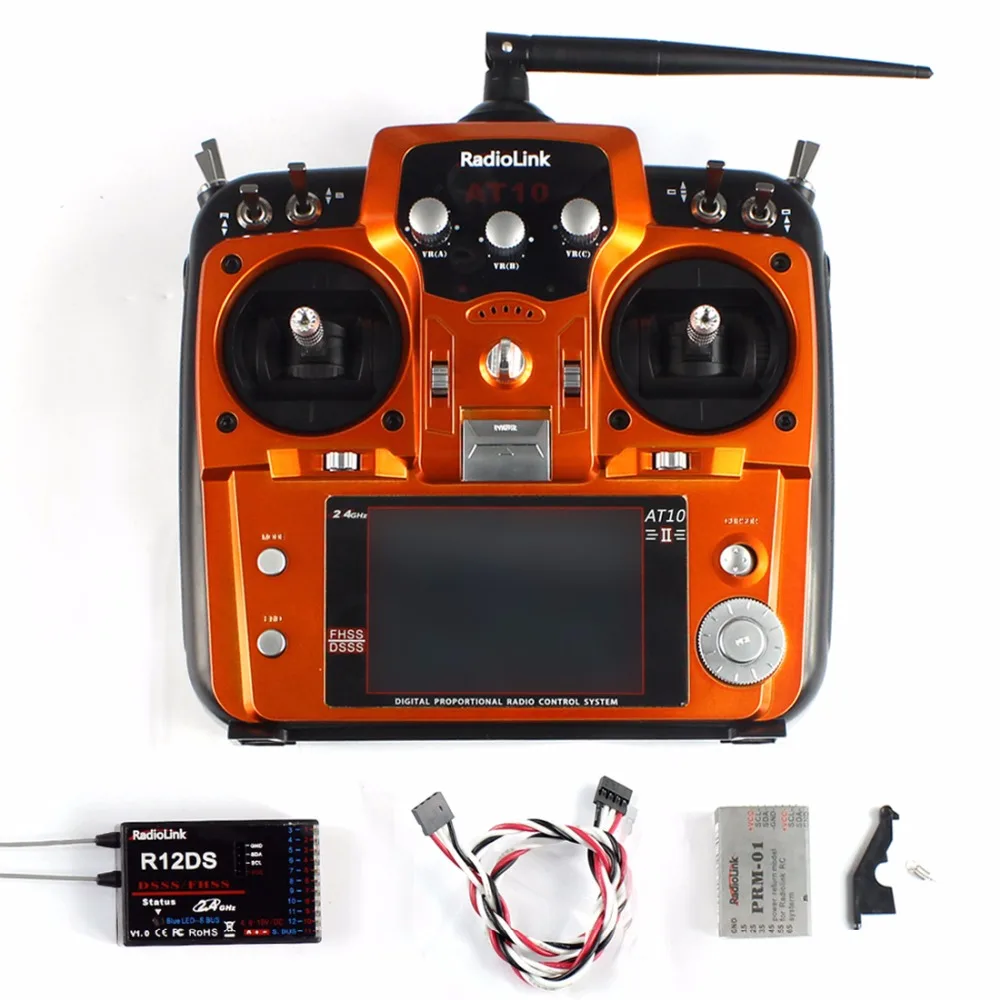

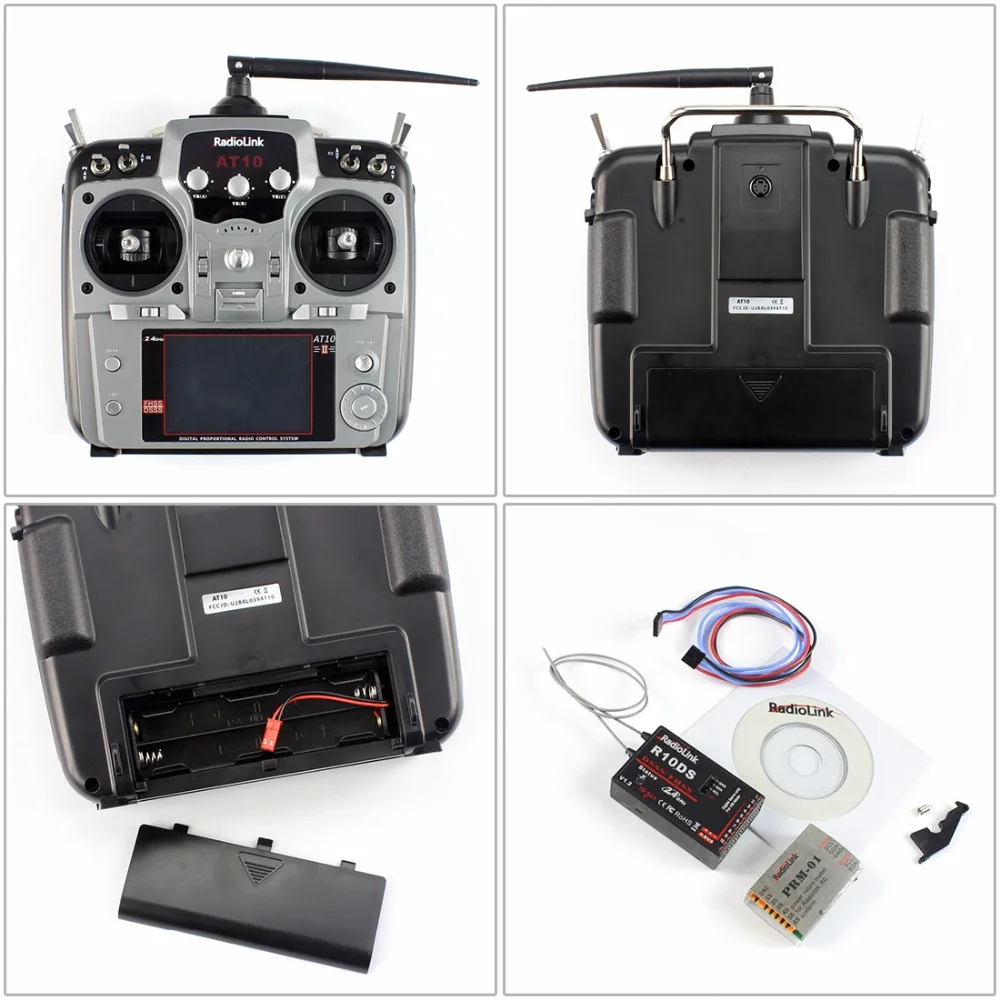

Package list:

1 * RadioLink AT10II 10CH Transimitter (Mode 2)

1 * R10DII 10Ch Receiver

1 * PRM-01 Voltage Return Module

1 * 4Pin Connector

1 * English Manual(remote)

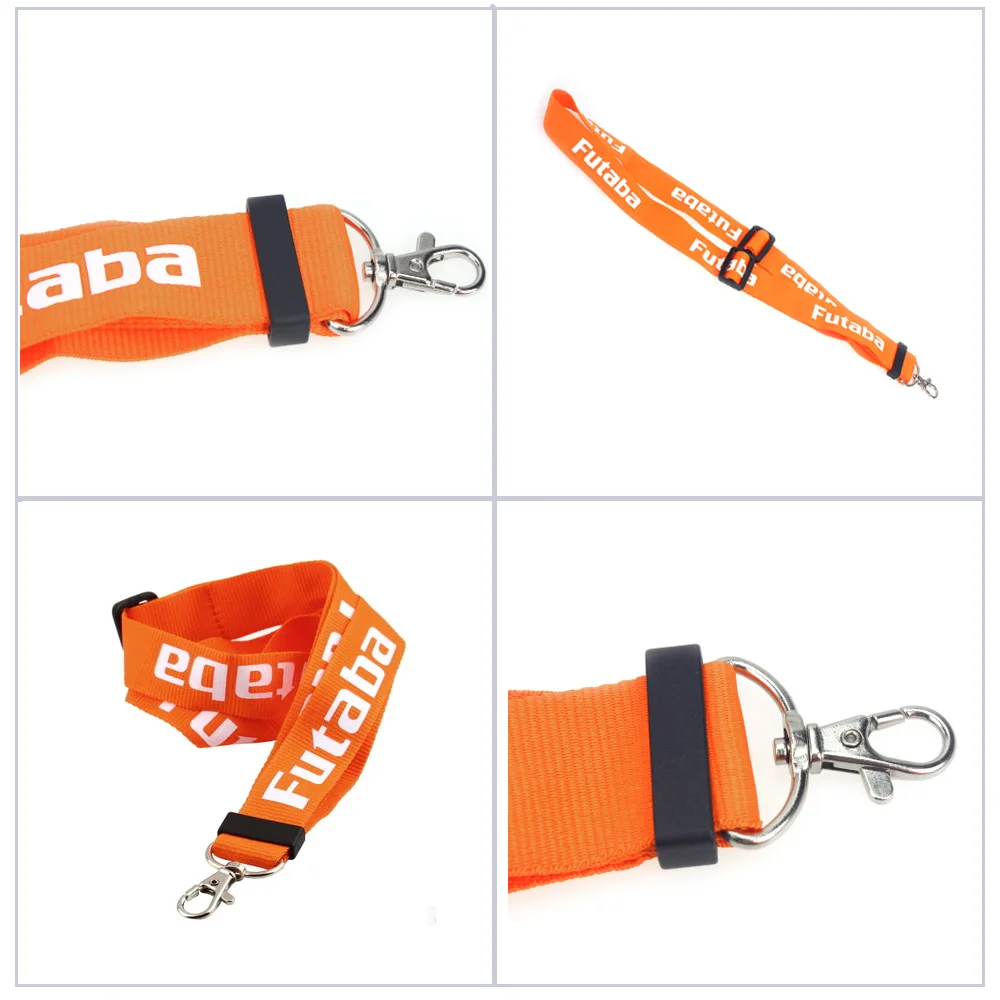

1 * Neck strap

1 * 2200mah 3s 11.1v battery
