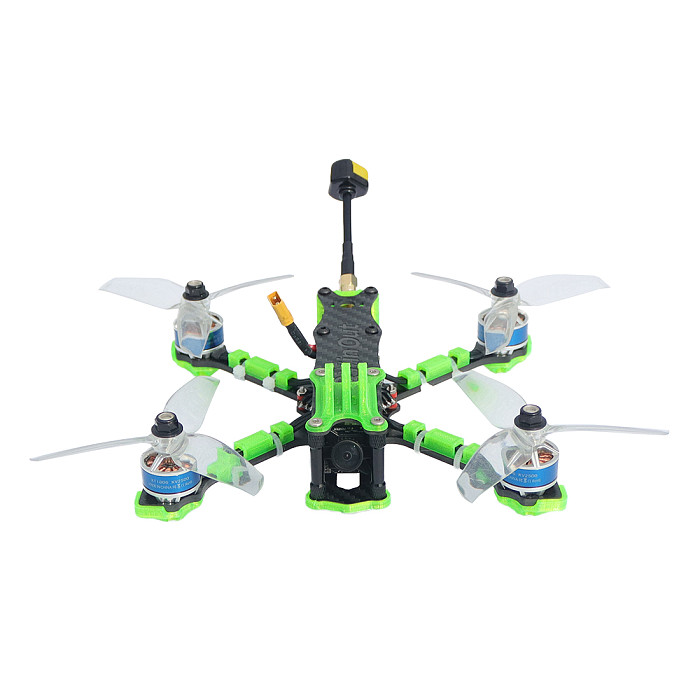

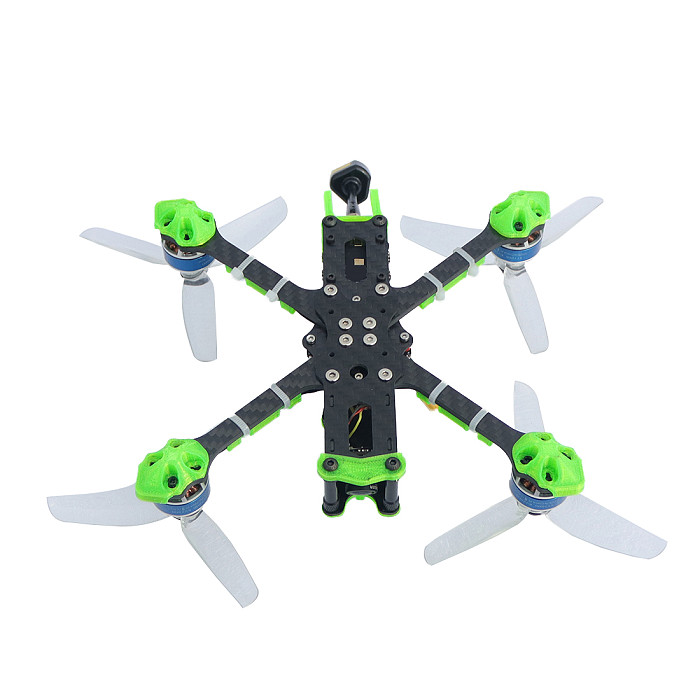

QWinOut Xy-4 175mm Quadcopter 3-4s FPV Camera Drone with Integrated 35A Flight Control 2500KV Motor 4 Inch Propeller RC Aircraft

QWinOut Xy-4 175mm Quadcopter 3-4s FPV Camera Drone with Integrated 35A Flight Control 2500KV Motor 4 Inch Propeller RC Aircraft Item NO.: F46124-B/C/D/E/F/G

Write a Review
US$ 139.23
US$ 163.80 Save US$ 24.57 (15% Off)
model

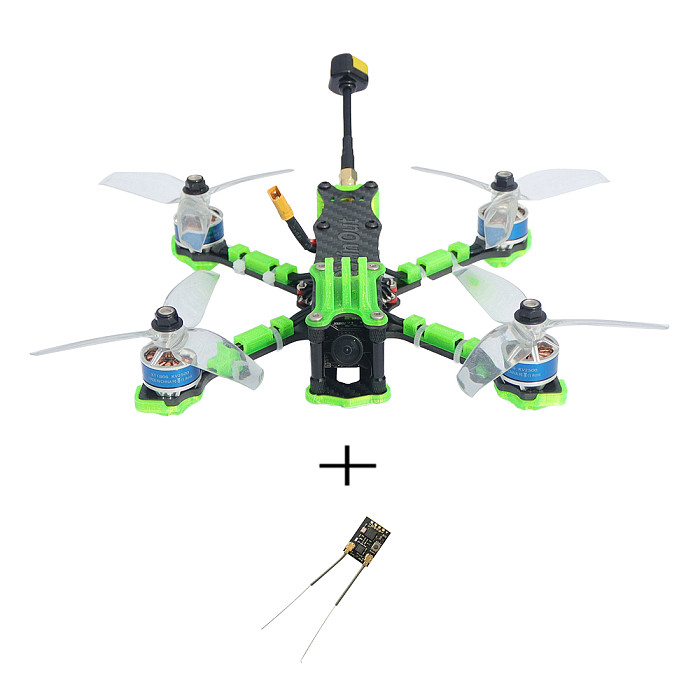

PNP No Receiver w FLYSKY Receiver w FRSKY-D16 RX w DSMX/2 RX FLYSKY TX RTF T-pro TX RTF
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name QWinOut Xy-4 175mm Quadcopter 3-4s FPV Camera Drone with Integrated 35A Flight Control 2500KV Motor 4 Inch Propeller RC Aircraft
Item NO. F46124-B/C/D/E/F/G
Weight 0.405 kg = 0.8929 lb = 14.2860 oz
Category DIY RC Drone Accessories > DIY RC Drone Kit
Brand QWINOUT
Creation Time 2022-02-15

Features:
Wheelbase 175mm
Built-in OSD Betaflight
Support BLHeliSuit configuration
Support voltage 3-4S
Image transmission distance is about 1000 meters
Remote control distance: FLYSKY remote control about 300 meters, T-pro remote control about 2000 meters
Battery life is about 7 minutes

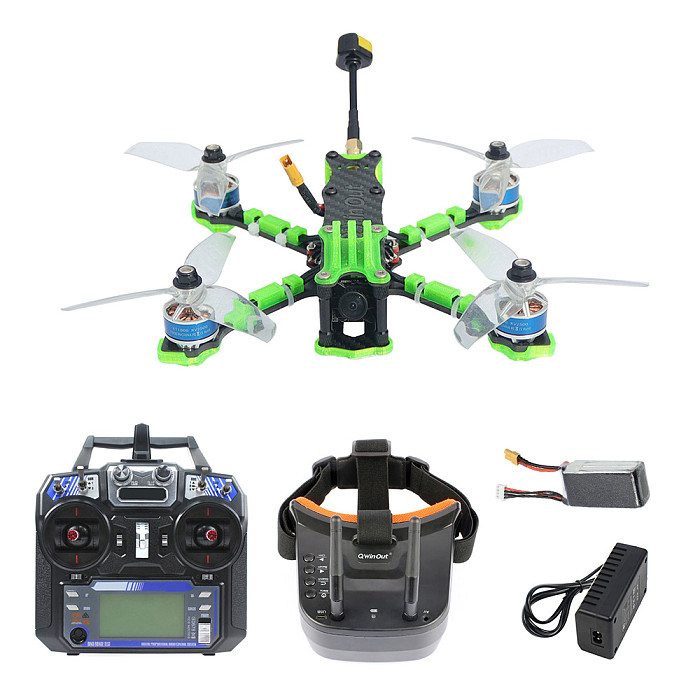

T-Pro JP4-in-1 Multi-protocol Remote Controller Model 2 (Optional)
Flysky FS I6 Transmitter Model 2 with receiver (Optional)
Battery: 3S 750mah battery (optional, only include in RTF version)
FPV Goggles (optional, only include in RTF version)


Paddle
Product name: 4032
Size: 4*3.2 inch 3 blades
Pitch: 3.2 inches
Hub size: 5mm
Weight: 3.09g
Material: PC
Center Thickness: 6.5mm
Diameter: 102.2mm
Maximum blade width: 14.25mm

Integrated 35A 4in1 ESC F4 OSD flight controller
Size: 32.5x32.5mm
Mounting hole: 25.5 x25.5mm
Weight: 7.3g
CPU: STM32F411CEU6 (100MHz)
Microprocessor: MPU6000 (SPI)
Firmware: Betaflight JHEF411
BEC output (two): 9V / 2A, 5V2.5A
Receiver; Sbus, ibus, dsm2, dsmx, TBS (uart2)
Black box: 8mb
Built-in current sensor
Input voltage: 2-6S Lipo
ESC current: 35A
Firmware: BLHELI_S GH-30.hex

image transmission
Input voltage: 6-36V
Standard 40 channels, including A/B/E/F/R group, R group is the competition frequency group
Output power 0mw (PIT mode)/25mw/100mw/200mw/400mw/600mw
RF connector to MMCX
Video input format: NTSC/PAL
Video input impedance: 75 Ohm
VTX power consumption: Max 3.5W @600mw
Support IRC serial port protocol settings VTX shop
Built-in i42db high sensitivity microphone
Connector: MMCX
Installation method: 20x20mm
Weight: 8 grams with MMCX antenna


Motor
Specification: 1806
KV: 2500
Shaft diameter: 5mm
Motor weight: 21.2g
Support voltage: 2-4s

Camera
Lens: 1.8mm
Aspect ratio: 4:3
Resolution: 1200TVL
Input voltage: DC4.5V-25V
Weight: 4.5g
Installation size: 19mm
