PCIe 5.0 X16 GEN5 64GB/s Bi-Directional Bandwidth Graphics Card Extension Cable for ITX Case Silver-Plated GPU Extension Cable Item NO.: F54136-B1，F54136-B2，F54136-B4，F54137-B1，F54137-B2，F54137-B3，F54

US$ 38.23

Version: Double Reverse 18.5CM Double Reverse 19CM 90 Degree 15CM 90 Degree 20CM 90 Degree 25CM 180 Degree 15CM 180 Degree 20CM 180 Degree 25CM 270 Degree Reverse 15CM 270 Degree Reverse 20CM 270 Degree Reverse 26CM 270 Degree Reverse 32CM 180 Degree Silver 180 Degree 10CM 16AB5-R19.5CM

Quantity: Stock ( 149999985 )

Estimate Shipping Cost

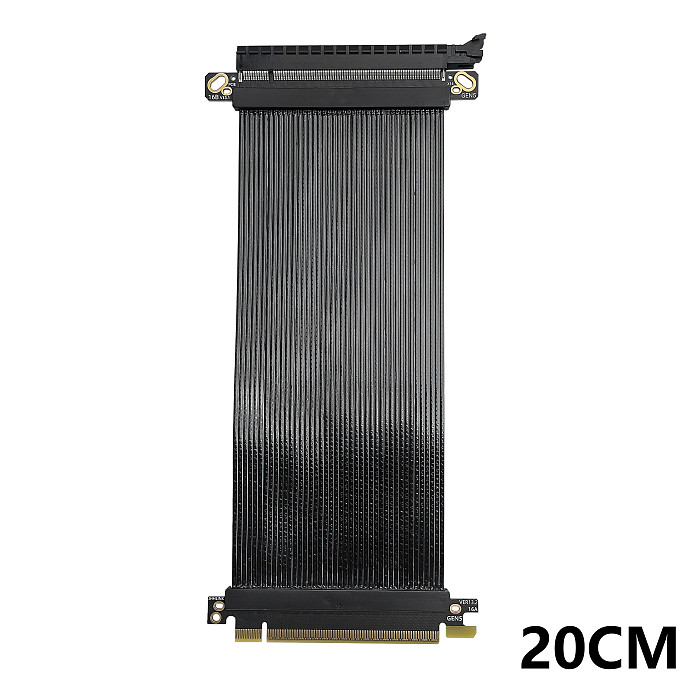

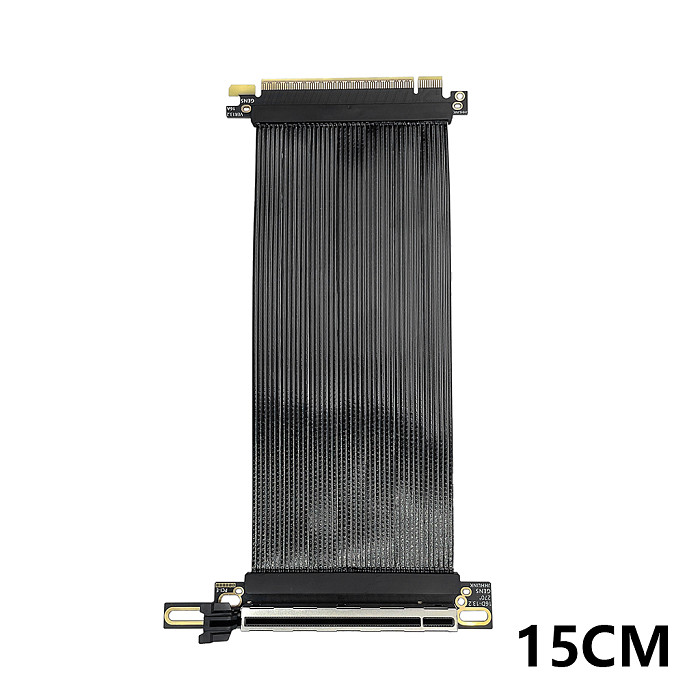

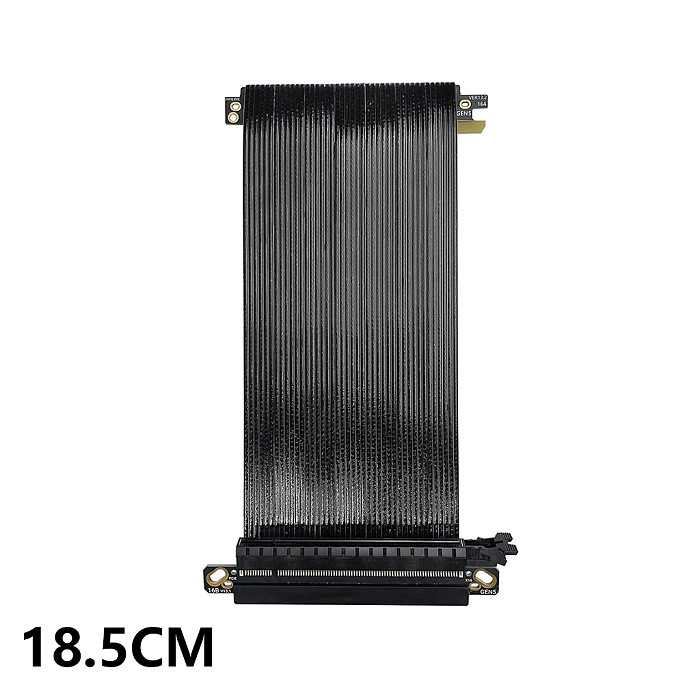

PCIe 5.0 X16 GEN5 64GB/s Bi-Directional Bandwidth Graphics Card Extension Cable for ITX Case Silver-Plated GPU Extension Cable

Product Name	PCIe 5.0 X16 GEN5 64GB/s Bi-Directional Bandwidth Graphics Card Extension Cable for ITX Case Silver-Plated GPU Extension Cable
Item NO.	F54136-B1，F54136-B2，F54136-B4，F54137-B1，F54137-B2，F54137-B3，F54
Weight	0.09 kg = 0.1984 lb = 3.1747 oz
Category	Computer Accessories
Brand	XT-XINTE
Creation Time	2025-04-03

PCIe 5.0 X16 GEN5 64GB/s Bi-Directional Bandwidth Graphics Card Extension Cable for ITX Case Silver-Plated GPU Extension Cable

Product Description:

PCIe 5.0 X16 GEN5 with a bidirectional bandwidth of 64GB/s. Ultra-thin flat cable with a dual-reverse design.
6-layer high-frequency, low-impedance, and low-dielectric PCB, with special optimization technology.
PCIe 5.0 gold-plated connector with a tail buckle.
- Dual-reverse graphics card extension cable --- Suitable for back-to-back installation of graphics cards in ITX small cases, etc.
- 180-degree parallel graphics card extension cable --- Suitable for extending the use of graphics cards in computer hosts and server hosts. Also suitable for changing the position of GPU cards or other PCIe cards when modifying a computer.
- 90-degree right-angle graphics card extension cable --- Suitable for vertical installation of graphics cards in ATX desktop cases, external graphics card setups, etc.
- 270-degree reverse right-angle graphics card extension cable---For the 217e case, a 15cm extension cable is suitable for the forward installation of the graphics card, a 32cm extension cable is suitable for the reverse installation of the graphics card in the 217e case, and a 26cm extension cable is suitable for the NZXT H1 case, etc.
Adopts GEN5 silver-plated cables, Teflon insulation layer, aluminum foil Mylar shielding, and a dual-ground structure. The thickness of the flat cable is only 0.9mm.
Supports PCIe 5.0 data transmission, and is compatible with connections to GPU graphics cards, solid-state drives, expansion cards, etc. It is backward compatible with PCIe 4.0 and PCIe 3.0.
Fully machine-welded, cured with UV glue, protected by integrated injection molding. It goes through 8 inspection processes and is shipped after passing the on-machine inspection.
