PCI-E 4.0 4x4 to M.2 4-Bays Expansion Card with M.2 to PCIe X16 Adapter Cable for M.2 NVMe 2242 2260 2280 SSD Gen 4 Adapter Card Item NO.: F47987 F47987-A F47987-B

PCI-E 4.0 4x4 to M.2 4-Bays Expansion Card with M.2 to PCIe X16 Adapter Cable for M.2 NVMe 2242 2260 2280 SSD Gen 4 Adapter Card

Note:

1.Before purchase, pls make sure your motherboard supports setting the PCIe working mode to X4X4X4X4.

Otherwise the SSD won't be recognized.

2. This item does not boot the system.

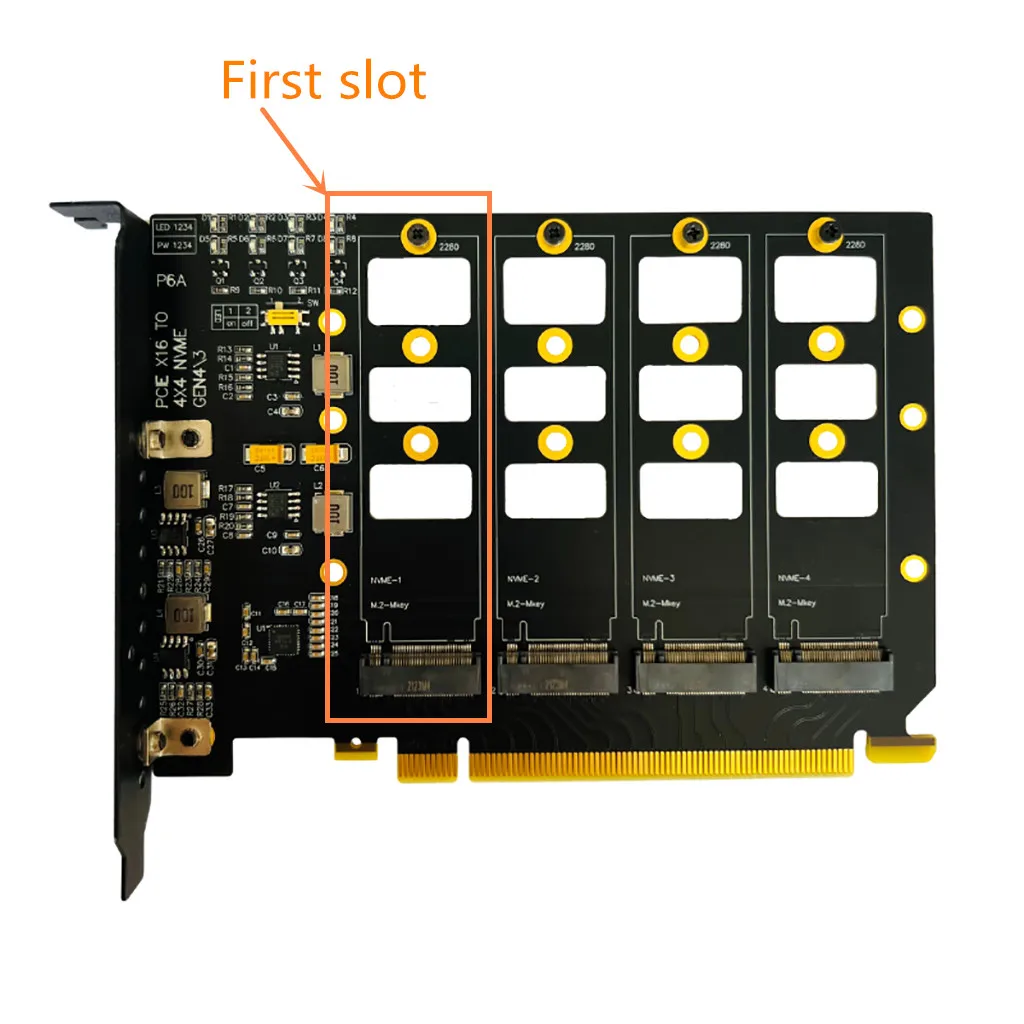

3. This first SSD slot is the basic location, which must be used. If you use only one SSD, you must insert it in the first slot.

Feature:

1, PCIE X16 full bandwidth 4.0, GEN4 protocol, compatible with gen3\gen4.

2. Conditions of use: The PCIE slot corresponding to the motherboard supports BIOS settings, and the PCIE working mode is set to X4X4X4X4.

3. Support 4-bay PCIE3.0\PCIE4.0 nvme solid state drive.

4, Support with M. 2 to PCIE adapter cable, which can be converted into 4 graphics cards.

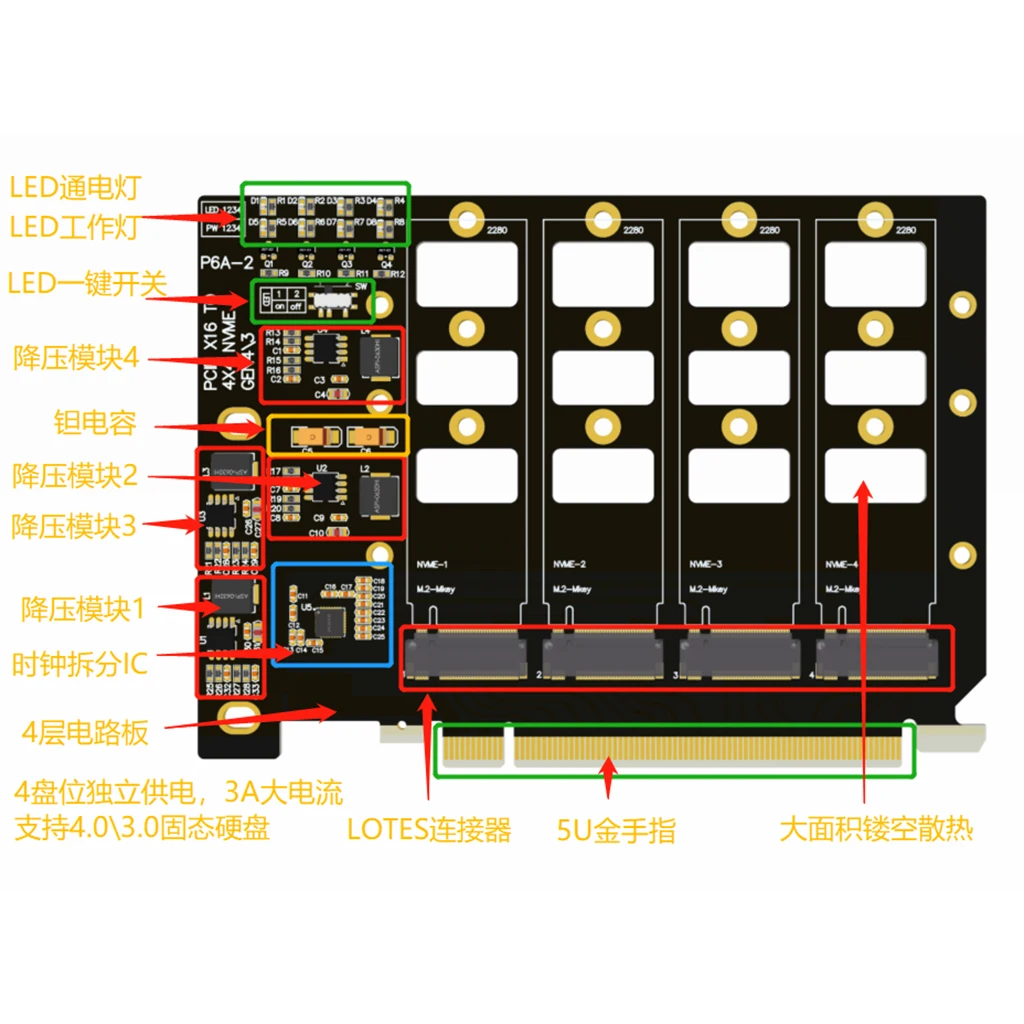

5, Gold finger immersion gold process, increase the gold thickness to 5U.

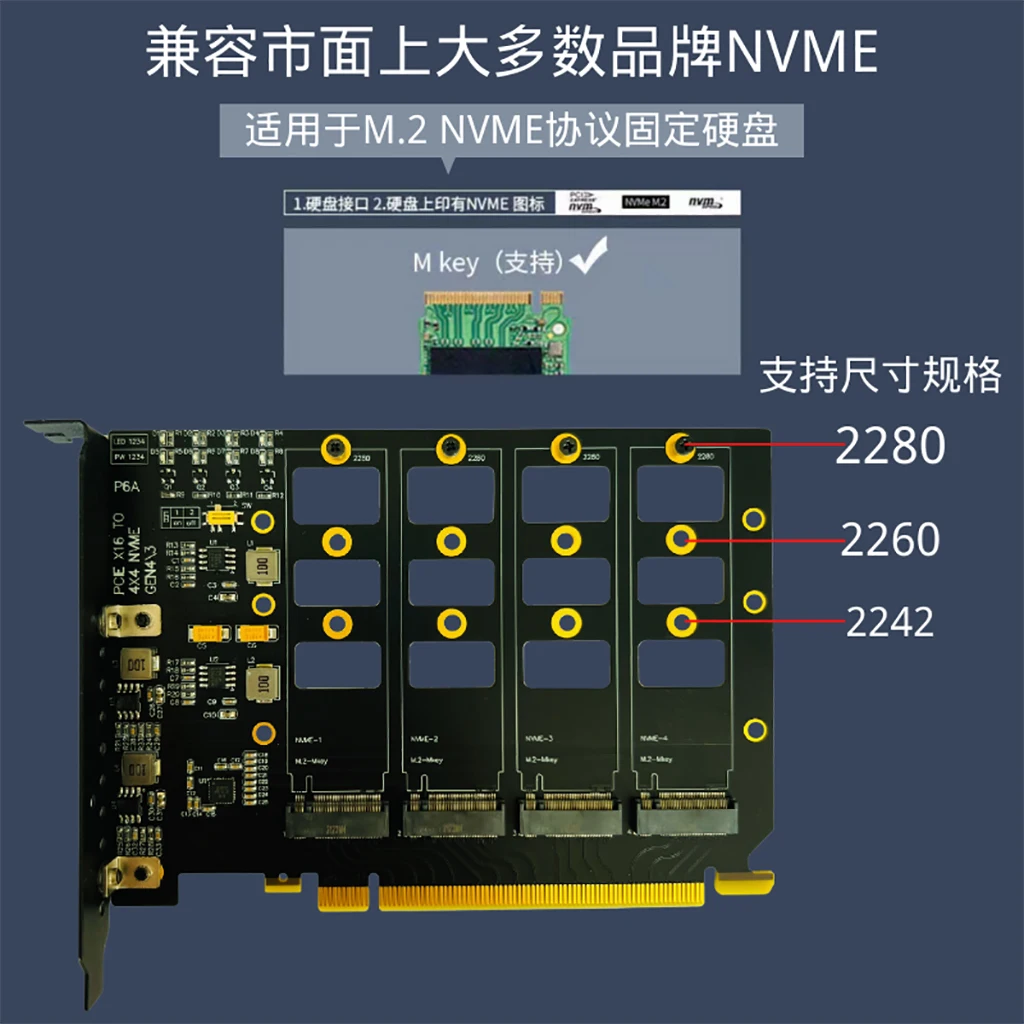

6, 4xlotes M. 2 slots, large area hollow for heat dissipation.

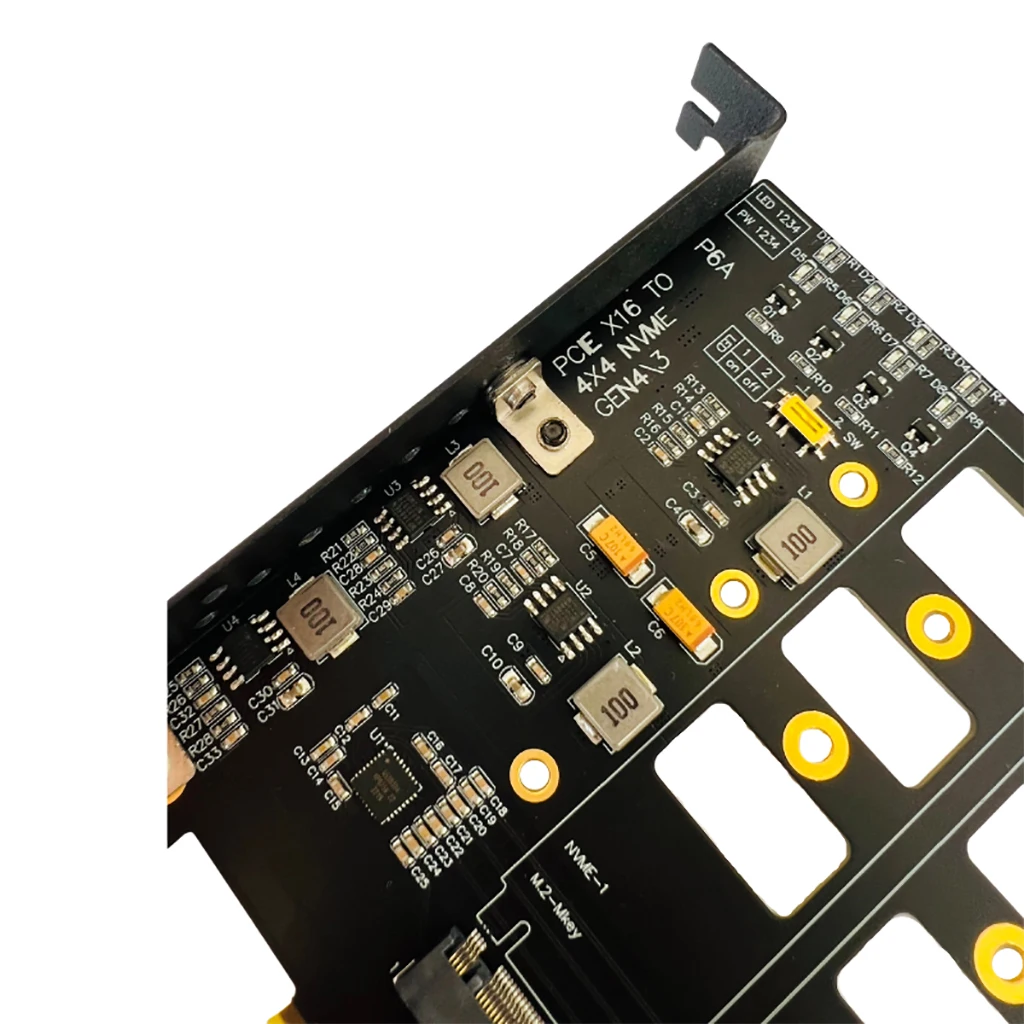

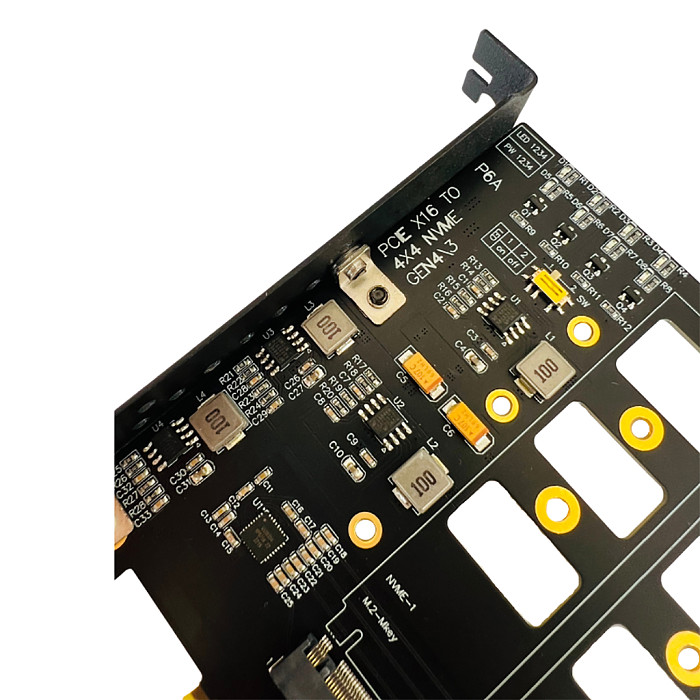

7, 2x decompression regulator IC, using high-current inductors and adding solid capacitors.

8, CLK clock split IC, 1 point 4 channels.

9. Each disk has an independent LED power-on indicator and work indicator, and a key switch LED setting.

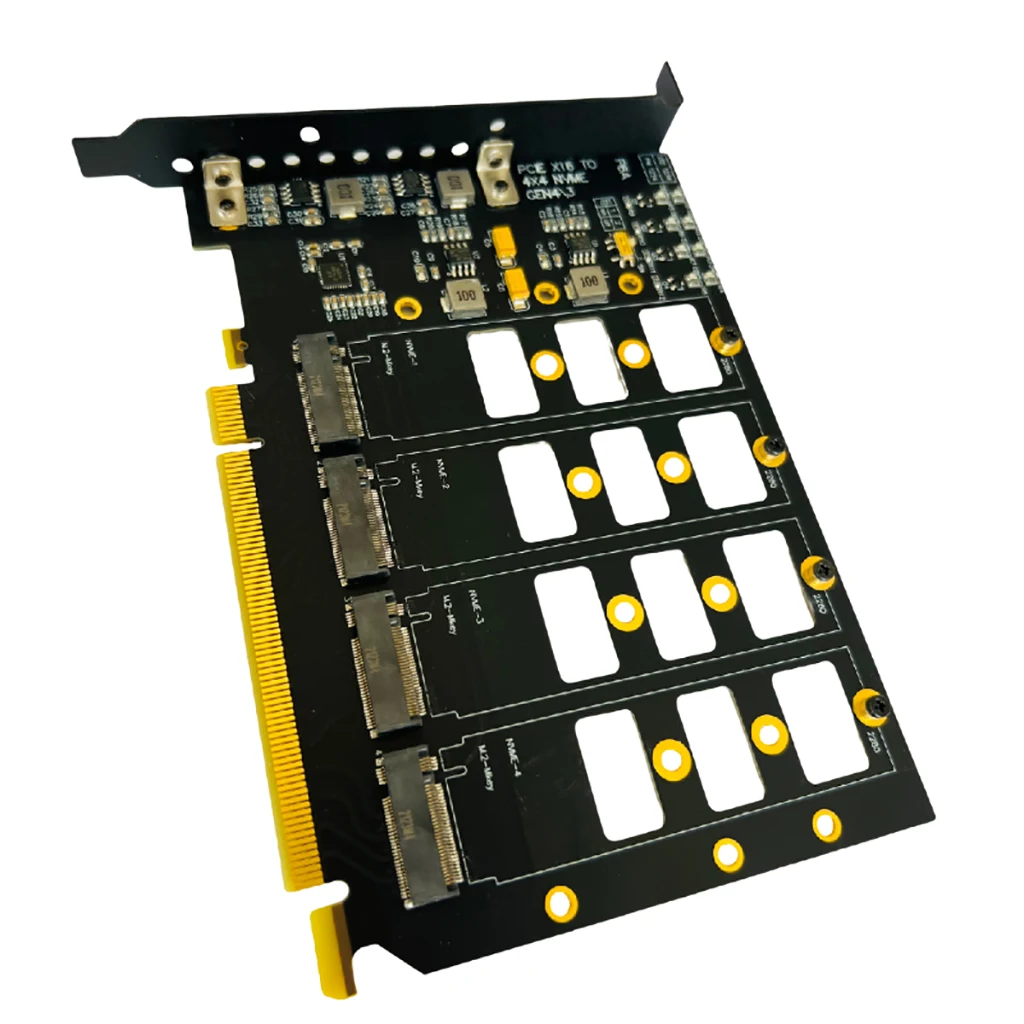

10, Four-layer high-density low-impedance circuit board, standard full-height side baffle, excellent quality.

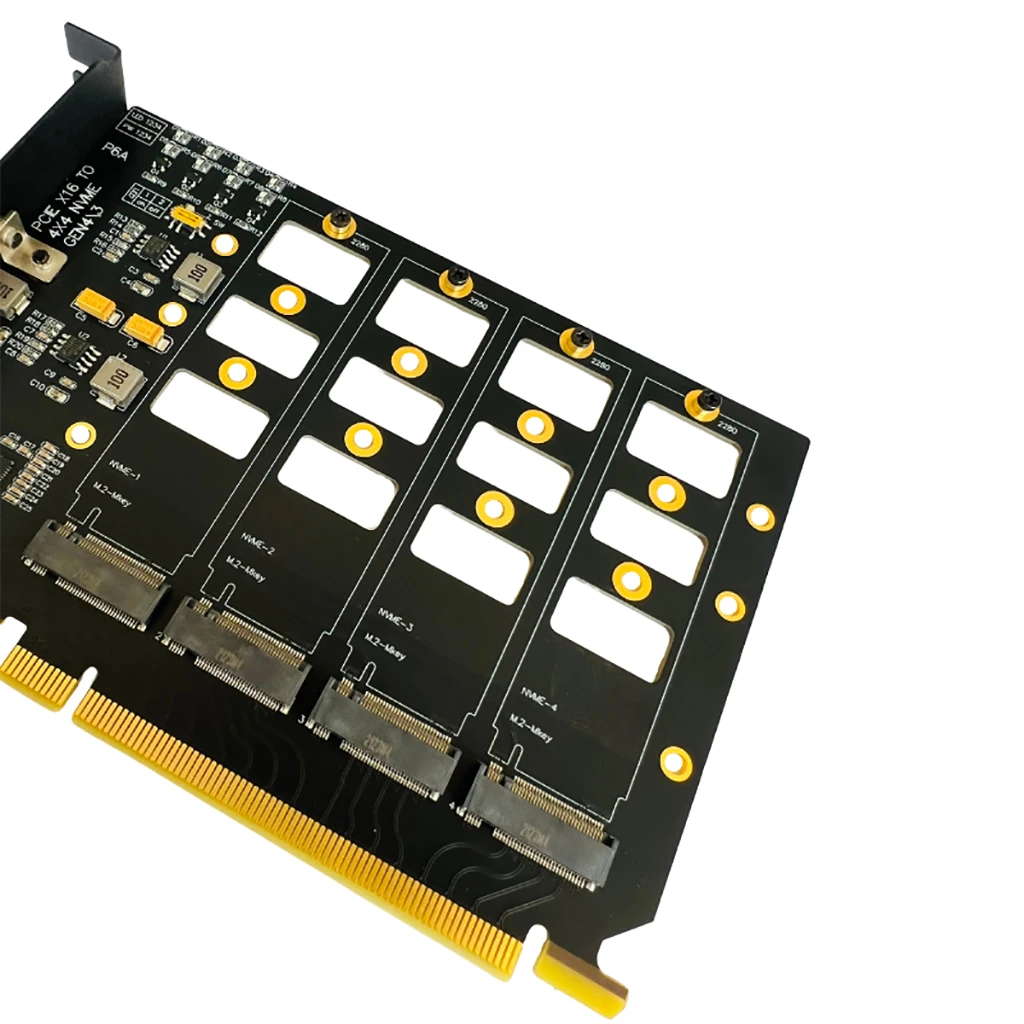

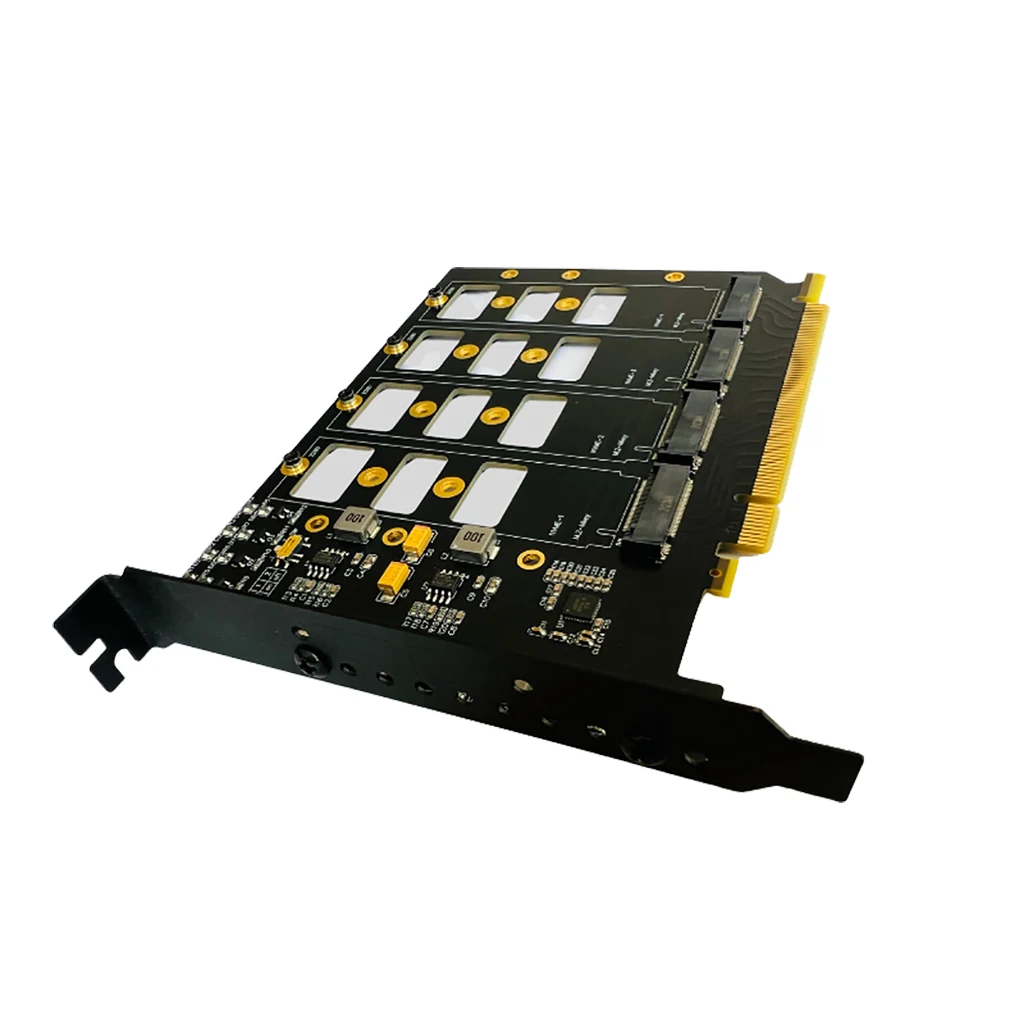

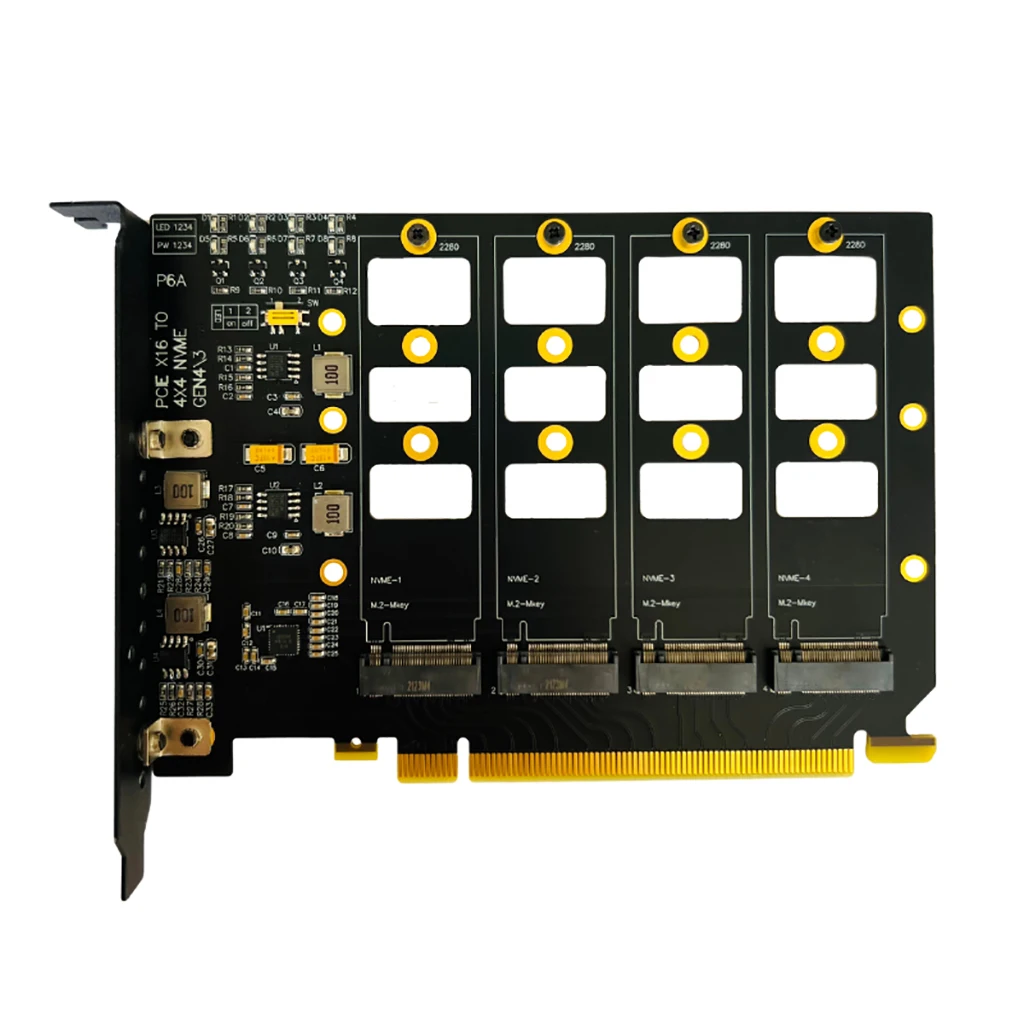

11. PCIe 4. 0 4x4 to M. 2 NVMe four-bay expansion card.

12. It is suitable for 1 to 4xM. 2 NVMe SSD memory card transfer to PCIe x16 interface expansion.

13. Support PCI Express4.0x4x4x4x4, support 4 M.2 NVMe full-speed slots.

Combo A:

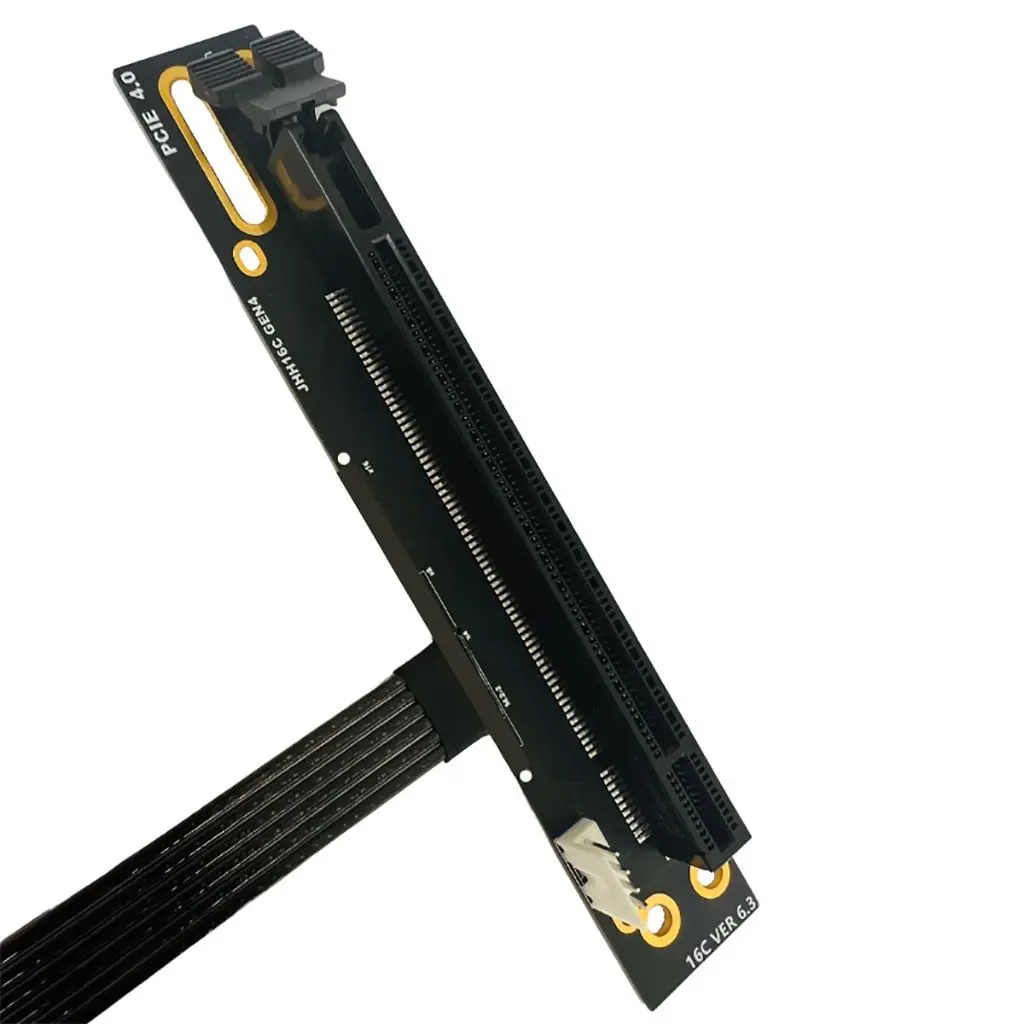

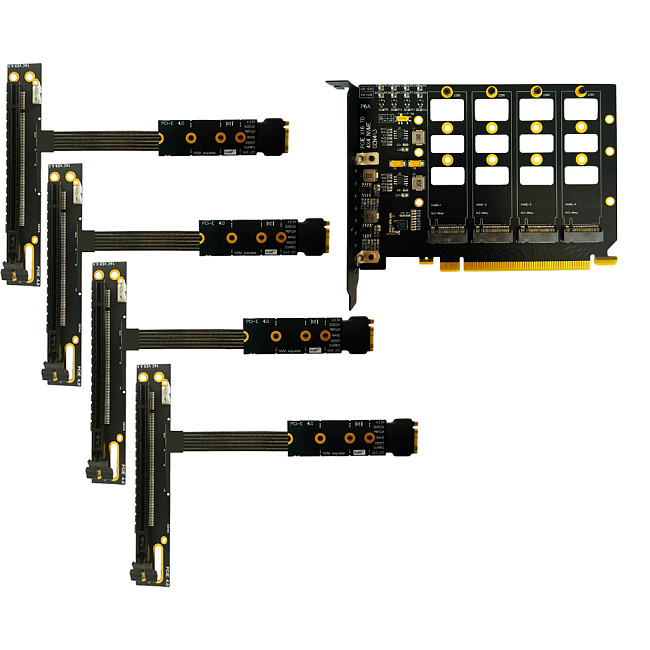

4-Bays Expansion Card + 4pcs M.2 to PCIe x16 Graphics Card Adapter Cable

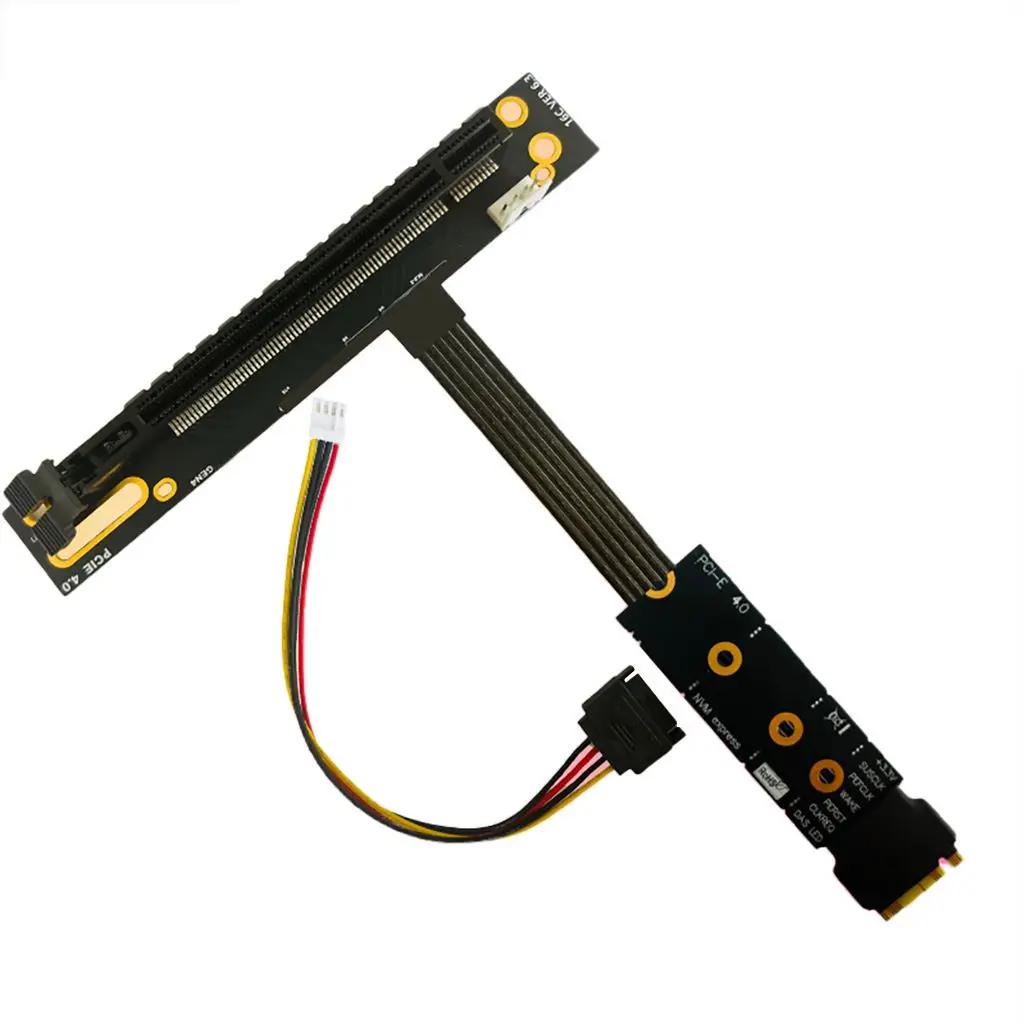

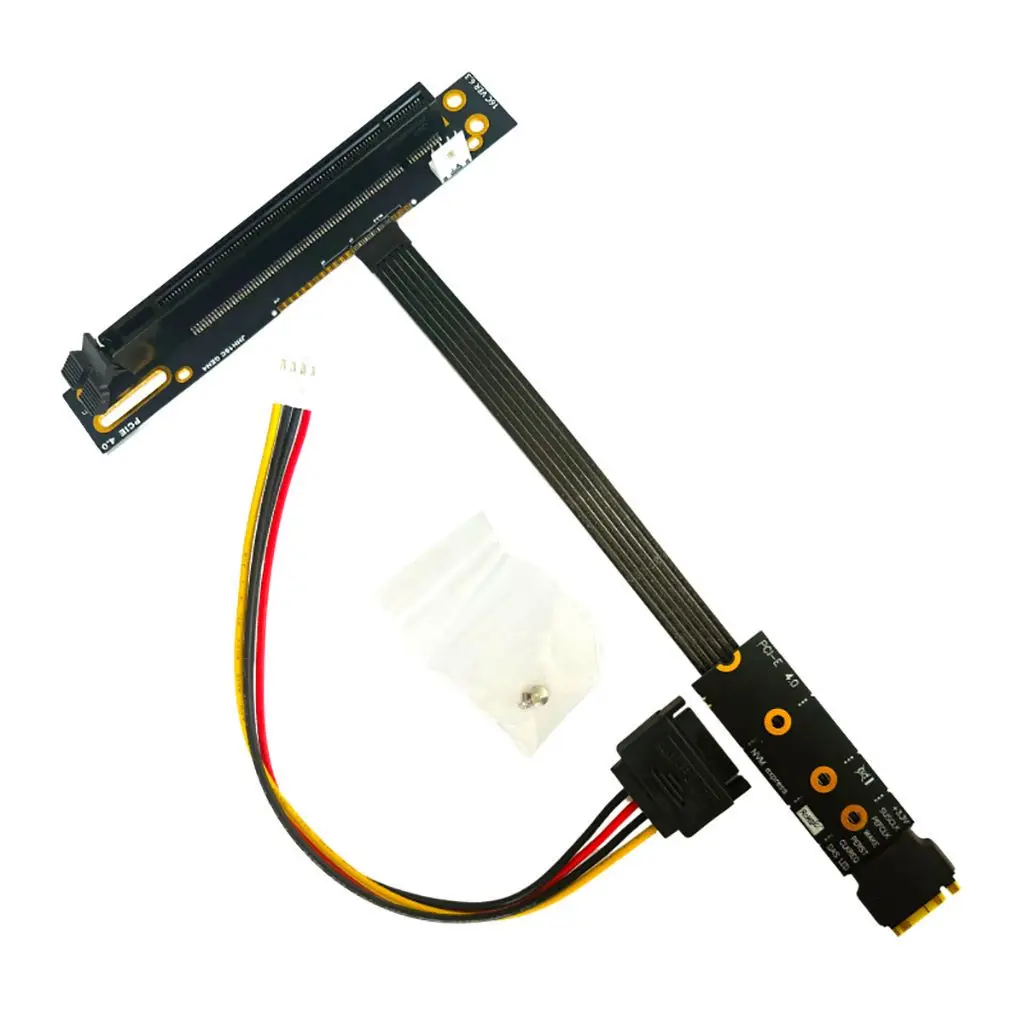

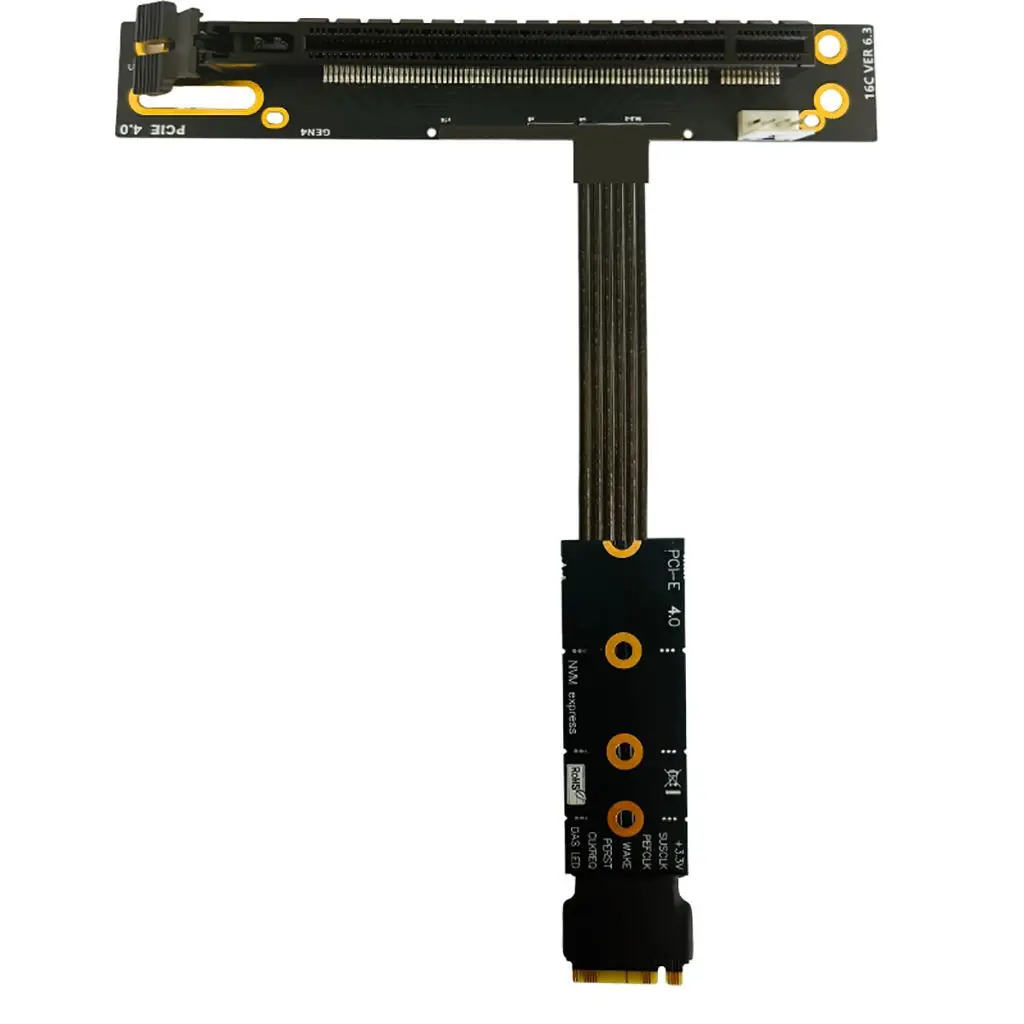

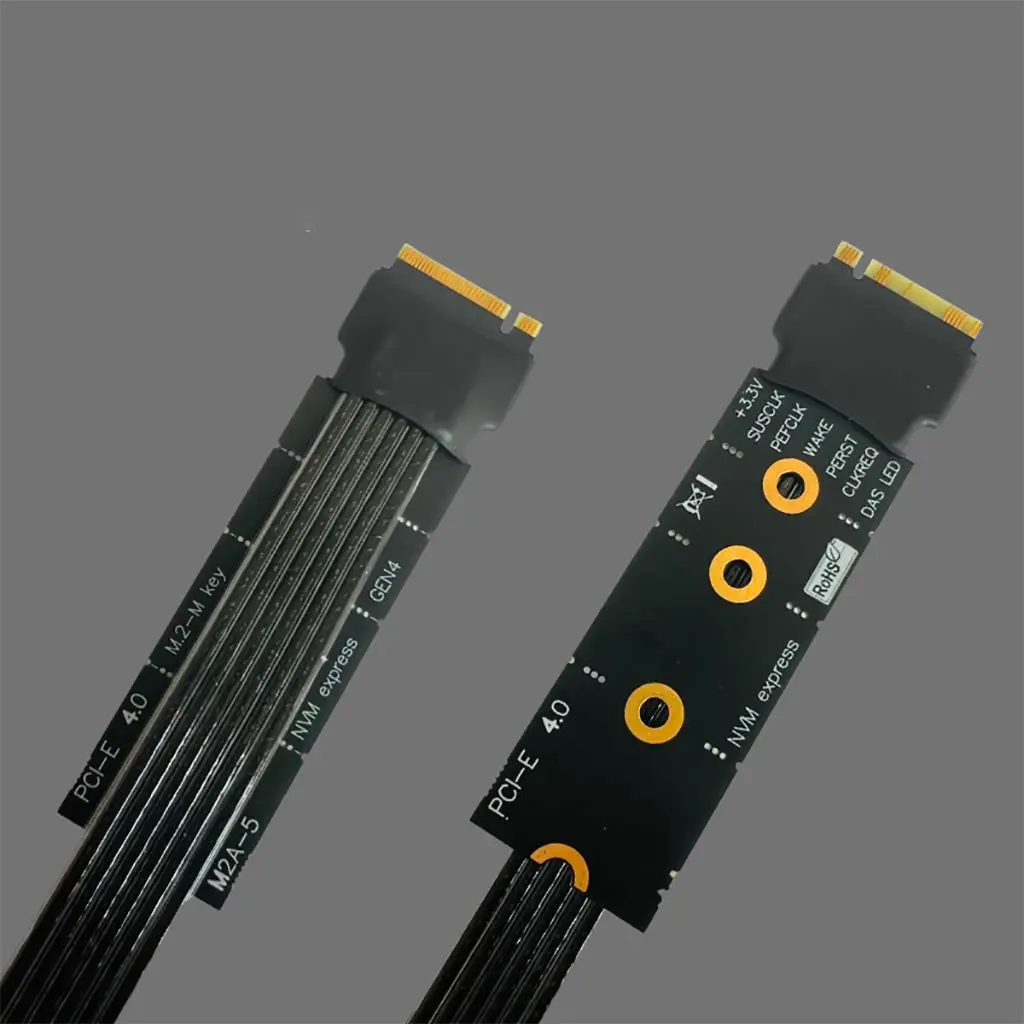

Cable description.

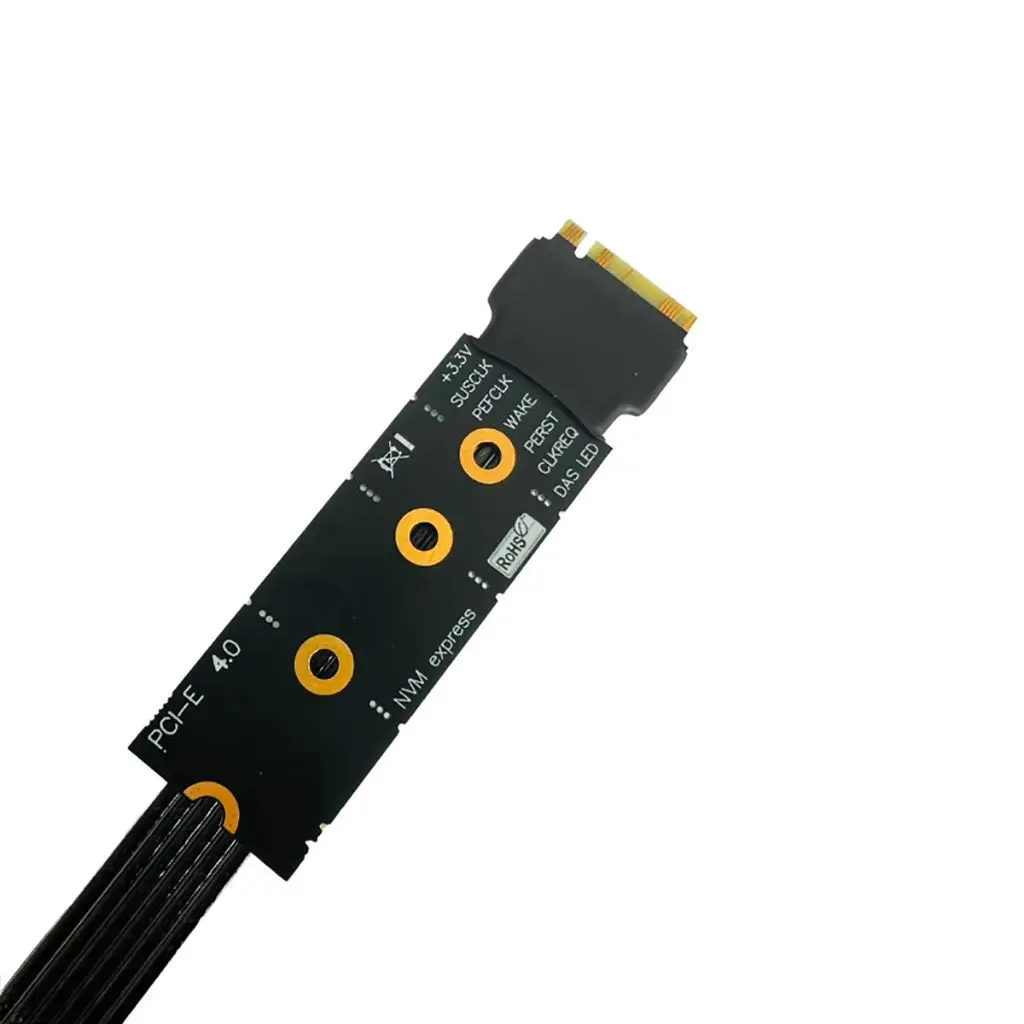

1,for M. 2 NVME PCIE 4. 0X4 bandwidth, 64G\BPS,compatible with gen3\gen4.
2,Use silver-plated shielded cable.
3,Support es CPU, support motherboard M. 2 port to PCIE.
4,Gold finger sinking process.
5,Adopt lotes new generation GEN4 connector.
6,Comes with SATA adapter power cable.
7,Support M. 2 to graphics card, X4 network card, X4 solid state drive, X4 capture card, X4 whole column card, etc.

Combo B:

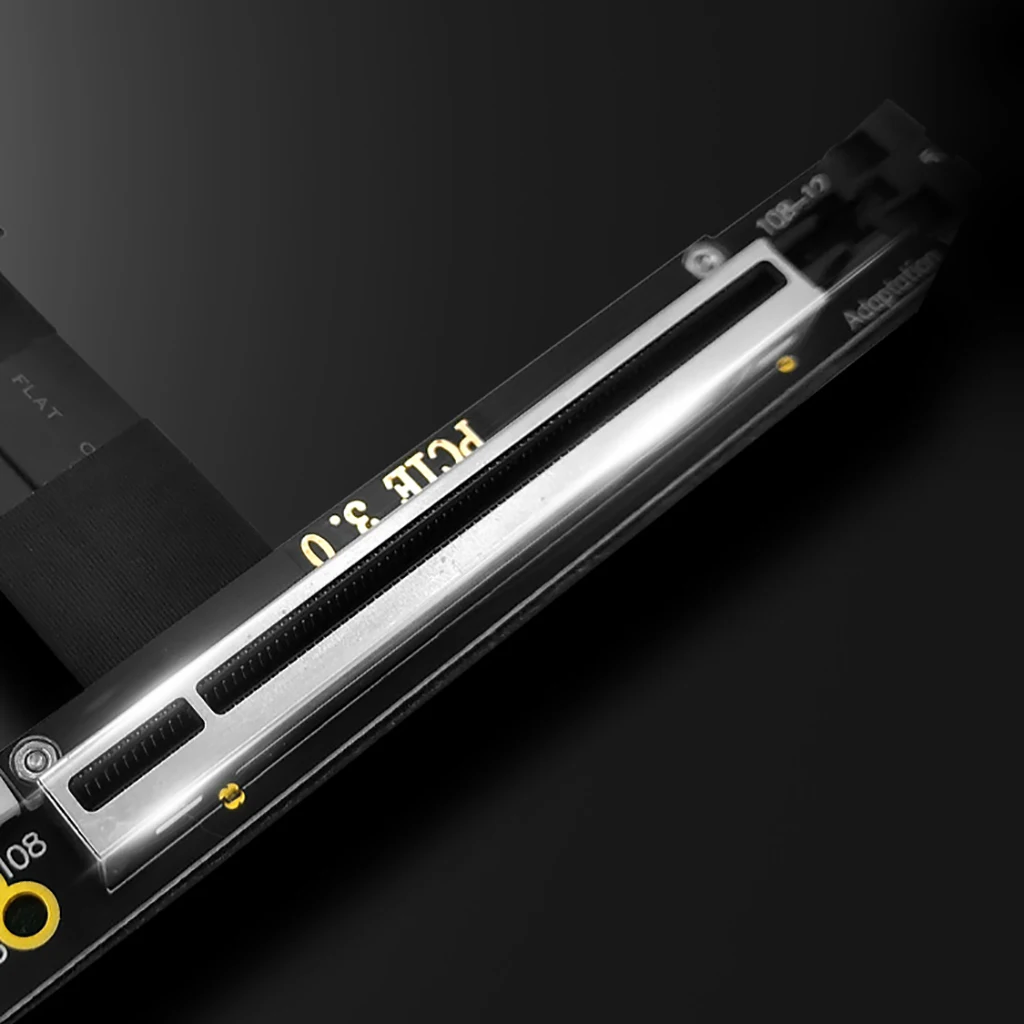

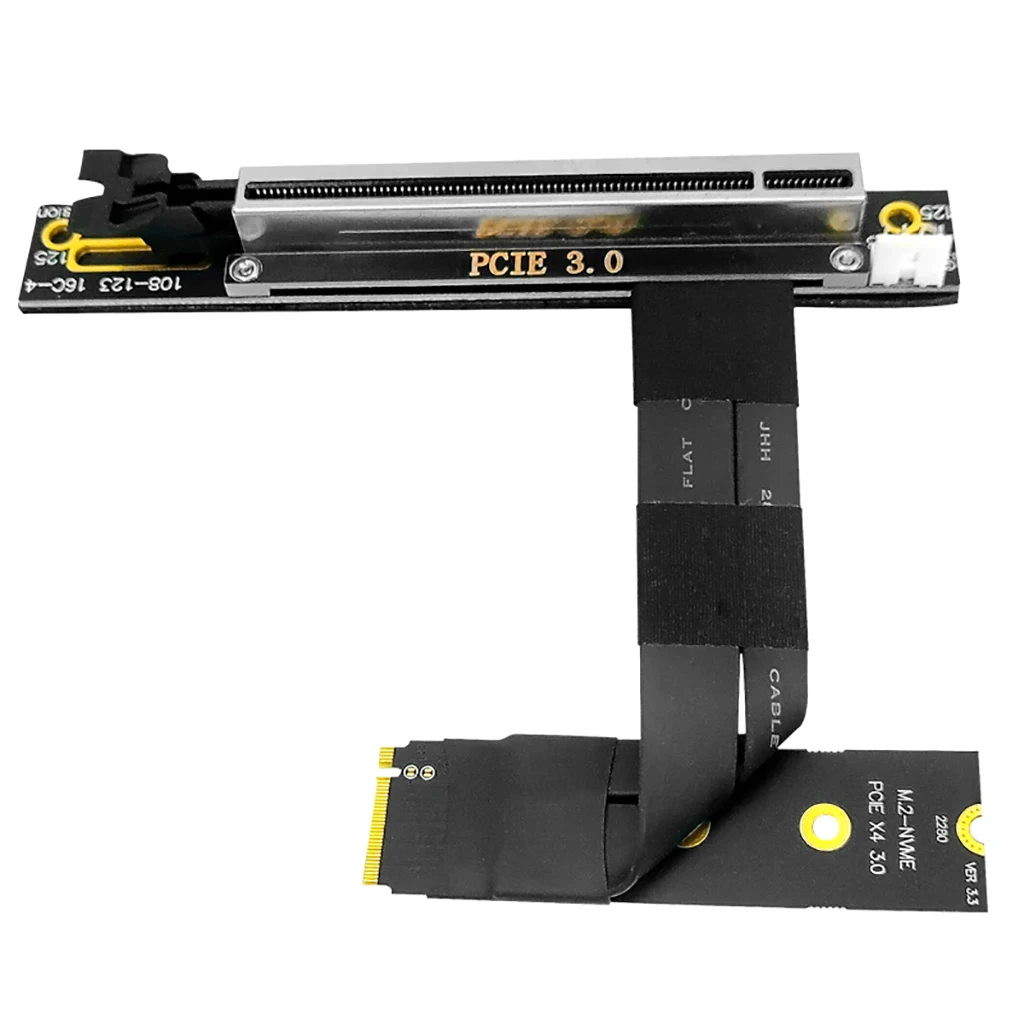

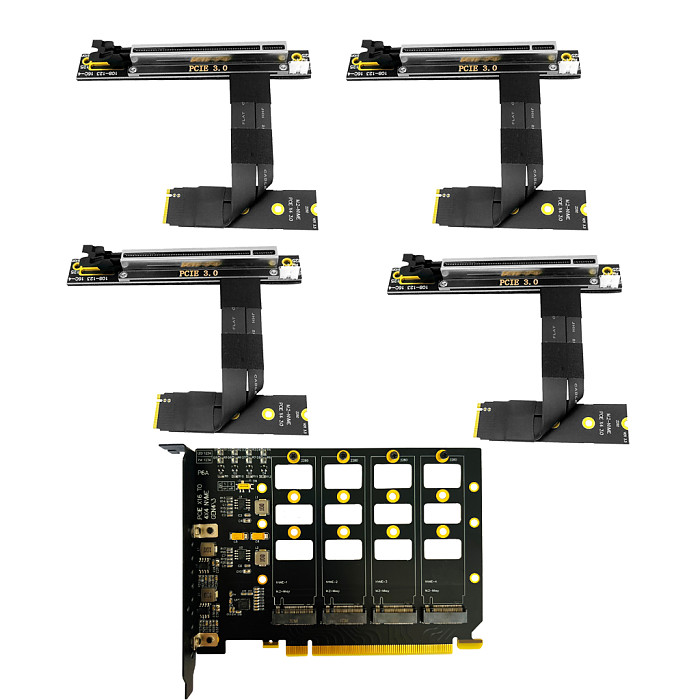

4-Bays Expansion Card + M.2 to PCI Express 3.0 x16 Extension Cable

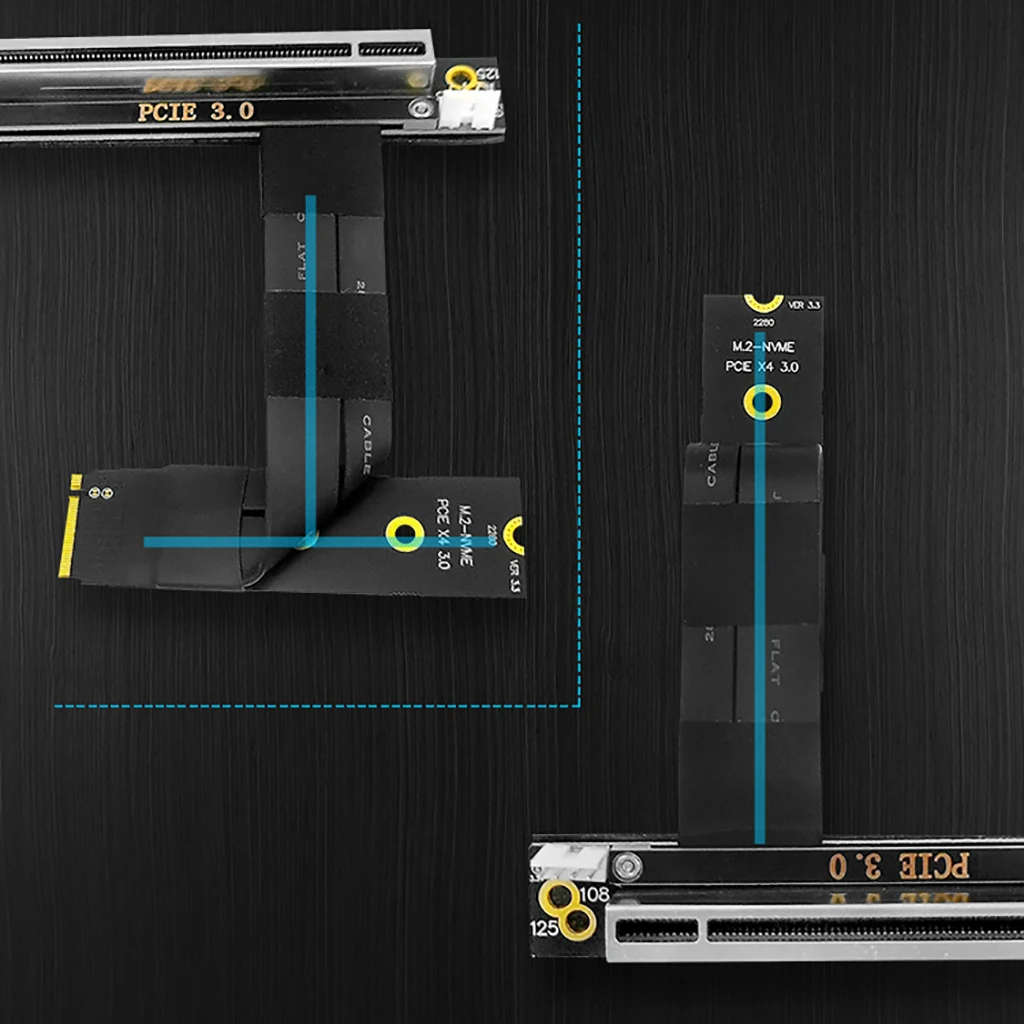

Cable Introduction.
The function of this series of products is M.2 to PCIEX16, only support nvme protocol M.2 port, working in PCIE3.0X4 performance state, because M.2 does not come with 12V voltage, so this series of adapter cables need to be connected to 12V power supply, standard SATA to small 4P power supply cable. Support desktop motherboards with M.2 interface to expand the PCIE slot.


Parameters.

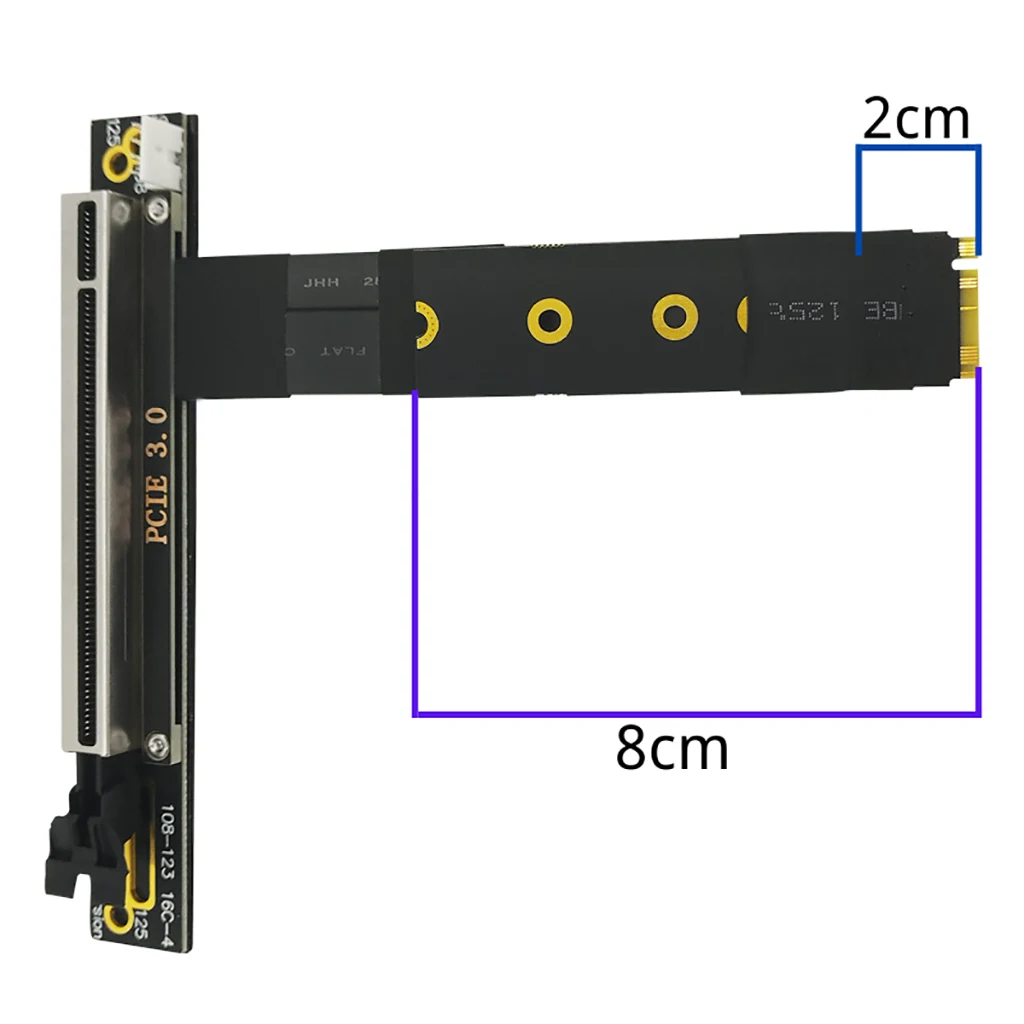

Name: M.2 to PCIE right angle 90 degrees
Model: M16AC
Length: 20cm


Features

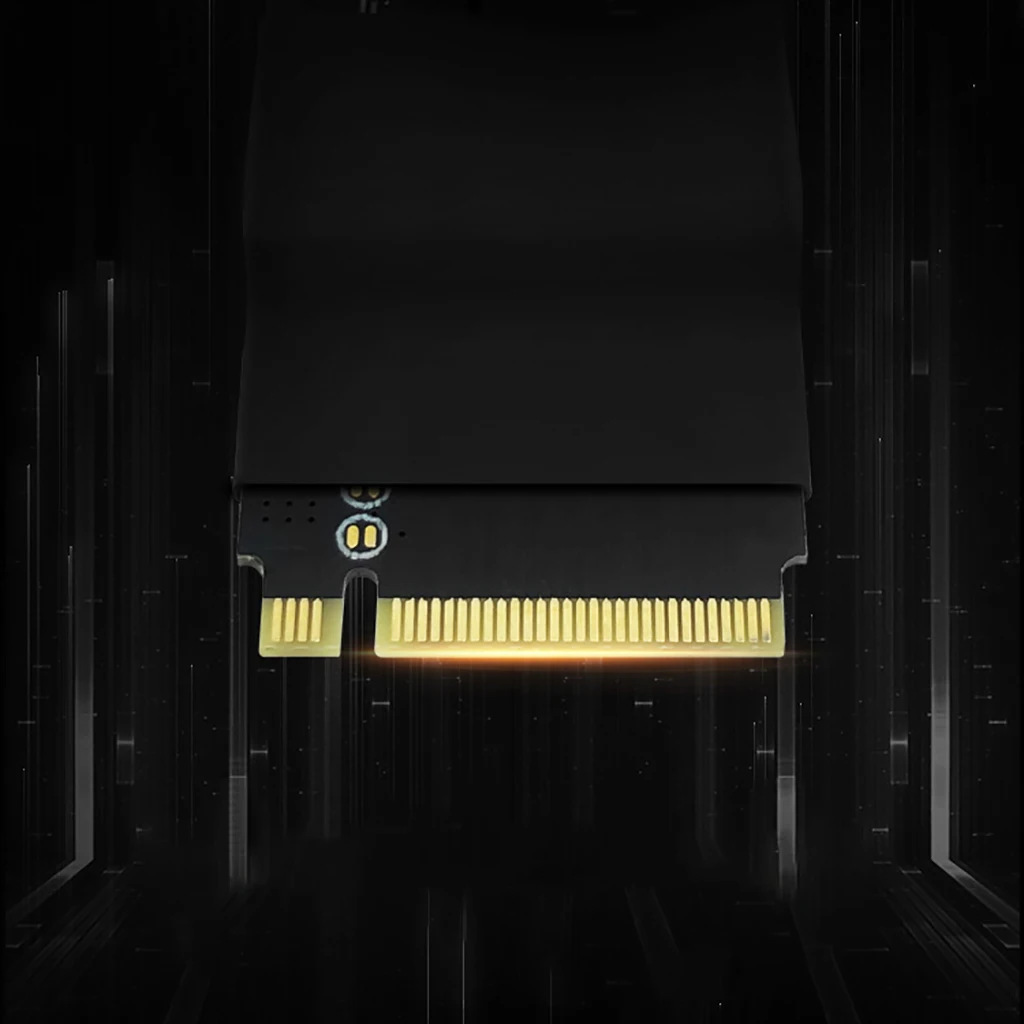

Thickened gold fingers, electroplated sunken gold 5U process, repeated plugging and unplugging is still durable, more stable signal transmission, long time resistant to oxidation.

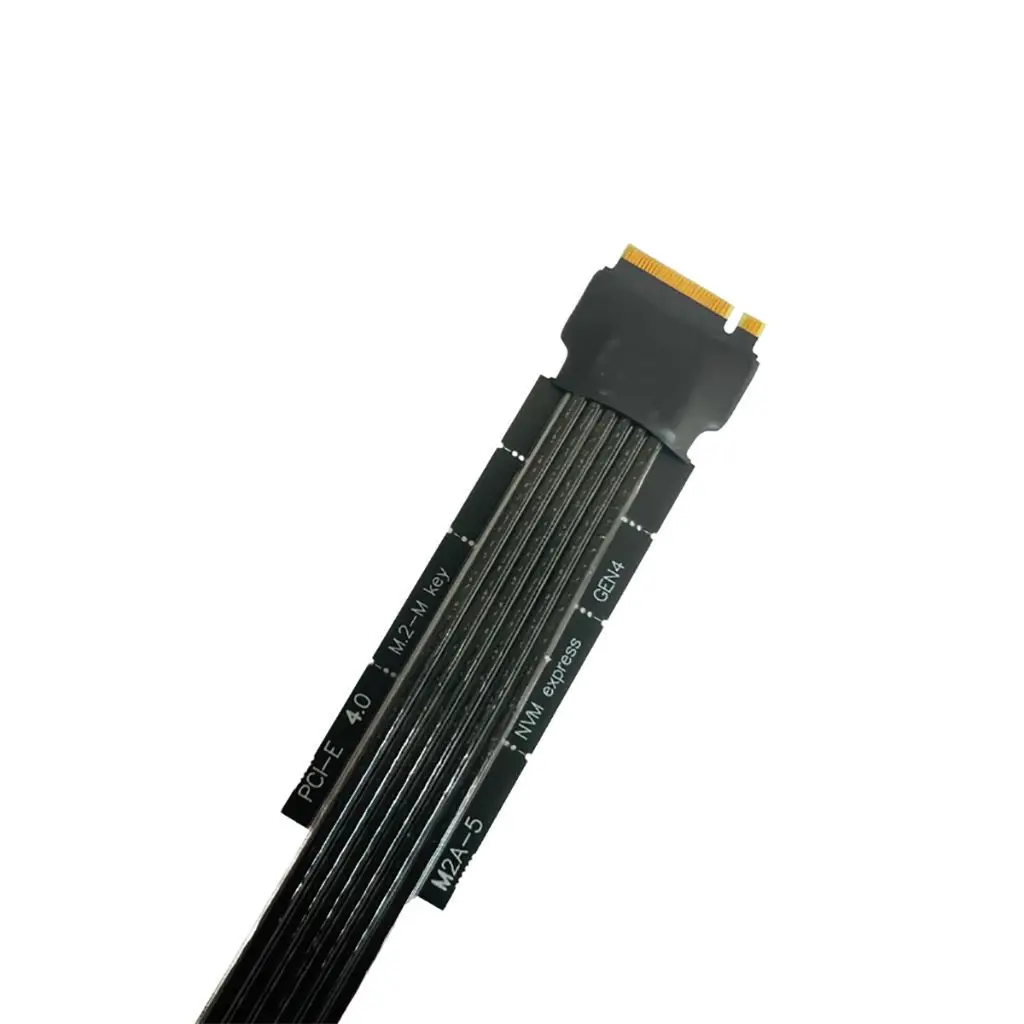

M.2 NVME to PCIE X4 16 adapter cable.
90 degrees vertical, compatible with graphics cards, capture cards, computing cards, network cards, etc.
Optimized signal transmission to, low impedance, high temperature resistance.
Connector with metal shield, beautiful high-end, improve anti-interference ability.
Adjustable pitch of the fixed hole of the cable, and support various DIY.
Ultra-thin cable, thickness 1.4mm, the third generation of EMI shielding technology, each core independent arrangement.
No fear of interference, no fear of loss, can be bent in any direction.
Stable compatible with N card 10 series, 20 series, professional cards, capture cards, 10 Gigabit network cards, A card 470 or more.
RX5700 must be forced to set to GEN3, not the default automatic non-loss running score.
Second-hand cards, low-end cards, old cards, mining cards and other compatible probability is 70%.
