PCI-E 4.0 4X to X4 16X Riser Extension Cable PCI Express Gen4 PCIe X4 Extender Silver-plated Cord Flexible for GPU SSD Adapter Item NO.: F49429-B1 F49429-B2 F49430-B1 F49430-B2

PCI-E 4.0 4X to X4 16X Riser Extension Cable PCI Express Gen4 PCIe X4 Extender Silver-plated Cord Flexible for GPU SSD Adapter

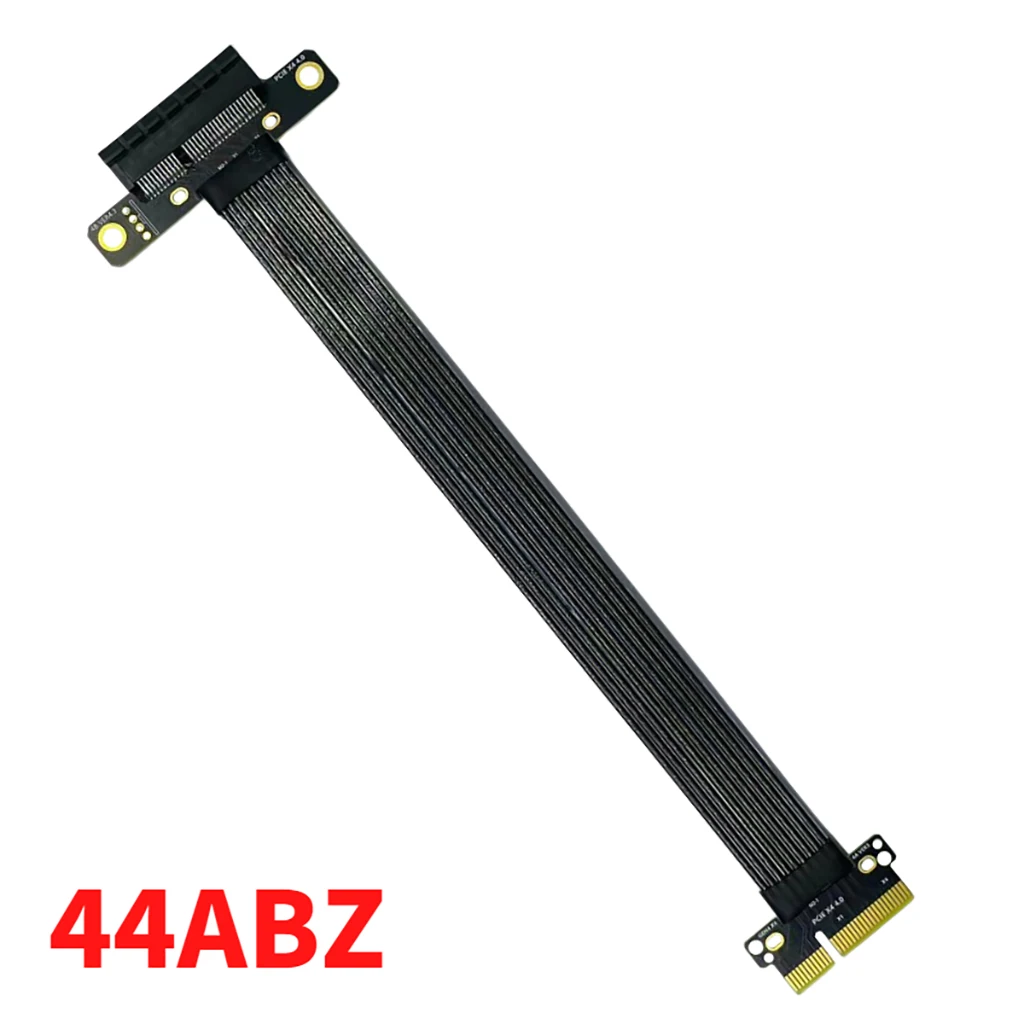

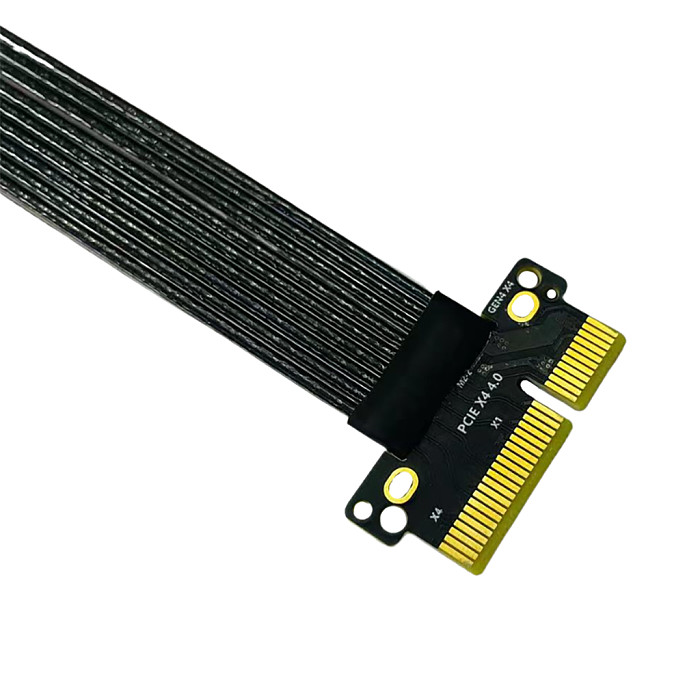

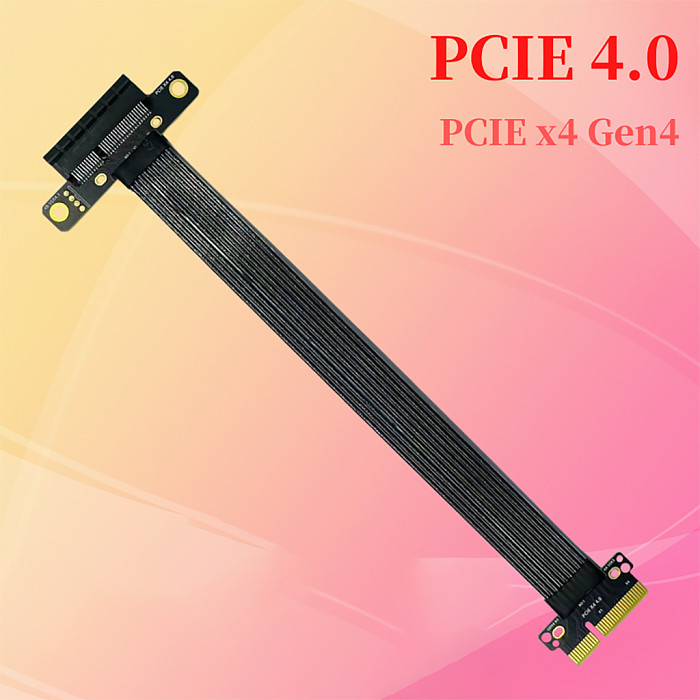

PCI-E 4.0 X4 male to female extension cables Flat Mount

1, PCIE 4.0 X4 extension cable, 8GB/S bidirectional bandwidth.
2, using silver plated shielded cable, double layer row wire, thickness 2mm, width 18mm.
3. PCIE 4.0 devices are supported and downwardly compatible with PCIE 3.0.
4, gold finger sinking process, thickness 5U, using high density and low impedance circuit board.
5, with LOTES GEN4 connector, gold plated 15U.
6, the cable can be bent and folded, suitable for small space installation.
7, supports PCIE X4 nics, solid state drives, collection cards, and column cards, but does not support PCIE X8 or X16.
8, PCB dwarf design,4 layers of circuit board, impedance control 85Ω.

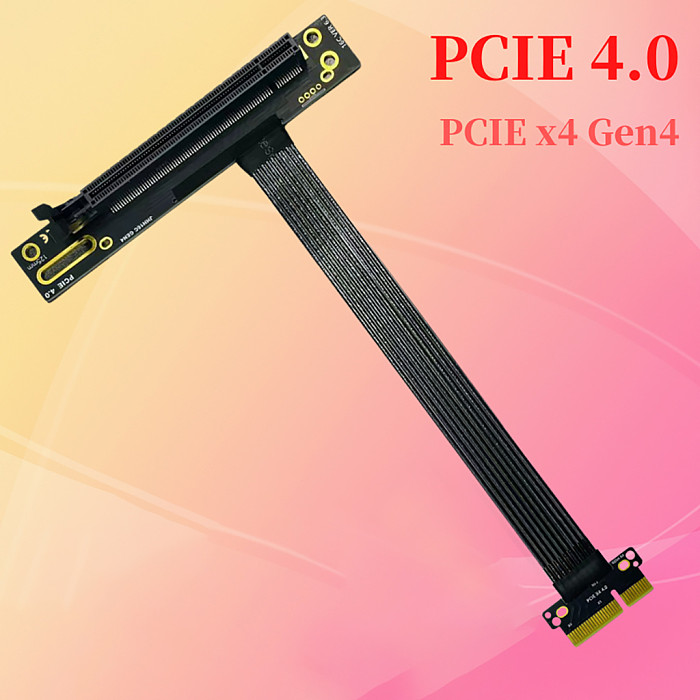

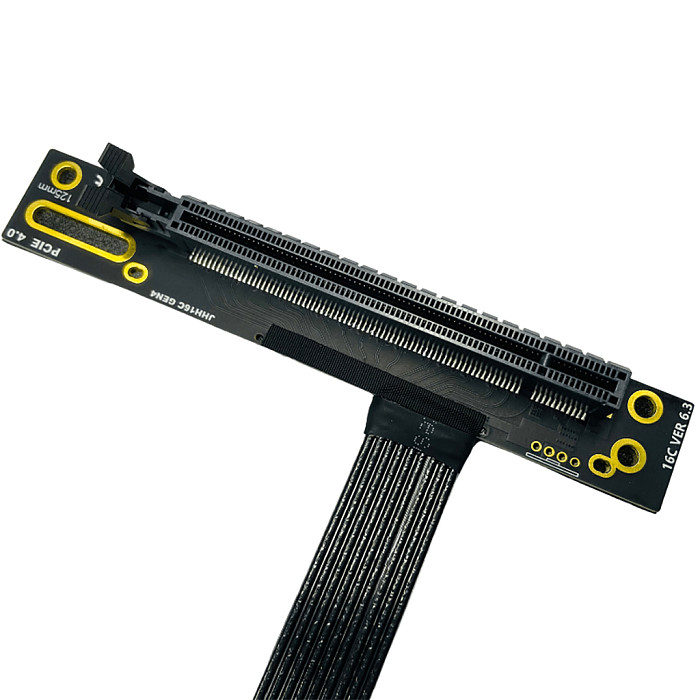

PCIE 4.0 X4 to PCIE X16 Extension Cable
Product Description
1.PCIE 4.0X4 to X16, 8GB/s bidirectional bandwidth
2. Silver plated shielded cables, double-layer row, thickness 2mm, width 12mm
3. Supports PCIE 4.0 devices and is downward compatible with PCIE 3.0
4. Gold finger sinking process, thickness 5U, using high density and low impedance circuit board
5. Use LOTES GEN4 connector, gold plated 15U
6. The cable can be bent and folded, suitable for small space installation
7. Support PCIE X4, X8 or X16, graphics card, network adapter, SSD, acquisition card, etc
8.PCB dwarf design, 4 layers of circuit board, impedance control 85
