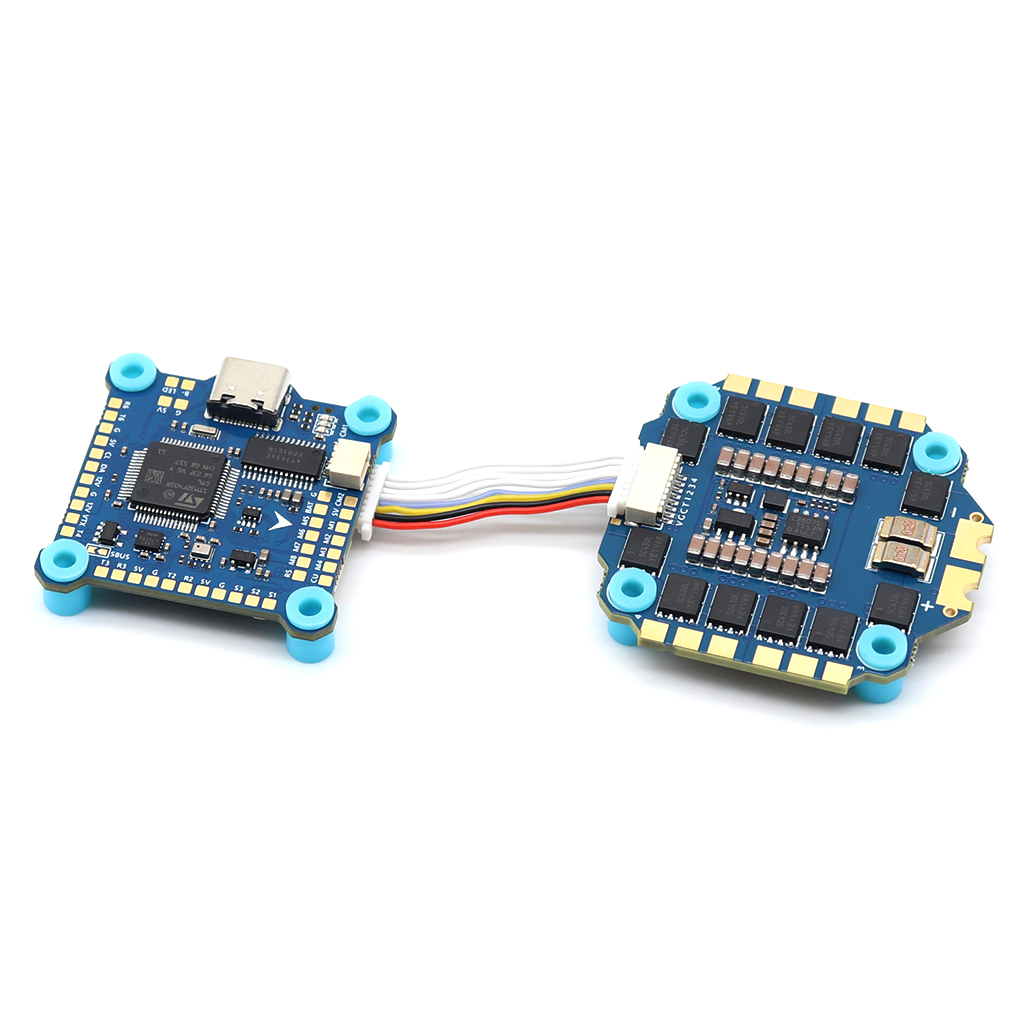

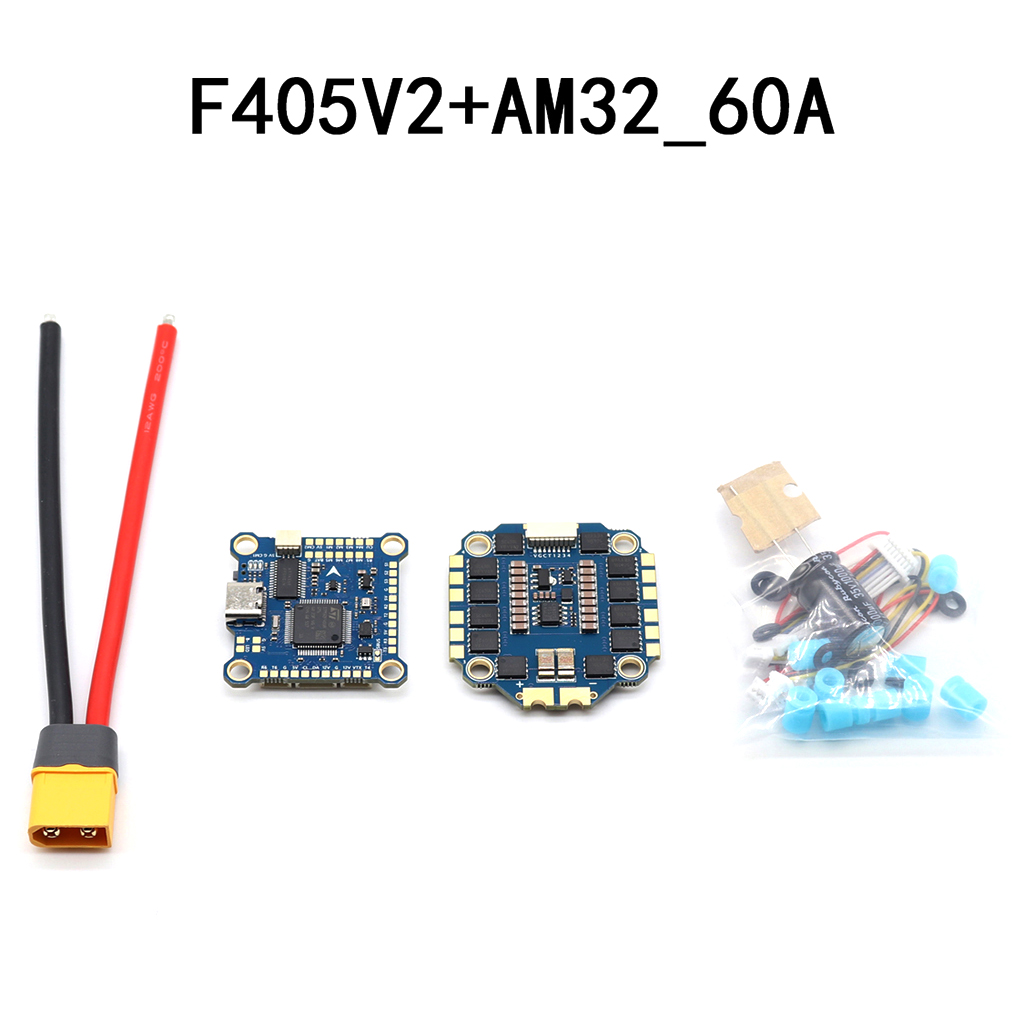

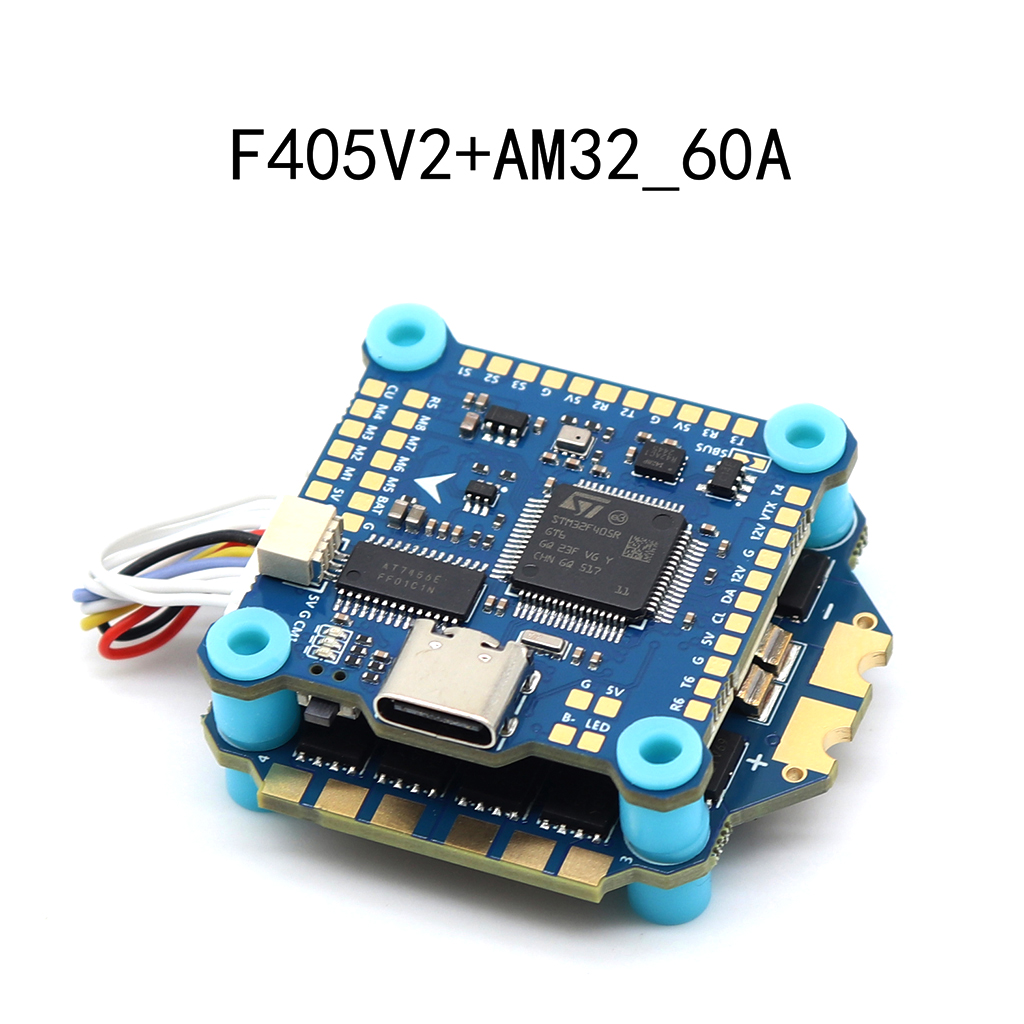

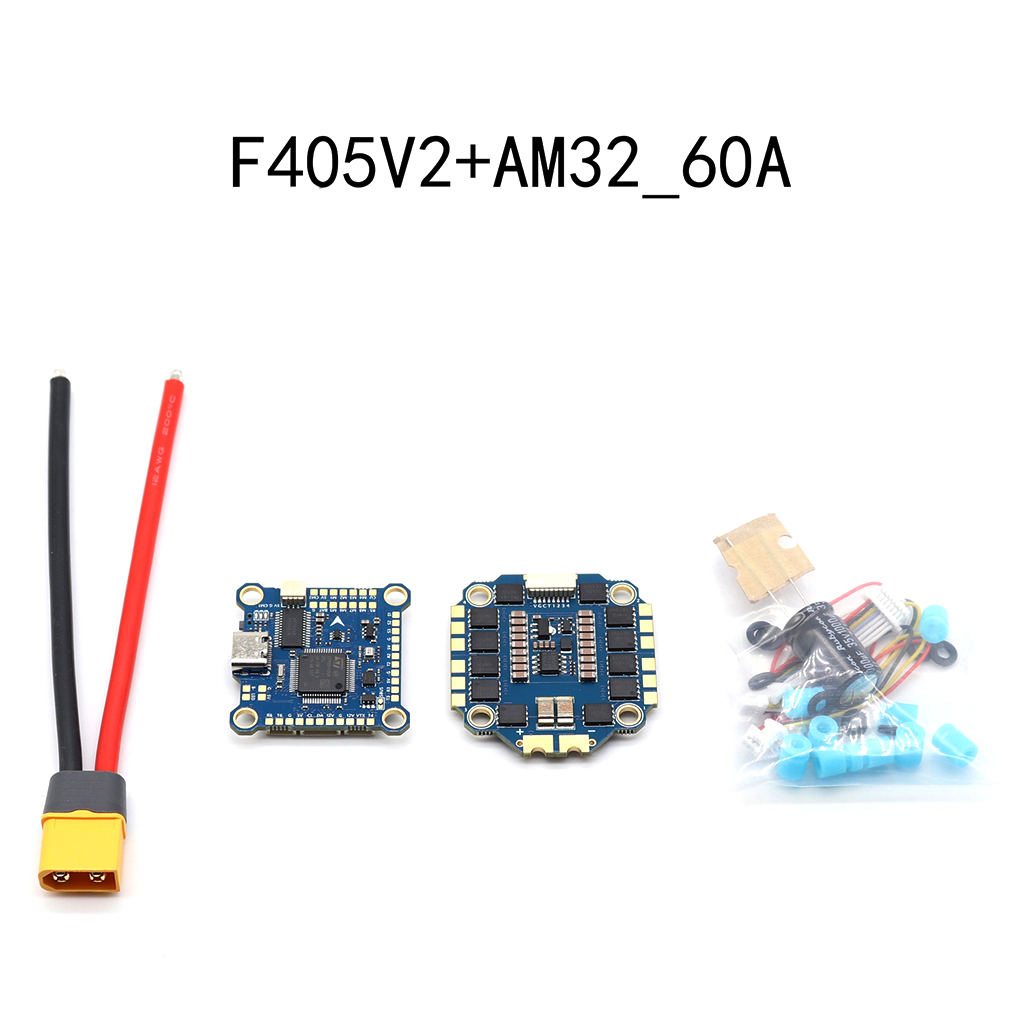

(PAURC) F405 Flying Tower 8S AM32 60A 4IN1 Electric Control F405 V2 Flight Control Suitable for FPV Crossover Aircraft
-
Detail
- Product Name: (PAURC) F405 Flying Tower 8S AM32 60A 4IN1 Electric Control F405 V2 Flight Control Suitable for FPV Crossover Aircraft
- Item NO.: F54709
- Weight: 0.05 kg = 0.1102 lb = 1.7637 oz
- Category: DIY RC Drone Accessories > ESC
- Brand: PAURC
- Creation Time: 2025-10-13
- (PAURC) F405 Flying Tower 8S AM32 60A 4IN1 Electric Control F405 V2 Flight Control Suitable for FPV Crossover Aircraft
(PAURC) F405 Flying Tower 8S AM32 60A 4IN1 Electric Control F405 V2 Flight Control Suitable for FPV Crossover Aircraft

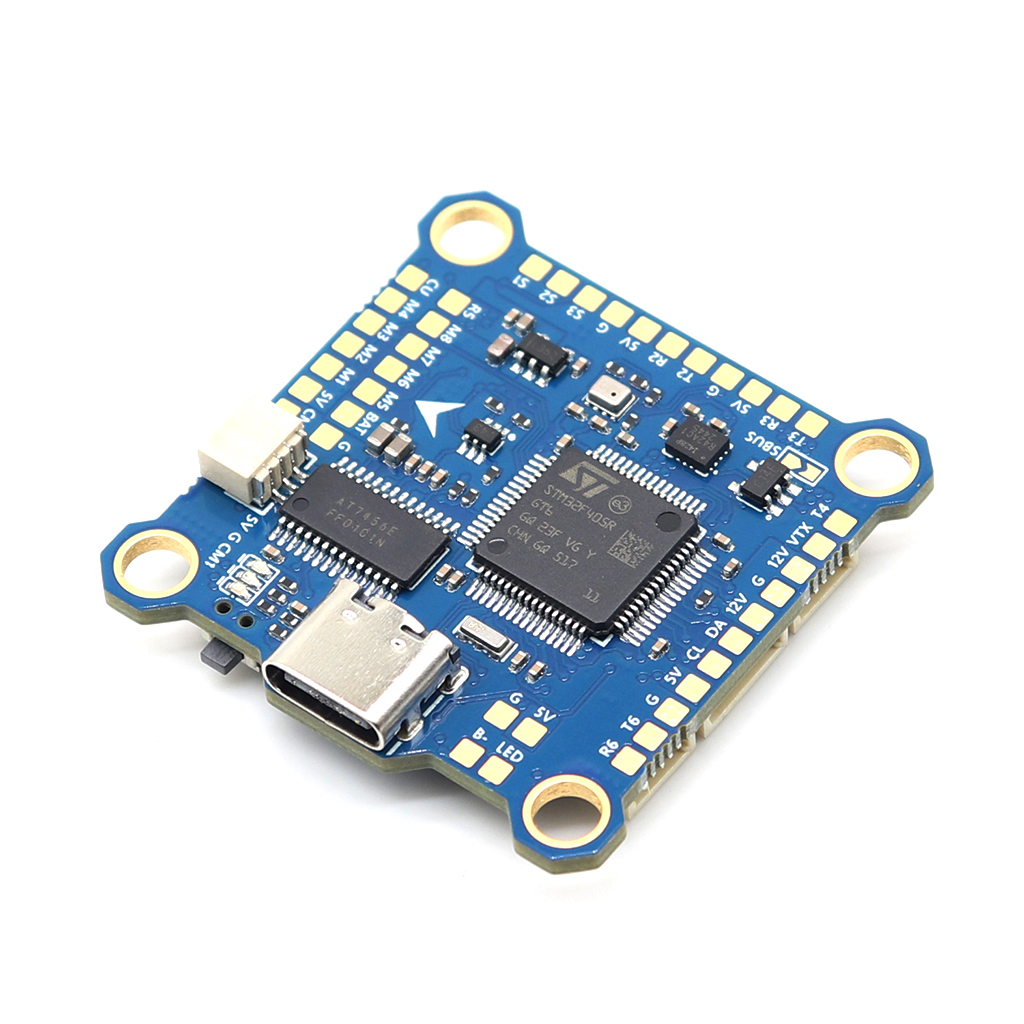

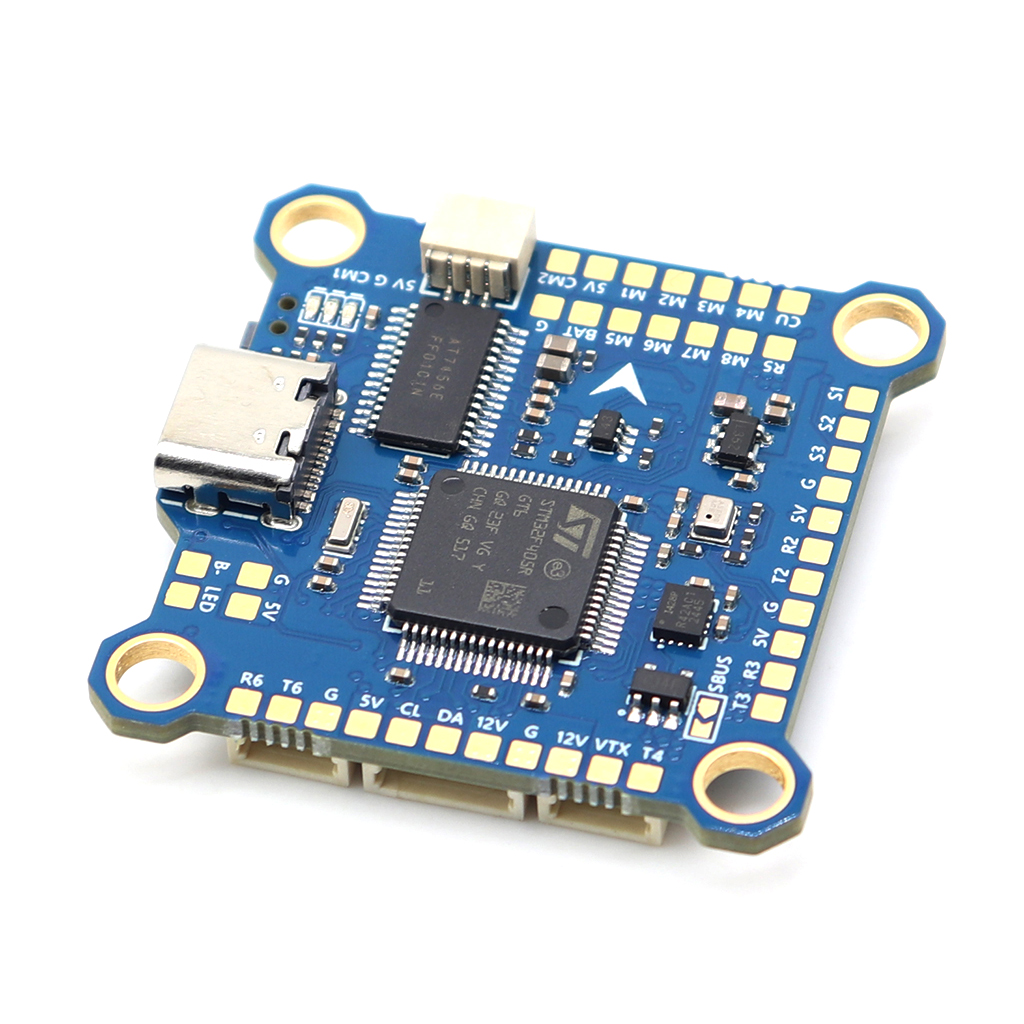

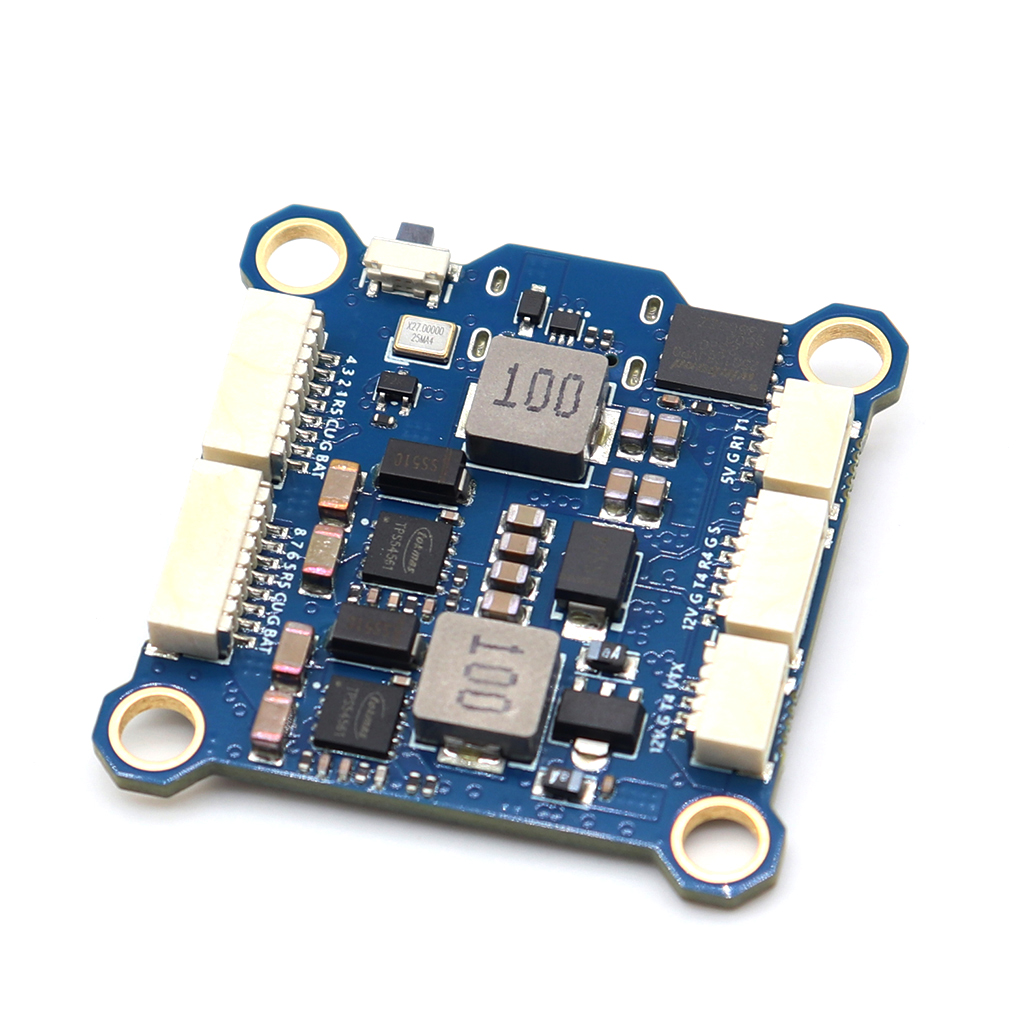

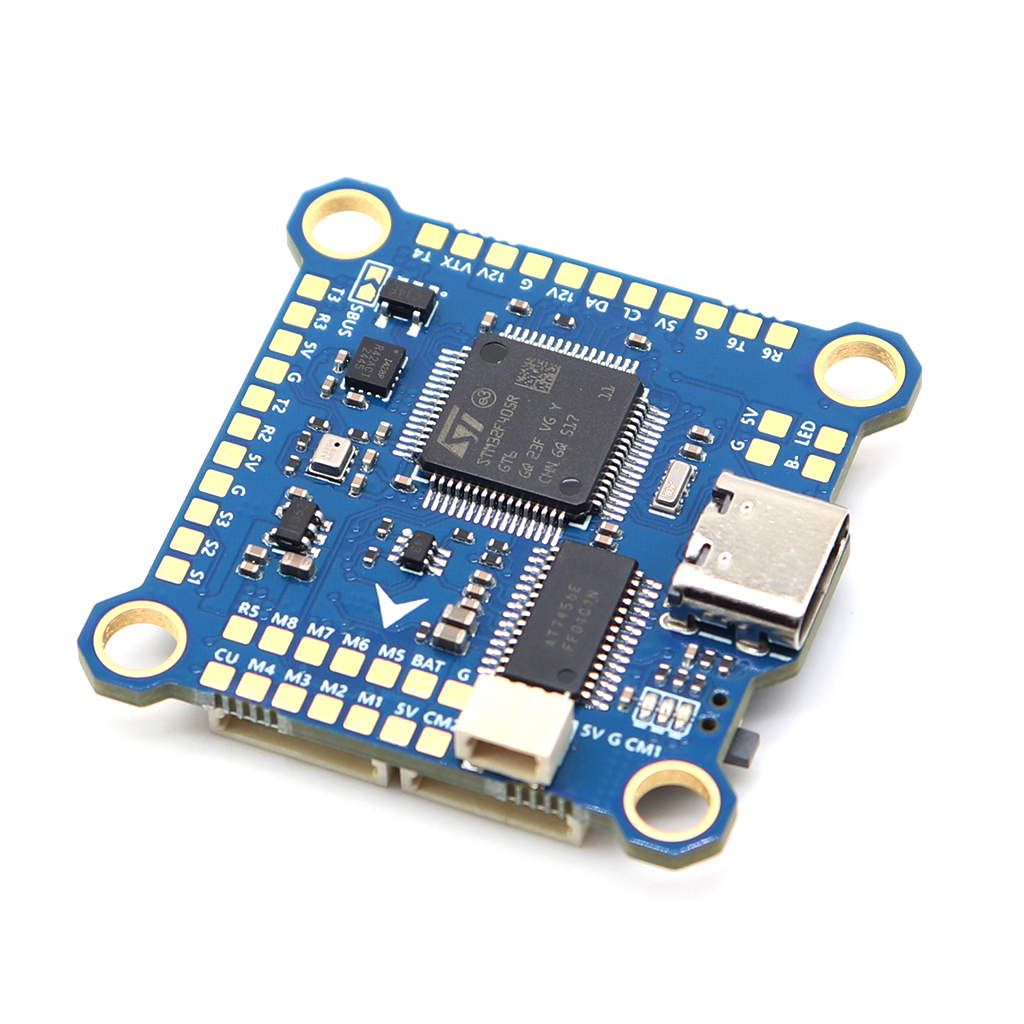

F405 V2 Flight Control Specifications:
Master chip: STM32F405RGT6
Gyroscope: ICM42688
Battery: 3-8S Lipo
BEC: 5V 3A / 12V 3A
USB: Type-C
Barometer: SPL06
OSD chip: AT7456E
BLack box: 16M
Bluetooth: Not Supported
RSSI: Support,marked as RSSI
Support flight control firmware: Beataflight/INAV/Ardupilot
DJI/Vista: Support/6pin
VTX/Camera：Support/4pin/3Pin
Firmware Name: PAURC F405 V2
Installation hole position: 30.5x30.5mm/M4
Size: 37mm x37mx8m
Weight: Bare board 8g

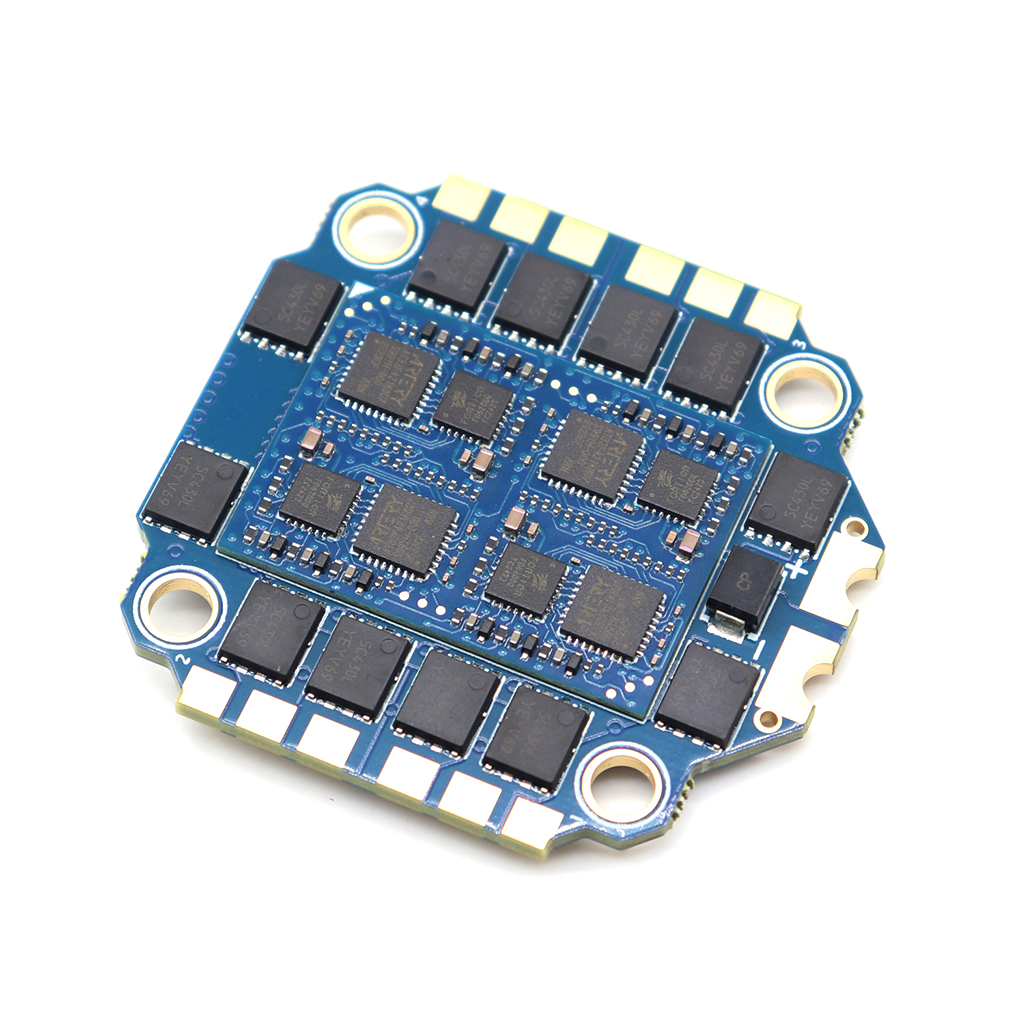

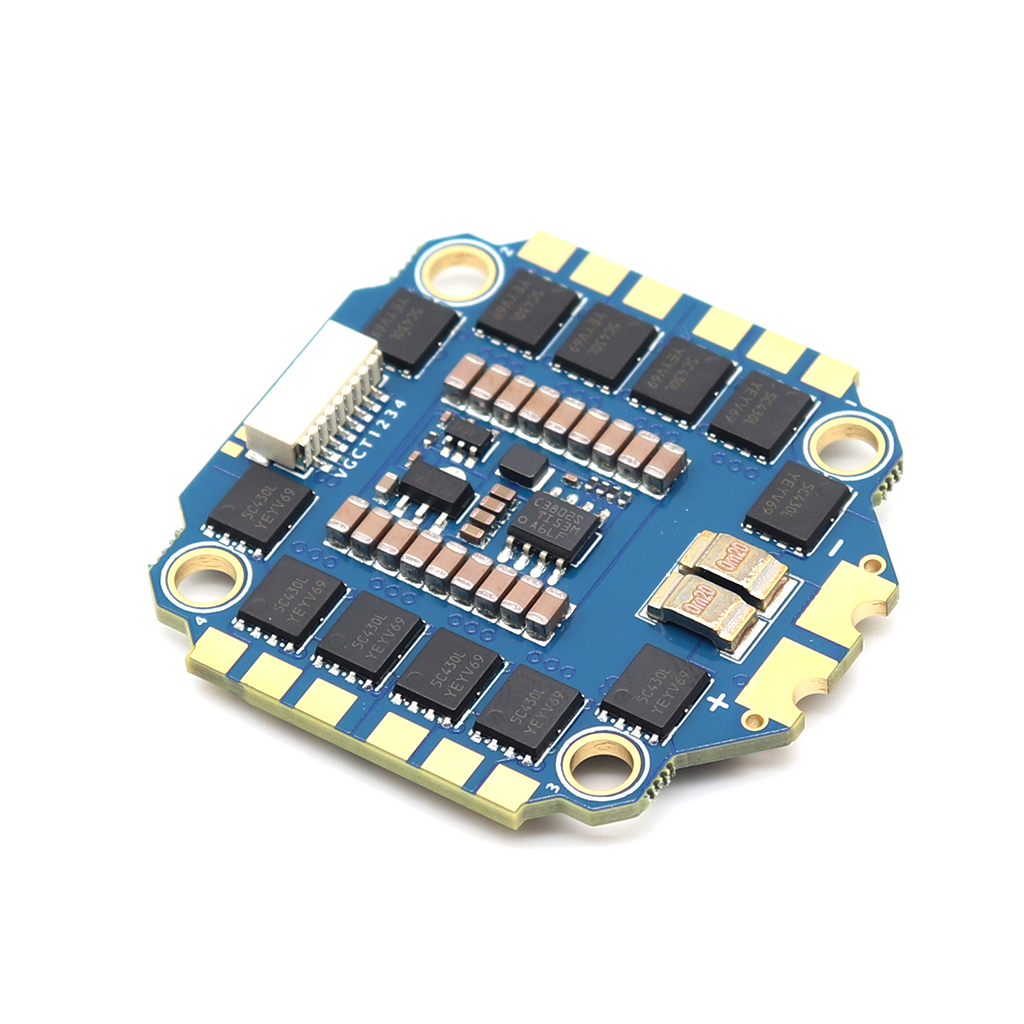

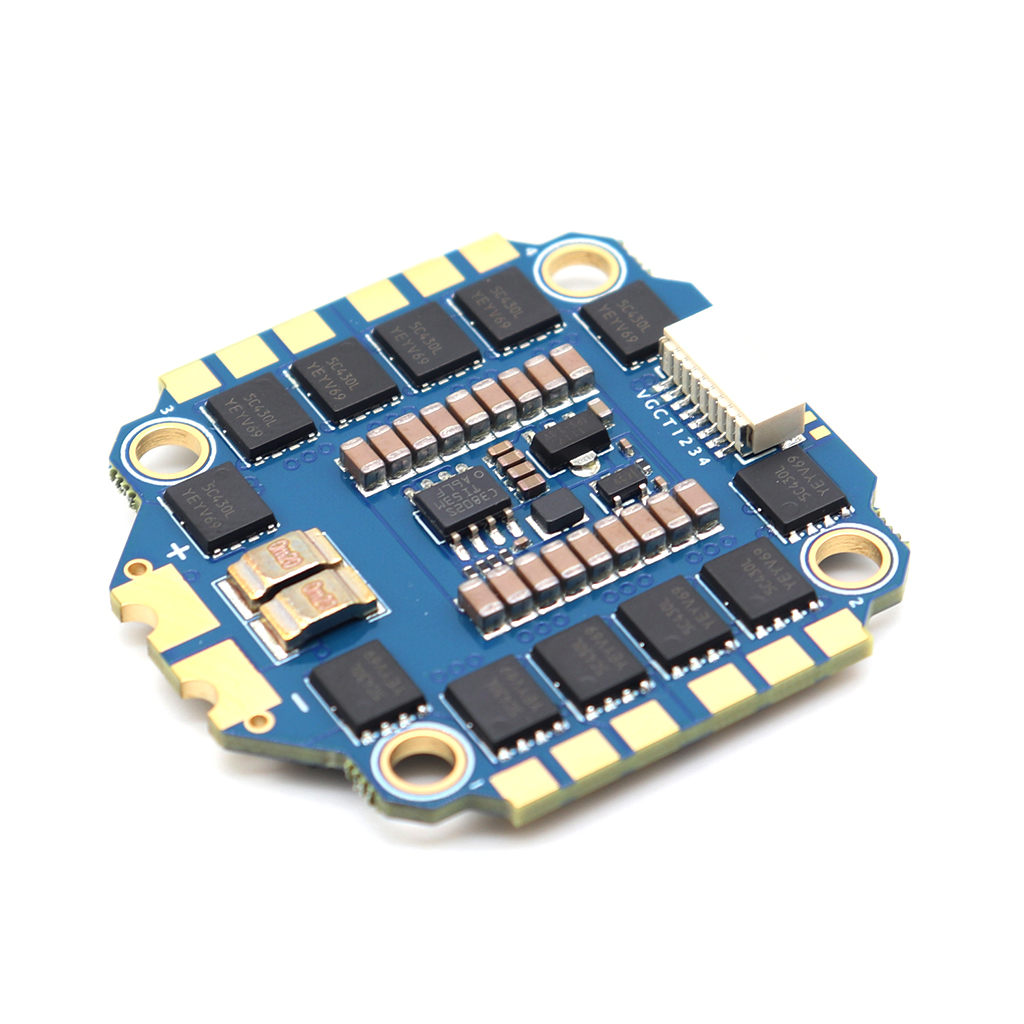

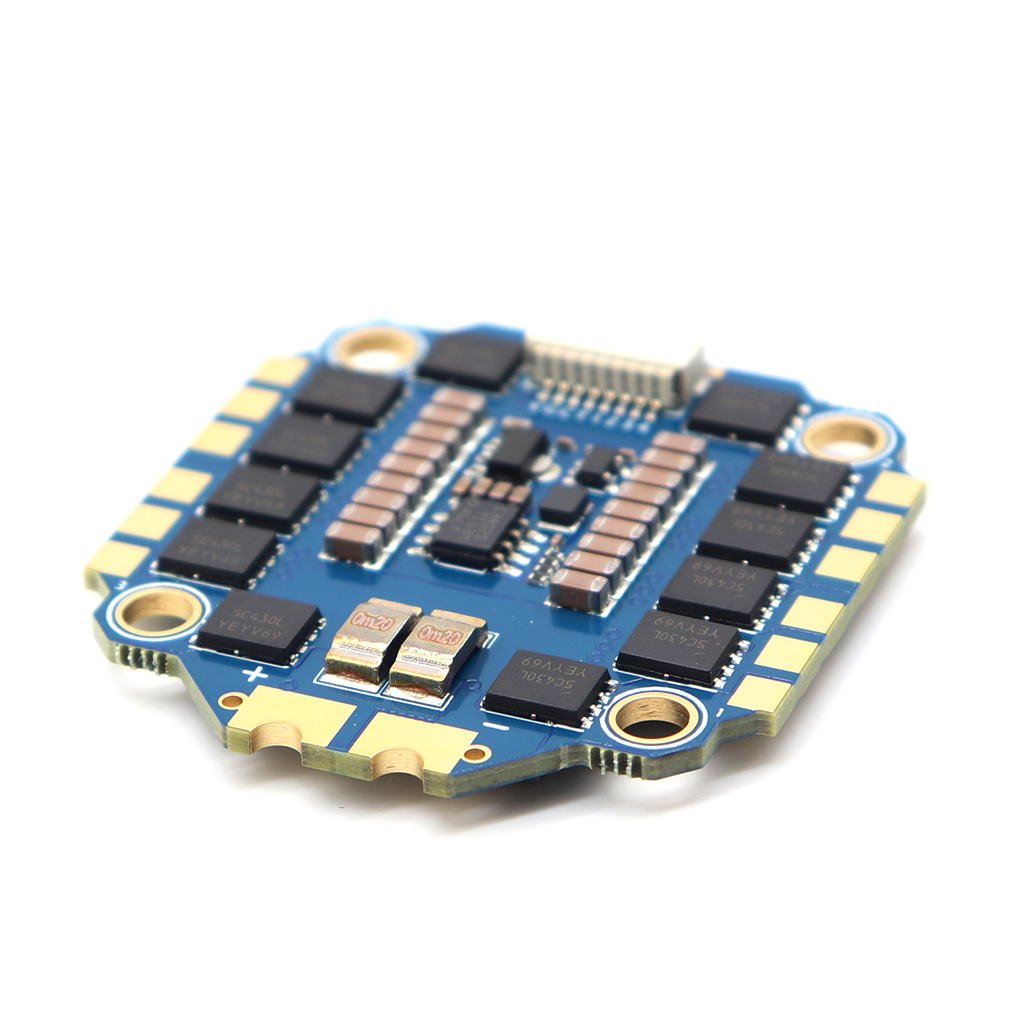

60A AM32 4IN1 ESC Specifications:
MCU: AT32F421K8U7
Specifi cations: 60A
Program: AM32_2.18
MOS: ONSEMI_NTMFS5C430NLT1G
Continlous crent: 60AX4
Transient curent: 70A-10S
TVS protection diode: have
Electrolytic capacitor: 1000uF Low ESR Capacitor
Motor protocol: Dshot(All),PwM, Oneshot,Multishot, etc
Battery imput: 3-8S Lipo
Ameter: support
Power Output: VBAT
Installation hole position: 30.5x30.5mm/M4
Size: Length 45x43x7mm
Weight: Bare board 16g
