| Quantity | 0-3 | 4-50 | 51-100 |
| Discount | 0% OFF | 5% OFF | 10% OFF |
| Price | US$ 59.67 | US$ 56.69 | US$ 53.70 |
Copy and share this link on social network or send it to your friends
Copy| Product Name | Oculink external graphics dock PCIE 4.0X4 GDP handheld laptop M.2 external expansion dock 8611 line direct connection -50cm/80CM direct connection adapter board DOCK-OC6+ bracket M.2 to Oculink extension cable |
| Item NO. | F52797/ F52798-B1/B2-A B C D E F |
| Weight | 0.39 kg = 0.8598 lb = 13.7568 oz |
| Category | Computer Accessories |
| Brand | XT-XINTE |
| Creation Time | 2025-03-13 |

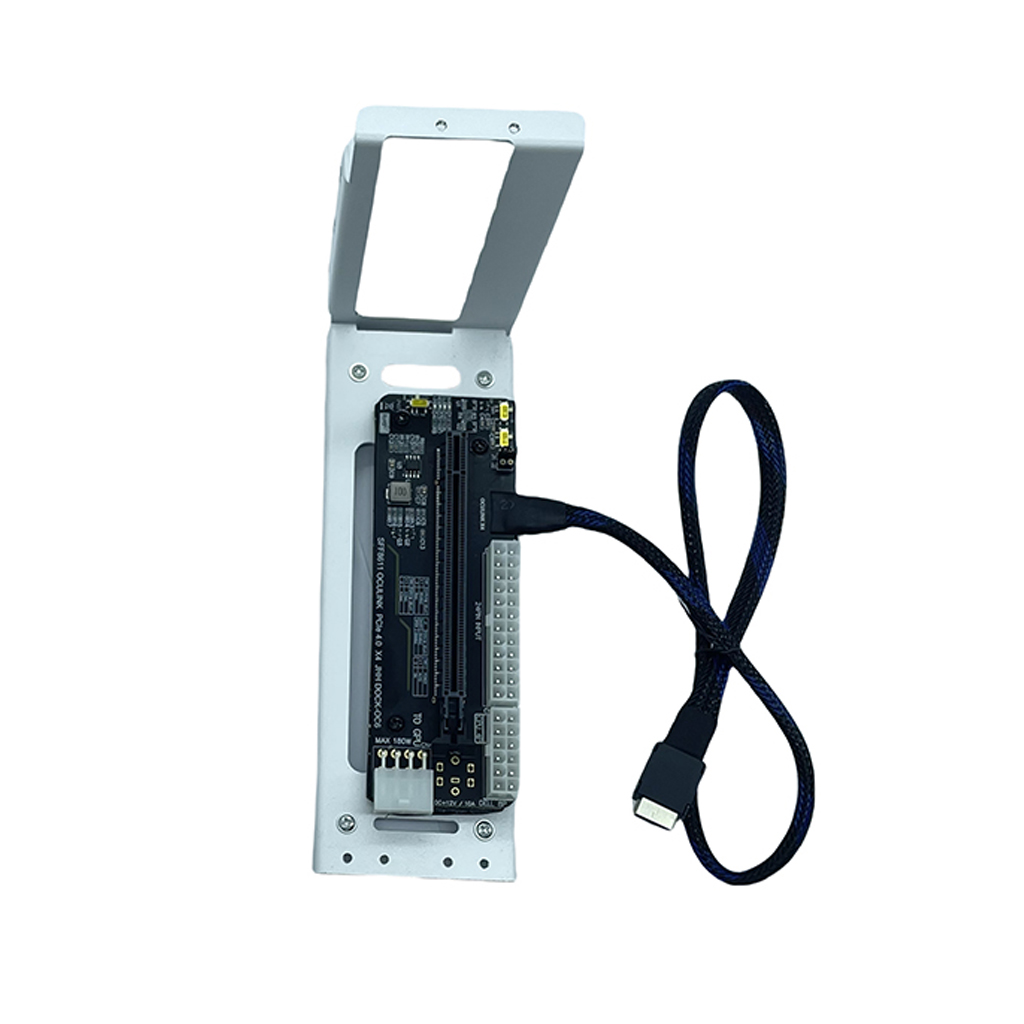

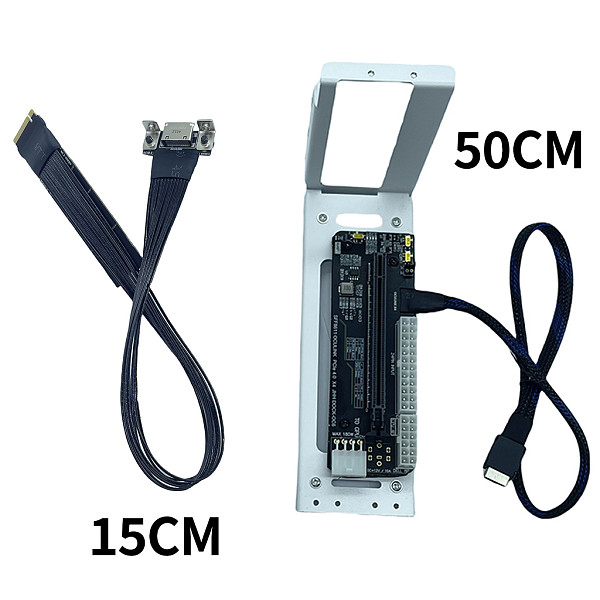

Oculink external graphics dock PCIE 4.0X4 GDP handheld laptop M.2 external expansion dock 8611 line direct connection -50cm/80CM direct connection adapter board DOCK-OC6+ bracket M.2 to Oculink extension cable
Product Description:
Oculink external expansion device, supporting connection to hosts with Oculink ports or converting M.2 ports to Oculink ports via the M2OC1B adapter cable.
Supports small hosts, GDP handheld game consoles, and laptop expansion for external PCIE cards. Please use the Oculink port or convert the M.2 socket inside
the device to an Oculink port using the M2OC1B adapter cable.
Supports external GPU graphics cards, PCIE network cards, PCIE sound cards, PCIE capture cards, NVME/U.2/U.3 solid-state drives, etc.
The maximum bandwidth speed is PCIE 4.0 X4 GEN4, 64G. Backward compatible with GEN3.
Supports ATX/SFX/Small 1U power supplies. The adapter board only requires a 24P power supply insertion, and the graphics card power is provided by the power
supply. The power supply should be 500W or above.
Supports synchronous startup and stop with the host, does not support hot plugging.
The external GPU graphics card can support up to 4090, and the maximum performance can reach 95%.
The metal box limits the length of the graphics card to 24 cm and the thickness to 44 cm.
This box does not support an internal power supply.

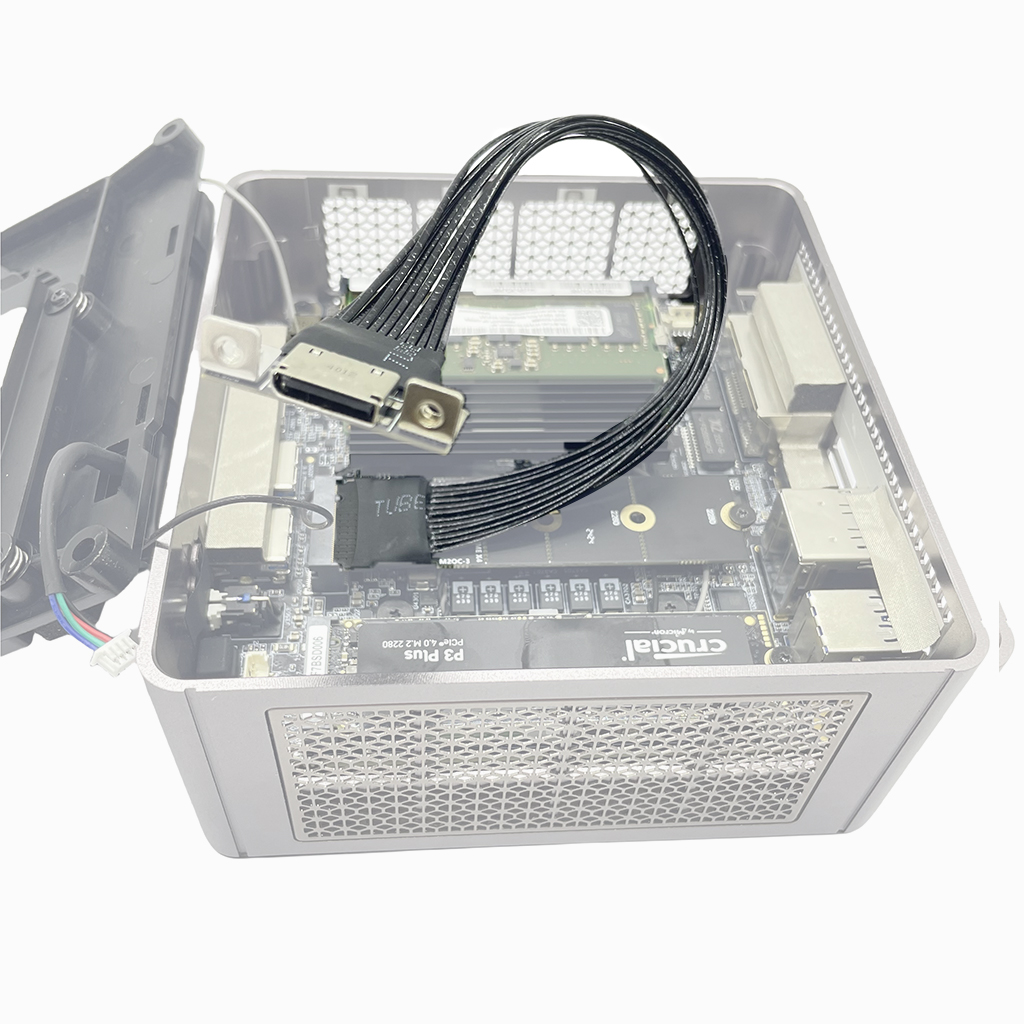

You can purchase the M2OC1B adapter cable or the TKM1/TKM7 adapter card to switch the M.2 socket to the Oculink port.
After connecting the cables and power supply, the external device automatically starts when the host is turned on. The adapter board lights up two green
lights. After entering the system, first check whether "Device Manager" recognizes the "new display device". Please wait for 5 minutes. The system will
usually automatically connect and update the driver. If it is not recognized, please try restarting the host first. If the host has its own discrete
graphics card, please "disable" it in "Device Manager". If there are issues such as "Error Code 43" or other problems during the installation of the
GPU driver, please take some installation pictures or videos and contact our customer service.
Email：yxy@xt-xinte.com
Wechat:15012645226
