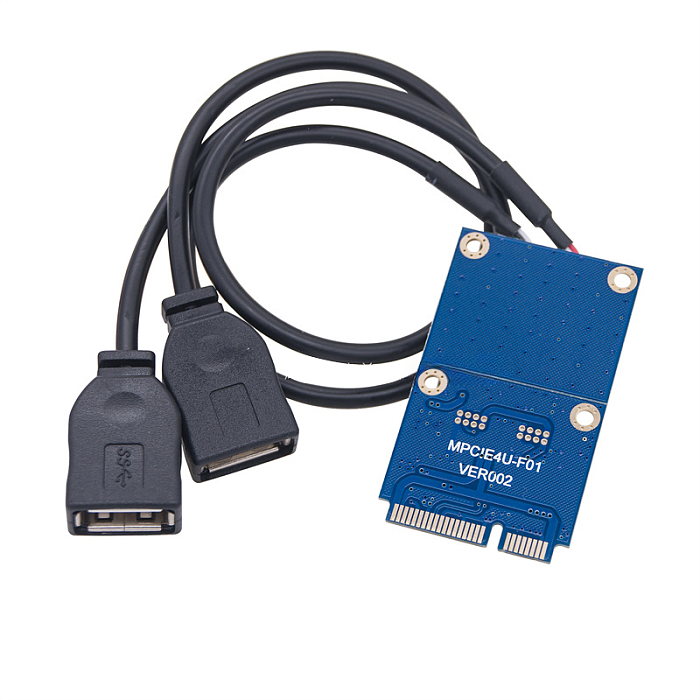

Mini PCI Express to Dual USB Adapter Card mPCIe to 5 Pin 2 Port USB2.0 Converter for Full/Half Height Mini PCI-E Expansion Card
-
Detail
- Product Name: Mini PCI Express to Dual USB Adapter Card mPCIe to 5 Pin 2 Port USB2.0 Converter for Full/Half Height Mini PCI-E Expansion Card
- Item NO.: F52693
- Weight: 2024 kg = 4462.1562 lb = 71394.4990 oz
- Volume: 1 CBM
- Category: Computer Accessories
- Brand: XT-XINTE
- Creation Time: 2024-07-24
Mini PCI Express to Dual USB Adapter Card mPCIe to 5 Pin 2 Port USB2.0 Converter for Full/Half Height Mini PCI-E Expansion Card

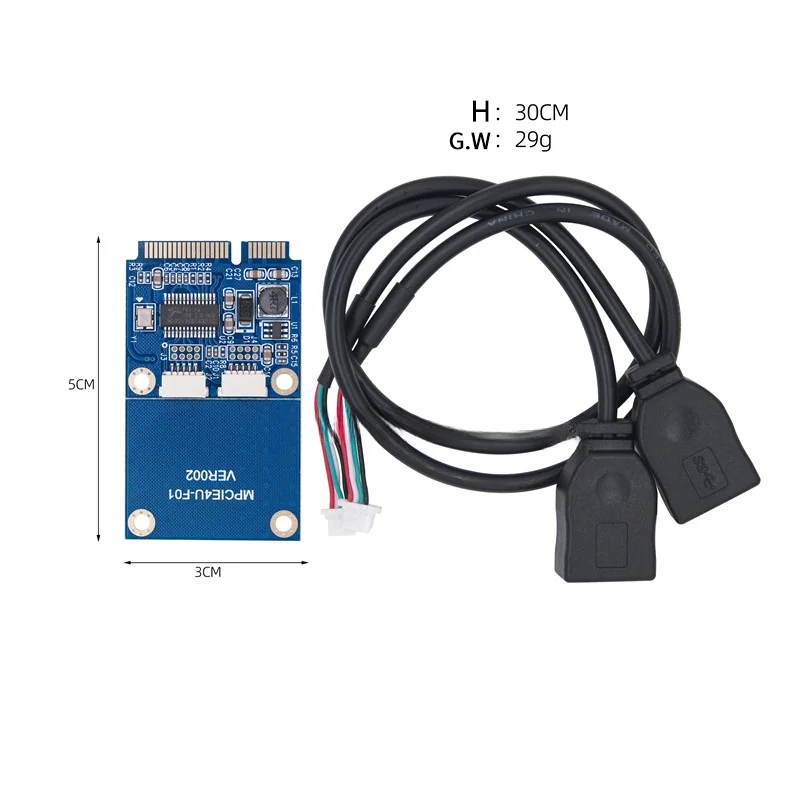

Product Parameter: Product Name: MINIPCI-E to Dual Port USB2.0
Product name: MINIPCI-E to dual-port USB2.0
Interface:5PIN1.0mm,2xUSB cable
Interface:MINI PCI-E
Product rate: 480Mbps
Product Master:FE1.1S
Support System:WinXP/2003/VISTA/2008/7/8/10/11 32/64BIT/Linux
Notes:
Notebook's MINIPCI-E standard contains USB2.0 signal and 3.3V power supply.
This product is to lead the USB signal out on the USBHUB chip and boost the
3.3V to 5V/1A to supply the USB device. Look at the working principle above,
because the USB signal is output from the computer, some computer screen
cons this signal or no signal output at all, will cause this card can not be used,
not a card problem. If the inner bridge USB is damaged, you can't use this card either.
You can search for a tutorial to unlock the USB port by brushing the white list,
this product is suitable for users with basic computer skills.
Industrial small motherboard with MINIPCI-E port is also supported.
Product use:
Solve the problem of notebook USB port is not enough,
the mouse's receiver inexplicably lost.
Through the mPCI-E card slot to extend the two USB2.0 interface,
suitable for connecting mini USB devices.
This product is a desktop PCI-E expansion card and requires a
free MINI PCIE slot on the motherboard.
Suitable for motherboards or notebooks with MINI PCIE interface.
Hardware Requirements:
A motherboard or laptop that supports MINI PCI-E.
This product is a MINI PCI-E expansion card, need to have a free MINI PCI-E slot
on the motherboard.PCI slot can not be installed and used, do not plug into the PCI slot.
Must read before buying.
MSATA and Mini PC1-E slots look the same, before ordering, please confirm your
motherboard is MINI PCI-E slot (generally inserted wireless network card).
This product only supports Mini PCIE interface, other interfaces can not be used!
----- above only for MINI PCI-E to USB products.
Because the computer with the MINIPCIE fixing screws have several kinds of screws,
each model matching the size of the screws are not the same, so we are not sure what
size screws your computer with, we are only equipped with commonly used size of the screws,
such as screws are too large or too small to cause the installation does not go down,
you can buy screws from other places for installation, thank you!
