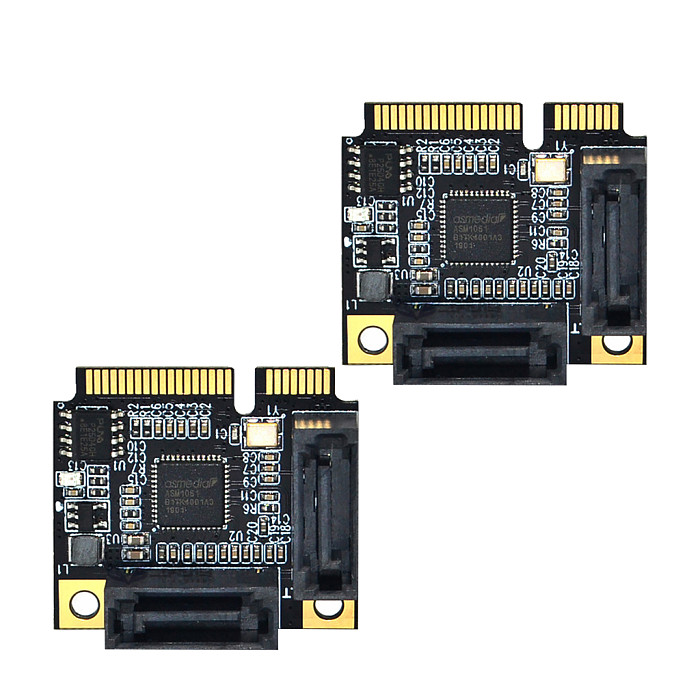

Mini PCI-E to 2Ports SATA 3.0 PCI Express PCIe Converter Hard Drive Extender SATA III Controller Card HUB Multiplier Add On Card

Note:

Computer system with one Mini PCI-Express slot available

The MINI PPC-E interface has the same appearance as the MSATA port, but the signal is different. This product does not support the MSATA slot.

For Lenovo, IBM and other brand notebooks have a whitelist, you may need to flash the whitelisted firmware before use, otherwise the notebook will report an error when using it.

Pay attention to the height, because the interface is upward, it will be very high after plugging in!

The short baffle of the desktop is PCI-E 1X, not MINI PCI-E, please pay attention to the distinction.

Features:
A native PCI-Express single chip design
Supports two SATA 3.0 6Gbps ports
General
Compliant with PCI Express Base Spec. Revision 2.0 backward compatible to Revision 1.0a
Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5Gbps
Compatible with PCI-E Mini Card Electromechanical specification revision 1.2
Serial ATA (SATA) Interface
Compliant with Serial ATA AHCI (Advanced Host Controller Interface) Specification Rev 1.0
Compliant with Bus Master Programming interface for IDE ATA Controllers Revision 1.0
Supports SATA 3.0 transfer rate up to 6Gbps
Backward compatible with SATA-II (3Gbps) and SATA-I (1.5Gbps) specification
Supports Gen1m and Gen2m SATA PHY
Supports Native Command Queue (NCQ) and Port Multiplier
Supports Hot Plugging on SATA port.


System requirements:
Computer system with one Mini PCI-Express slot available
for Windows/2003/VISTA/2008/7/8/10/11 32/64BIT/Linux

Specifications:
Size: about 30 x 26 x 1mm
Net weight: 10g
Product port: 2 x SATA 3.0
Applicable slot: Mini PCI-E
Note:It does not support RAID mode.

Package included:

1 x Mini PCI-Express to 2-port SATA Expansion Card
