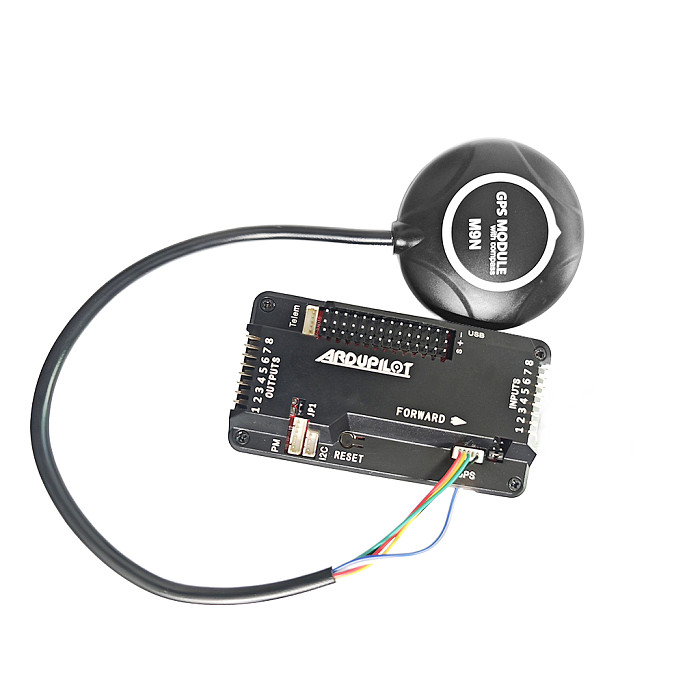

M9N GPS With HMC5883L Compass M10 Support GPS L1 C/A GLONASS L10F BeiDou B1l For Pixhawk PX4 APM 2.8 RC Quadcopter

M9N GPS With HMC5883L Compass M10 Support GPS L1 C/A GLONASS L10F BeiDou B1l For Pixhawk PX4 APM 2.8 RC Quadcopter Item NO.: F53375-D1 F53375-D2

US$ 14.92 ~ US$ 16.58
Quantity 0-3 4-50 51-100
Discount 0% OFF 5% OFF 10% OFF
Price US$ 16.58 US$ 15.75 US$ 14.92
Style
M9N GPS M10 GPS
Quantity
Estimate Shipping Cost
Add to Cart

Adding to cart succeed

0 item(s) in cart, Subtotal: US$ 0

Continue Shopping View My Cart

Copy and share this link on social network or send it to your friends

Copy
Product Name M9N GPS With HMC5883L Compass M10 Support GPS L1 C/A GLONASS L10F BeiDou B1l For Pixhawk PX4 APM 2.8 RC Quadcopter
Item NO. F53375-D1 F53375-D2
Weight 0.05 kg = 0.1102 lb = 1.7637 oz
Category DIY RC Drone Accessories
Creation Time 2024-11-19

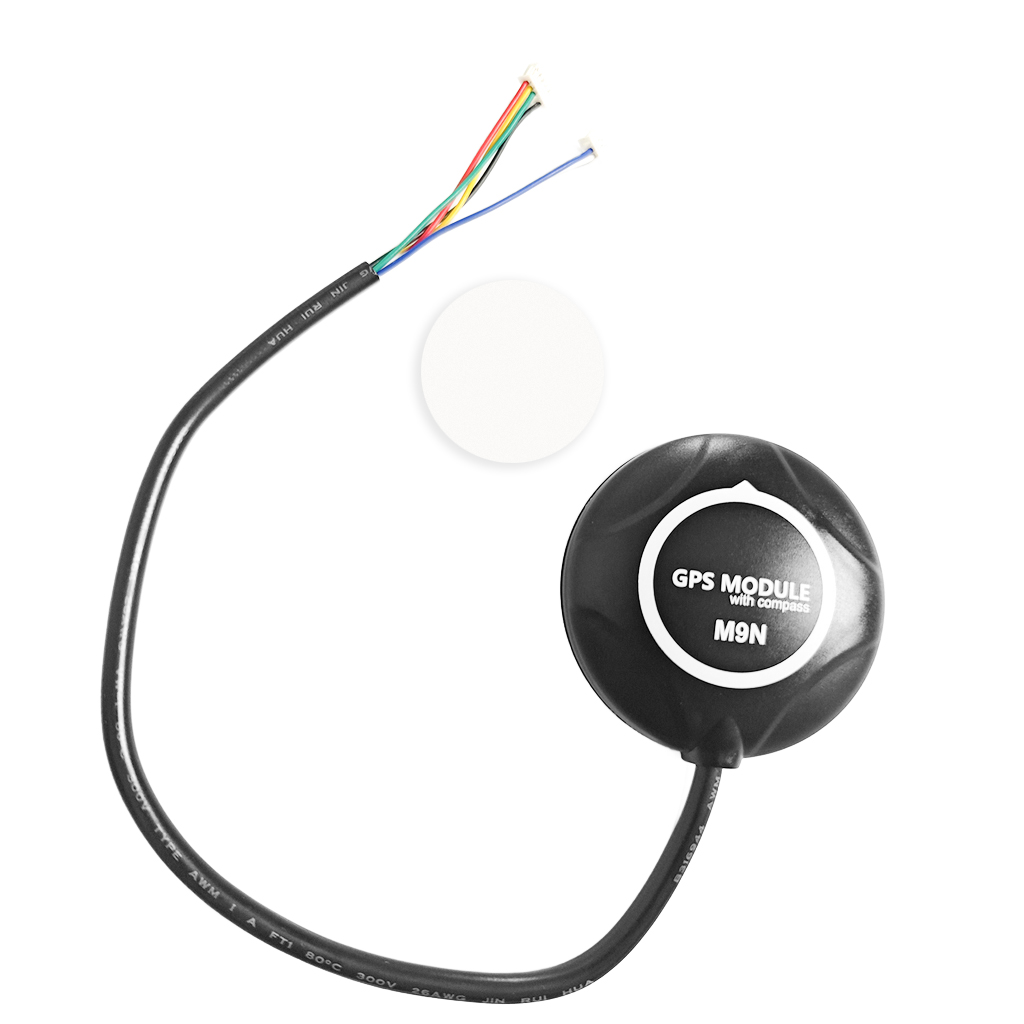

M9N GPS With External HMC5883L Compass M10 Support GPS L1 C/A GLONASS L10F BeiDou B1l For Pixhawk PX4 APM 2.8 RC Quadcopter




Model: M9N

Satellite receiver master: 92-channel M9

Electronic Compass: HMC5883L

Satellite systems: GPS L1 C/A, GLONASS L10F, BeiDou B1l, Galileo E1B/C, QZSSL1 C/A/S, SBAS L1 C/A

Number of satellite concurrency: 4

Maximum navigation update rate: 25Hz

Maximum number of navigation satellites: 32

Positioning accuracy (ideal environment): 1.5m CEP

Start-up speed ((ideal environment): 24s for cold start and 1s for hot start

Sensitivity: Track & Navigate: -167dBm Recapture: -160dBm Hot Start: -159dBm Cold Start: -148dBmSerial port baud rate: 4800-921600bps, default 115200bps

Output level: 3.3VTTL level

Output protocols: NMEA, UBX

FLASH: None

Height limit: ≤50000m

Speed limit: ≤500m/s

Acceleration limit: ≤4g

Working voltage: DC 3.6-5.5V, typical 5.0V

Operating current: 80mA@5V

Antenna size: 25x25x4mm


M10 Series GPS Instructions for Use

Model: M10

Satellite receiver master: M10

Satellite system: GPS L1 C/A GLONASSL10F BeiDouB1I/B1C  Galileo E1B/C QZSSL1 C/A/S SBAS L1C/A

Number of satellite concurrency: 3

Maximum navigation update rate: 10Hz

Maximum number of navigation satellites: 32

Positioning accuracy (ideal environment): 1.5m CEP

Start-up speed (ideal environment): 26 seconds for cold start and 1 S for hot start

Sensitivity: Tracking & Navigation: -167dBm Recapture: -160dBm Hot Start: -159dBm Cold Start: -148dBm

Hot start support: With backup battery, support hot start

Serial port baud rate: 4800-921600bps, default 115200bps

Output level: 3.3VTTL level

Output protocols: NMEA, UBX

FLASH: Onboard FLASH, which can be saved after configuration modification and will not be lost when the power is off

Height limit: ≤50000m

Speed limit: ≤500m/s

Acceleration limit: ≤4g

Working voltage: DC 3.6-5.5V, typical 5.0V
