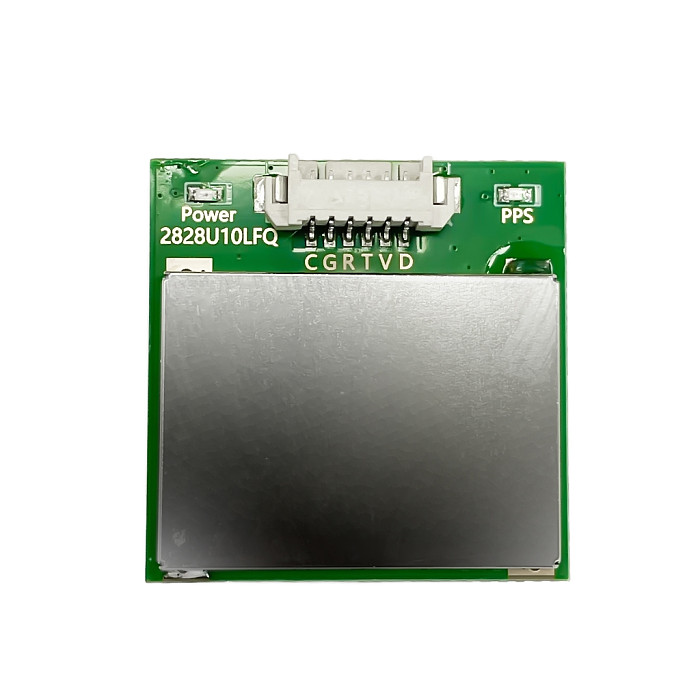

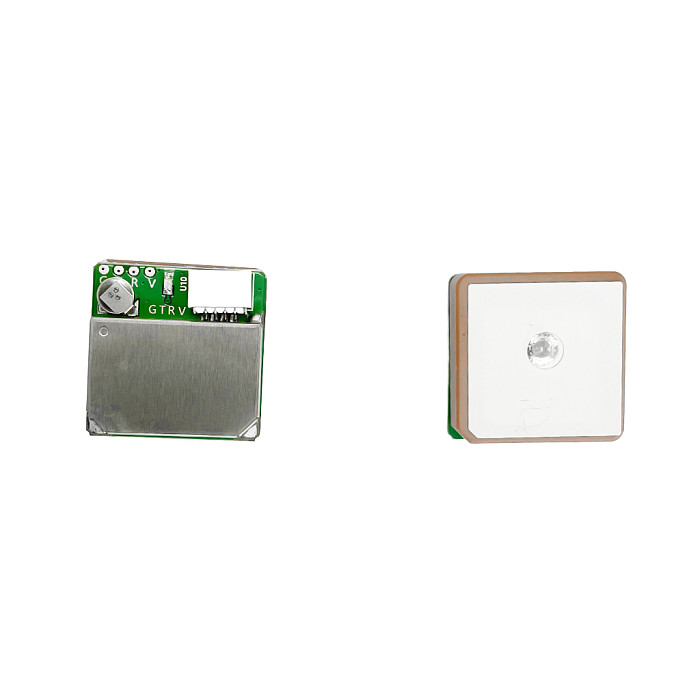

M10G-5883HT18 HT20 HT28 GNSS Module 20mm Size with Compass QMC5883L Module for FPV/Racing Drones/Robotics/Boats

M10G-5883HT18 HT20 HT28 GNSS Module 20mm Size with Compass QMC5883L Module for FPV/Racing Drones/Robotics/Boats Item NO.: F53174-D1 D2 D3 D4

US$ 7.57 ~ US$ 8.41
Quantity 0-3 4-50 51-100
Discount 0% OFF 5% OFF 10% OFF
Price US$ 8.41 US$ 7.99 US$ 7.57
Version
HT18 NO Compass HT20 With Compass HT28 With Compass HT28 NO Compass
Quantity
Estimate Shipping Cost
Add to Cart

Adding to cart succeed

0 item(s) in cart, Subtotal: US$ 0

Continue Shopping View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • M10G-5883HT18 HT20 HT28 GNSS Module 20mm Size with Compass QMC5883L Module for FPV/Racing Drones/Robotics/Boats
Product Name M10G-5883HT18 HT20 HT28 GNSS Module 20mm Size with Compass QMC5883L Module for FPV/Racing Drones/Robotics/Boats
Item NO. F53174-D1 D2 D3 D4
Weight 0.02 kg = 0.0441 lb = 0.7055 oz
Category DIY RC Drone Accessories > Receiver
Creation Time 2024-10-18

M10G-5883HT18 HT20 HT28 GNSS Module 20mm Size with Compass QMC5883L Module for FPV/Racing Drones/Robotics/Boats
There is fours type versions,pls select which one do you want.Thanks a lot.



HT18 NO Compass 18*18*6

HT20 With Compass 20*20*6

HT28 With Compass 28*28*6

HT28 NO Compass 28*28*6



Product specifications

Product model: M10G-5883

Satellite receiver main control: UBLOX-M10050

Geomagnetic sensor: QMC5883L

Satellite systems: GPS L1C/A, GLONASS L10F, BeiDou B1J/B1C, Galileo E1B/C, OZSS L1 C/A/S, SBAS L1 C/A

Number of satellite concurrency: 3

Maximum navigation update rate: 10Hz

Maximum number of navigation satellites: 32

Positioning accuracy (ideal environment): 1.5m CEP

Start-up speed (ideal environment): 26 seconds for cold start and 1 S for hot start

Sensitivity: Track & Navigate: -167dBm Recapture: -160dBm Hot Start: -159dBm Cold Start: -148dBm

Hot start support: With backup battery, support hot start

Serial baud rate: 4800-921600bps, default 38400bps

Output level: 3.3VTTL level

Output protocols: NMEA, UBX

FLASH: Onboard FLASH, which can be saved after configuration modification and will not be lost when the power is off

Height limit: ≤50000m

Speed limit: ≤500m/s

Acceleration limit: ≤4g

Working voltage: DC 3.6-5.5V, typical 5.0V

Operating current: 35mA@5V

Antenna size: 18x18x4mm

Product size: 20x20x8mm

Product weight: 7g

Connector: 1.0mm pitch 6pin socket (SH1.06P)

Operating temperature: -40°C~+85°C

PPS indicator: The blue light is always on when powered on, and flashes after 3D positioning
