M.2-mkey to PCIE X16 NVME-compatible to PCI-E 16x Extension Adapter Cable with M2 Interface for External 1050ti Graphics Cards

Introduction.
The function of this series of products is M.2 to PCIEX16, only support nvme protocol M.2 port, working in PCIE3.0X4 performance state, because M.2 does not come with 12V voltage, so this series of adapter cables need to be connected to 12V power supply, standard SATA to small 4P power supply cable. Support desktop motherboards with M.2 interface to expand the PCIE slot.

Parameters.

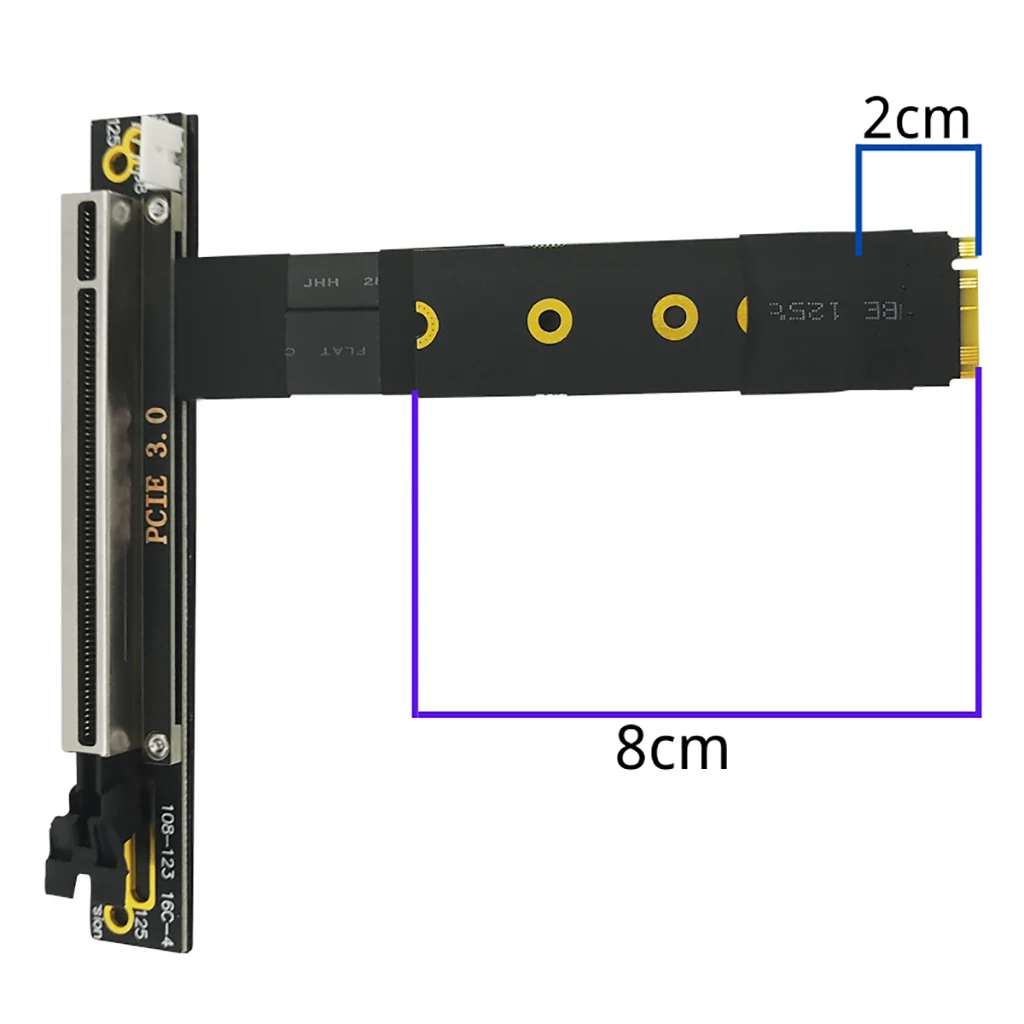

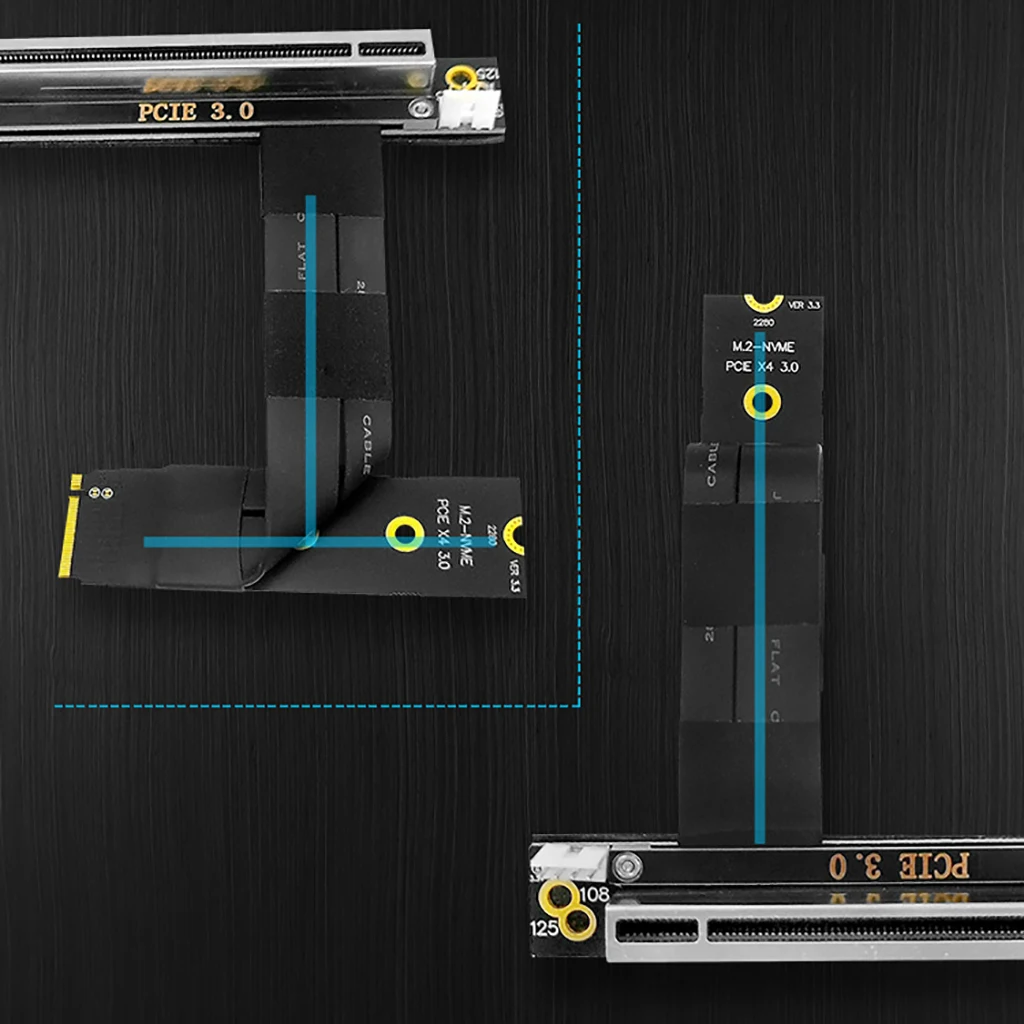

Name: M.2 to PCIE right angle 90/180/270 degrees
Model:

M16AC-90Degree

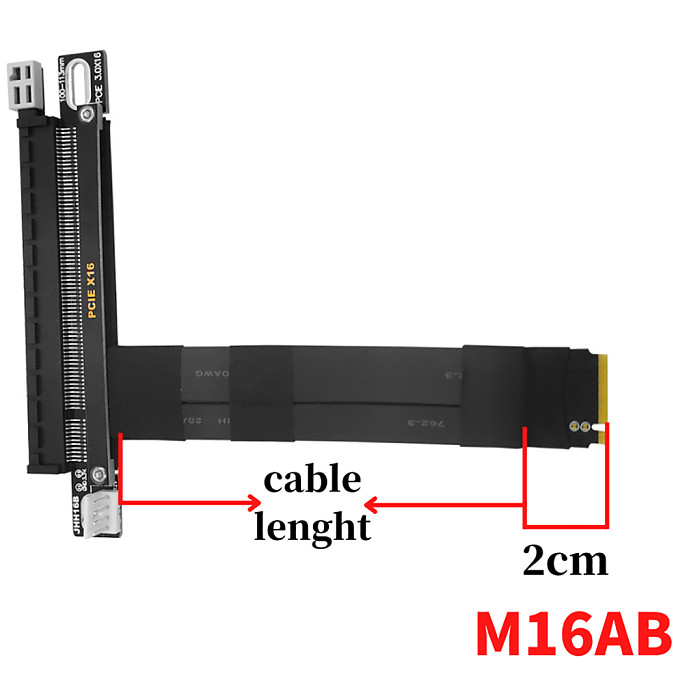

M16AB-180Degre

M16AD-270Degree

Length: 15/20/25cm option

Quantity:1pc

Features

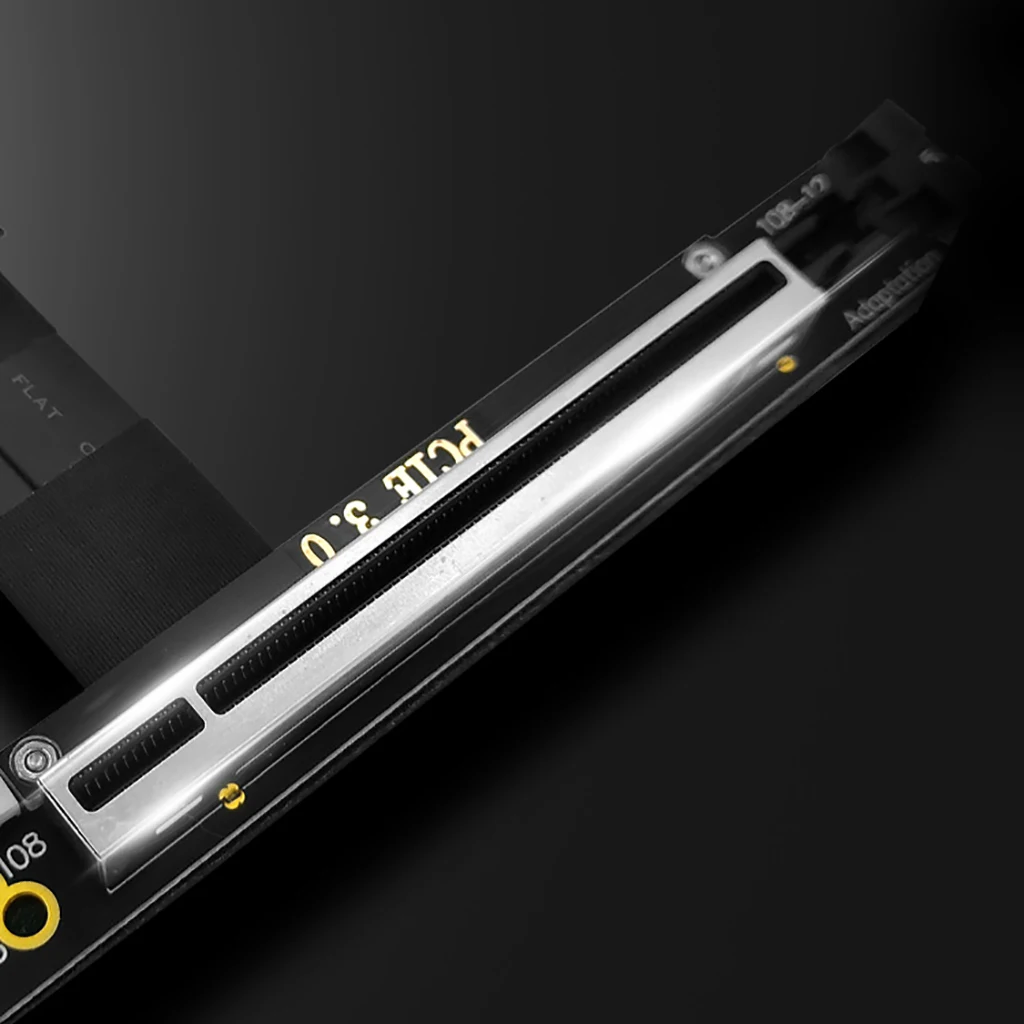

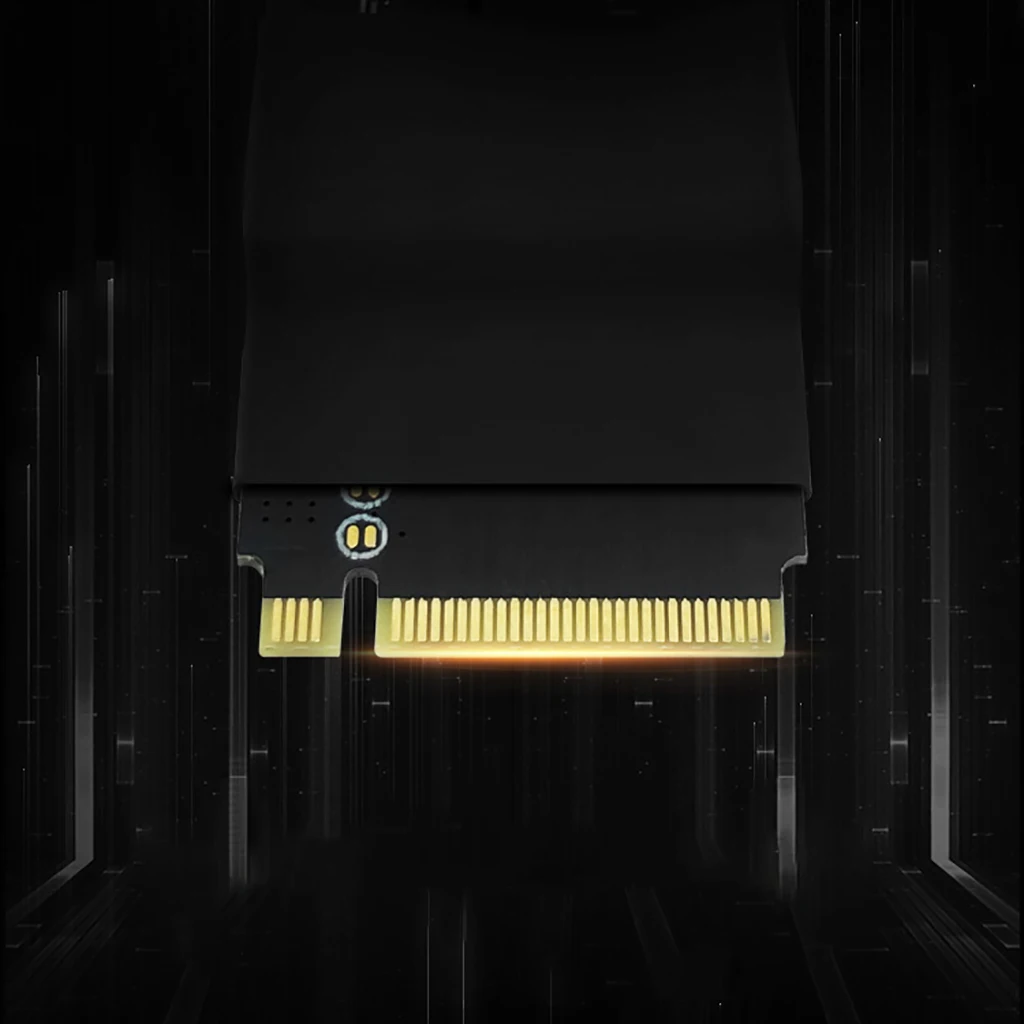

Thickened gold fingers, electroplated sunken gold 5U process, repeated plugging and unplugging is still durable, more stable signal transmission, long time resistant to oxidation.

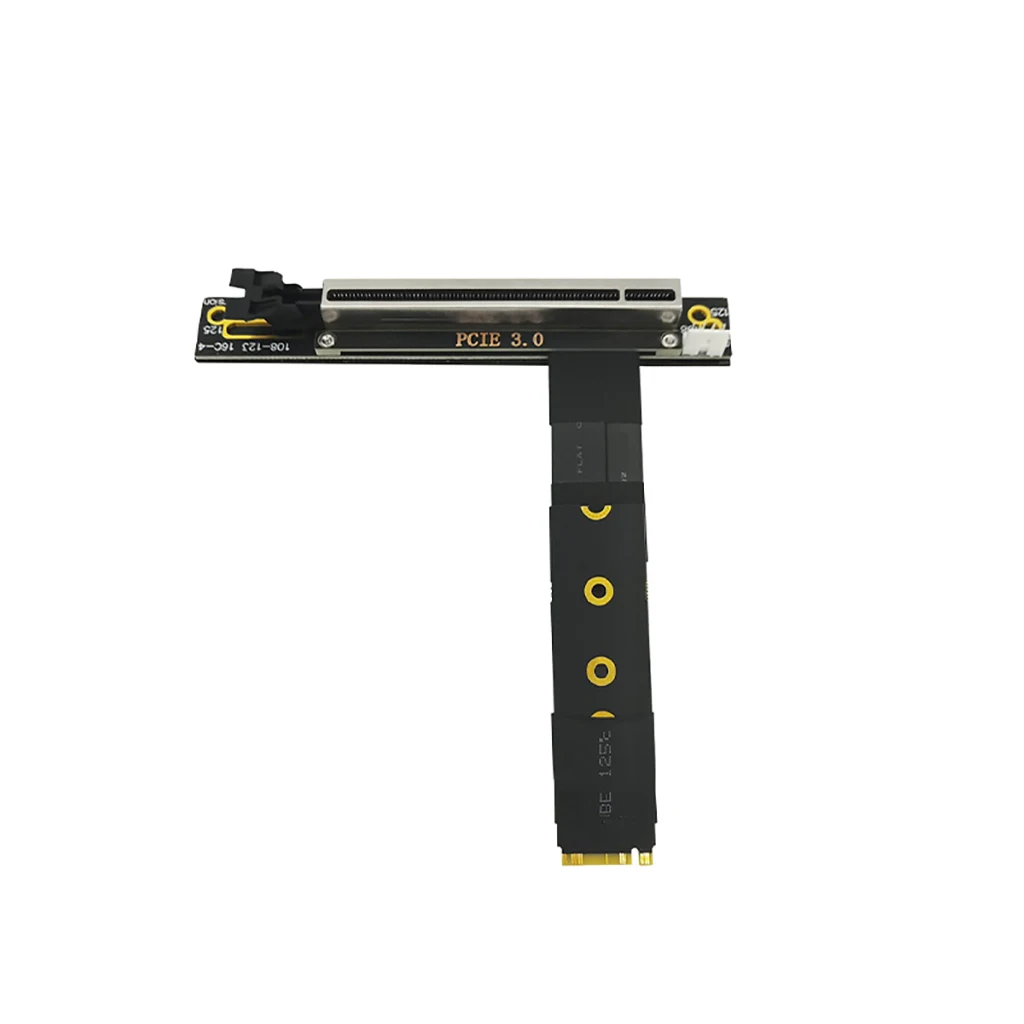

M.2 NVME to PCIE X4 16 adapter cable.
Compatible with graphics cards, capture cards, computing cards, network cards, etc.
Optimized signal transmission to, low impedance, high temperature resistance.
Connector with metal shield, beautiful high-end, improve anti-interference ability.
Adjustable pitch of the fixed hole of the cable, and support various DIY.
Ultra-thin cable, thickness 1.4mm, the third generation of EMI shielding technology, each core independent arrangement.
No fear of interference, no fear of loss, can be bent in any direction.
Stable compatible with N card 10 series, 20 series, professional cards, capture cards, 10 Gigabit network cards, A card 470 or more.
RX5700 must be forced to set to GEN3, not the default automatic non-loss running score.
Second-hand cards, low-end cards, old cards, mining cards and other compatible probability is 70%.
