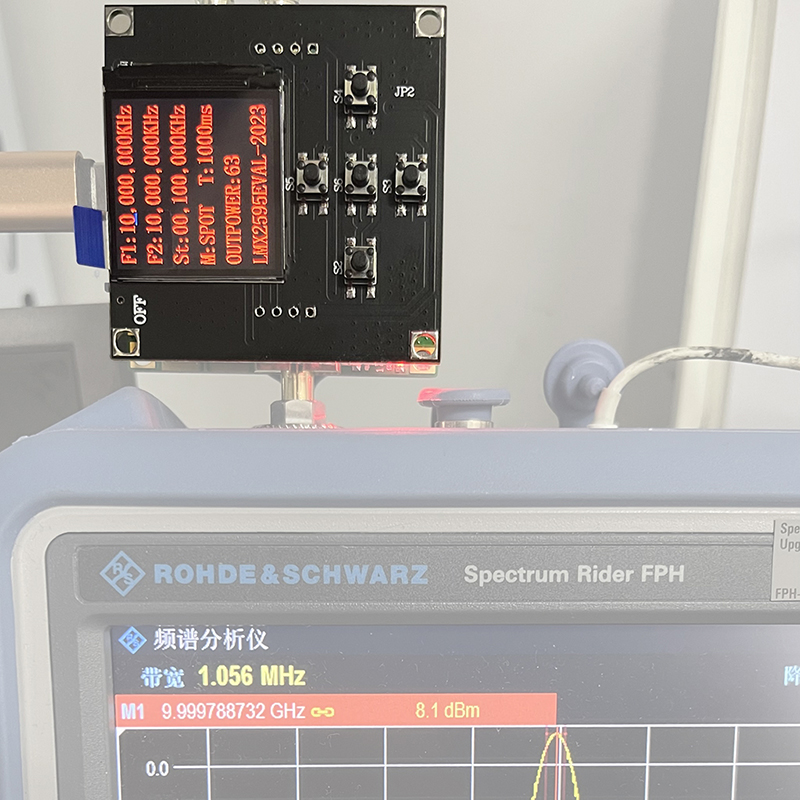

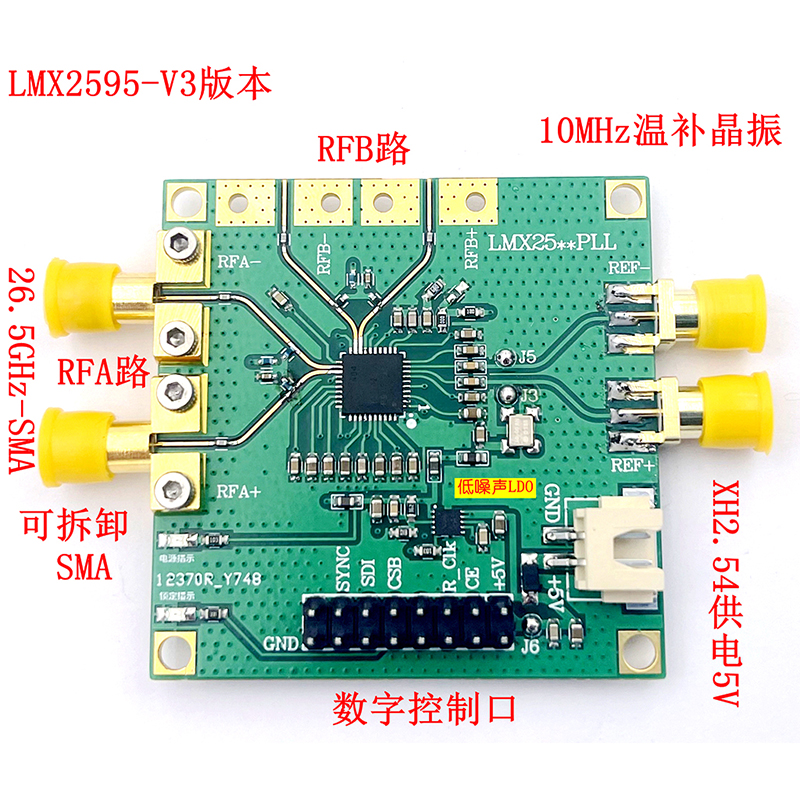

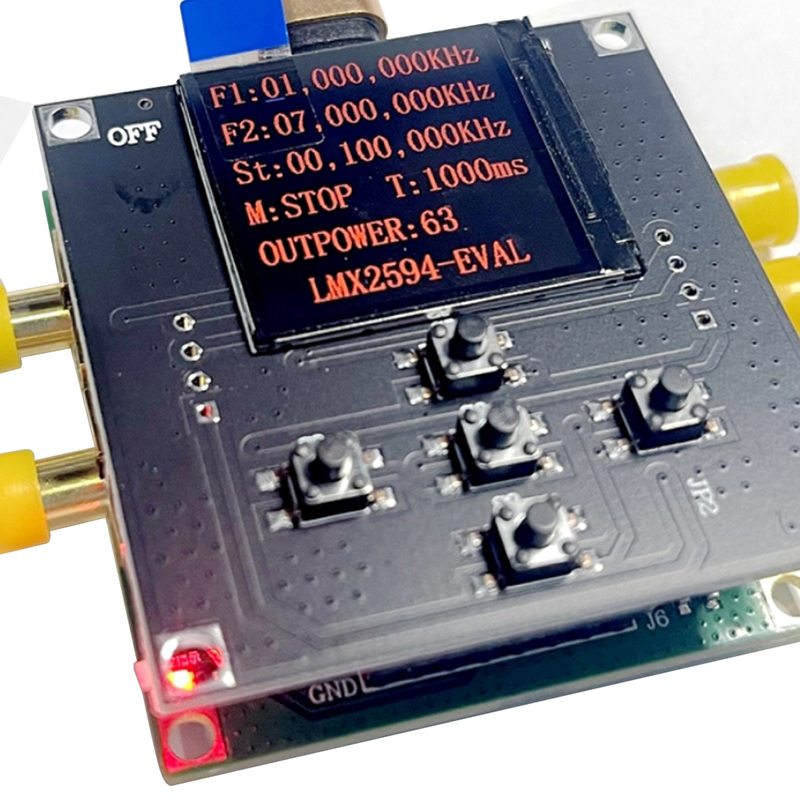

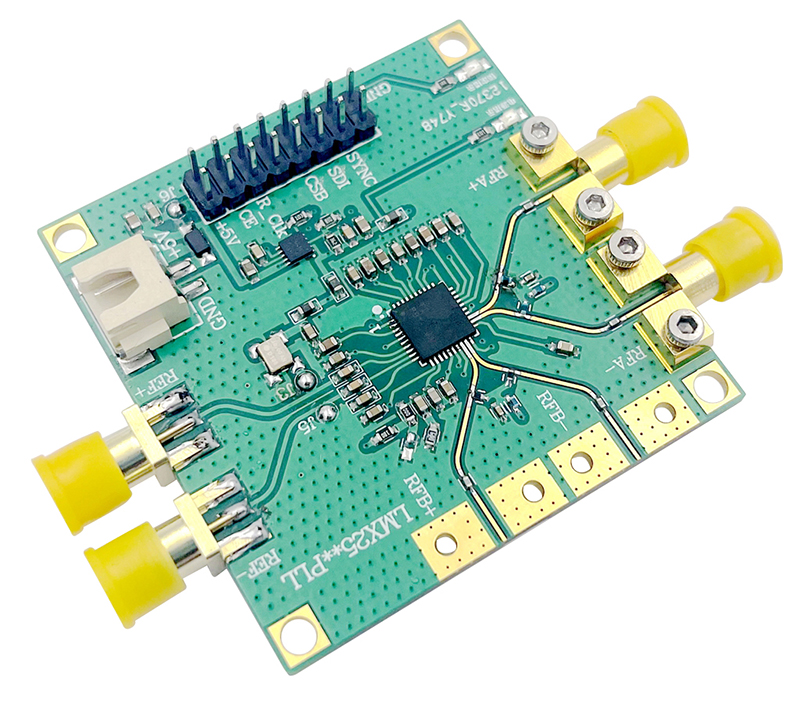

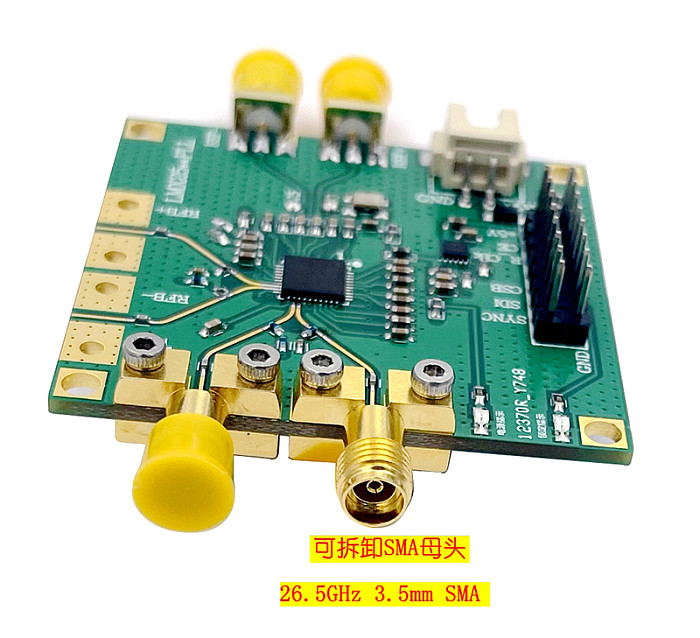

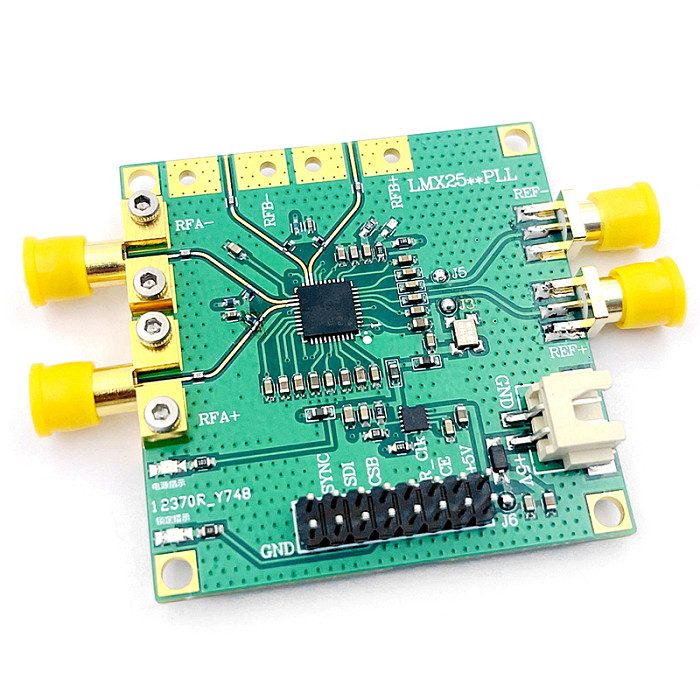

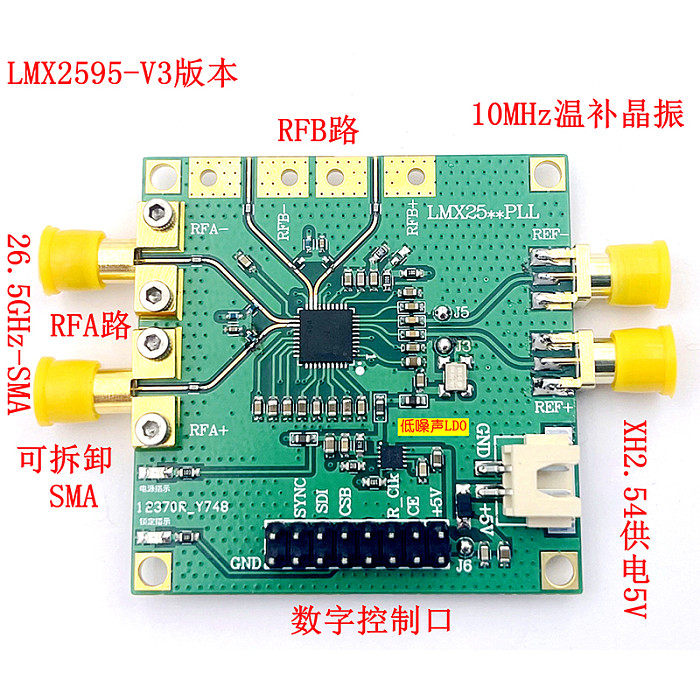

LMX2595 Phase-locked Loop Development Board 10M-19GHZ Support Swept Frequency TYPE-C Power Supply High Frequency SMA Connector
-
Detail
- Product Name: LMX2595 Phase-locked Loop Development Board 10M-19GHZ Support Swept Frequency TYPE-C Power Supply High Frequency SMA Connector
- Item NO.: F54860 F54861
- Weight: 0.04 kg = 0.0882 lb = 1.4110 oz
- Category: Industrial Technology
- Brand: XT-XINTE
- Creation Time: 2025-11-26
- LMX2595 Phase-locked Loop Development Board 10M-19GHZ Support Swept Frequency TYPE-C Power Supply High Frequency SMA Connector
LMX2595 Phase-locked Loop Development Board 10M-19GHZ Support Swept Frequency TYPE-C Power Supply High Frequency SMA Connector
1. LMX2595 chip characteristics:
• 10MHz to 19GHz output frequency.
• Phase noise of -110dBc/Hz with 100KHz offset and 15GHz carrier.
• 45fs RMS jitter (100Hz to 100MHz) at 7.5GHz.
• Programmable output power.
• Key PLL specifications.
-Quality factor:-236dBc/Hz.
-Nominal 1/f noise:-129dBc/Hz.
-Highest phase detector frequency.
-400MHz integer mode.
-300MHz fractional mode.
-32-bit fractional-N divider.
• Eliminate integer boundary spurs with programmable input multipliers.
• Output phase synchronization across multiple devices.
• Supports SYSREF with 9ps resolution programmable delay.
• FMCW frequency ramp and chirp capability applications.
• Less than 20µs VCO calibration speed.
• 3.3V single supply operation.
2. LMX2595 chip application:
5G and mmWave wireless infrastructure.
• Test and measurement equipment.
• Radar.
• MIMO.
• Phased array antennas and beam forming.
• High-speed data converter clock (JESD204B supported).
