Jumper R1 Receiver 16CH Sbus RX Compatible Frsky D16 Mode Radio Remote Controller

Jumper R1 Receiver 16CH Sbus RX Compatible Frsky D16 Mode Radio Remote Controller Item NO.: F27391

Write a Review
US$ 12.74
US$ 14.99 Save US$ 2.25 (15% Off)
Sold Out

Copy and share this link on social network or send it to your friends

Copy
  • Jumper R1 Receiver 16CH Sbus RX Compatible Frsky D16 Mode Radio Remote Controller
Product Name Jumper R1 Receiver 16CH Sbus RX Compatible Frsky D16 Mode Radio Remote Controller
Item NO. F27391
Weight 0.03 kg = 0.0661 lb = 1.0582 oz
Category DIY RC Drone Accessories > Receiver
Brand Jumper
Creation Time 2019-01-23

Jumper R1 Receiver 16CH Sbus RX Compatible Frsky D16 Mode Radio Remote Controller

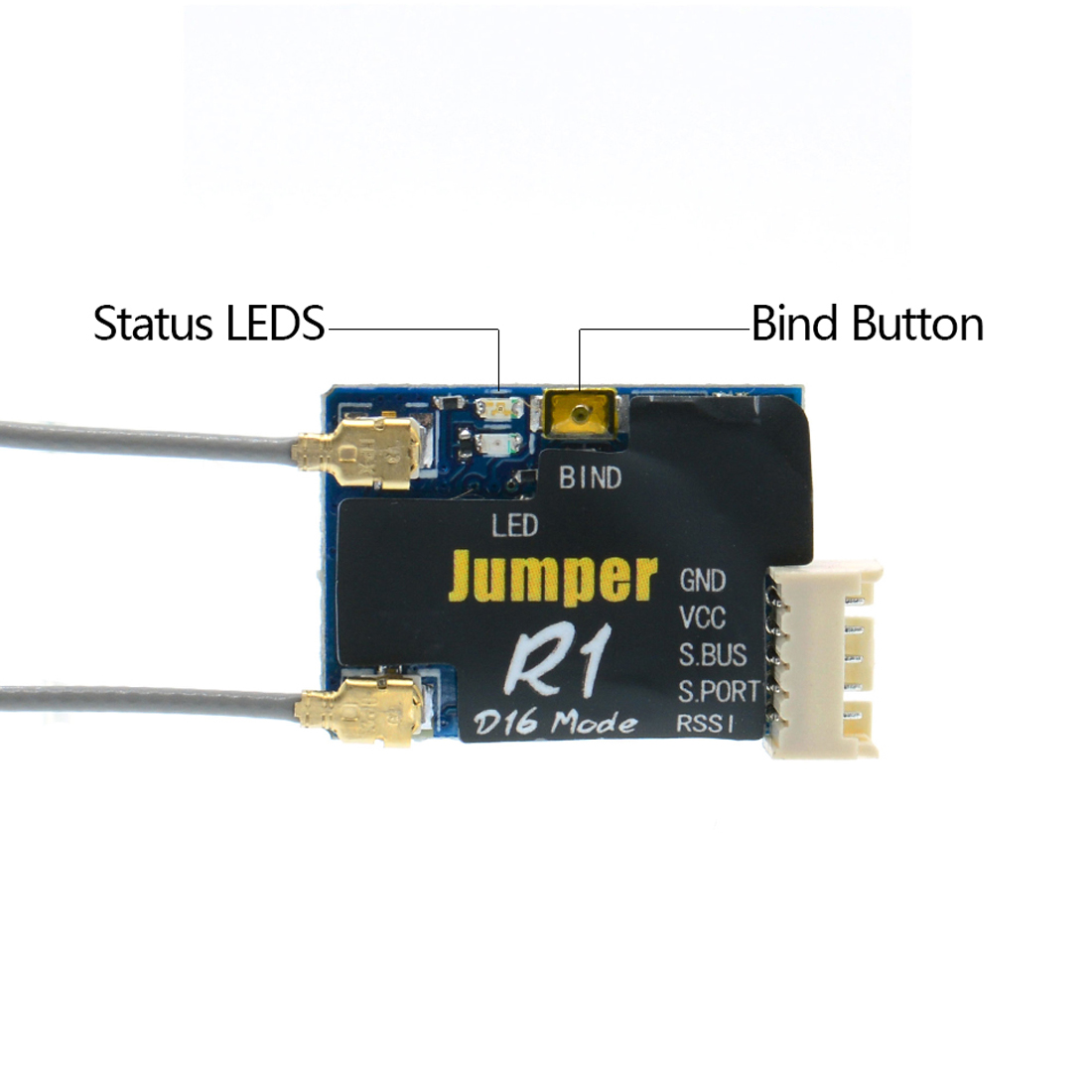

The Jumper R1 D16 receiver is compatible with all devices using the Frisky D16 mode, with integrated redundancy, telemetry and smart port enable, and the IPEX connector makes it easier to replace the antenna.
Technical Parameters:
Number of channels: 16ch (SBUS)
RSSI (Signal Strength Indication) output: 0-3.3v
Data return: S.port
Operating voltage range: 4.0~6V
Operating current range: 80mA@5V
Effective distance: full distance (>1.5km)
Compatibility: D16 mode FrSky Taranis D16 Mode
Volume: 20*15*4mm (without antenna)
Weight: <2g

Bind mode:
Press and hold the receiver's frequency button, turn on the power, the red and green lights are always on, and the receiver enters the frequency mode. The remote control turns on the frequency.
The receiver is successfully paired and the green light flashes slowly. The remote control exits the frequency, the receiver is powered back on, and the green light is on. When the receiver loses its signal, the red light is on.
