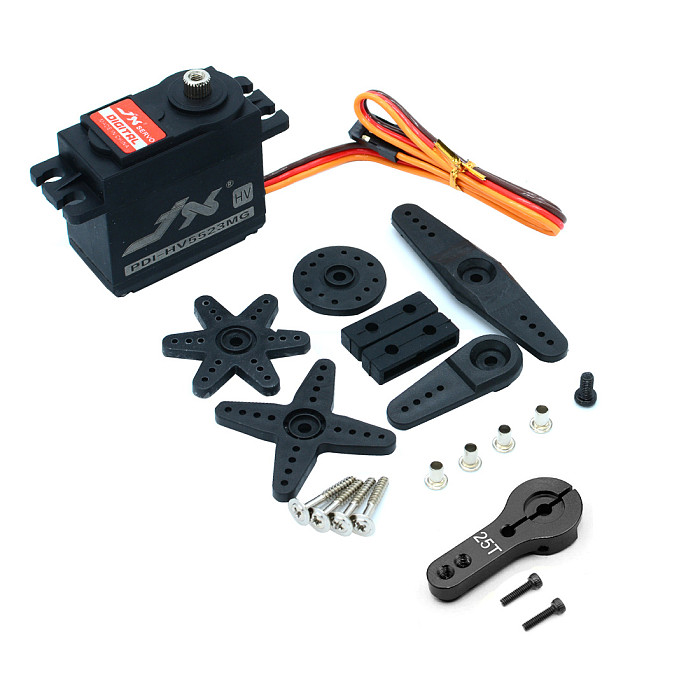

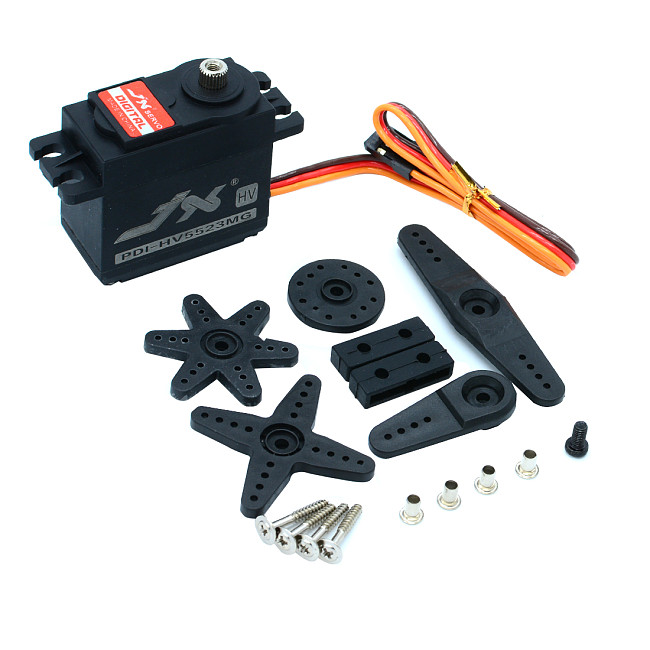

JX Servo PDI-HV5523MG 23KG High Torque Metal Gear Digital Servo High Pressure Standard Steering Gear + Steering Arm

JX Servo PDI-HV5523MG 23KG High Torque Metal Gear Digital Servo High Pressure Standard Steering Gear + Steering Arm Item NO.: F29329/F29329-A/F29329-B

Write a Review
US$ 8.36
US$ 9.84 Save US$ 1.48 (15% Off)
Version
1pc Servo 1pc Servo + Black Arm 1pc Servo + Red Arm
Quantity

Copy and share this link on social network or send it to your friends

Copy
  • High Performance 23KG High Torque High Voltage Digital Servo
  • High Precision Gear
  • High Quality Brush Motor
  • Double Ball Bearing
  • Maximum Angle: 120°
Product Name JX Servo PDI-HV5523MG 23KG High Torque Metal Gear Digital Servo High Pressure Standard Steering Gear + Steering Arm
Item NO. F29329/F29329-A/F29329-B
Weight 0.088 kg = 0.1940 lb = 3.1041 oz
Category DIY RC Drone Accessories
Brand JX
Creation Time 2019-06-14

JX Servo PDI-HV5523MG 23KG High Torque Metal Gear Digital Servo High Pressure Standard Steering Gear + Steering Arm

Features:
-- High performance 23KG high torque high voltage digital servo
-- High precision gear
-- High quality brush motor
-- Double ball bearing

SPECIFICATIONS:
Maximum angle: 120°
Motor: iron core
Operating Speed (6.0V): 0.18sec/60°
Operating Speed (8.4V): 0.16 sec/60°
Stall Torque (6.0V): 19.2 kg.cm
Stall Torque (8.4V):  23 kg.cm
Dimensions: 40.5X20.2X38mm
Weight:  55.6 g
Connector Wire Length: JR  265 mm

Bearing: 2BB
