JX Servo PDI-HV2546MG 25g Metal Gear Digital High Voltage Tail Servo 180° for RC 450 500 Helicopter Fixed-Wing Airplane Parts
-
Detail
- Product Name: JX Servo PDI-HV2546MG 25g Metal Gear Digital High Voltage Tail Servo 180° for RC 450 500 Helicopter Fixed-Wing Airplane Parts
- Item NO.: F42642
- Weight: 0.073 kg = 0.1609 lb = 2.5750 oz
- Category: DIY RC Drone Accessories
- Brand: JX
- Creation Time: 2020-12-27
JX Servo PDI-HV2546MG 25g Metal Gear Digital High Voltage Tail Servo 180° for RC 450 500 Helicopter Fixed-Wing Airplane Parts
Product description
Model Number : JX PDI-HV2546MG 25g
Material : Metal
RC Parts & Accs : Servos
For Vehicle Type : Helicopters
Tool Supplies : Assembly Category
Technical parameters : Value 2
Four-wheel Drive Attributes : Assemblage
Use : Vehicles & Remote Control Toys
Upgrade Parts/Accessories : Tail Servo
Remote Control Peripherals/Devices : Tail Servo
JX PDI-HV2546MG 25g Metal Gear Digital High Voltage Tail Servo for RC 450 500 Helicopter Fixed-wing Airplane Parts
This is high performance programmable digital high voltage coreless Gyro servo, suitable for DOMAN 450 500 helicopter fixed-wing airplane. Small size and light weight is conducive to the flight of RC models. Besides, its high quality dual ball bearing, large torque and Taiwan-made aluminium gears are perfect for your RC models.
Features:
Dual ball bearings
Small size and light weight
Large stall torgue of 6.6Kg/cm
High performance programmable digital high voltage coreless gyro servo
High-precision Taiwan-made aluminium gears with hard anodizing
Suitable for DOMAN 450 500 helicopter fixed-wing airplane
Specifications:
Brand: JX
Model: PDI-HV2546MG
Dead band: 1?s
Working frequence: 1520?s / 330Hz
Operating voltage: DC4.8~6.0 V
Motor: coreless motor
Operating speed (6V): 0.12sec/60°
Operating speed (7.4V): 0.10 sec/60°
Stall torque (6V): 5.3 kg.cm
Stall torque (7.4V): 6.6kg.cm
Bearing: 2BB
Weight: 26.32g
Package information:
Package size: 6 * 6 * 3.3cm / 2.4 * 2.4 * 1.3in
Package weight: 50g / 1.8oz
Brand gift box package

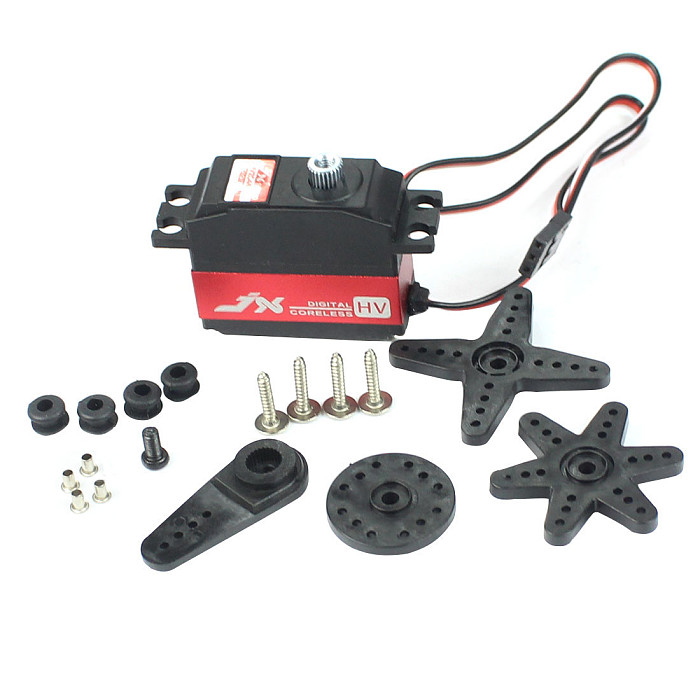

Package list:
1 * JX PDI-HV2546MG 25g Metal Gear Digital High Voltage Coreless Gyro Servo
1 * Spare Parts Set
